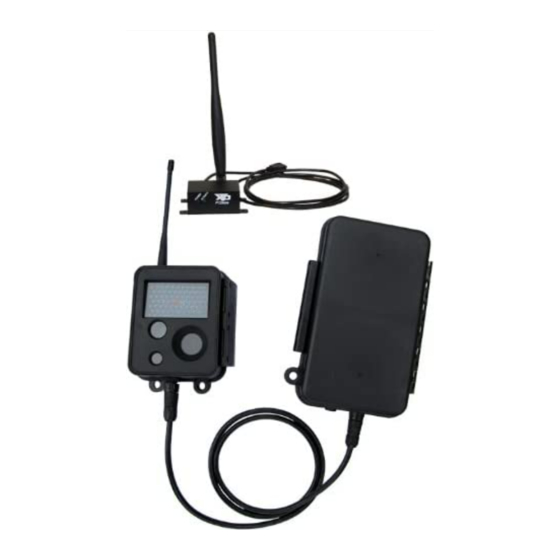

BuckEye Cam X80 Echo User Manual
  1. Manuals
  2. Brands
  3. BuckEye Cam Manuals
  4. Security Sensors
  5. X80
  6. User manual

BuckEye Cam X80 Echo User Manual

Hide thumbs Also See for X80 Echo:
Table of Contents

Advertisement

Quick Links

Download this manual
X80 Echo
User's Manual
Version 1.2
www.buckeyecam.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X80 Echo and is the answer not in the manual?

Questions and answers

Related Manuals for BuckEye Cam X80 Echo

Summary of Contents for BuckEye Cam X80 Echo

  • Page 1 X80 Echo User's Manual Version 1.2 www.buckeyecam.com...

  • Page 2: Table Of Contents

    4. Getting Started............................6 5. Echo Control Panel............................. 8 6. Motion Sensor Settings..........................9 7. Display and Pushbuttons.......................... 10 8. Setting up a Repeater..........................11 9. Connecting to an External Sensor......................13 10. Warranty and Service..........................15 X80 Echo User's Manual v1.2...

  • Page 3: Warnings

    20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance are not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter. X80 Echo User's Manual v1.2...

  • Page 4: Overview

    X-Series Network Manager. User's manuals and video tutorials may be found at www.buckeyecam.com/site/support.html. The X80 Echo combines a passive infrared motion detector (PIR), a contact closure input, and an RF repeater in a single device. When added to an X80 wireless network, it can be used for any of...

  • Page 5: Specifications

    3. Specifications 3. Specifications The X80 Echo and battery pack are housed in watertight, weatherproof enclosures for reliable outdoor operation. The standard color is matte black. Optional camo finishes are available in both woodland and desert patterns. A bracket and spring buckle strap attach to the back of the enclosures to allow for easy mounting.
  • Page 6 Transmission range will depend on the type of antennas that are used, the surrounding terrain and the amount of interference received. Batteries are sold separately Average supply current will vary depending on level of activity, signal strength, etc.. X80 Echo User's Manual v1.2...

  • Page 7: Getting Started

    Connect the red wire to the (+) battery terminal and the black wire to the (-) . Note: If you are not using the battery pack, you may skip to step 5. Connect to the battery pack to the X80 Echo. Using the supplied cable, connect the battery pack to the Echo.
  • Page 8 Click here Click Done when finished. Click on Echo. Drag and drop. Repeat steps 1–6 for all of the Echos that you have. Click Done when finished. X80 Echo User's Manual v1.2...

  • Page 9: Echo Control Panel

    Date and time of last six triggers Check battery and signal level Manually trigger the Echo Temporarily disable motion sensor Force motion sensor to enable Change the Echo settings X80 Echo User's Manual v1.2...

  • Page 10: Motion Sensor Settings

    If the settings are changed, a red “Update” button will appear in the top right corner of the window. Click this button to send the new settings to the Echo. Click to send new settings. X80 Echo User's Manual v1.2...

  • Page 11: Display And Pushbuttons

    The last message shows how the Echo is routed. The default is “Base”. Routed to Base This indicates that the Echo will be transmitting directly to the base. … OK If you need to change the routing see “Setting up a Repeater”. NEXT CHANGE ENTER HOME X80 Echo User's Manual v1.2...

  • Page 12: Setting Up A Repeater

    NEXT CHANGE ENTER Now the camera will try to contact the base through the node that you Routed to Node3 have selected. If it is successful, the display will show “...OK”. … OK NEXT CHANGE ENTER HOME X80 Echo User's Manual v1.2...
  • Page 13 3. Camera 1 is routed directly to the base. Click here Camera2 routed through Echo3 Click here Camera 2 routed through Echo 3 NOTE: When using the repeater function, the 12V external battery pack is required for the Echo (see “Specifications). X80 Echo User's Manual v1.2...

  • Page 14: Connecting To An External Sensor

    The “Echo to External Sensor Connector Kit” (sold separately) is required to connect to an external sensor. This kit includes a 9 foot cable with an X80 Echo connector on one end, and open wires on the other end. The kit also includes an extra X80 connector. The wiring is shown below:...
  • Page 15 If it is enabled, the Echo will trigger the camera when either the External trigger input or the motion sensor is active. If you do not want to use the Echo motion sensor, it may be set to “off”. X80 Echo User's Manual v1.2...

  • Page 16: Warranty And Service

    10. Warranty and Service 10. Warranty and Service For service or repair, contact ATSI/Buckeye Cam at: ATSI 8157 US Hwy 50 • Athens, OH 45701 (866) 325-8172 • (740) 592-2874 Fax (740) 594-2875 www.buckeyecam.com Athens Technical Specialists, Inc. (ATSI) warrants Products (BuckEye CamTM ) sold by it and guarantees to correct,...
