EZPull TRPUL-105 Setup Manual

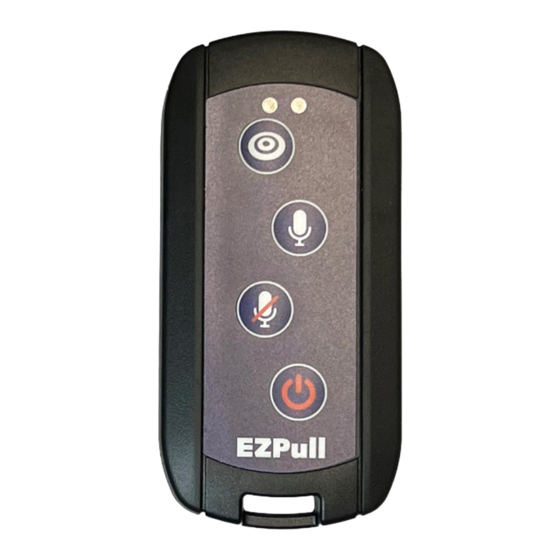

EZPull TRPUL-105 is waterproof wireless puller's remote that
controls the trap base station TRBP02 or the TargetManager for
trap shooting.
EZPull TRPUL-105 has special Setup and Pairing modes intended
only for the Gun Club's administrator.
Warning: Always stand clear of any traps that may be activated
by EZPull systems.
1. Using Setup Mode: The Setup mode provides access to
parameters that determine the operation of the device.
1.1. Enter Setup Mode: Make sure the unit is completely dry!
Remove the battery door. Remove one battery. Press
and hold the ON/OFF [ ] key and replace the battery.
When both lights are on steady, release the key. The
lights will alternate indicating the unit is in Setup mode.
1.2. Exit Setup Mode: When in Setup mode, press and hold
the "Target" [ ] and "Microphone" [] keys
simultaneously. Both lights will turn on steady. Release
the keys. The unit will turn off. Press the ON/OFF [ ]
key to turn on.
1.3. Access Setup Adjustment: simultaneously pressing and
holding two key combinations, (except the combination
[ ] + []), will result in both lights flashing rapidly.
Keep holding the keys until both lights are turned off.
Then release the keys. The setup parameter's numeric
value will be indicated by the LEDs.
1.4. Understanding the numbering indicators:
1.4.1. Each parameter can be set to numbers in the
range 1 to a maximum value specific to the
parameter but never more than 16.
1.4.2. The left LED indicates the "tens" digit.
1.4.3. The right LED blinks the number of times
corresponding to the "ones" digit
1.4.4. Examples:
Number 06: left light is off; right light blinks 6
times.
EZPull Trap Puller's Model TRPUL-105 Setup Guide
Number 14: left light is on; right light blinks 4
times.
1.5. Adjusting the Number:
1.5.1. Increase: for the next value, press and quickly
release the "Microphone" [] key. The
operation is cyclical, after you reach the
maximum value, the next number is #1.
1.5.2. Decrease: for the previous value, press and
quickly release the "Target" [ ] key. The
operation is cyclical, after you reach #1, the next
number is the maximum value.
1.5.3. Verify: After each key press, observe the lights
to verify the number.
1.6. Exit adjustment: Once you verify the correct value,
press and hold the "Microphone Off" [] key to save
and return to Setup mode or press the ON/OFF [ ] key
to exit without saving any changes.
