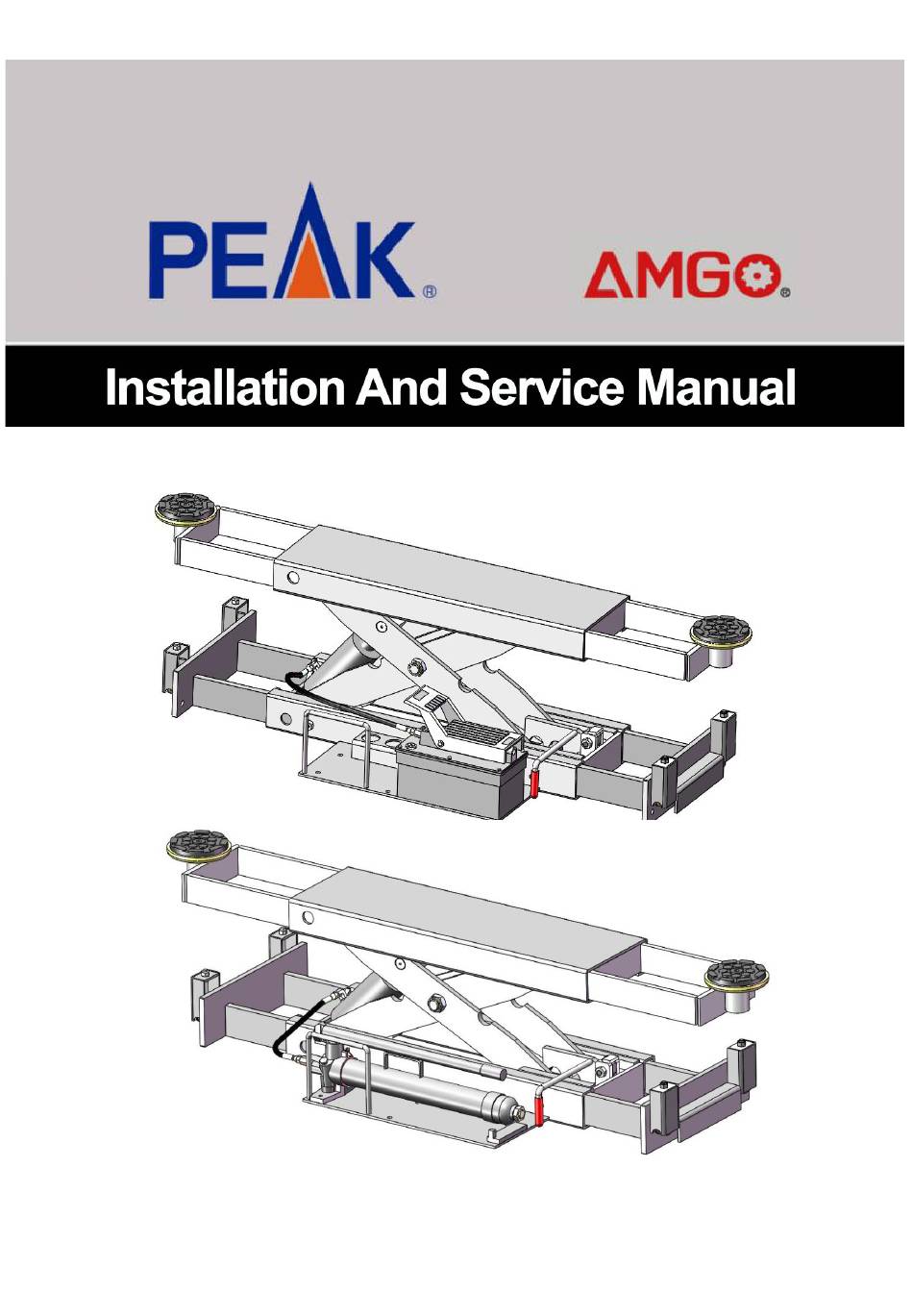

- Page 1 Original Jack Model: J6A J6H...
-
Page 2: Table Of Contents
CONTENTS Product Features and Specifications ............1 Storage and Installation................3 Installation procedure................3 Operation Instruction................5 Maintenance schedule................10 Trouble Shooting ..................11 EXPLODED VIEW ..................13 Car lift safety tips .................17 Lift Disposal ..................17... -
Page 3: Product Features And Specifications
I. FEATURE AND SPECIFICATIONS Safety mechanism lock Easy operation：J6A equipped with pneumatic pump activated by air,J6H equipped with hand pump. Can be used separately or work with four post lifts and large scissors lifts. Adjustable 1.5", 2.5" extension adapters & Rubber Pads assy ... - Page 4 Measurement Image Fig.2 Specifications...
-
Page 5: Storage And Installation
II.Storage and Installation 1. Requirements. 1.1. The equipment shall be stored in a dry, mildew-free, non-flammable environment; 1.2. The equipment is only approved for installation and be used indoor,do not installation outdoor. 1.3. In order to avoid equipment damaged, it is the responsibility of operator to read and follow instructions to take in safety precautions before installation. - Page 6 2. Equipment installation 2.1 Make sure the 4-post lift and large scissor lift is fully lowered and the safety lock is locked. 2.2 Using the Hoist crane,forklift or other lifting equipment to lift the Rolling Jack above and between the Lift’s two Runways. 2.3 According to the distance between the two Runways to adjust the Extendable Bases, make the Rollers are correctly on the rails of two Runways.
-
Page 7: Operation Instruction
IV. Operation instruction 1. Preparation before use: Make sure the 4-post lift and large scissor lift is fully lowered and the safety lock is locked. 1.2 Air source provides power to start J6A.Need to prepare the air source in advance. But J6H no need air source. - Page 8 2.2 Lifting operation of J6A A. Position the Adjustable Arms of the Rolling Jack to make the arm pads underneath the Vehicle’s recommended lifting points. Fig.8 Press ‘PUMP’ showed in Fig 7 to fill air into the oil pump and the Rolling Jack is raised.
- Page 9 2.3 Descending operation of J6A A. Press ‘PUMP’ showed in Fig 7 to raise the Jack for few seconds till the safety lock device is released. Safety lock is released Fig.11 B. Press ‘RELEASE’ of the pump with one hand while other hand turn up the safety lock handle.
- Page 10 3. Operation of J6H 3.1 Lifting operation of J6H A. Completed install Rolling Jack on right position. Tighten the pressure relief rod clockwise and then start pumping to raise the Jack with the hand pump. Fig.14 B. After Rolling Jack raises to a suitable work height, make sure the safety lock is locked before processing work.
- Page 11 3.2 Descending operation of J6H A. Pumping the hand pump to raise the Jack for few seconds till the safety lock device is released. Safety lock is released Fig.16 D. Turn up the safety lock handle with one hand while other hand rotate the pressure relief rod counterclockwise,and the Jack will lower.
-
Page 12: Maintenance Schedule
V. MAINTENANCE SCHEDULE Keep the Rolling Jack clean; wipe up any oil spills. Do not let dirt get into the hydraulic system. 1. Daily： • Make a visual inspection of all moving parts and check for damage or excessive wear. Replace any damaged or worn parts before setting the Jack back into service. -
Page 13: Trouble Shooting
trash or dumped into the environment.It pollutes the environment and is illegal. Instead, take it to a recycling center. Used/dirty hydraulic oil can be cleaned and re-used. VI. TROUBLE SHOOTING TROUBLE CAUSE REMEDY 1. Low pressure 1. Recheck air pressure 0.8Mpa 2. - Page 14 TROUBLE CAUSE REMEDY 1.Relief rod is not twisted or damaged 1. Reset or replace 2. Low oil level 2. Fill in the tank 3. Oil line leakage 3. Check the oil connection and Jack raises 4. Dirty hydraulic oil the fittings are tighten slowly or 5.
-
Page 15: Exploded View
VII. EXPLODED VIEW Hydraulic Pump Hand Pump Fig.19... - Page 16 PARTS LIST Part No. Description Item 10201046A Rubber Pad Assembly 11600039 Extendable arm frame Assembly 10201002 Hex Bolt M8*16 10209034 Lock Washer Ф8 10209033 Washer Ф8 11600038 Upper support Assembly 10680055 Hex Bolt M12*70 11600037 Connecting Pin 11600036 Pin for upper roller 11600035 Upper roller 10206032...
- Page 17 10680084-01 Oil Hose 1/4*520 10420097 fitting 1105074004A Pulley bracket assembly 10680088 Oil Hose 1/4*330 10690002 Manual pump 10209043 Hex Bolt 10209064 Straight Fitting 1/4NPT*1/4JIC(M) 1005064001-01 Wave tube φ25.5*φ20*550 1005034001-01 Wave tube φ25.5*φ20*360...
- Page 18 CYLINDER （10680021） Fig.20 PARTS FOR HYDRAULIC CYLINDER Item Part No. Description Item Part No. Description 27-1 10209078 27-7 10201029 Support Ring Dust RingФ38*Ф46*5 27-2 11670006 Head Cap 27-8 10201030 Y Ring Support 27-3 11670007 Bore Weldment 27-9 10201030A RingФ53*Ф63*3 27-4 11670008 Piston Rod 27-10...
-
Page 19: Car Lift Safety Tips
VIII. Car lift safety tips Put this safety tips in a place where you can always alert the operator. Please reference to the lift manufacturer’s manual for specific information about the lift. 1. Check the lift daily. If the machine breaks down or has damaged parts, do not operate, and use the parts of original equipment to repair.
