Peak AMGO J5H Installation And Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Original
Jack
Model: J5H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMGO J5H and is the answer not in the manual?

Questions and answers

Related Manuals for Peak AMGO J5H

Summary of Contents for Peak AMGO J5H

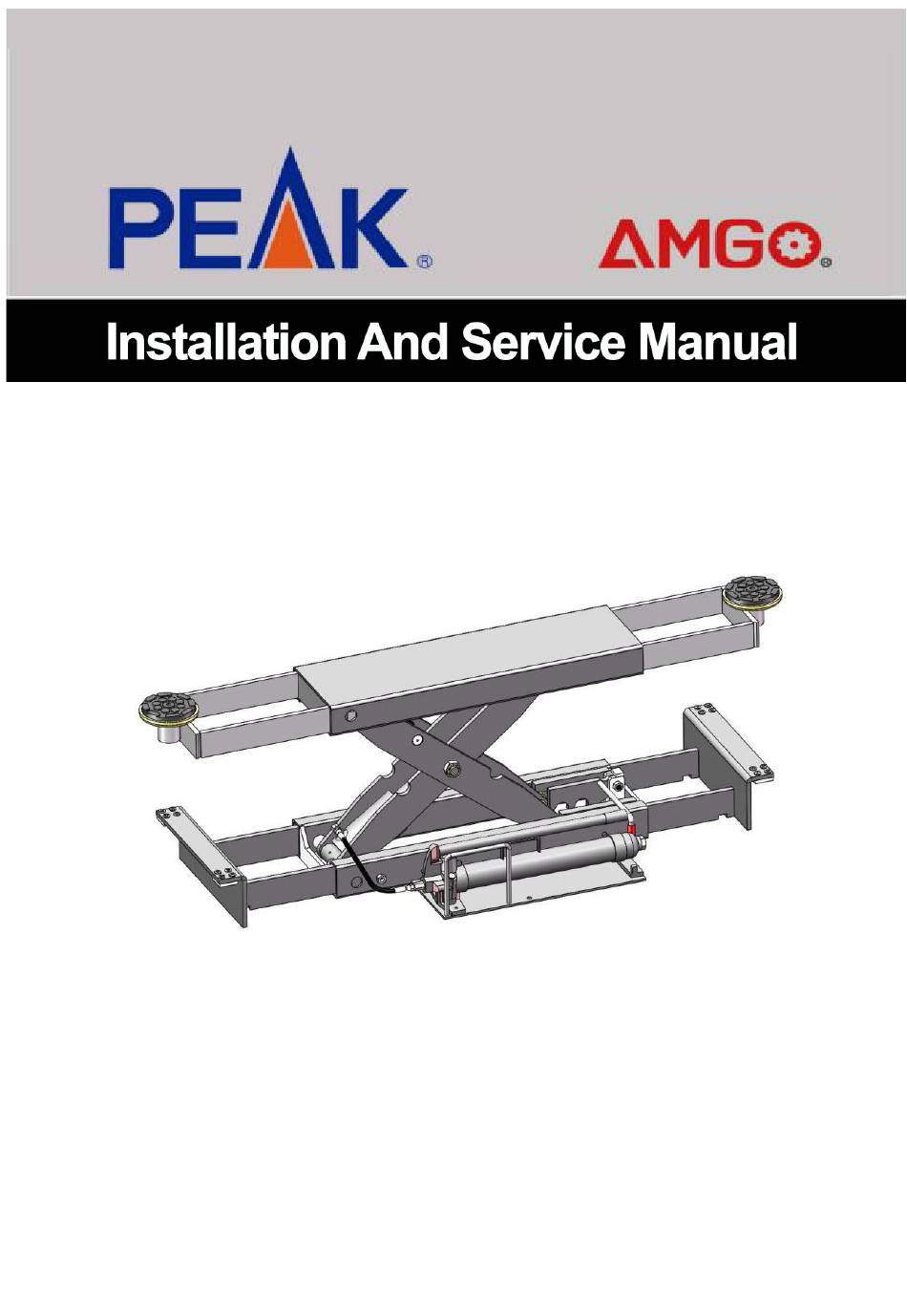

  • Page 1 Original Jack Model: J5H...

  • Page 2: Table Of Contents

    CONTENTS Product Features and Specifications ............1 Storage and Installation................3 Installation procedure................3 Operation Instruction................5 Maintenance schedule................7 Trouble Shooting ...................8 EXPLODED VIEW ...................9 Car lift safety tips .................12 Lift Disposal ..................12...

  • Page 3: Product Features And Specifications

    I. FEATURE AND SPECIFICATIONS  Safety mechanism lock  Easy operation:J5H equipped with hand pump  This Jack is ideal for use on the Four-post Parking lift as well as can be used separately  Adjustable 1.5", 2.5" extension adapters & Rubber Pads assy Fig.1...
  • Page 4 Measurement Image Fig.2 Specifications...

  • Page 5: Storage And Installation

    II.Storage and Installation 1. Requirements. 1.1. The equipment shall be stored in a dry, mildew-free, non-flammable environment; 1.2. The equipment is only approved for installation and be used indoor,do not installation outdoor. 1.3. In order to avoid equipment damaged, it is the responsibility of operator to read and follow instructions to take in safety precautions before installation.
  • Page 6 2. Equipment installation 2.1 Make sure the 4-post lift is fully lowered and the safety lock is locked. 2.2 Using the Hoist crane,forklift or other lifting equipment to lift the Jack above and between the Lift’s two platforms. 2.3 According to the distance between the two platforms to adjust the Extendable Bases, make the plastic slider lied on the platforms.

  • Page 7: Operation Instruction

    3. Operation instruction 3.1 Lifting operation of J5H A. Completed install the Jack on right position. Tighten the pressure relief rod clockwise and then start pumping to raise the Jack with the hand pump. Fig.6 B. After the Jack raises to a suitable work height, make sure the safety lock is locked before processing work.
  • Page 8 3.2 Descending operation of J5H A. Pumping the hand pump to raise the Jack for few seconds till the safety lock device is released. Safety lock is released Fig.8 B. Turn up the safety lock handle with one hand while other hand rotate the pressure relief rod counterclockwise,and the Jack will lower.

  • Page 9: Maintenance Schedule

    IV. MAINTENANCE SCHEDULE Keep the Jack clean; wipe up any oil spills. Do not let dirt get into the hydraulic system. 1. Daily： • Make a visual inspection of all moving parts and check for damage or excessive wear. Replace any damaged or worn parts before setting the Jack back into service.

  • Page 10: Trouble Shooting

    trash or dumped into the environment.It pollutes the environment and is illegal. Instead, take it to a recycling center. Used/dirty hydraulic oil can be cleaned and re-used. V. TROUBLE SHOOTING TROUBLE CAUSE REMEDY 1.Relief rod is not twisted or damaged 1.

  • Page 11: Exploded View

    VI. EXPLODED VIEW Fig.12...
  • Page 12 PARTS LIST Part No. Description Item 10680030C Rubber Pad Assembly 11600039 Extendable arm frame Assembly 10201002 Hex Bolt M8*16 10209034 Lock Washer Ф8 10209033 Washer Ф8 11600038 Upper support Assembly 10680055 Hex Bolt M12*70 11600036 Pin for upper roller 11600035 Upper roller 10206032 Clip Ring Ф25...
  • Page 13 CYLINDER （10600030） Fig.20 PARTS FOR HYDRAULIC CYLINDER Item Part No. Description Item Part No. Description 27-1 10209078 27-7 10201029 Support Ring Dust RingФ38*Ф46*5 27-2 11670006 Head Cap 27-8 10201030 Y Ring Support 27-3 11670011 Bore Weldment 27-9 10201030A RingФ53*Ф63*3 27-4 11670008 Piston Rod 27-10...

  • Page 14: Car Lift Safety Tips

    VII. Car lift safety tips Put this safety tips in a place where you can always alert the operator. Please reference to the lift manufacturer’s manual for specific information about the lift. 1. Check the lift daily. If the machine breaks down or has damaged parts, do not operate, and use the parts of original equipment to repair.
  • Page 15 Manual Part No.:72270101 Revision Date: 2023/05...
