Wanzl Walk-In Beer Cave Cooler Shelving Assembly Instructions Manual

Advertisement

Quick Links

MANUAL
BEER CAVE
Walk-In Beer Cave Cooler Shelving
Assembly Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Walk-In Beer Cave Cooler Shelving and is the answer not in the manual?

Questions and answers

Summary of Contents for Wanzl Walk-In Beer Cave Cooler Shelving

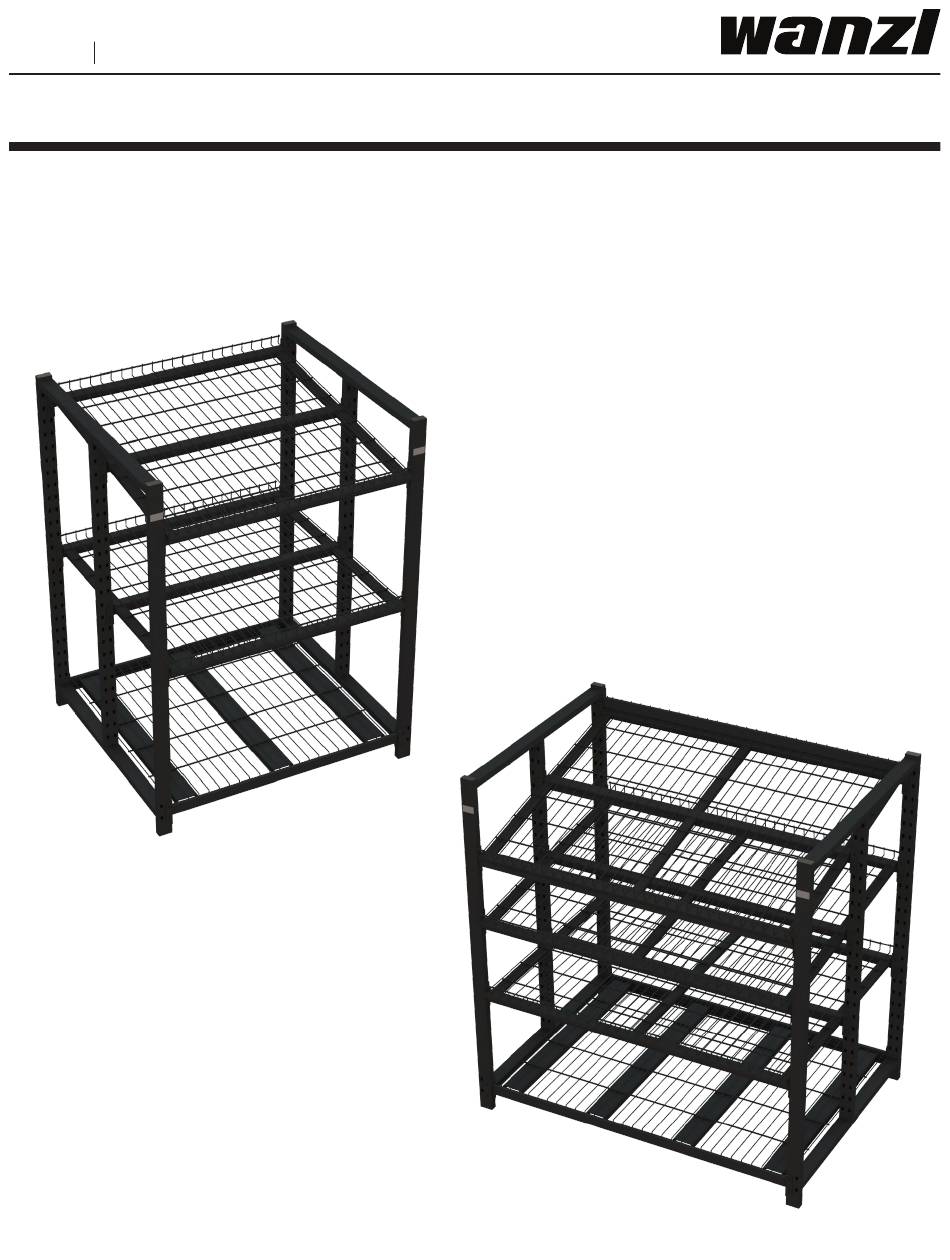

  • Page 1 MANUAL BEER CAVE Walk-In Beer Cave Cooler Shelving Assembly Instructions...
  • Page 2 Beer Cave Part Identification Frame Upright Shelf Bottom Shelf Back Bar Middle Bar Front Bar Starter Cross Bar Cross Bar...
  • Page 3 Beer Cave Frame Assembly Fig. 1 Fig. 2 Line the starter cross bar fins with the bottom two Press the crossbar into the upright frame slots. slots on the frame upright. Fig. 3 Fig. 4 Pull the crossbar down to lock into place. Repeat figures 1–...
  • Page 4 Beer Cave Shelf Locations Fig. 5 Fig. 6 Repeat steps 1– 3 to attach the rear starter Place the bottom shelf into the assembly. crossbar onto the back bars of the frame upright. 0 Degree Shelf Angle Front Middle Back Front Middle Back...
  • Page 5 Beer Cave Shelf Locations 6.5 Degree Shelf Angle 13 Degree Shelf Angle Back Back Front Middle Front Middle Back Front Middle Back Front Middle Front Middle Back Front Middle Back Back Back Back Back Front Front Middle Middle Front Front Middle Middle The crossbars will be spaced up in ONE level...
  • Page 6 Head Offi ce Subsidiaries Partners WANZL NORTH AMERICA GERMANY 700 Technibilt Drive Wanzl GmbH & Co. KGaA PO Box 310 Rudolf-Wanzl-Straße 4 Newton, NC 28658 89340 Leipheim Phone +49 ( 0 ) 82 21 / 7 29-0 Phone +1 800-351-2278...
