Do you have a question about the SC4 and is the answer not in the manual?
Questions and answers
Moray Watson
March 10, 2025
I have managed to change the unit measurement so that the Carry distance is measured in yards (Y). However the Apex is showing as being measured in meters (m). Why is Apex not measured in feet?
1 comments:
Mr. Anderson
May 14, 2025
The Apex measurement may appear in meters instead of feet on the Swing Caddie SC4 if the incorrect unit of measurement is selected. Make sure the correct unit (yards vs. meters) is set in the device settings.
This answer is automatically generated
Lance
February 5, 2025
How do you remove clubs from your bag
1 comments:
Mr. Anderson
February 10, 2025
To remove a club from the Swing Caddie SC4 bag, you must first add a new club. Once a new club is added, it will appear in the list without a star on the right side. You can then select and delete the unwanted club.
This answer is automatically generated
Subscribe to Our Youtube Channel
Summary of Contents for Swing Caddie SC4
Page 1
User Manual My Voice Caddie app download Android Detailed instructions of this product are available from VOICE CADDIE website. www.voicecaddie.com...
Page 2
- Spin - Launch Direction 2. Personalized Golf Launch Monitor - Connect with the My Swing Caddie App to Provide Driving Range For Practice - Connect with the App to Provide Various Big Data Statistical Analysis and Platforms - Distance Voice Output...
Package Contents SC4, Remote Control, USB Cable, User Guide / Pouch sold separately Product Components(Front Side) * Remove the LCD protective film on the front side before using ② ① 1. Display Shot Data Equalizer Total Shot Mode Club/Loft Angle...
2. LED Indication Device in Use LED Status Meaning Ball Ready Green Sleep Mode Blue Flashing Bluetooth is Pairing Failed to Connect Bluetooth Blue Success to Connect Bluetooth Deleting Shot Data Red Flashing Low Battery Firmware is Updating Green Flashing Uploading Shot Data to the App Charging LED Status...
Page 5
(Red Range Line). 4. Speaker : Shot data voice output 5. USB port (Cap) : Open the USB port cap, connect the cable to charge SC4 or connect the computer to update the software. 6. Stand : Open the stand fully and mount it.
Remote Control Function selection button Club selection button Function - MODE : Practice / Target (Distance Control) - UNIT : Yards/Meters - LANGUAGE(VOICE) : Setting(KOR/ENG/JPG) - VOLUME : Volume levels ranging from 0-5 - LOFT : Adjustable lofts to match your club specs - TARGET : Set target carry distance (5 yard increments) - TOTAL / CARRY : Set device to show carry or total distance Club Selection...
- Remote Control : Press [Mode] button to select Set Target Distance - SC4 Unit : In target mode, press [Setting] button 3 times for 2 seconds to set target distance > Current target distance flashing > Select target distance with [+/-] buttons...

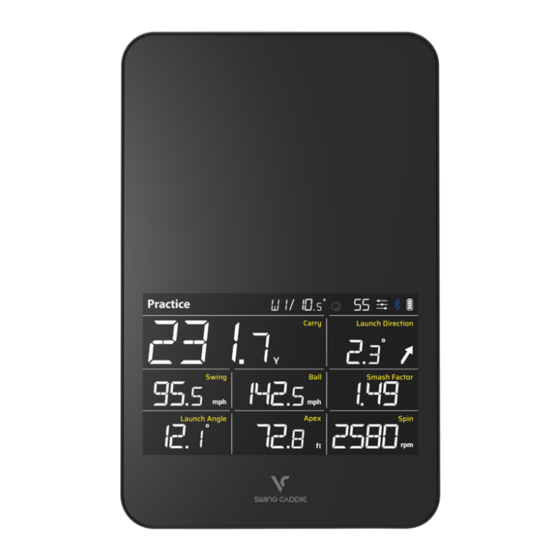

Practice Mode - Displays immediate feedback: Carry/Total Distance, Launch Direction, Swing Speed, Ball Speed, Smash Factor, Launch Angle, Apex, Spin - Data is not provided if the smash factor is below 1.0 - Spin data is not provided if use Club GW~LW Mode : Practice Mode - Club : W1(Driver) - Swing Speed : 95.5 mph...
- Set the target distance(15~195 yard) and practice - Set Target Distance · SC4 Unit : In Target Mode, press [Setting / - ] button 3 times > Set with [+] / [-] buttons · Remote Control : Set with [+] / [-] of [Target] button...
Page 10
Positioning and Alignment 1. Unfold the stand of the product and put it on the ground 5ft behind Tee 2. Mounting Angle Calibration: Adjust the stand of the product until 0 shows on the display 3. Adjust alignment line: Align the tee, target, and alignment line straightly (Incorrect alignment can reduce the accuracy of data) 4.
Page 11
Smartphone Pairing 1. Install and run the MY SWING CADDIE app from the smartphone app store. 2. Place your smartphone and product close to each other. 3. Turn on the product. 4. Tap the Bluetooth button 5. Tap the serial number of the at the top of the app.
Page 12
Shot Data EQ * You can use it by connecting the App and setting the EQ. By adjusting Shot Data EQ of Carry / Ball Speed / Swing Speed / Launch Angle, you can get the shot data that suits you under the limited conditions such as the practice environment, the weather or golf ball at the driving range.
Page 13
App Key Features Statistics / Analysis Video Record / Playback - Shot Analysis by Club and by - Video record of your swing and Date range playback - Statistics by Mode - Provides shot data from stored video (Practice/Target Mode) - User Average Comparison using BigData * The image of the APP is subject to change when the firmware is updated.
Page 14
- Real-time shot practice by club - Distance, Launch Angle, Launch Direction, Ball Speed, Swing Speed, Smash Factor, Spin, Apex * Driving Range is supported only in ‘SC4’. * The image of the APP is subject to change when the firmware is updated.
Page 15
- Distance, Launch Angle, Launch Direction, Ball Speed, Swing Speed, Smash Factor, Spin, Apex - Launch Angle, Launch Direction and animation * Launch Direction is supported only in ‘SC4’. * The image of the APP is subject to change when the firmware is updated.
Normal Mode - Set the target distance and Practice (15yard~195yard) - Score based on distance hit target * Driving Range is supported only in ‘SC4’. * The image of the APP is subject to change when the firmware is updated.
- Set the target distance randomly (15yard~195yard) - When the set score is achieved, the next target distance is automatically set * Driving Range is supported only in ‘SC4’. * The image of the APP is subject to change when the firmware is updated.
Specifications Frequency K Band 24 GHz Sensor Method Doppler Radar Sensor Battery Polymer Li-ion Rechargeable Battery 7,500mAh Charging Time Approx. 6 hours Power Approx. 10 hours (It may vary depends on how you use it) Usage Time 124mm(W) x 193mm(H) x 29mm(D) Dimension Approx.
Caddie Products; (2) to damage caused by service performed by anyone who is not a Voice Caddie Authorized Service Provider; or (3) to a product or part that has been modified without the written permission of Voice Caddie. Product Name SWING CADDIE SC4 Serial No. Purchase Date Dealer...
Page 20
Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. ...
Page 21
5. What if I am hitting off the grass mat at the range or at home? Make sure the ball and your Swing Caddie are on the same level as best as possible. 1 inch or more can make a difference in readings.
Need help?
Do you have a question about the SC4 and is the answer not in the manual?
Questions and answers
I have managed to change the unit measurement so that the Carry distance is measured in yards (Y). However the Apex is showing as being measured in meters (m). Why is Apex not measured in feet?
The Apex measurement may appear in meters instead of feet on the Swing Caddie SC4 if the incorrect unit of measurement is selected. Make sure the correct unit (yards vs. meters) is set in the device settings.
This answer is automatically generated
How do you remove clubs from your bag
To remove a club from the Swing Caddie SC4 bag, you must first add a new club. Once a new club is added, it will appear in the list without a star on the right side. You can then select and delete the unwanted club.
This answer is automatically generated
