Summary of Contents for Swing Caddie SC4
- Page 1 User Manual My Swing Caddie App Download Android Detailed instructions of this product are available from VOICE CADDIE website. www.voicecaddie.com...
- Page 2 - Spin - Launch Direction 2. Personalized Golf Launch Monitor - Connect with the My Swing Caddie App to Provide Driving Range for Practice - Connect with the App to Provide Various Big Data Statistical Analysis and Platforms - Distance Voice Output...
-
Page 3: Package Contents
Package Contents - SC4, Remote Control, USB Cable, User Guide - Pouch sold separately Product Components(Front Side) * Remove the LCD protective film on the front side before using ② ① 1. Display Shot Data Equalizer Total Shot Mode Club/Loft Angle... -
Page 4: Led Indication
2. LED Indication Device in Use LED Status Meaning Ball Ready Green Sleep Mode Blue Flashing Bluetooth is Pairing Connection Unsuccessful Blue Connection Successful Deleting Shot Data Red Flashing Low Battery Updating Firmware Green Flashing Uploading Shot Data to the App Charging LED Status Meaning... - Page 5 (Red Range Line). 4. Speaker : Shot data voice output 5. USB port (Cap) : Open the USB port cap, connect the cable to charge SC4 or connect the computer to update the software. 6. Stand : Open the stand fully and mount it.
-
Page 6: Remote Control
- VOLUME : Volume levels ranging from 0-5 - LOFT : Adjustable lofts to match your club specs - TARGET : Set target carry distance (5 yard increments) - TOTAL / CARRY : Set SC4 to show carry or total distance Club Selection - DRIVER : W1(DRIVER) - FAIRWAY WOOD : >... -
Page 7: Basic Operation
- Remote Control : Press [Mode] button to select Set Target Distance - SC4 Unit : In target mode, press [Settings] button 3 times for 2 seconds to set target distance > current target distance flashing > toggle with [+/-] buttons... -
Page 8: Practice Mode

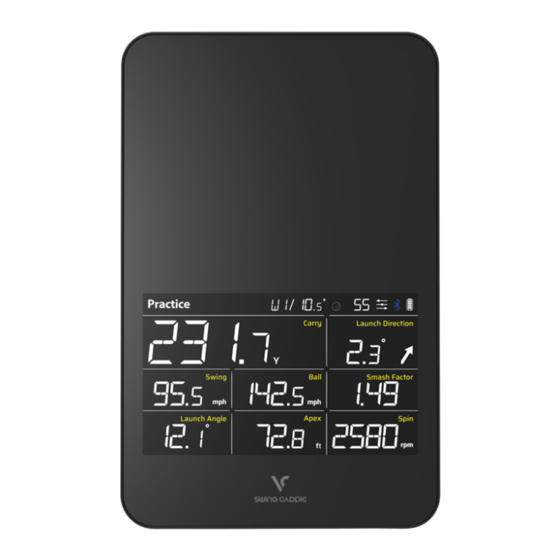

Practice Mode - Displays immediate feedback: Carry/Total Distance, Launch Direction, Swing Speed, Ball Speed, Smash Factor, Launch Angle, Apex, Spin - Smash Factor is not provided if it is below 1.0 - Spin data is not provided for GW~LW Mode : Practice Mode - Club : W1(Driver) - Swing Speed : 95.5 mph - Loft Angle : 10.5°... -
Page 9: Target Mode
- Set the target distance(15~195 yard) and practice - Set target distance · SC4 Unit : In target mode, press [Settings] button 3 times > toggle with [+/-] buttons · Remote Control : Set with [+/-] of [Target] button - Smash Factor is not provided in target mode... - Page 10 Positioning and Alignment 1. Unfold the stand of SC4 and put it on the ground 5ft behind Tee 2. Mounting Angle Calibration: Adjust the stand of SC4 until 0 shows on the SC4 screen 3. Adjust alignment line: Align the tee, target, and alignment line (Incorrect alignment can reduce the accuracy of data) 4.
- Page 11 Smartphone Pairing 1. Install and run the My Swing Caddie app from the smartphone app store. 2. Place your smartphone and the SC4 close to each other. 3. Turn on the SC4. 4. Tap the Bluetooth button 5. Tap the serial number of the SC4 at the top of the app.
- Page 12 1. After pairing the SC4 and smartphone is complete, touch the menu bar on the left top of the App.
- Page 13 App Key Features Statistics / Analysis Video Record / Playback - Shot Analysis by Club and by - Video record of your swing and Date range playback - Statistics by Mode - Provides shot data from stored video (Practice/Target Mode) - User Average Comparison using Big Data * The image of the APP is subject to change when the firmware is updated.
- Page 14 - Real-time shot practice by club - Distance, Launch Angle, Launch Direction, Ball Speed, Swing Speed, Smash Factor, Spin, Apex * Driving Range is supported only in ‘SC4’. * The image of the APP is subject to change when the firmware is updated.
- Page 15 - Distance, Launch Angle, Launch Direction, Ball Speed, Swing Speed, Smash Factor, Spin, Apex - Launch Angle, Launch Direction and animation * Launch Direction is supported only in ‘SC4’. * The image of the APP is subject to change when the firmware is updated.
-
Page 16: Normal Mode
- Set the target distance and practice (15~195 yard) - Score based on the proximity to the target * Driving Range is supported only in ‘SC4’. * The image of the APP is subject to change when the firmware is updated. -
Page 17: Random Mode
(15~195 yard) - When the set score is achieved, the next target distance is automatically set * Driving Range is supported only in ‘SC4’. * The image of the APP is subject to change when the firmware is updated. -
Page 18: Specifications
Specifications Frequency K Band 24 GHz Sensor Method Doppler Radar Sensor Battery Polymer Li-ion Rechargeable Battery 7,500 mAh Charging Time Approx. 6 hours Power Approx. 10 hours (It may vary depends on how you use it) Usage Time 4.9" (W) x 7.6" (H) x 1.1" (D) Dimension Approx. -
Page 19: Warranty
Caddie Products; (2) to damage caused by service performed by anyone who is not a Voice Caddie Authorized Service Provider; or (3) to a product or part that has been modified without the written permission of Voice Caddie. Product Name SWING CADDIE SC4 Serial No. Purchase Date Dealer... - Page 20 5. What if I am hitting off the grass mat at the range or at home? Make sure the ball and your Swing Caddie are on the same level as best as possible. 1 inch or more can make a difference in readings.
