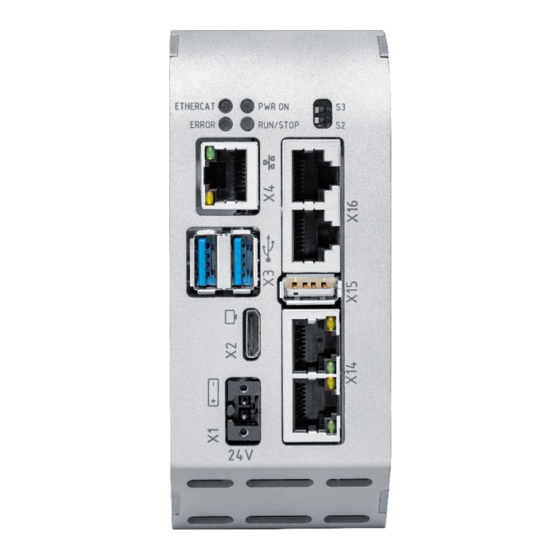

- Page 1 USER MANUAL 1.2 B-Nimis MC-Pi and BC-Pi Plus series...
- Page 2 You can contact us at: Berghof Automation GmbH Arbachtalstrasse 26 72800 Eningen Germany T +49.7121.894-0 F +49.7121.894-100 Email: controls@berghof.com www.berghof-automation.com Berghof Automation GmbH is certified to DIN EN ISO 9001:2015. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com...
- Page 3 USER MANUAL 1.2 | B-NIMIS MC-PI AND BC-PI PLUS SERIES Revision log Version Date Description 23/02/2023 Preliminary version 05.04.2023 UL Relevant changes, BC-PI-Plus S04 added 06.09.2023 Supplement Password configuration, Cyber security Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com...
-
Page 4: Table Of Contents
Properties ..........................24 6.2. Earthing ..........................25 6.3. Data connections ....................... 26 6.3.1. Block diagram ........................26 6.3.2. Network connection ......................27 6.3.3. USB interface ........................28 Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... - Page 5 12.1. Declaration of Conformity/Technical data ..............49 CUSTOMER SERVICES / ADDRESSES ................50 13.1. Customer services ......................50 13.2. Repair service ........................50 13.3. Addresses .......................... 51 APPENDIX .......................... 52 Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com...
- Page 6 USER MANUAL 1.2 | B-NIMIS MC-PI AND BC-PI PLUS SERIES 14.1. Notes on copyright and the software licence ..............52 14.2. List of figures ........................53 Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com...
-
Page 7: General Information
→ Electrical design → Connections → Start-up → Servicing and maintenance → Decommissioning → Disposal Keep this user handbook available alongside the product at all times. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 8: Symbols And Visual Depictions
List of instructions which must be carried out in the order given. … Additional product information Structure of the warnings: WARNING Optional: Type and source of the danger More Brief description and consequences symbols Preventive measures Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 9: Hazard Categories And Indications
Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 10: Duty Of Care
→ The user is responsible for coordinating the use of the safety-related control components with the responsible authority and for adhering to its specifications. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 11: Intended Use
The device is intended for installation in control cabinets in industrial machines and systems in in- door areas. For operation, refer to the applicable ambient conditions Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 12: Transport And Storage
The documentation supplied contains important information about the unit and is part of the product. If you notice transport damage or discrepancies between the order and the delivered con- tents: Inform the supplier immediately. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 13: Safety
Bring the system into a safe state. Switch the system and the device off. Secure the system against being switched on again. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 14: Cybersecurity
Always use https instead of http Services that are not required should be deactivated (FTP/SSH,...). Contact person for cybersecurity of Berghof: Berghof-Product-Secutity Incident Response Team psirt.automation@berghof.com Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 15: Product Description
RS232/485 [COM1] Connector for antenna Reset Debug CAN Terminating resistor switch Fan (option) RS485 Terminating resistor switch EtherCAT LVDS [ETH1] Designations in [ ]: CODESYS-designations of the connections Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 16: Technical Data
DIN EN 60068-2-27 (2010-02): Mechanical shock IEC 61000-6-3:2021-03, Residential limit; EN 55032: 2015; FCC Parts 15.107, Emitted interference 15.109 Class B; ICES 003 Sections 3.2.1, 3.2.2, 3.2.3 Class B Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 17: B-Nimis Mc-Pi Plus
°C to 45 °C, with heat sink and fan -20 °C to 55 °C tions Relative humidity: max. 85%, non-condensing Protection class / rating: III / IP20 DIN EN 60068-2-6 (2008-10): Oscillations, sinusoidal DIN EN 60068-2-27 (2010-02): Mechanical shock Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 18: Scope Of Delivery And Accessories
50mm 5V Fan for BC/MC-Pi Plus Order Number: S-02050501-0200 → Heat Sink: Order Option: H002 → Micro SD card Order Option 2 GB: H200 Order Option 16 GB: H201 Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 19: Product Features
The device has a combined serial interface (1x RS-485 or 1x RS-232). SD card The MC- and BC-Pi-Plus are equipped with 1 x µSD card slot, e.g., for data downloads. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... - Page 20 HDMI 1.4 standard, with a corresponding connection for the con- nected monitor. Visualisation CODESYS web visualisation is included with the MC-Pi. With the Berghof B-Primis ET terminals, you have an easy-to-use display available. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com...
-
Page 21: Assembly
After snapping the first module onto the rail, snap on the second module about 1 cm away, to the right of the first module. Push the second module along the rail towards the first module until the release latch snaps into place. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... - Page 22 Turn the module forwards away from the mounting rail as shown in the illus- tration. Pull the module down off the mounting → rail. Fig.: 33 Disconnecting the B-Nimis MC-Pi & BC- Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com...
-
Page 23: Connection
The supply lines must have sufficient dielectric strength and current capacity. Shielded cables must be used for communication lines. Connect the device to the power supply Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 24: Connecting The Power Supply
Wire connection cross section AWG Min/Max: AWG26/AWG16 Wire temperature stability: ≥ 120°C Contact material Cu/Cu alloy Tightening torque Min/Max: 0,15 Nm/0,2 Nm NOTICE Use Copper Conductors Only for the power supply! Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 25: Earthing
Connect functional earth Fig.: 44 Earthing NOTICE Earth wires should be short and have a large surface area (copper braiding). You can find information, for example, at http://de.wikipedia.org/wiki/Masse_(Electronics). Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 26: Data Connections
USER MANUAL 1.2 | B-NIMIS MC-PI AND BC-PI PLUS SERIES 6.3. Data connections 6.3.1. Block diagram Voltage Conversion Fig.: 55 Block diagram of B-Nimis MC-Pi & BC-Pi Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 27: Network Connection
For such installation situations, an additional surge suppressor must be used, e.g. 929121 DPA M CLE RJ45B 48 from the company Dehn or other similar devices. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 28: Usb Interface
This can result in considerable damage to property and damage to the USB device. Before using a USB device, check its power consumption. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 29: Ethercat
The MC-Pi & BC-Pi provides a current of up to 2 A for this purpose. This means that one MC-Pi & BC-Pi can supply up to a maximum of 10 I/O modules. LED status indicators Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 30: Rs 485 / Rs 232 Interface
If the RS-485 interface is located at the start or end of the bus topology: set switch S3 to ON to connect the 120 Ω terminating resistor between Tx/Rx+ and Tx/Rx–. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 31: Signal Interference And Termination
For isolated interfaces with connection to the reference ground at one point: Also carry GND along. f necessary, provide for a damped connection of GND at several points on the bus (e.g. over 200 Ω). Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 32: Can Interface
S2 to ON in order to switch on the 120 Ω terminal resistance between CAN_L and CAN_H. For baud rates, settings and cable length observe the recommendations of the CiA- 303-1. Example: at 1 Mbit max. 25 m Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 33: Operation
The device does not have an on/off switch. The device starts automatically when the system is switched on or the power is connected. Switching off The device is switched off when the system is switched off or the power supply is disconnected. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 34: Initial Start-Up Of The Network
Devices without a password on the device label If your device does not have a password printed on the device label, the username and password are the same. e.g. User: admin / Password: admin. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... - Page 35 Save the settings by clicking on “Save”. Additional settings can also be viewed and/or modified on the web configuration page (e.g. “Sys- tem time”, display resolution, TargetVisu). Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com...
-
Page 36: Bc-Pi
9. Optional: Open the "cmdline.txt" and add the following line of code (only one space, with- out line break): ip=<client-ip>:<server-ip>:<gw-ip>:<netmask>:<hostname>:<interface>:<autoconf> Here is an example of a simple IP-configuration: Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... - Page 37 11. After a reboot the SSH server is activated and you can access the Linux terminal of the Raspberry Pi OS via the IP address set in the BC-Pi. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com...
-
Page 38: Operation
Change to maintenance mode CODESYS SPS Short press Change between RUN and STOP mode of the PLC Long press Stop the PLC with RESET of variables (cold reset) Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... - Page 39 Carry out a reset on the device, alternatively: Mode-selection switch / CODESYS/ web browser → Put the controller back into operation Ethernet status LED See section: 10/100 Base-T network connection (Ethernet). Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com...
-
Page 40: Real-Time Clock With Battery Back-Up
The operating life of the gold-plated contacts is up to 10,000 plugging and unplugging cycles. The SD card drive has a push-in/push-out insertion and ejection mechanism. To avoid malfunction, the SD card may not be removed by pulling. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 41: Start/Stop Reset Button
The controller must be switched off to enter service mode. The button is then held down and the controller is switched on again. The button must be kept pressed until the Run/Stop LED flashes yellow every two seconds. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 42: Troubleshooting
Correct the network settings and make a note of them. Restart the device. Maintenance mode is turned off automatically. The device is configured and ready for use. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 43: Servicing / Maintenance
Make sure all the ventilation openings are kept free of obstructions Do not open the device. If it is necessary to work in the device, contact the Service depart- ment. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 44: Disassembly
Turn the module forwards away from the mounting rail as shown in the illustration. Pull the module down off the mounting rail. Releaselatch Fig.: 1313 Disassembling the B-Nimis MC-Pi & BC- Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 45: Disposal
Send the metal parts for metal recycling. Sort the electronic parts (circuit boards, drives, etc.). Dispose of electronic scrap in accordance with the national laws and regulations. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 46: Information And Options
Logo of the manufacturer Manufacturer (manufacturer's ad- dress) Supply voltage and maximum cur- rent QR code (identification no.) Default password FCC marking Hazard label UL marking Fig.: 1414 Type plate Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 47: Device Variants And Memory Configuration Levels
The additional features included or installed in each device are listed on the options label. This label can be found on the device and/or on the packaging. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... - Page 48 USER MANUAL 1.2 | B-NIMIS MC-PI AND BC-PI PLUS SERIES Fig.: 1515 Label for Options Extensions for tooling and debugging USB-to-Ethernet adapter order number: S-02040101-0000 → → USB to WLAN adapter EasyConnect order number: S-02040102-0000 Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com...
-
Page 49: Standards And Certificates
➔ Dimension sheet ➔ EU-Declaration of Conformity ➔ UK-Declaration of Conformity Should a document be missing, it can be easily requested via our contact form at: https://www.berghof-automation.com/en/contact Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 50: Customer Services / Addresses
T +49.7121.894-183 F +49.7121.894-100 email: support-controls@berghof.com https://www.berghof-automation.com 13.2. Repair service Please send the goods to the Berghof repair service for repairs, stating the RMA number and a detailed description of the fault.. Berghof Automation GmbH BU Automatisierungstechnik Reparaturservice Arbachtalstrasse 26... -
Page 51: Addresses
EtherCAT Technology Group ETG Headquarters Ostendstrasse 196 90482 Nürnberg, Germany info@ethercat.org www.ethercat.org Beuth Verlag GmbH, 10772 Berlin, Germany VDE-Verlag GmbH, 10625 Berlin, Germany Internet research: www.iec.ch Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... -
Page 52: Appendix
The source code will be sent to the given address after reimbursement of the expenses actually incurred for providing the data carrier and shipping. Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com... - Page 53 Fig.: 12 B-Nimis MC-Pi & BC-Pi status indicators ................38 Fig.: 13 Disassembling the B-Nimis MC-Pi & BC-Pi ..............44 Fig.: 14 Type plate .......................... 46 Fig.: 15 Label for Options ....................... 48 Berghof Automation GmbH | Arbachtalstrasse 26 | 72800 Eningen | Germany | www.berghof-automation.com...
