SMS Func M Motor Flipster Installation And Adjustment Manual page 12

12 SMS FUNC M MOTOR FLIPSTER EU
6

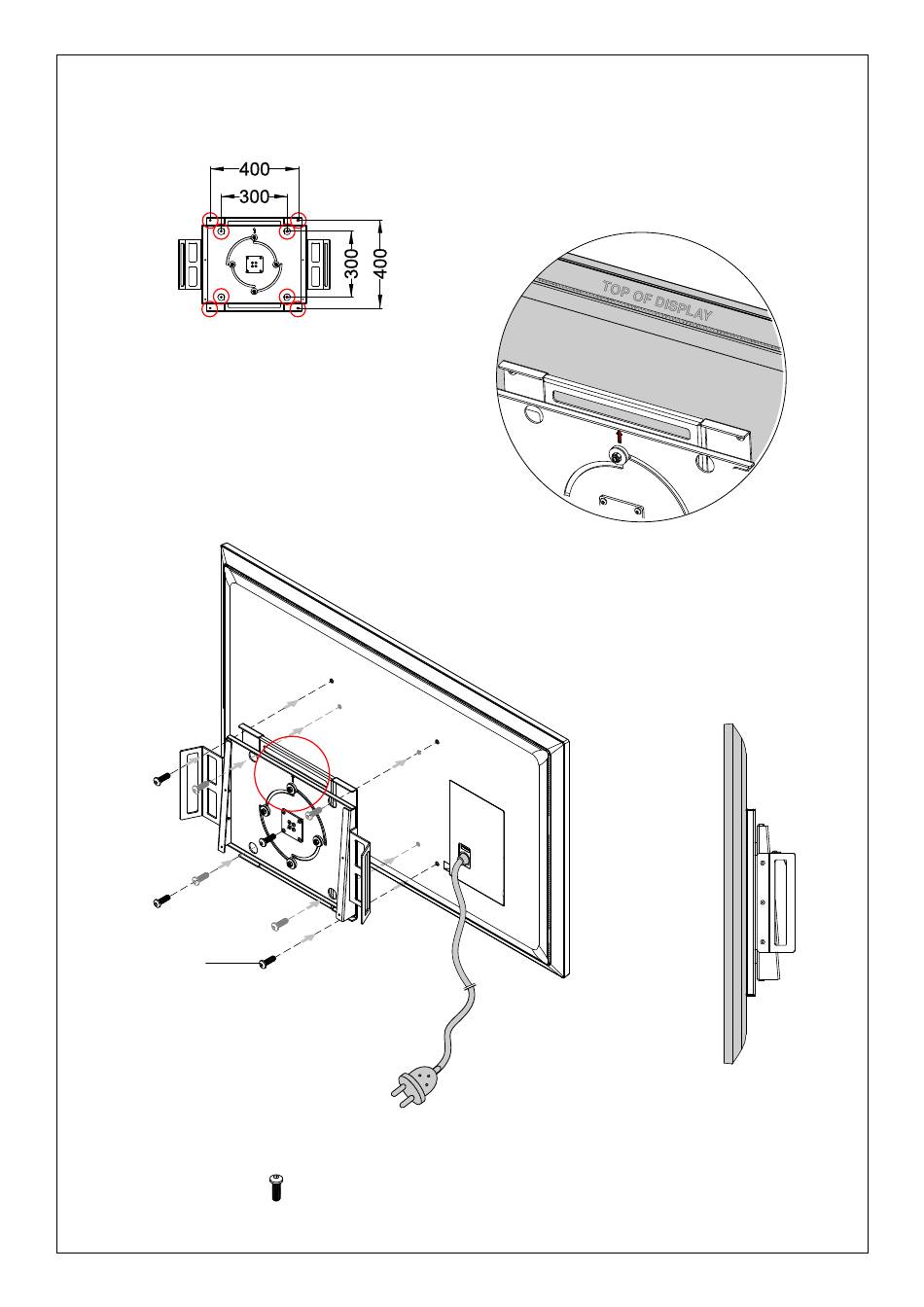

Hole pattern
for mounting
[Vesa 400x400]
[Vesa 300x300]
S2 (4x)
S2
[M8x30]
Mount bracket on display
(4x)
Ensure arrow on display bracket
points towards top of display
No cable obstruction for
display bracket installation
