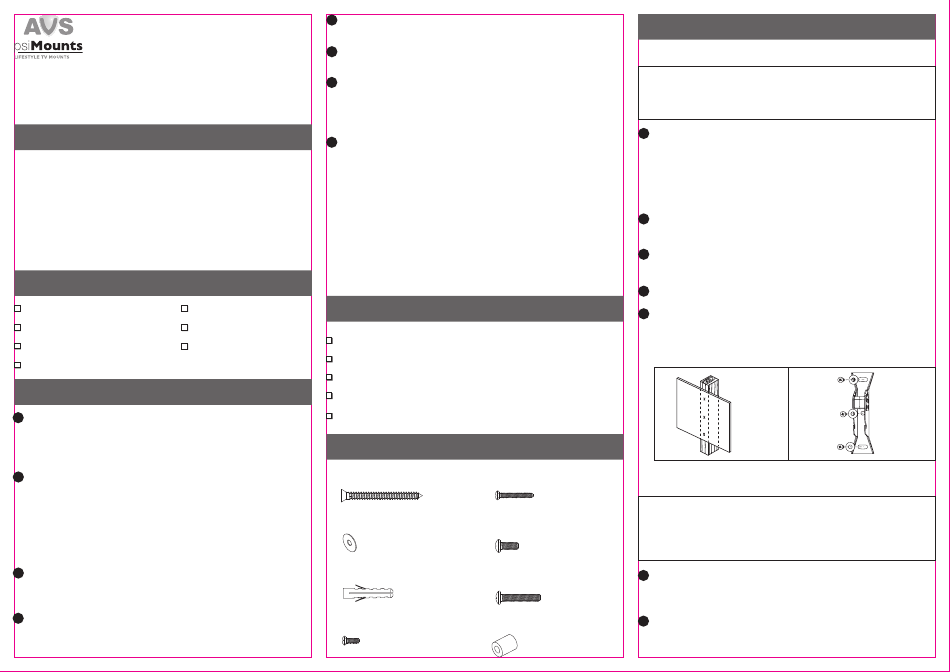

AVS AST2020B Instruction Manual

TILT WALL MOUNT
fits most flat panel TVs
INSTRUCTION MANUAL
Thank you for choosing the AVS AST2020B. Before beginning installation, please
check all parts are included and undamaged. For any parts enquiries, please
contact AV Supply Group Ltd on (09) 274 9172 or email to info@avsupply.co.nz
SPECIFICATIONS
Model: AST2020B
Display Size: 13" to 30"
Maximum Load: 20 kg (45 lbs)
Mounting Pattern: 75 mm x 75 mm, 100 mm x 100 mm,
200 mm x 100 mm, 200 mm x 200 mm
Tilt Range: 5° up and 15° down
Profile: 2.4" (6.0 cm)
BOX CONTENTS
Wall Plate (x1) Plastic Cover (x2)
Display Plate (x1) Instruction Manual (x1)
Tilt Adjustment Knob (x1) Hardware Kit (x1)
Tilt Adjustment Knob Extension (x1)
WARNINGS
PRODUCT CARE: Periodically clean your mount with a dry
1
cloth. Inspect all screws and hardware at regular intervals
to ensure that no connections have become loose over
time. Re-tighten as needed.
CAUTION: Do not use this product for any purpose not
2
explicitly specified by AVS. Improper installation may cause
property damage or personal injury. If you do not
understand these directions, or have doubts about the
safety of the installation, contact AVS Customer Service or
call a qualified contractor. AVS is not responsible for damage
or injury caused by incorrect mounting, assembly, or use.
WARNING! This product contains small items that could
3
be a choking hazard if swallowed. Keep these items away
from young children!
The wall or mounting surface must be capable of
4
supporting the combined weight of the mount and the
display; if not, the structure must be reinforced.
Locate pipes, wires, or any other hazards in the wall where
5
you wish to install.
Safety gear and proper tools must be used. Failure to do so
6
can result in injury or damage.
Follow all instructions and recommendations regarding
7
adequate ventilation and suitable locations for mounting
your display. Consult the owner's manual for your
particular display for more information.
AV Supply Group (AVS) intend to make this manual
8
accurate and complete. However, AVS makes no claim that
the information contained herein covers all details,
conditions, or variations. Nor does it provide for every
possible contingency in connection with the installation or
use of this product. The information contained in this
document is subject to change without notice or
obligation of any kind. AVS makes no representation of
warranty, expressed or implied, regarding the information
contained herein. AVS assumes no responsibility for
accuracy, completeness or sufficiency of the information
contained in this document.
TOOLS REQUIRED
Phillips Head Screw Driver
Electric or Portable Drill
3 mm (1/8") Drill Bit and Stud Finder for Drywall Installation
8 mm (5/16") Masonry Bit for Concrete Installation
Level
HARDWARE KIT
(A) Drywall Screw (x3) (E) M4 x 20 Screw (x4)
(B) Washer (x7)
(F) M6 x 12 Screw (x4)
(C) Concrete Anchor (x3)
(G) M6 x 20 Screw (x4)
(D) M4 x 12 Screw (x4) (H) Spacer (x4)
INSTALLATION
Part 1A – Mounting to the Wall (Drywall)
IMPORTANT! For safety reasons, this mount must be secured
to a wood stud capable of supporting the combined weight
of the mount and display. Do not mount to drywall alone.
Use a high quality stud finder to locate a stud where you
1
wish to install your mount. Mark both edges of the stud to
help identify the exact center.
NOTE: You must use the center of the stud to avoid
cracking or splitting the wood during installation.
Place the wall plate against the wall over the marked stud.
2
Make sure it is level and right side up.
Mark three locations for securing the mount to the wall
3
(see Fig. 1) and set the wall plate aside.
Drill a 3 mm (1/8") pilot hole at each marked location.
4
Place the mount back against the wall and attach it using
5
the drywall screws (A) and washers (B) provided (see Fig. 2).
Do not over-tighten these screws. Ensure that the wall
plate remains level after all screws are secured.
Fig. 1
Part 1B – Mounting to the Wall (Concrete)
IMPORTANT! For safety reasons, the concrete wall must be
capable of supporting the combined weight of the mount
and the display. The manufacturer takes no responsibility for
failure caused by walls of insufficient strength.
Place the wall plate against the wall in the desired
1
location. Make sure it is level and right side up.
Mark three locations for securing the mount to the wall
(see Fig. 3) and set the wall plate aside.
2
Fig. 2
