SUN RUN SRX Operating Instructions Manual

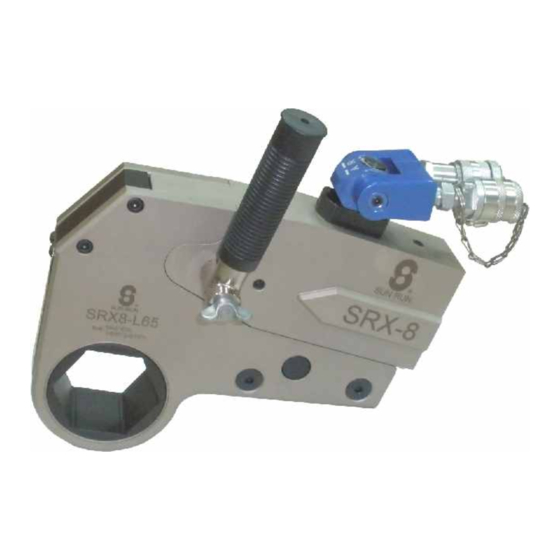

Hydraulic torque wrench
Hide thumbs

Advertisement

Quick Links

Download this manual

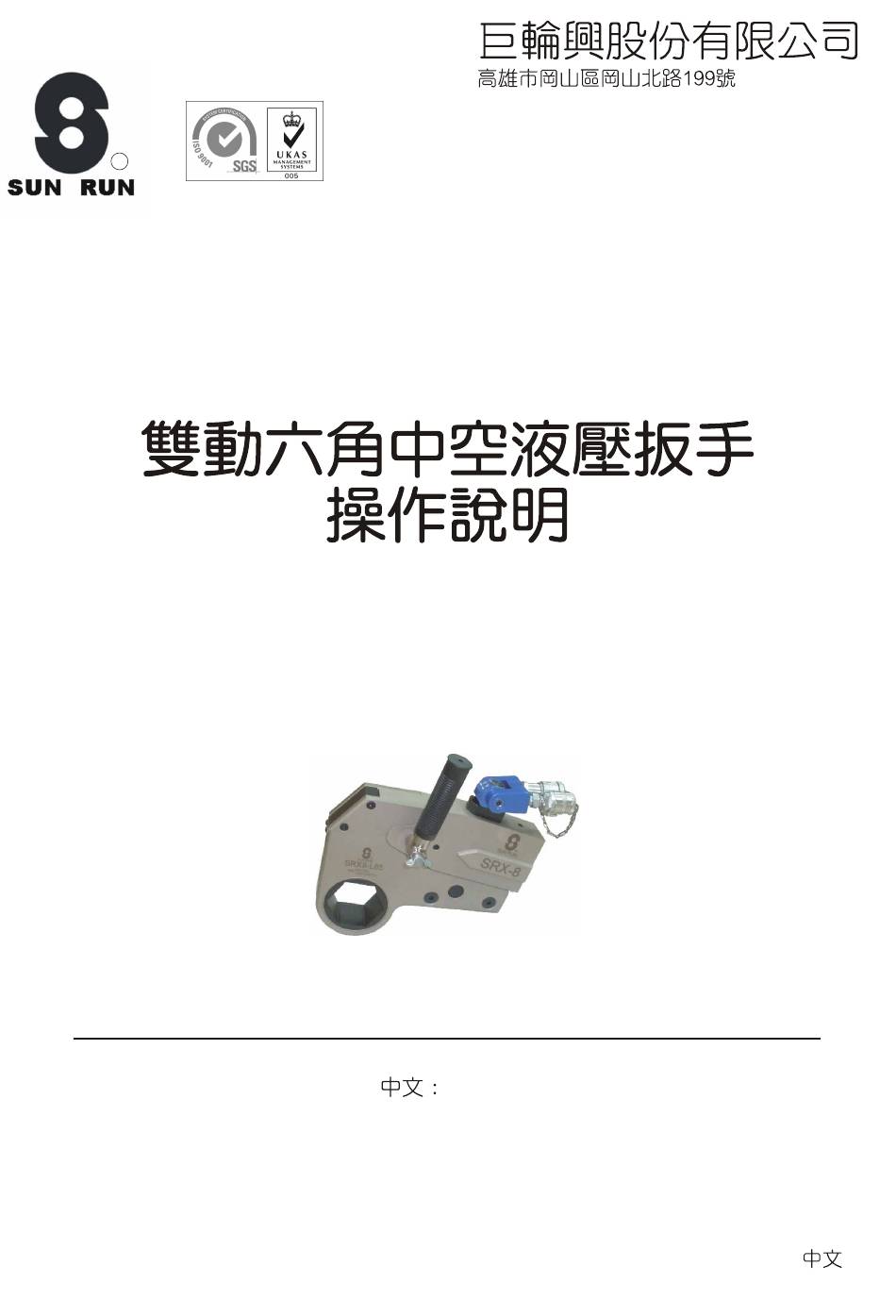

R
CHU LUN SING CO.,LTD
No.199, Gangshan N. Rd., Gangshan Dist.,
Kaohsiung City 82059, Taiwan
http://www.sunrun.com.tw
E-mail:sun.run@msa.hinet.net
TEL:886-7-6210505
FAX:886-7-6217575
SRX
C1~C10
English
Ver.16

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRX and is the answer not in the manual?

Questions and answers

Related Manuals for SUN RUN SRX

Summary of Contents for SUN RUN SRX

  • Page 1 CHU LUN SING CO.,LTD No.199, Gangshan N. Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 C1~C10 English Ver.16...
  • Page 2 :SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 700 bar(10,000psi) SUN RUN SUN RUN SUN RUN SUN RUN...
  • Page 3 Link model Link model Link model Link model (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) 1-1/4 26.6 SRX-2L 30 26.6 SRX-2L 32 1-7/16 SRX-2L 36 33.5 10.4 1-5/8 34.4 10.4 SRX-2L 41 36.8 12.7 SRX-4L 41 1-1/8 1-13/16 37.2...
  • Page 4 :SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 ³ s ± µ Å é 3.1.1 " "...
  • Page 5 :SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 3.1.2 " "...
  • Page 6 :SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 4.1.1 4.1.2 4.1.3 SRX-2, SRX-4 SRX-8 3/4" 4. SRX-2 SRX-4 1/2"...
  • Page 7 :SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 4.1.4 SRX-16 SRX-32 3/4" 4.1.5 3. SRX-16 SRX-32 9. SRX-2, SRX-4 SRX-8, SRX-16 SRX-32...
  • Page 8 :SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 4.2.1 ( ) O 4.2.2 2. SRX-2, SRX-4 SRX-8, SRX-16 SRX-32...
  • Page 9 :SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 4.2.3 SRX-16 SRX-32 Teflon tap(...
  • Page 10 :SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 4.2.4 SRX-2, SRX-4 SRX-8 1/2" 16. SRX-2 SRX-4 Teflon tap( 4.2.5...
  • Page 11 :SRX-2,SRX-4,SRX-8,SRX-16,SRX-32...
  • Page 13 SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 SAE1 ASEM B7 B7 A/F ASEM 354 SAE2 Bolt Hex. Nut 210bar 30000psi Metric Imperial Metric Imperial 420Nm 60000psi 25.4 22.2 1 7/16 22.2 1 1/ 8 25.4 28.6 1 5/ 8 25.4 31.8 1 1/ 4 1 3/ 8...
  • Page 14 :SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 Reaction point/ face Reaction foot Low point reaction paddle Extended reaction foot SRX-model CLR SRX-model ER-length ex.: SRX-8CLR ex.: SRX-8ER-200 SRX Series Torque Conversion Chart SRX-2 SRX-4 SRX-8 1-1/4" to 1-7/8" to 1-5/8" to 2-3/4" to 1-1/4" to 1-7/8" to 1-5/8"...
  • Page 15 Model Hex. Drive size Hex. Drive size Hex. Drive adapter Square drive adapter Example: SRX-4HHM41-27 (option) (option) Low point reaction paddle (option) SRX Series Torque Conversion Chart SRX-8 SRX-16 SRX-32 2-3/4" to 4-1/8" to 3-1/8" to 4-11/16" to 3-3/8" to 2-3/4"...

  • Page 16: Basic System Set-Up

    :SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 A. 1 B. 1 C. 1 +1~4 +2~8 Basic System Set-up A. 1 Hydraulic Torque Wrench using Electric Pump+1 Square Drive Wrench +Socket+2 hoses B. 1 Hydraulic Torque Wrench using Electric Pump+1 Low Profile Wrench +2 hoses C. 1 Hydraulic Torque Wrench using Electric Pump+1~4 Square Drive Wrench (+Socket) or...
  • Page 17 CHU LUN SING CO.,LTD No.199, Gangshan N. Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 OPERATING INSTRUCTIONS HYDRAULIC TORQUE WRENCH English E1~E10 English Ver.16...

  • Page 18: Safety Precautions

    WARNING: Immediately replace worn or CAUTION: Do not use worn socket and damaged parts with genuine SUN RUN square drive. parts. SUN RUN parts are designed to fit properly and withstand rated loads. CAUTION: Please use the socket of good IMPORTANT: Hydraulic equipment must performance.

  • Page 19: Specifications

    Link model Link model Link model Link model (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) 1-1/4 26.6 SRX-2L 30 26.6 SRX-2L 32 1-7/16 33.5 10.4 SRX-2L 36 1-5/8 34.4 10.4 SRX-2L 41 36.8 12.7 SRX-4L 41 1-1/8 1-13/16 37.2...
  • Page 20 Instructions for: Models:SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 Double-Acting, Hexgon Cassette Torque Wrench 3.PLACING THE TOOL IN SERVICE Dwg.1 1.Attach the twin line hose to the swivel inlets of the Driver assembly using the spring-loaded quick connect ends. After making certain that they are fully engaged, thread the safety DRIVE CYLINDER rings tightly against the spring-loaded retainer rings.
  • Page 21 Instructions for: Models:SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 Double-Acting, Hexgon Cassette Torque Wrench 3.PLACING THE TOOL IN SERVICE 3.1.2 OPERATING THE WRENCH The position of the tool relative to the nut determines whether the action will tighten or loosen the nut. (Refer to Dwg.2 for application examples). The power stroke of the piston assembly will always turn the Ratchet Hex toward the Shroud.

  • Page 22: Maintenance Section

    3. Grasp the Housing in copper-covered or leather-covered vise jaws with the inlet end upward. 4. SRX-2 and SRX-4 models, use a hex wrench to unscrew and remove the End Cover Screw and End Cover. 5. Push the End Cap inward approximately 1/2" and remove the two Retaining Rings by working them out of the groove in the Cylinder.
  • Page 23 2. Using a hex wrench, unscrew and remove the two Upper Space Screws. 3. For Series SRX-16 and SRX-32, use a roll pin push to tap the Spacer Roll Pin out of the Right Side Plate. 4. While applying thumb pressure to the edge of the Ratchet, carefully lift the Side Plate off the Assembly.
  • Page 24 Upper Spacer Screws and secure the Spacer with the Screws through the Side Plate. For SRX-16 and SRX-32 press the Spacer Roll Pin into the Right Side Plate with one end of the Pin flush with the external face of the Side Plate.
  • Page 25 Hexgon Cassette Torque Wrench 4.MAINTENANCE SECTION .2.3 Assembly of the SRX-16 and SRX-32 Cylinder Assemblies 1. Grasp the link retaining pin lug in copper-covered, vise jaws with the Housing horizontal. 2. If the Rod Seal was removed from the Housing, apply a coat of o-ring lubricant to the Seal and install it, lip end trailing, in the recess at the bottom of the piston bore.
  • Page 26 Swivel Sets into the threaded opening and pull the End Cap back against the Retaining Rings to seat them. 16. For SRX-2 and SRX-4 model position the End Cover against the Housing and after applying a non-permanent thread-locking compound to the threads, install the End Cover Screw.
  • Page 27 Instructions for: Models:SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 Double-Acting, Hexgon Cassette Torque Wrench 5TROUBLE-SHOOTING GUIDE PROBLEM CAUSE SOLUTION Piston will not advance or retract 1. Couplers are not securely 1. Check the Coupler connections attached to the tool or pump and make certain that they are connected.
  • Page 29 Instructions for: Double-Acting, Models:SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 Hexgon Cassette Torque Wrench Enclosure2 Inched stud torque (Please compare with stud factory provide chart in reality working.) SAE1 ASEM B7 B7 A/F ASEM 354 Tightening moment SAE2 Bolt Hex. Nut 210bar 30000psi Metric Imperial Metric...
  • Page 30 Hexgon Cassette Torque Wrench Reaction point/ face Reaction foot Low point reaction paddle Extended reaction foot SRX-model CLR SRX-model ER-length ex.: SRX-8CLR ex.: SRX-8ER-200 SRX Series Torque Conversion Chart SRX-2 SRX-4 SRX-8 1-1/4" to 1-7/8" to 1-5/8" to 2-3/4" to 1-1/4" to 1-7/8"...
  • Page 31 Model Hex. Drive size Hex. Drive size Hex. Drive adapter Square drive adapter Example: SRX-4HHM41-27 (option) (option) Low point reaction paddle (option) SRX Series Torque Conversion Chart SRX-8 SRX-16 SRX-32 2-3/4" to 4-1/8" to 3-1/8" to 4-11/16" to 3-3/8" to 2-3/4"...
  • Page 32 Instructions for: Models:SRX-2,SRX-4,SRX-8,SRX-16,SRX-32 Double-Acting, Hexgon Cassette Torque Wrench A. 1 B. 1 C. 1 +1~4 +2~8 Basic System Set-up A. 1 Hydraulic Torque Wrench using Electric Pump+1 Square Drive Wrench +Socket+2 hoses B. 1 Hydraulic Torque Wrench using Electric Pump+1 Low Profile Wrench +2 hoses C.
