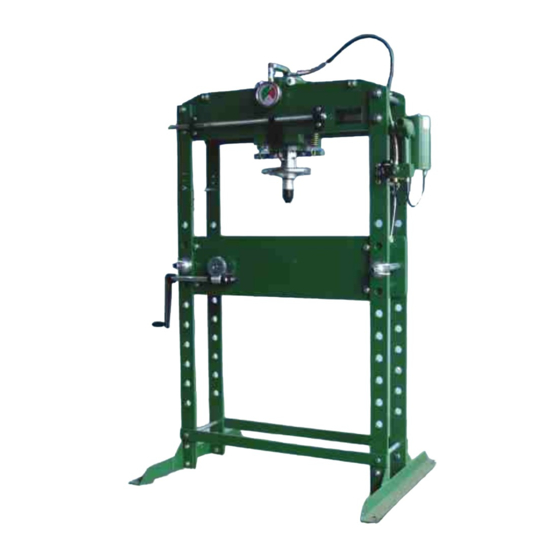

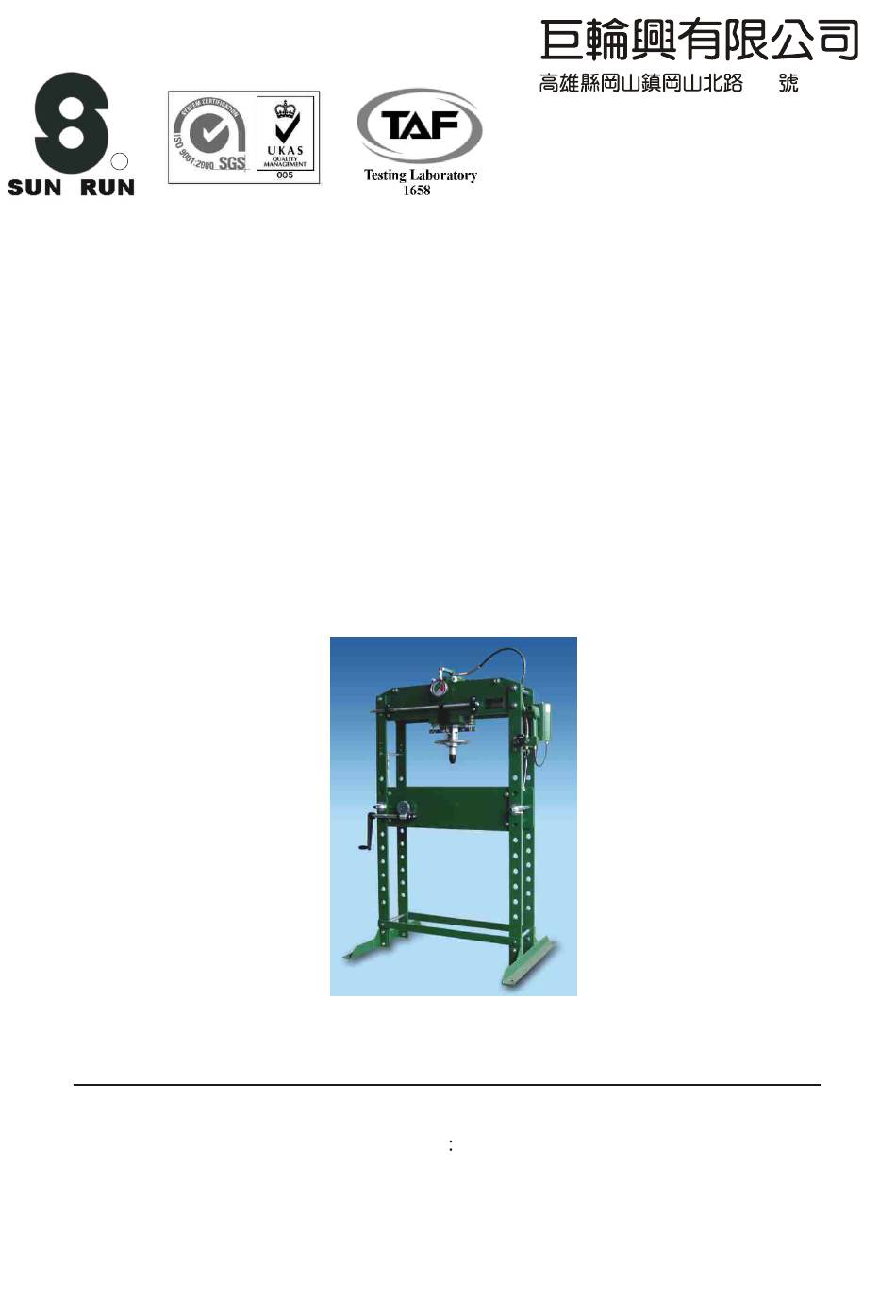

- Page 1 CHU LUN SING CO.,LTD No.199,Gangshan N. Rd., Gangshan Township, Kaohsiung County 820, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 OPERATING INSTRUCTIONS H FRAME PRESSES STP15,STP-35 English E1~E4...
- Page 2 SUN RUN equipment to temperatures of 65 C(150 F) parts. SUN RUN parts are designed to fit or higher. Protect hoses and cylinders from properly and withstand rated loads. weld spatter.
- Page 3 Instructions for: Models:STP-15,STP-35 H Frame Presses 2. Dimensions STP-35 / STP-35A / STP-35E STP-15 / STP-15A STP-100E / STP-60E Model Cylinder Screw Operting Press Output Dimensions(mm) Number Capacity Stroke Stroke Pressure Modal Flow Pump Rate ton(kN) (max) (min) (kg) (mm)
- Page 4 C. Crank the winch for either up or down movement of the work bed. Reassemble the pins. As put down STP-15's low bolster, user hand can't leave the winch handle and user foot can't If user hand leave the handle will cause bolster to fall down stand under the bolster (Fig2-1).
- Page 5 Instructions for: Models:STP-15,STP-35 H Frame Presses fig2-2 2. OPERATE(CONTINUE) up bolster 2.2 Up bolster (fig2-2): Use handle to move plunger to right or left. handle 2.3 Pump (fig2-3): A. To inspect all connect with pump and screw release valve. release...
