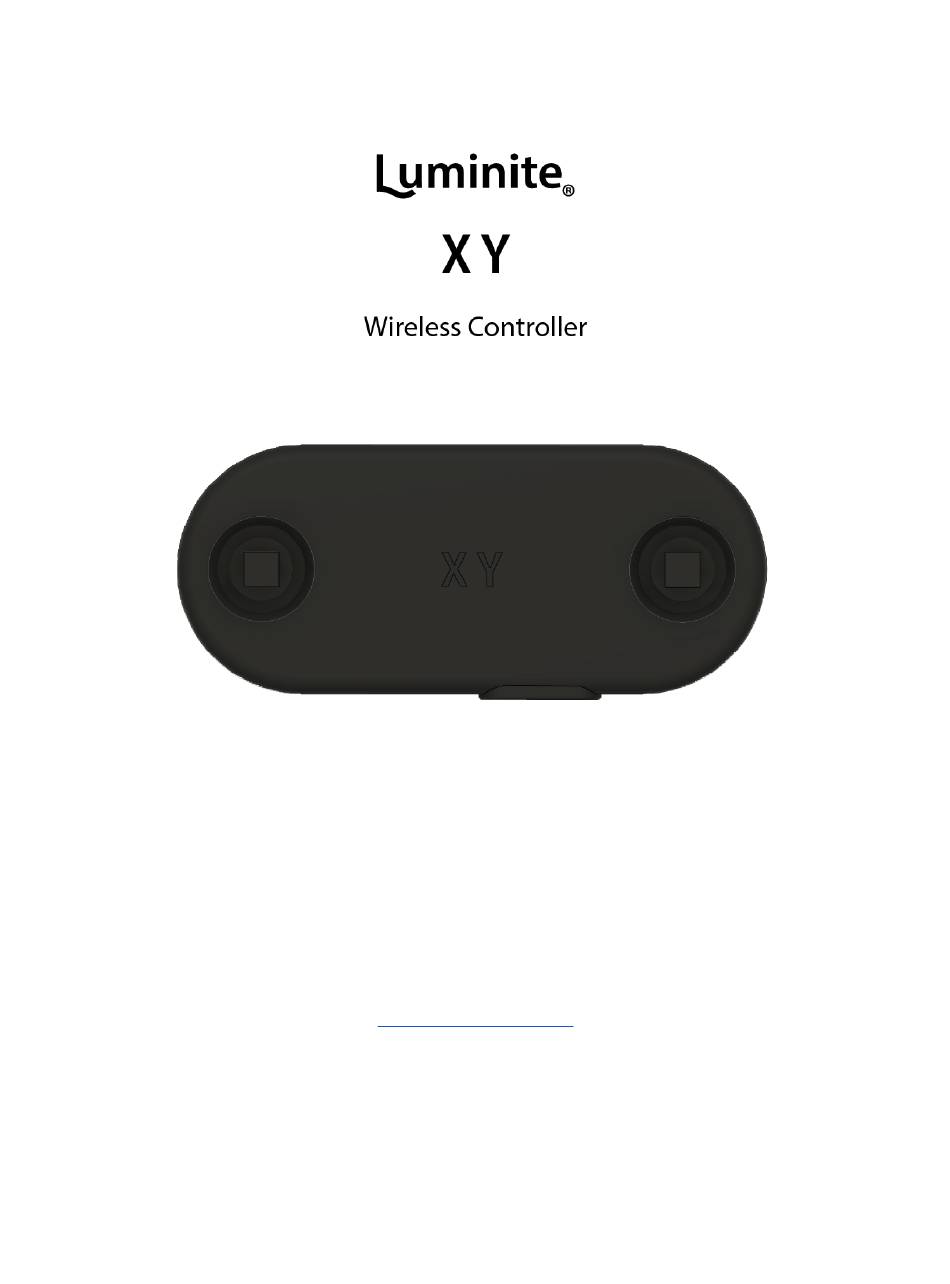

- Page 1 User Manual www.luminitefx.com...

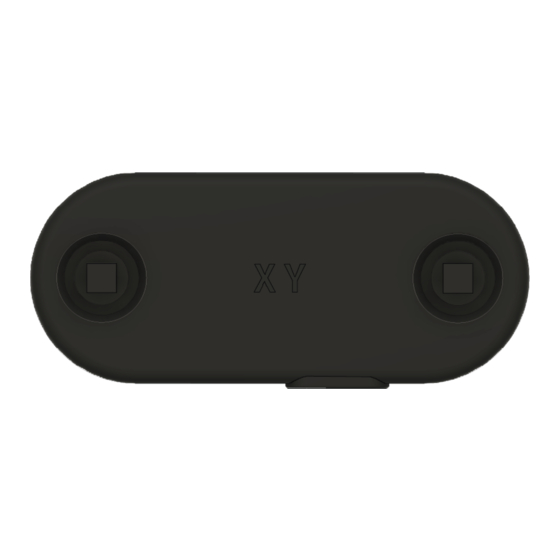

- Page 2 Hardware Basic XY Controller has two 5-way directional switches, each of which can be pushed up, down, left, right, and center, for a total of 10 switches (X1 to Y5). Switching with your fingertips is easy and intuitive, similar to using a pickup selector switch.
- Page 3 To pair a XY Controller to a Graviton Pedal, navigate to Settings > Wireless > XY Controllers > Tap on an empty slot > Hold your controller with the XY logo as shown, then push both switches to the up position together until the XY Controller name is in the selected slot.
- Page 4 The battery level is shown as a green percentage number in the top-right corner of the screen. If there are multiple XY Controllers or Wireless Footswitch Pedals paired, the battery level of the last activated controller is displayed. Features ● Low-profile design: Minimizes changes to the instrument's look and playability (compatible with whammy bars).
- Page 5 ● Width x Depth x Height: 2" x 0.88" x 0.51" (53mm x 22.4mm x 13mm). ● Weight: 2.12oz (60g). Software See the Graviton M1 / M2 manual for more details on how to use your XY Controllers with Graviton Series pedals.
