Easyswitch MAINS ON/OFF RECEIVER
FORWARD
Please read and understand the information in this manual.
If you do not understand or are unsure how to install this product, please consult a qualified
electrician.
WARNING
Learning the switch code.
Do this before connecting the mains power for safety.
NOTE: DO NOT CONNECT ANY PART OF THIS TO THE MAINS SUPPLY UNTIL STEPS 1 TO 7 HAVE BEEN COMPLETED.
STEP1.
Screw the aerial provided to the screw fitting at the top of the receiver enclosure.
STEP2.
Connect a standard PP3 9 Volt battery (not supplied) to the clip provided.
The LEARN led will flash three times indicating correct operation.
STEP3.
Press the LEARN button. The learn LED will light.
STEP4.
Operate the wall switch or key fob button which is to work with this receiver.
The learn LED will flash and go out indicating that the code has been learnt.
Operate the switch again and observe the ON/OFF LED.
STEP5.
Carry out range testing. (See Range testing on the next page)
STEP6.
Remove battery and lead from screw terminals and fix the receiver permanently in position.
STEP7.
Connect to the mains and replace cover.
ESR-1
Installation and operating instructions

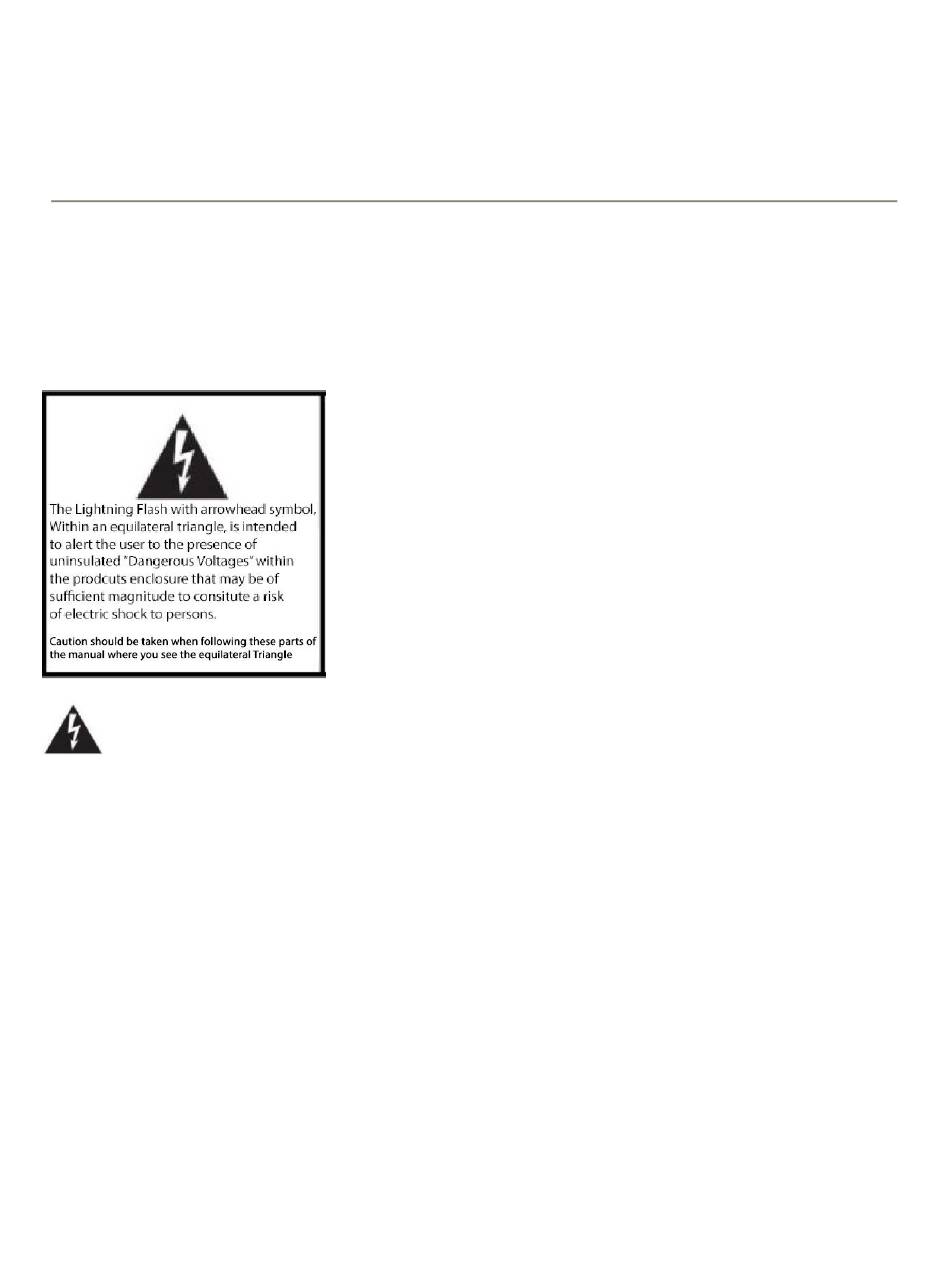

Please note: Where the equilateral triangle is present, observe
and understand the information before proceeding. Again if in
doubt consult with a qualified electrician.
Thank you for purchasing from the Luminite Easyswitch range. Please follow the
instructions closely.
The ESR-1 wireless receiver is a Mains Voltage ON/OFF switch housed in a weather
proof enclosure.
The 1000 Watt switch capacity means you can operate a variety of loads such
as pumps, motors, lighting and much more. Range testing and code learning
is all done using a temporary battery and there is no need to connect to the
mains at this stage.
Each wall switch (EST-1) and key fob (ESF-1) has a unique code which may be
learnt by the receiver.
You will need a PP3 9 Volt battery.
