KFC-WU
Installation and user manual
10/2023
Installation and
user manual

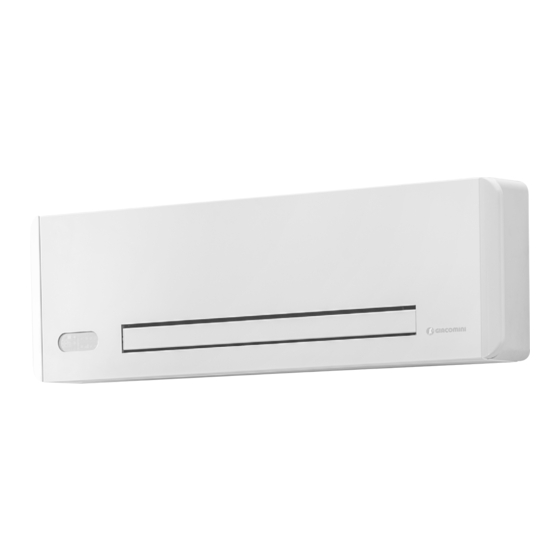

Fan coil for wall up installation
Giacomini S.p.A.
Giacomini S.p.A.
Via per Alzo 39, 28017 San Maurizio d'Opaglio (NO) Italy
Via per Alzo 39, 28017 San Maurizio d'Opaglio (NO) Italy
consulenza.prodotti@giacomini.com
consulenza.prodotti@giacomini.com
+39 0322 923372 - giacomini.com
+39 0322 923372 - giacomini.com
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Giacomini KFC-WU
Summary of Contents for Giacomini KFC-WU
- Page 1 Giacomini S.p.A. Giacomini S.p.A. Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italy Via per Alzo 39, 28017 San Maurizio d’Opaglio (NO) Italy consulenza.prodotti@giacomini.com consulenza.prodotti@giacomini.com +39 0322 923372 - giacomini.com +39 0322 923372 - giacomini.com...
-
Page 2: Table Of Contents
1.1 About the manual ..........p. 6 Giacomini S.p.A. - Page 3 3.12.1 Touchpad and remote control ....... . p. 21 3.12.4 Remote control with fixed speed ....... p. 22 3.12.5 Remote control with modulating speed .
-
Page 4: General Information
GENERAL INfORMATION GENERAL INfORMATION GENERAL INFORMATION 1�1�4 Manual organisation It is addressed exclusively to the installer. It contains specific warnings and all the information nec- The manual is divided into sections each dedicated to one essary for positioning, mounting and connecting the ap- or more target groups. pliance. -
Page 5: Disposal
2�2 Description of the appliance KFC-WU fancoils range are designed for wall installation. The device are are made in three different performance levels and size, all for two-pipe configuration. KFC-WU fancoils range are available into four configura- tions based on control mode: •... -
Page 6: Compatible Accessories
PRODUCT PRESENTATION INSTALLATION 2�3 Compatible accessories INSTALLATION Accessory description Combinable products Code Hydraulic kit HYDRAULIC KIT 3�1 Preliminary warnings Couple of EUROKONUS adapters for 1/2” female connection T.B.D. (male fittings) Couple of EUROKONUS adapters for 3/4” female connection For detailed information on the products, refer to Be sure to use the supplied or specified installation T.B.D. -
Page 7: Installation Site
• the safety distances between the units and other ap- Avoid installing the unit near: The KfC-WU fancoil has to be installed only in high position filter pliances or structures are scrupulously respected so • obstacles or barriers that cause recirculation of the... -
Page 8: Installation Arrangement
INSTALLATION INSTALLATION – Remove the side panels by unthreading them up- – position the support brackets – assemble the unit built-in cistern connecting water pipelines wards – partially screw the screws – check right attachment to the bracket condensation drainage pipe Do not fully fix the screws so that you can adjust the fixing screws aesthetic front panel... -
Page 9: Hydraulic Connections
INSTALLATION INSTALLATION 3�8 Hydraulic connections 3�8�4 Connection with 2-way manual valve (T�B�D�) In case of choice for the 2-way manual valve: • connect to the flow at the bottom The engineer is responsible for choosing the right water Keep in mind that undersized pipelines lead to poor •... -
Page 10: Condensation Drain Preparation
INSTALLATION INSTALLATION 3�9 Condensation drain preparation If draining into the sewage system: If the condensation is not collected, it will be deposited on the support surface. The water could freeze if the Make a siphon to prevent bad smells returning up the This appliance is complete with a tray for collecting the 3�9�2 Positioning outdo-or temperatures are below zero, thus creating... -
Page 11: Electric Connections
INSTALLATION INSTALLATION 3�11 Electric connections 3�12 D iagramsandconfigurationselectricalcontrols The device leaves the factory fully wired up and needs only for the size of the power supply cable and safety devices, 3�12�1 Touchpad and remote control the connection to the power supply, to any controls and use the following table. - Page 12 INSTALLATION INSTALLATION 3�12�4 R emotecontrolwithfixedspeedincombinationwithK492TY002(singlespeed)or Connection with 3 speed thermostats LED 2 flashes / pause – Motor alarm (for example jamming due to foreign K493TWY002+KPM30(3speeds) The CV input is the ON/Off of the board: bodies or fault in the rotation sensor) • in case of opened input the PCB is placed in stand-by LED 3 flashes / pause –...
- Page 13 INSTALLATION INSTALLATION 3�12�5 R emotecontrolwithmodulatingspeedincombinationwithK492TY012 Connection with 0-10 V thermostats The 10 V input activates solenoid valve Y1 and adjusts the Printed circuit board number of rotations of the fan. The speed range provides a linear adjustment from the minimum value (400 rmp) to The PCB is included in the supply. the maximum value (1400 rmp) for voltage values ≥...
-
Page 14: Remote Control
UNIT WITH TOUCHPAD AND REMOTE CONTROL UNIT WITH TOUCHPAD AND REMOTE CONTROL UNIT WITH TOUCHPAD AND REMOTE CONTROL Setpoint Up key Up key Down key Down key On/off key On/off key Not used Not used Key to enable cooling only mode Key to enable cooling only mode Not used 4�1 Interface Not used... -
Page 15: Main Functions
UNIT WITH TOUCHPAD AND REMOTE CONTROL UNIT WITH TOUCHPAD AND REMOTE CONTROL 4�2 Main functions select with the number of hours (from 1 to Any action is prevented by the user – 24 h) after which the appliance will be switched on To turn off the key-lock automatically 4�2�5 Heating only mode The keys of the remote control and touch-screen dis- press the key again for 10 seconds... -
Page 16: Maintenance
MAINTENANCE MAINTENANCE MAINTENANCE To clean the filters: filter Extraction direction – to use a vacuum cleaner – to aspirate dust Running water filter 5�1 Routine maintenance Routine maintenance is essential to keep the device always Warnings: efficient, safe and reliable over time. • Do not lean or sit on the fancoil to avoid damaging It can be done: the appliance. -
Page 17: Troubleshooting
TROUBLESHOOTING TECHNICAL INfORMATION TROUBLESHOOTING TECHNICAL INFORMATION 6�1 Preliminary warnings 7�1 Technical data Should you encounter any of the anomalies below: – disconnect the device from power supply immediate- • the ventilation does not start even if the water circuit KFC-WD is filled with hot or cold water –... - Page 18 TECHNICAL INfORMATION NOTE KFC-WD 800 XL Models m.u. Sound pressure level at medium dB(A) air flow Sound pressure level at minimum dB(A) air flow Operating limits Minimum water inlet tempe- °C rature Maximum water inlet tempe- °C rature 1. Water temperature in 7 °C, Water temperature out 12 °C, Room temperature 27 °C b.s. e 19 °C b.u. Performances according to EN 1397 2.
- Page 19 The crossed-out wheeled dustbin symbol, on the label on the product, indicates the compliance of this product with the regulations regarding Waste Electrical and Electronic Equipment. Abandonment in the environment or illegal disposal of the product is punishable by law. Additional information. For more information, go to giacomini.com or contact our technical Safety Warning. Installation, commissioning and periodical maintenance of the product assistance service.
