  • Page 1 USER MANUAL...

  • Page 2: Table Of Contents

    5.3 Exiting Alarm Mode 5.4 Snooze Mode 5.5 Regular Status Updates 6. Testing an Alarm on Cycloop 7. How to Charge Cycloop Battery and Key Fob Battery Replacement 8. Restoring Default Settings 9. How to Switch On and Off Cycloop 10. LED Indications 11.

  • Page 3: Thank You For Purchasing Cycloop

    THANK YOU FOR PURCHASING CYCLOOP! Thank You for purchasing Cycloop! We will do our best to help you secure your property. If you have any issues, please contact our Support team via the app Help section (fastest) or send an email to support@cyclooptracker.com...

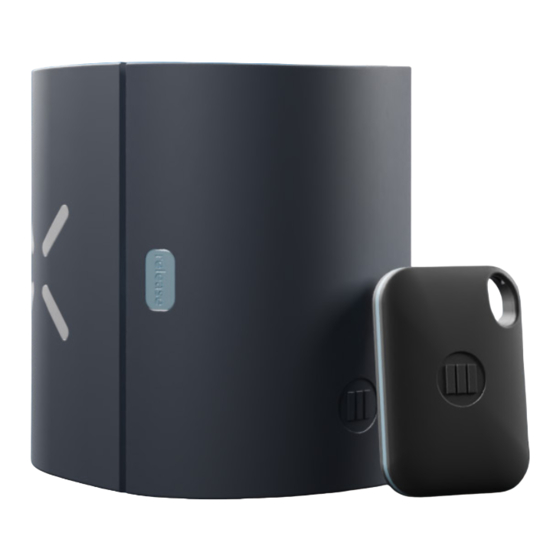

  • Page 4 WHAT’S IN THE BOX: KEY FOB CYCLOOP SIZING RUBBERS SCREWS HEX KEY...

  • Page 5: Before You Start

    BEFORE YOU START Cycloop can be used with iOS 14 or Android 8.0 phones and all subsequent operating systems. Android phones must have access to the Google play store. Your smartphone must also have Bluetooth 4.0+ (BLE) functionality, as the connection between your phone and Cycloop uses this technology.
  • Page 6 - somewhere on your person. THINGS TO KEEP IN MIND: • Your Key Fob can connect to Cycloop up to a maximum range of 50m/~150ft in an open area without interference, range will typically be less due to walls/objects causing interference.

  • Page 7: Getting Started

    GETTING STARTED STEP 1 Charging your Cycloop’s Battery for the first time. Get a USB-C charging cable Remove Cycloop from the and adapter (not provided packaging and take the larger part with Cycloop) of cycloop which has the 2 ‘X’ LED’s...
  • Page 8 GETTING STARTED STEP 1 Wait till the LED sequence After Cycloop is fully charged, displays all 4 lights ON remove the cable, and (100%) indicating full battery, then the lights will turn off IMPORTANT: by themselves once it is fully...
  • Page 9 GETTING STARTED STEP 2 Prepare the Key Fob FIRST MAKE SURE THE BATTERY TAB IS REMOVED FROM THE KEY FOB battery battery battery CR2032 battery Insert a small flat screwdriver Separate the two black pieces. into the special hole and lift. battery 2 SEK battery...
  • Page 10 IMPORTANT: All the pairings are done only through the App. Please do not try to pair your Cycloop or the Key Fob directly through your Phone’s Bluetooth Settings because the App might be unable to finish setup.

  • Page 11: Where To Install Cycloop

    WHERE TO INSTALL CYCLOOP Cycloop is intended to be placed on your bicycle in order to track it down in case of theft. After completing the App setup process, now it’s time to attach it to your bike. Because there are so many different types of bicycles and frames it may take some experimentation to find a good location.
  • Page 12 Seat Tube RECOMMENDED INSTALLATION LOCATIONS Seat Tube - this is the primary location for Cycloop because on most bicycles the seat tube is enclosed by other tubes of the frame. • Cycloop needs a minimum clearance distance of 45mm between the seat tube and any other bicycle parts, especially the tire.
  • Page 13 • Check clearance distance by sliding Cycloop along all positions on the tube making sure it doesn’t come into contact with any other parts. • You can also try to turn Cycloop so the electronics side of the device faces away from the tire/other parts.

  • Page 14: How Cycloop Works

    HOW CYCLOOP WORKS Cycloop has 2 main modes - Armed Mode and Alarm Mode. ARMED MODE ALARM MODE Push Call notification Riding a bicycle Wake up Is the Key Fob nearby?

  • Page 15: Armed Mode

    Wi-Fi turned ON on your Phone at all times. Please note Cycloop is not a ‘real time’ tracking device. It does not have a constant connection with the LTE-M network and is not constantly sending its location. Cycloop connects to the LTE-M network and sends locations only when Alarm mode is triggered.
  • Page 16 OWNER THIEF When in alarm mode Cycloop first calls the owner’s number. It will call ONCE and after that you will start receiving push notifications to the Monimoto app. You will see a GPS location in the Events Tab if precise location data is received or if GPS is not available then an approximate location using Cell ID (LTE-M Cell tower triangulation), or WLS wireless location if there are Wi-FI routers nearby.
  • Page 17 Movement Coordinates Cycloop calls arrive (In good its owner GPS reception conditions) How Cycloop Sends Locations after Alarm Starts ALARM RECIEVED IS CYCLOOP MOVING? Coordinates If at any given moment the After 30 min last known arrive at 5 min Key Fob is found, Cycloop...

  • Page 18: Exiting Alarm Mode

    Or if you gave your bike to a friend but forgot to give them the Key Fob. • You can set Cycloop to Snooze for 1-24 hours using the app. • This action will disarm Cycloop and you will not be able to bring it back to Armed mode until the selected snooze period ends.

  • Page 19: Regular Status Updates

    • It is not possible to remotely wake up a Cycloop which has been successfully snoozed. • When the snooze period ends it will return to Armed mode automatically, no action is required. • The only way to end Snooze mode before the snooze period has finished is to...

  • Page 20: Testing An Alarm On Cycloop

    2. Switch off Bluetooth on your phone and close the Monimoto Application. 3. Take your Cycloop-equipped bicycle for a test ride outdoors. 4. In approximately 1 minute you should receive a call from Cycloop and soon after push notifications should arrive to the App.
  • Page 21 HOW TO CHARGE THE CYCLOOP BATTERY Get a USB-C charging cable and Find the larger part of Cycloop adapter (not provided with Cycloop). with the 2 X LED’s, and locate the USB-C charging port under the waterproof rubber covering (you will...
  • Page 22 HOW TO CHARGE THE CYCLOOP BATTERY Plug your USB-C charging Wait till all 4 LED’s display SOLID RED indicating full cable into the charging port. battery. IMPORTANT: Remove the cable, and make sure the rubber covering is securely back in place to...
  • Page 23 KEY FOB BATTERY REPLACEMENT battery Insert a small flat screwdriver Separate the two black pieces. battery battery into the special hole and lift. battery battery battery battery battery 2 SEK Remove the battery by lifting it up slightly using a flat screwdriver and battery properly dispose of the used battery.
  • Page 24 KEY FOB BATTERY battery battery REPLACEMENT battery battery battery 2 SEK battery battery battery Put a new CR2032 battery into the Realign the two sides and firmly enclosure. The positive (+) side of the close till you hear a ‘click’ sound. battery faces up and the negative (-) side faces down.

  • Page 25: Restoring Default Settings

    RESTORING DEFAULT SETTINGS 1. Find the reset button as shown in this graphic (if Cycloop is installed on your bicycle you will need to remove it to access the reset button). Protip: the included hex key can be used to...

  • Page 26: How To Switch On And Off Cycloop

    HOW TO SWITCH ON AND OFF CYCLOOP Once your Cycloop has been successfully set up it will always be ON unless you specifically switch it OFF or it runs out of batteries. IMPORTANT: Once a device has been switched OFF, the only way to switch ON the device is by plugging in the powered USB-C charging cable to the charging port.
  • Page 27 1. Get a USB-C charging cable and adapter (not provided with Cycloop). 2. Find the larger part of Cycloop with the 2 X LED’s, and locate the USB-C charging port under the waterproof rubber covering (you will need to lift up the rubber).

  • Page 28: Led Indications

    Cycloop battery is charging. 1 light is pulsing then 25% battery charged 1-4 LED’s gradually pulse RED, the 2 lights pulsing number of LED’s ON indicates bat-...

  • Page 29: Updating Firmware

    UPDATING FIRMWARE In most cases the Firmware will automatically update by itself and you will not need to do anything. But it’s also possible to see a pop-up appear in the App saying “New Firmware is Available” to install you can go to App - Settings Tab - Connect button (phone/tracker in bluetooth range) and there should appear an “Update Firmware”...

  • Page 30: Technical Specifications

    Cycloop: 3.7V Li-Polymer (1930 mAh) rechargeable Key Fob: 3V Lithium CR2032 (1 battery) BATTERY OPERATION TIME Cycloop: up to 12 months without side LEDs OR up to 3 months with side LEDs ON for average 2 hour daily drive* Key Fob: up to 12 months...
  • Page 31 APPLICATION IOS/ANDROID OS REQUIREMENTS Minimum iOS 14 or Android 8, Androids must have Google Play store ESIM (NON-REMOVABLE) ESIM COVERAGE EU, UK, USA CELLULAR MODULE SARA-R510M8S, Ublox (from Switzerland) NETWORK CONNECTIVITY BANDS LTE CAT-M1 modem Bands 1, 2, 3, 4, 8, 12, 18, 19, 20, 28 LTE POWER CLASS (DBM) BLUETOOTH VERSION GPS LOCK TIME...

  • Page 32: Additional Information

    Application. TECHNICAL SUPPORT In order to ensure continuous and proper operation of the Cycloop device and uninterrupted service, it is the responsibility of the User to make sure that: (i) the product is properly installed, and (ii) there is constant internet or LTE connection and electrical supply (low battery must be recharged in time).
  • Page 33 • Check clearance distance by sliding Cycloop along all positions on the tube making sure it doesn’t come into contact with any other parts • You can also try to turn Cycloop so the electronics side of the device faces away from the tire/other parts.
  • Page 34 In any case, the liability of “Monimoto UAB”, as much as it is allowed by the laws in force, shall not exceed the price of acquisition of the product.
  • Page 35 DISPOSAL AND RECYCLING INFORMATION The WEEE (Waste Electrical and Electronic Equipment) symbol on this product (see left) means it must not be disposed of in household waste. To prevent possible harm to human health and/or the environment, you must dispose of this product in an approved and environmentally safe recycling facility.
  • Page 36 “Monimoto UAB”. “Monimoto UAB” reserves the right to update or modify this document and/or related products without an a priori warning. “Monimoto UAB’’ hereby declares that the Cycloop smart alarm for bicycles is in compliance with essential requirements and other relevant provisions of the Directive 2014/53/EU.
  • Page 37 FCC COMPLIANCE INFORMATION THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions: (1) This device may not cause harmfulinterference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 38 User Guide v2.00 Copyright © “Monimoto UAB”, 2023. All rights reserved.
