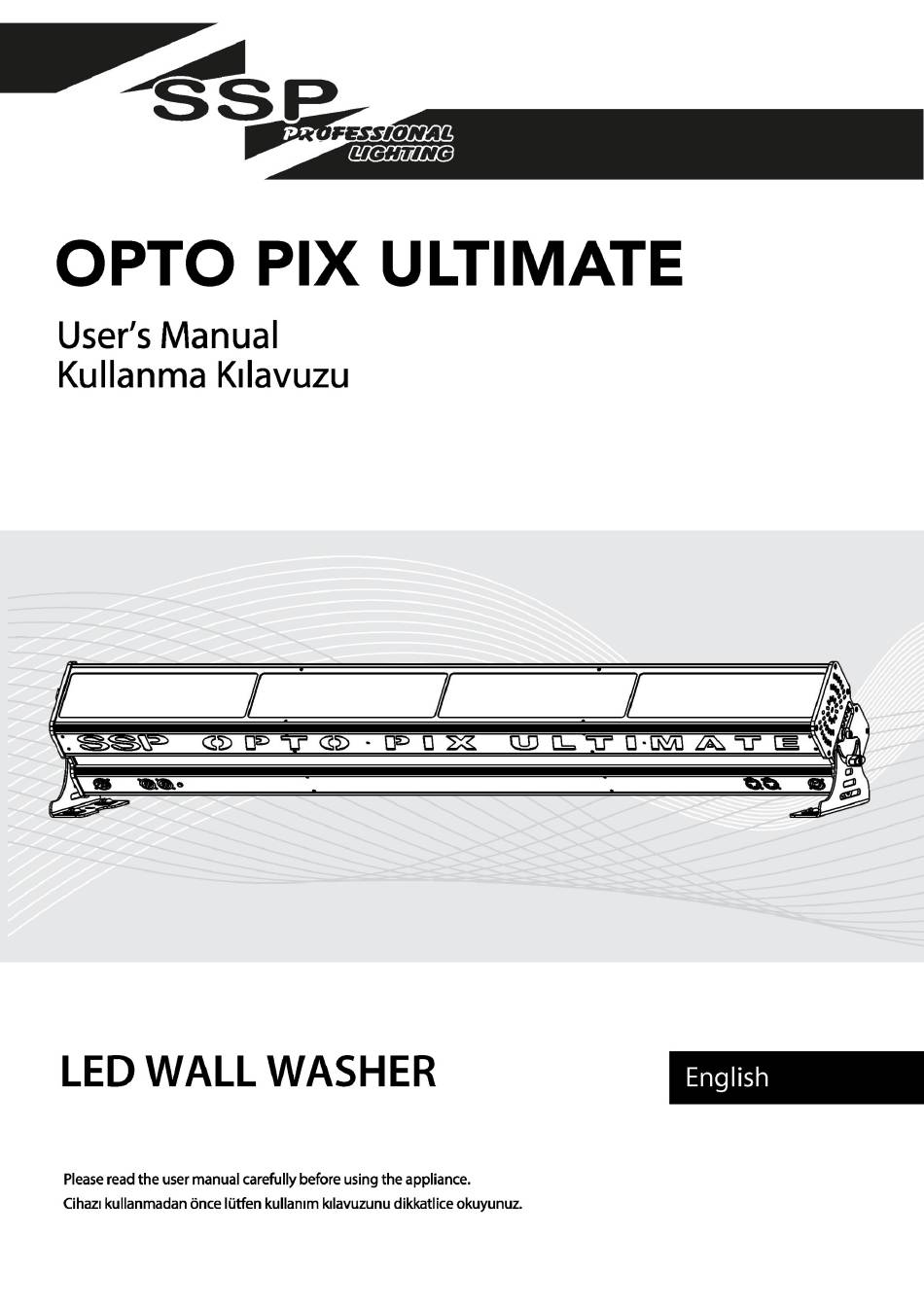

SSP OPTO PIX ULTIMATE User Manual

Led wall washer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTO PIX ULTIMATE and is the answer not in the manual?

Questions and answers

Related Manuals for SSP OPTO PIX ULTIMATE

Summary of Contents for SSP OPTO PIX ULTIMATE

  • Page 2: Security Warning

    OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu This product manual contains important information about the safe installation and use of this product.Please read and follow these instruction carefully and keep this manual in a safe place for future reference.

  • Page 3: Main Technical Parameters

    OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu If you have any questions,don't hesitate to consult our dealer or manufacturer. Important: Before any installation, maintenance and cleaning, please ensure that the power cut off! 1.2 Main Technical Parameters Power supply •...

  • Page 4: Product Features

    OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu Security • Cooling System: Intelligent temperature control fan cooling mode • Temperature Protection: 65℃ • Operating Environment: Indoor • Working Temperature: -10°C ～40°C Physical • Dimensions: 1223 * 180 * 203 mm •...
  • Page 5 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu • 16 Bit dimming for each pixel point. • SMT technology for control board and drive board make low failure rate. • Using concentrated tilt light Fresnel secondary optical lens makes color mixture more evenly and high brighter.

  • Page 6: Product Installation

    OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu Product Installation 2.1 Power Connection Method Please connect power as following ： L（live wire）= Brown wire E（earth wire）= Yellow / green double color wire N（null line）= Blue wire When connecting power, ensure that the voltage and frequency of power supply match the power requirement of the product.
  • Page 7 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu 2.2.1 When only set the DMX512 address code, no the ID code (STAG MODE), as below: XLR 3-pin Cable: Pin# Function Ground (Screen) Data Minus Data Plus • The DMX interface of lamp needs be connected to the DMX controller.
  • Page 8 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu 2.2.2 At the same time set the DMX512 address code and ID code (STAG MODE), as below: XLR 5-pin Cable: Pin# Function Ground (Screen) Data Minus Data Plus...
  • Page 9 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu Note: The direction of light can be changed by changing the direction of the lenses. 2.4 Quickly Changing Lenses or hardware fixtures Opto Pix series have the functions of quick changing lenses and hardware fixture.

  • Page 10: Operation Method

    OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu Operation Method 3.1 Back panel functions introduction • MENU: Menu button/return button, enter the menu selection interface or previous menu. • ENTER: Confirmation button,used to confirm the selected function.
  • Page 11 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu Blue 000~255 Amber 000~255 000~255 Green 000~255 White balance settings Blue 000~255 Amber 000~255 Quiet Fan off, total power output reduced by 20%. Studio Low speed, light output 100 %...
  • Page 12 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu • Press【ENTER】to confirm and the selected will be automatically saved. 3.2.4 Working Mode Settings (Work Mode) • Press【MENU】to find【Work Mode】menu and press【ENTER】to enter working mode setting. • Press【UP/DOWN】button to select【DMX】mode or【AUTO】mode or 【STAR】static mode.
  • Page 13 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu 3.2.8 Static Color Settings (Static) • Select【STAR】mode according to 3.2.4 working mode setting. • Press【MENU】to find【STATIC】menu and press【ENTER】to enter static color setting. • Press【UP/DOWN】button to select the color and brightness you needed.
  • Page 14 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu 3.2.12 Key Lock Settings (Key) • Press【MENU】to find【Key】menu and press【ENTER】to enter key lock setting. • Press【UP/DOWN】button to select【ON】or【OFF】. • Press【ENTER】to confirm and the selected will be automatically saved.

  • Page 15: Control Channel

    OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu Control Channel 4.1 RGB Control Channel Mode 4.1.1 RGB-3CH Mode Channel Control function Detail description DMX Data 0~255 Dimming from 0~100% Green 0~255 Dimming from 0~100% Blue 0~255 Dimming from 0~100% 4.1.2 RGB-6CH 16Bit Mode...
  • Page 16 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu Blue2 16bit 0~255 Dimming from 0~100% 4.1.5 RGB-48CH Mode Channel Control function Detail description DMX Data Red1 0~255 Dimming from 0~100% Green1 0~255 Dimming from 0~100% Blue1 0~255 Dimming from 0~100% ..
  • Page 17 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu Green 16bit 0~255 Dimming from 0~100% Blue 0~255 Dimming from 0~100% Blue 16bit 0~255 Dimming from 0~100% Amber 0~255 Dimming from 0~100% Amber 16bit 0~255 Dimming from 0~100% 4.2.3 RGBA-8CH Mode...
  • Page 18 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu ......Red4 0~255 Dimming from 0~100% Green4 0~255 Dimming from 0~100% Blue4 0~255 Dimming from 0~100% Amber4 0~255 Dimming from 0~100% 4.2.6 RGBA-128CH 16Bit Mode...
  • Page 19 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu Red green red green 144~161 Red red blue blue 162~179 Yellow yellow cyan cyan 180~197 Green purple purple green 198~215 Rainbow effect jump changing 216~233 Rainbow effect gradual changing...
  • Page 20 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu 35~36 Filter 111 (Dark Pink) 37~38 Filter 115 (Peacock Blue) 39~40 Filter 126 (Mauve) 41~42 Filter 117 (Steel Blue) 43~44 Filter 118 (Light Blue) 45~46 Filter 122 (Fern Green)
  • Page 21 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu 121~122 Filter 285 (Three Quarter C.T. Orange) 123~124 Filter 352 (Glacier Blue) 125~126 Filter 353 (Lighter Blue) 127~128 Filter 507 (Madge) 129~130 Filter 778 (Millennium Gold) 131~132 Filter 793 (Vanity Fair)
  • Page 22 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu ID 5 30~33 ID 6 34~37 ID 7 38~41 ID 8 42~45 ID 9 46~49 ID 10 50~53 ID 11 54~57 ID 12 58~61 ID 13 62~65 ID 14...
  • Page 23 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu ID 48 202~205 ID 49 206~209 ID 50 210~213 ID 51 214~217 ID 52 218~221 ID 53 222~225 ID 54 226~229 ID 55 230~233 ID 56 234~237 ID 57...

  • Page 24: Product Maintenance

    OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu Maintenance 5.1 Product Maintenance To prolong the life of the product,it is very important to do maintenance work. The environment is hash outdoors, or if the product is idle for a long time, damp, smoke or particularly dirty surroundings can cause greater accumulation of dirt on its LED lens cover, fan vents and housing.
  • Page 25 OPTO PIX ULTIMATE - SSP PROFESSIONAL LIGHTING User’s Manual – Kullanma Klavuzu Remark: This product warranty for one year. We provide pay- needed maintenance service after the warranty. But because of natural and man-made disasters or improper operation caused damage not under warranty range.
