SSP PROFESSIONAL LIGHTING SMART 280 W User Manual

Professional lighting
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SMART 280 W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROFESSIONAL LIGHTING SMART 280 W and is the answer not in the manual?

Questions and answers

Related Manuals for SSP PROFESSIONAL LIGHTING SMART 280 W

Summary of Contents for SSP PROFESSIONAL LIGHTING SMART 280 W

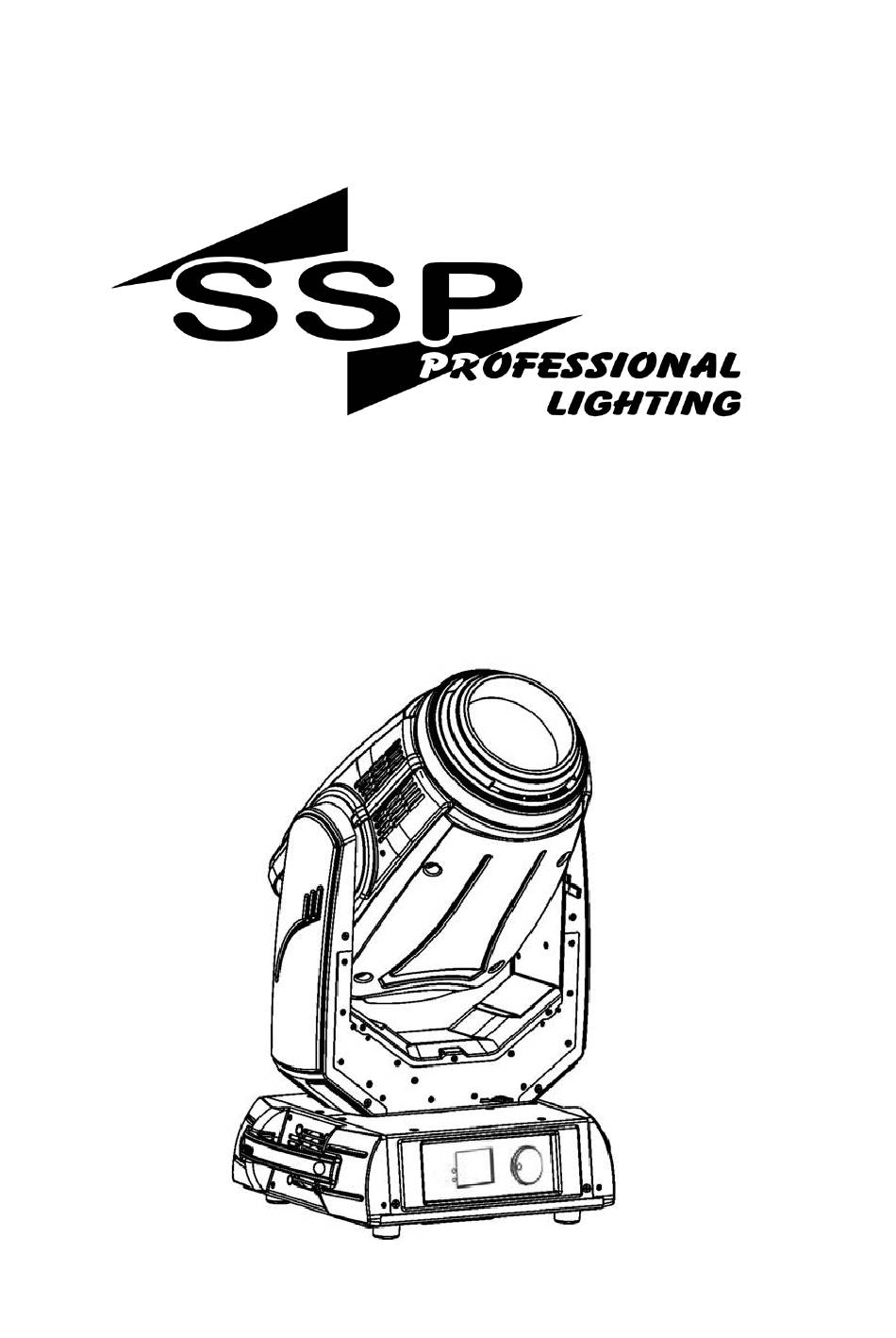

  • Page 1 SMART 280 W...

  • Page 2: Table Of Contents

    User Manual Index Item..........02 1.Product Introduction ......03 2.Fixture Size........03 3.Product Part Note.......04 4.Safety Information......05 5.Packing And Shipping......07 6.AC Power........08 7.Lamp Model And Changing.......08 8.Color Wheel And Gobo Wheel......10 9.Control Panel........11 10.Control Panel Operate......12 11.Channels Introduction......20 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

  • Page 3: Product Introduction

    Product Introduction Thank you for choosing this 280W Beam Spot product, this model is the moving head light which is the latest development of the smart, efficient products, beautiful shape, smooth, combined with the advanced technology of today's stage lighting products with international advanced electronic control technology and excellent user-friendly industrial design , fully comply with CE standard, accepted international standard DMX512 signal mode.

  • Page 4: Product Part Note

    Product Part Note 01 — Lens 02 — Light body 03 — Vertical Lock 04 — Arm 05 — H orizontal Lock 06 — Handle 07 — Light Holder 安 01 — Display Screen 02 — Control Wheel 01 — 3 Pin Signal 02 —...

  • Page 5: Safety Information

    Safety Warning Information This product is only suitable for professional use, and does not apply to security for other purposes. After you get the lights, please check the package whether have any damage caused by transportation. If there is any damage, do not use this fixture, and please contact the dealer or manufacturer as soon as possible.
  • Page 6 PREVENTION OF ELECTIC SHOCK The electrical connection must only be carried out with corresponding qualifications; Before installing, make sure you use the power voltage lamps must comply with the identified power, voltage and have an overload or leakage protection; Each lamp must be properly grounded, installed in accordance with the relevant standards; Cut off the power when stall or replace the lamp and the fuse;...

  • Page 7: Packing And Shipping

    1. Open the fly-case, and discover the inside plastic bag. 2. High-lift the product by two handles beside the bottom base and move it out. 3. Before power on, make sure you have opened the X, Y axis lock! WARNING Fixture must use two fixing devices, and make sure the fixing device have locked! And only fully clockwise rotate 90 °...
  • Page 8 Alternating Current Power Supply 6.1 VOLTAGE, POWER, FUSE SPECIFICATION Input Voltage Total Power Frequency 110~240V 470W 50/60HZ Fuse Voltage Current Specification 250V 5×20 6.2 POWER PROTECT The equipment must be operated by professionals; Make sure that the voltage of power supply must be comply with the voltage identified on the lamp, and must have an overload or leakage electrical protection.

  • Page 9: Color Wheel And Gobo Wheel

    3. After remove the light body cover,you can see the lamp clearly.Before replace lamp, fixture need 20 minutes for lamp cooling. Fasten the head with Y axis protect lock in 60 ° position. 4. Open stainless steel tablet holder with one hand and the use other hand to pull out the bulb at oblique 15 °...
  • Page 10 280w Beam Spot light is with 14 fixed gobo wheels+ white,abundant patterns with 8 prisms or 6 prisms will create amazing effect. 280w Beam Spot light is with 9 rotation gobo wheels +white,gobo wheels run smooth and easy to change. www.sspworld.com...

  • Page 11: Control Panel

    280w Beam Spot light adopts innovative 6 prisms and traditional 8 prisms. Prisms and Gobos with focus ,rotate,zoom & shake effects,rotate speed can be adjust. 9.Control Panel Control Wheel Display Screen Display Screen: mainly display product information date; Control Wheel: with turn left,turn right and enter three functions; Turn Left：increase date,roll the menu；...

  • Page 12: Control Panel Operate

    10.Control Panel Operate Function Main Menu Sub Menu1 Sub Menu2 setting "Address " DMX address setting "Natu" Normal display "ShowRev " "Revl" Reverse display "Chin" Chinese display "Language" "Engh" English display 10% - 100% Brightness setting "BrigSett" "Ligh" "1MIN" "Backligh" "5MIN"...
  • Page 13 Open XY optical couple Fback" "Open" check ▲ "Return " Color wheel and gobo "Off " wheel go shortest route "Shortcut" Color wheel and gobo wheel "Open" not go shortest route "Smal" Simplify channel mode "Stan" Standard channel mode "ChunMode "...
  • Page 14 "Off " Manual control lamp off "Control " "Open" Manual control lamp on Forbid outside signal "Off " control lamp "DmxLamp " Open outside signal control "Open" lamp "LampTime 0000-9999 Record lamp use time " "> " Input password,confirm "ClearTim" "Ilum"...
  • Page 15 "Tilt " 000-255 "TiltFine" 000-255 "XY Speed" 000-255 "ReseLamp" 000-255 "Color " 000-255 "ColrFine" 000-255 "EffectSP" 000-255 "StaticGB" 000-255 Rot Gobo" 000-255 "Gobo1Rot" 000-255 "GbRotFin" 000-255 "PrismInt" 000-255 "PrismRot" 000-255 "Frost " 000-255 "Zoom " 000-255 "ZoomFine" 000-255 "Focus " 000-255 "FousFine"...
  • Page 16 > "Eprt" "Defaults" "Save" "Pan " 000-255 "Tilt " 000-255 "RotGobos" 000-255 "GoboRot " 000-255 "FixeGobo" 000-255 "Colour " 000-255 "Focus " 000-255 "Zoom " 000-255 "Redress " "Shutter " 000-255 "Shutter " 000-255 "Beam "(liner prism) 000-255 "PrismRot" 000-255 "BeamRot "(linear prism rot)
  • Page 17 "Color rot " 00-32 "ColrFine" 00-32 "EffectSP" 00-32 "StaticGB" 00-32 "Rot Gobo" 00-32 "Gobo1Rot" 00-32 "GbRotFin" 00-32 "PrismInt" 00-32 "PrismRot" 00-32 "Frost " 00-32 "Zoom " 00-32 "ZoomFine" 00-32 "Focus " 00-32 "FousFine" 00-32 "AutoFous" 00-32 "Shutter " 00-32 "Dimmer " 00-32 "DimmFine "...
  • Page 18 "Passwor1" 000-255 "Passwor2" 000-255 "Passwor3" 000-255 "Passwor3" 000-255 "Passwor4" 000-255 "X Drivin" 000-255 "X Slave " 000-255 "Y Drivin" 000-255 "Y Slave " 000-255 "Off " "LampPowe "Open" " "YAngle " 000-255 ▲ "Return " Check sum 000-010 000-255 "Checksum" ▲...

  • Page 19: Channels Introduction

    "Gobo1Rot" 000-255 "GbRotFin" 000-255 "PrismInt" 000-255 "PrismRot" 000-255 "Frost " 000-255 "Zoom " 000-255 "ZoomFine" 000-255 "Focus " 000-255 "FousFine" 000-255 "AutoFous" 000-255 "Shutter " 000-255 "Dimmer " 000-255 "DimmFine" 000-255 "Return " 000-255 Not reset "Off " "ALLRese t" "On"...
  • Page 20 Pan fine Channel 2 0 - 255 Pan fine Tilt Channel 2 Channel 3 0 - 255 Tilt Tilt fine Channel 4 0 - 255 Tilt fine Pan - Tilt - (Pan fine - Tilt fine) Speed Channel 3 Channel 5 0 →...
  • Page 21 Colour wheel 0 – 127 Continual positioning 128 – 129 White 130 - 134 Colour1 135 - 138 Colour2 139 - 143 Colour3 144 - 147 Colour4 148 - 152 Colour5 153 - 157 Colour6 158 - 161 Colour7 162 - 166 Colour8 Channel 5 Channel 7...
  • Page 22 0 - 255 Reserved Static gobo wheel WHITE 0 - 3 GOBO1 4 - 9 GOBO2 10 - 15 GOBO3 16 - 21 GOBO4 22 - 27 GOBO5 28 - 33 GOBO6 34 - 39 GOBO7 40 - 45 GOBO8 46 - 51 GOBO9 52 - 57...
  • Page 23 Beam reducer 1 168 - 175 Beam reducer 2 176 - 183 Beam reducer 3 184 - 191 Beam reducer 4 192 - 199 No rotation (Open) 200 - 201 202 - 221 Forwards gobo wheel rotation from fast to slow No rotation (Stop) 222 - 223 Backwards gobo wheel rotation from slow to...
  • Page 24 35 – 37 GOBO 2 38 – 40 GOBO 3 41 – 43 GOBO 4 44 – 46 GOBO 5 47 – 49 GOBO 6 50 – 52 GOBO 7 53 – 55 GOBO 8 56 – 59 GOBO 9 Shaking gobos from slow to fast GOBO 1 Shake,Slow →...
  • Page 25 200 – 201 Open/Hole (default) 202 – 221 Forwards gobo wheel rotation from fast to slow 222 – 223 No rotation (Stop) Backwards gobo wheel rotation from slow to 224 - 243 fast 244 - 249 Random colour selection by audio control 250 - 255 Auto random colour selection from fast to slow Rot.
  • Page 26 106 - 127 beam linear rotating prism- rotation 128- 135 Macro 1 136- 143 Macro 2 144 - 151 Macro 3 152 - 159 Macro 4 160 - 167 Macro 5 168 - 175 Macro 6 176 - 183 Macro 7 184 - 191 Macro 8 192 - 199...
  • Page 27 FROST 0 - 179 Frost from 0% to 100% 180 - 189 100% frost Channel 12 Channel 16 190 - 211 Pulse closing from slow to fast 212 - 233 Pulse opening from fast to slow 234 - 255 Ramping from fast to slow ZOOM Channel 13 Channel 17...
  • Page 28 128 - 143 Opening pulse in sequences from slow to fast 144 - 159 Closing pulse in sequences from fast to slow Shutter open 160 - 191 192 - 223 Random strobe-effect from slow to fast Shutter open, Full lamp power 224 - 255 Dimmer intensity Channel 16...
