175-000340-00
Quick Setup Instructions
UDC-5212 and DTD-5225 Digital Clocks

Pre-Setup Inspection and Verification

Setup

Please refer to your UDC-5212 and DTD-5225 Digital Time/ Date Display Clocks
Installation and Operation Manual, Edition D for more detailed information.
1. Inspect the UDC-5212 product for missing parts and for transit damage
immediately after unpacking. If possible, retain the original packing materials for
re-use in the event of further shipment of the equipment.
2. Verify that the AC line voltage for your installation matches the voltage printed on
the chart on the rear of the UDC.
3. Verify that the operating configuration indicated on the back of the clock (Slave or
Master) is correct for your installation. If there is no indication, the unit is
configured for Slave operation. For information about how to change the Master/
Slave configuration, see your UDC-5212 and DTD-5225 Digital Time/ Date
Display Clocks Installation and Operation Manual, Edition D.
Selection of the clock control modes are set using six rear panel DIP switches. Each DIP
switch has a left and right position setting that correspond to a control mode selection.
Figure
1-1illustrates the DIP switch positions.

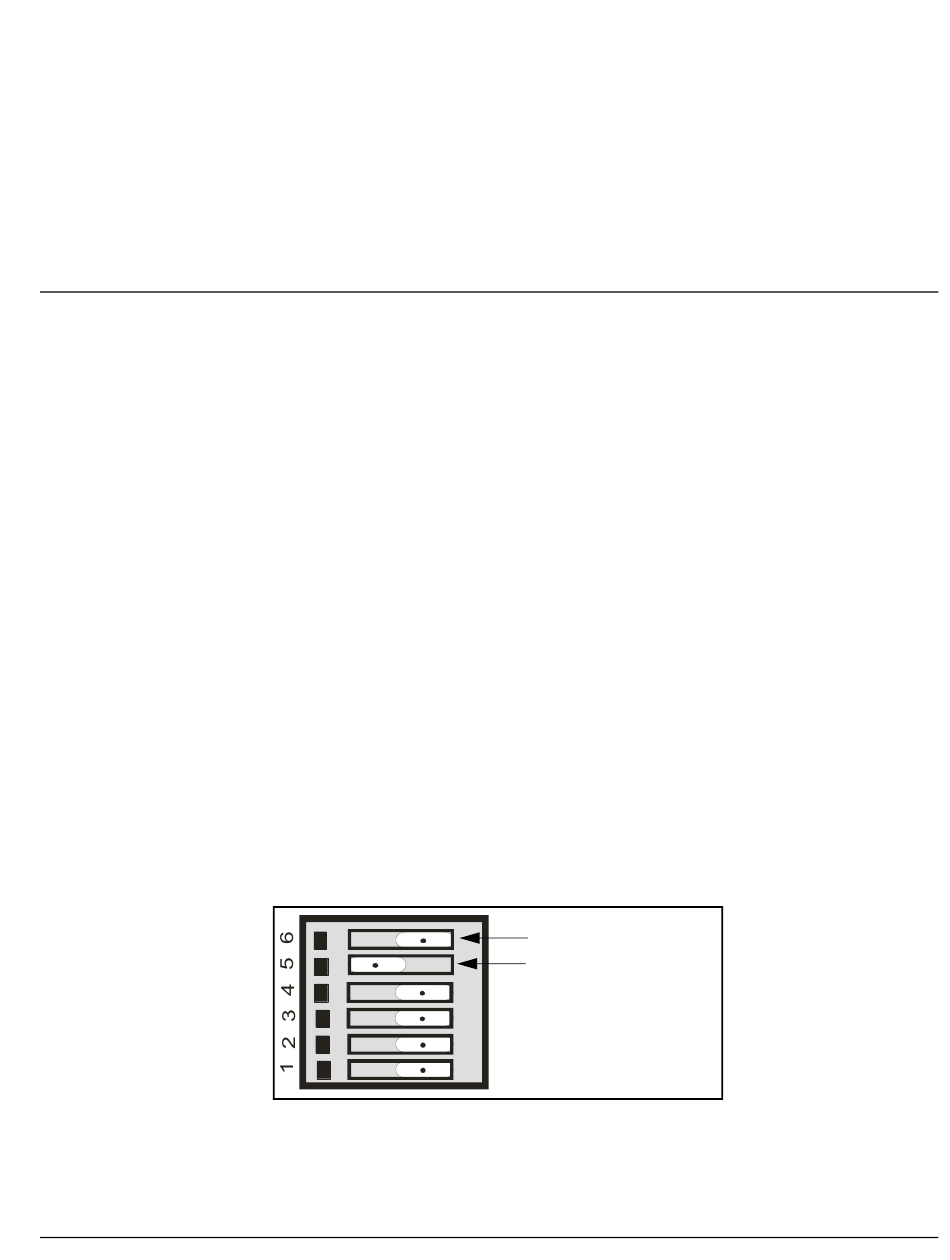

Figure 1-1. DIP Switch Positions
Switch in right position
Switch in left position
1 of 4/August 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UDC-5212 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Imagine UDC-5212

  • Page 1 175-000340-00 Quick Setup Instructions UDC-5212 and DTD-5225 Digital Clocks Please refer to your UDC-5212 and DTD-5225 Digital Time/ Date Display Clocks Installation and Operation Manual, Edition D for more detailed information. Pre-Setup Inspection and Verification 1. Inspect the UDC-5212 product for missing parts and for transit damage immediately after unpacking.
  • Page 2 ON SECONDARY (right position). 3. Setting the Perimeter LED Operation If the UDC-5212 is configured to operate as the Slave (as indicated on the back of the clock), you can use DIP switch 5 to select how the perimeter LEDs display seconds.
  • Page 3 Quick Setup Instructions UDC-5212 and DTD-5225 Digital Clocks 4. Setting the Clock Secondary Reference Source If the UDC/DTD is set to Clock mode, you can use DIP switch 4 to select the secondary reference source. If the timecode source fails, the UDC/DTD will use the secondary reference as the time source.
  • Page 4 Quick Setup Instructions UDC-5212 and DTD-5225 Digital Clocks Setting Digit Brightness • Using the UDC/DTD multifunction buttons, you can change the UDC/DTD digit brightness. To change the brightness by one level (of 16), hold either the CW or CCW and the MANUAL SET buttons simultaneously. You can adjust the brightness of the second and marker LEDs through the two holes on the rear panel.
