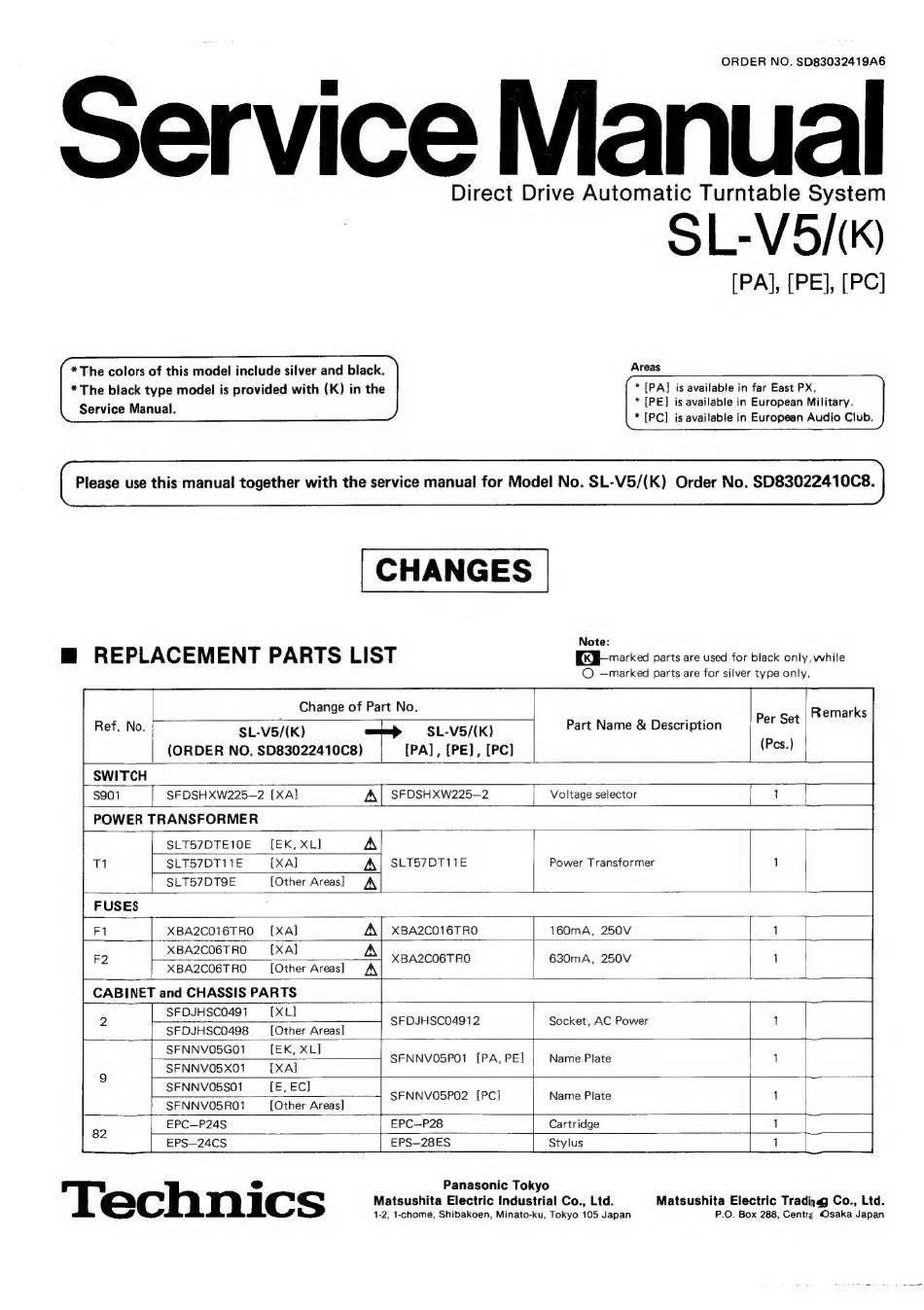

Technics OL-V5/K Service Manual

ORDER NO. $D83032419A6
Direct Drive Automatic Turntable System
OL-V5/(K)
[PA], [PE], [
Areas
* [PA] is available in far East PX.
*The colors of this model include silver and black.
*The black type model is provided with (K) in the
Service Manual.
* [PE] is available in European Military.
* [PC] is available in European Audio Club.
Please use this manual together with the service manual for Model No. SL-V5/(K) Order No. $D83022410C8.
Note:
| REPLACEMENT PARTS LIST KK marked parts are used for black only, while
© —marked parts are for silver type only,
Change of Part No.
Ref. No. SL-V5/(K) meu SL-V5/(K) Part Name & Description
(ORDER NO. $D83022410C8) [PA], [PE], [PC] (Pes.)
Per Set Remarks
SWITCH
$901 SFDSHXW225-—2 [XA] SFDSHXW225—2 Voltage selector
POWER TRANSFORMER
SLT57DTE10E [EK, XL]
SLTS7DTI11E [XA] SLTS7DT11E Power Transformer
SLT57DT9E {Other Areas]
Fl XBA2CO16TRO [XA] A\| XBA2C016TRO 160mA, 250V
XBA2CO6TRO [XA]
F2 XBA2CO6T RO 630mA, 250V
XBA2CO6T RO [Other Areas]
CABINET and CHASSIS PARTS
SFDJHSCO491—s [XL]
2 SFDJHSC04912 Socket, AC Power
SFDJHSCO498 = [Other Areas]
SFNNVO5G01 (EK, XL]
SFNNVO5X01_~—s [XA]
SFNNVO5S01 [E, EC]
SFNNVO5RO01 [Other Areas]
EPC—P24S EPC—P28 Cartridge
EPS—24CS EPS—28ES Stylus
SFNNVO5P01 [PA, PE] Name Plate
SFNNVO5P02 [PC] Name Plate
Panasonic Tokyo
@
f ecl } nics Matsushita Electric Industrial Co., Ltd. Matsushita Electric Trading Co., Ltd.
1-2, 1-chome, Shibakoen, Minato-ku, Tokyo 105 Japan P.O. Box 288, Centra Osaka Japan
