RISCO Group's Access Control Reader employs advanced RFID technology in a rugged
and stylish enclosure. The reader is compatible with 13.56 MHz RFID read-only tags,
read/write tags and smart encrypted data tags. Suitable for indoor and outdoor
installation with a rugged polycarbonate enclosure and molten epoxy for vandal
resistance. The reader is compatible to work with any standard access control system or
with RISCO Access Control (AxesPlus™ V1.19 and higher) using RS232 serial
communication.

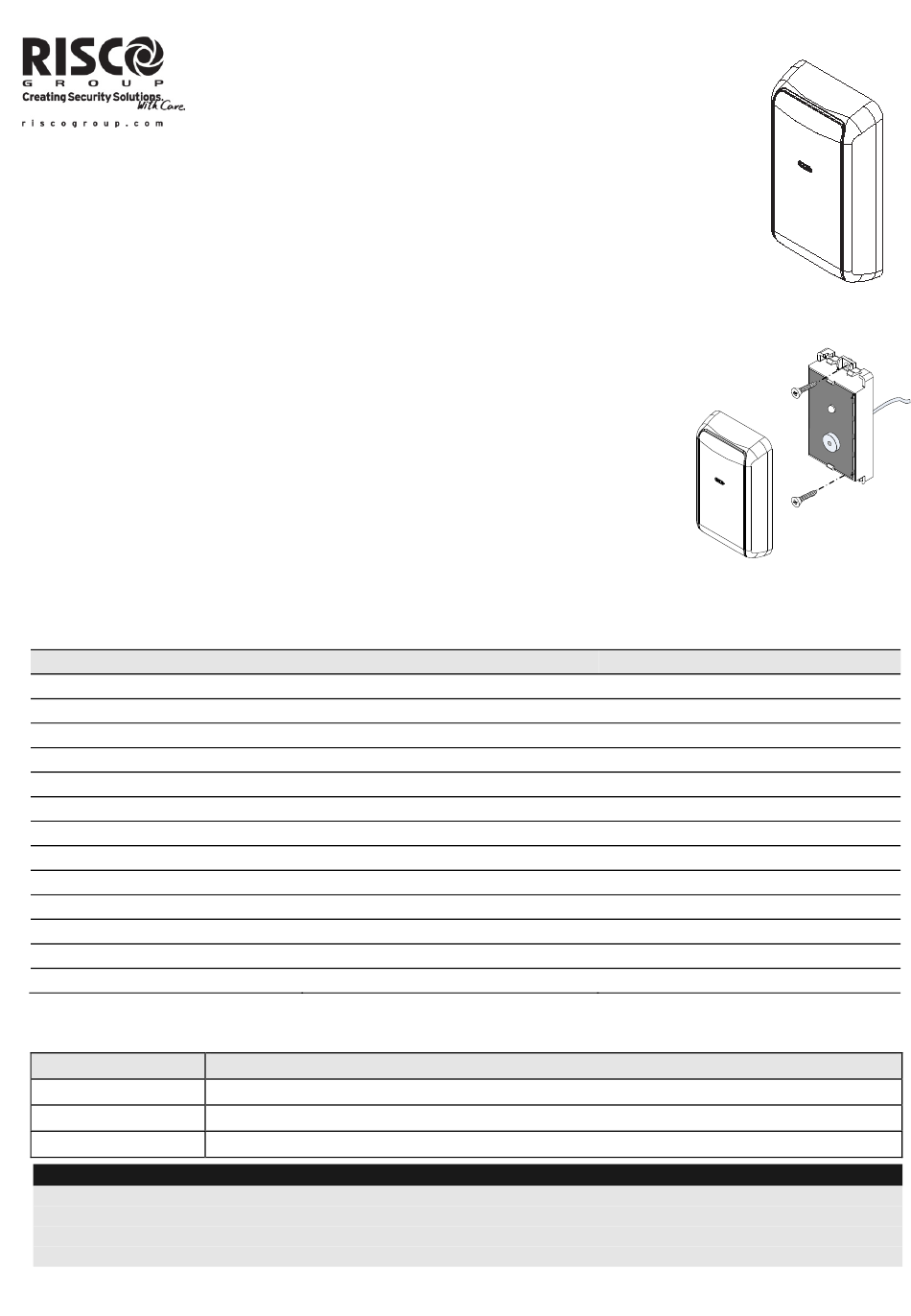

Installation
1. The Access Control Reader can be mounted indoors or outdoors on any surface
(wood, metal, concrete, etc.).
2. Remove the cover from the reader.
3. Choose the required location and mark the installation holes and the wiring
passage hole while using the reader base as a template.
4. Drill a 12 mm hole for the cable passage and two installation holes, 4mm each.
5. Secure the reader to the surface using the supplied screws.
6. Route the cable to the controller and wire according to the Wiring section.
7. Replace the cover.
Wiring
Wire the reader to the controller according to the following wiring table and the controller installation
instructions.
Wire
Red
Black
Green
White
Drain
Orange
Brown
Yellow
Blue
Violet
Gray
Pink
Light Blue
LED & Buzzer Testing
The following table indicates the default LEDs and buzzer indications.
Operation
Start Up
Stand by mode
Card present
Note:
Wiring buzzer control input (Yellow wire) to ground during device power on will put it in silent mode (except power on beep).
The buzzer is returned to its normal operation after restarting device with floating control input (Yellow wire).
Buzzer control input (Yellow wire) can be used for other purposes, for example "Door open too long" indication.
Once connected to the Access Controller, the LED and Buzzer operation will be controlled by the controller software.
Access Control Reader
Model: AC500R11
Wiegand
+DC
GND
Data0
Data1
Shield GND
Green LED control
Red LED control
Buzzer
Hold
Card present
--------------
--------------
Optional
Indication
Short LED blink and Buzzer beep will indicate successful device startup
Red LED will blink shortly every 5 sec to show that the reader is ON
Buzzer will beep shortly for recognized cards only
RS-232
+DC
GND
--------------
--------------
Shield GND
Green LED
Red LED
Buzzer
Hold
Card present
Serial TX
Serial RX
Optional
Page 1
