Summary of Contents for Shure MoveMic
- Page 1 The Shure MoveMic Online user guide for the Shure MoveMic Kit. Pair the MoveMic cliplav to your device or the receiver. Shoot landscape or portrait video. Stream to Facebook or YouTube. Adjust EQ, compression, update firmware, find supported devices, and troubleshoot.
-
Page 2: Table Of Contents
Use the Dark Theme Monitor Your Sound The MoveMic Charge Case Charge Case Status LED Indicators Gallery Important Tips for Care and Storage of Shure Recharge Video Playback able Batteries Sharing Video Recordings The MOTIV Audio Application MoveMic Firmware Updates... -
Page 3: Movemic The Shure Movemic
When recording with the MoveMic kit, use the following best practices: • Always remain in line of sight from the MoveMic to your receiver; either the MV-R or your phone if utilizing the MOTIV app. • Minimize distance for optimal video content and wireless performance. Many creators stay within 20ft (6m) to have the best visibility and strongest sound. -
Page 4: General Description
The Shure MoveMic Powering the MoveMic On and Off Power On: Press and hold the MoveMic power button for 3 seconds until both LEDs double flash. Continue to hold power but ton to put MoveMic into pairing mode. Power Off: Press and hold the MoveMic power button for 3 seconds until the LED power indicator flashes red twice. Release the button. - Page 5 Shure Incorporated Hold for 3 seconds or place mic into Charge POWER OFF Case and shut the lid PAIRING MODE Hold 6 seconds from a powered-off state MoveMic LED Indicators Power LED MoveMic On Green double flash Muted Red solid...
-

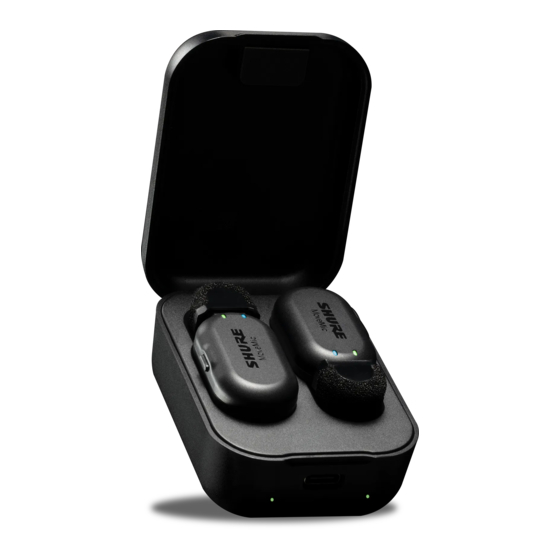

Page 6: The Movemic Charge Case
The LED indicators on the outside of the case allow you to check the case and MoveMic battery levels when the lid is closed and the mics are docked inside. The case uses a rechargeable bat... -
Page 7: Important Tips For Care And Storage Of Shure Rechargeable Batteries
The MOTIV Audio Application ® Use the Shure MOTIV Audio application to connect to microphones, adjust gain levels, and to record, edit and share audio. The device stores the most recently used settings for quick setup each time you record. -
Page 8: Mic Settings
Shure Incorporated Tap an available microphone to Pair. Successful connection will be indicated by solid blue connection LED for 30 sec onds, and the device settings screen will open. Microphones that have been paired to MOTIV will automatically reconnect the next time MOTIV is opened. - Page 9 Shure Incorporated Mode Application Characteristics An unprocessed signal (no equalization or compression settings used). Adds Flat flexibility when processing the audio after recording. Custom Presets Create and save custom presets to quickly access frequently used mic settings. Start with the preset mode that best suits your application needs.
- Page 10 Shure Incorporated Device Name: Tap the Device Name if you'd like to customize your microphone name. Lock Settings: Lock settings when you have dialed in your sound to ensure that nothing gets accidentally changed. LEDs: Turn off the LEDs on the microphone transmitters for a more discrete mic presence.
-
Page 11: The Motiv Video Application
LED flashes for easy identification. The MOTIV Video Application The Shure MOTIV Video recording app provides instant video recording with uncompressed audio for your mobile device. Cus tomize the sound with digital signal processing (DSP) preset modes, adjustable gain, and stereo width control. -
Page 12: Video Standby Mode
Shure Incorporated Video Standby Mode ① Flash Use the flash when recording in low light situations. ② Connected Device/Recording Length/Focus Lock Device status will display the name of the connected MOTIV device. Recording length is displayed in hours, minutes, and seconds. See the Visual Settings topic for information on setting image fo... -
Page 13: Video Record Mode
Shure Incorporated Focus: Tap to focus or tap and hold to lock brightness and focus. Tap again to release the lock. Mic Gain Sliders Access the mic gain sliders when you want to quickly adjust your volume. Tap the input meter to open the mic gain window. -
Page 14: Live Streaming
Live Stream Using the MOTIV Video App You can use the Shure MOTIV Video app to connect with Facebook or YouTube and live stream while using the MoveMic One and MoveMic Two with direct to phone connectivity. This allows you to capture and adjust professional quality audio as you stream to your live video feed. -
Page 15: Easy Live Streaming To Facebook And More
Hardware Receiver The MoveMic Receiver The MoveMic Two Receiver Kit expands recording options by adding a hardware receiver to the MoveMic kit. The receiver packs mic settings features into a palm-sized, portable package with incredible audio clarity, long-range transmission and easy to use features. -
Page 16: Movemic Receiver Led Indicators
Shure Incorporated Front Panel ① LED status indicators Displays receiver information related to mic connection, battery and charge levels. See MoveMic Receiver LED Indicators topic for indicator status information. ② Channel 1 / Channel 2 status Displays connection status, mic name, battery time percentage and audio gain levels. See Receiver Setup topic for more information. -
Page 17: Adjusting The Receiver
Shure Incorporated Status Color Charging in process Amber flashing Error Red persistent slow flashing Fully charged Solid green for 60 seconds, then off Adjusting the Receiver The receiver has a hinge and can be rotated 90 degrees horizontally or vertically to keep it securely out of the way when recording. -
Page 18: Connecting To The Receiver
Shure Incorporated Connecting to the Receiver Connecting to the Camera Mount the MoveMic receiver onto the cold shoe on top of your camera. Use the supplied 3.5mm to 3.5mm cable to connect the receiver to your camera. 18/32... -
Page 19: Pairing To The Receiver
Shure Incorporated Connecting to the Phone Use the supplied USBC to USBC cable to connect the MoveMic receiver to your phone or computer for additional compatibili ty to third party apps. Pairing to the Receiver Important: Ensure that the MoveMics and receiver are fully charged before the first use. -
Page 20: The Receiver Menu Tree
Shure Incorporated ① Mic Connection Strength Displays connection levels between the mic and the receiver. ② Microphone Name Displays name to identifying microphones. ③ Mic Battery Level Displays icon and percentage of battery strength. ④ Microphone Status Displays microphone type and gain information. -
Page 21: Recording Tips
Capture Clear Sound For best signal-to-noise ratio when using the MoveMic receiver start with the output level set to Line level and lower the vol ume on your camera. Then raise the volume until you get the strongest signal without peaking. If that doesn't work, switch out... -
Page 22: Gallery
Shure Incorporated Gallery An example of the gallery in grid view. ① Close: Tap Close to exit out of the video gallery. ② Gallery View/Sort: Use the drop-down menu to chose your gallery and sort views. • List view displays file details. Grid view displays thumbnail and file length. Card view displays scrollable full screen images with file information. - Page 23 Shure Incorporated The Video Playback window displays • Track Information: Audio and video formats, bit depth, and sample rate. • Track Artwork: A representative thumbnail. • File information: The recording date and time. • Timeline: See where you are in the track as it progresses. The time elapsed and time remaining are displayed around the timeline.
-
Page 24: Sharing Video Recordings
Tap the three dots to reveal file options. Select Share, select More, select AirDrop to view your AirDrop contacts. MoveMic Firmware Updates Firmware is embedded software in each component that controls functionality. Periodically, new versions of firmware are devel oped to incorporate additional features and enhancements. To take advantage of design improvements, download new ver... -
Page 25: Troubleshooting
PHONE to give MOTIV permission to use the microphone. a signal. To ensure that you are receiving audio from the MoveMic and not a built-in microphone, confirm that the MoveMic is connected. You'll know that the connection is secure when Audio sounds bad or distant the microphone name is visible in the app. -
Page 26: System Requirements
MoveMic: Perform a factory reset by toggling the MoveMic button off. Then press the power button quickly 2 times, press and hold for 10 seconds or longer on the third press Factory Reset to reset. -
Page 27: Specifications
Shure Incorporated MV-TWO • 2 MoveMic Lavs • 2 foam windscreens • AMV-USBC-USBC15: 1 USB-C to USB-C cable, 15" • 1 Charge Case MV-TWO-KIT • 1 MV-R • 2 MoveMic Lavs • 2 foam windscreens • AMV-USBC-USBC15: 1 USB-C to USB-C cable, 15"... - Page 28 Shure Incorporated Gain Adjustment Range 0 to 60 dB Range Up to 100 ft (30m) line of sight Radio Frequency Range 2400 MHz to 2483.5 MHz Technology Bluetooth Low Energy and Proprietary RF Output Power SC7LW +16 dBm SC6LW +9.82 dBm Dimensions 1.81 in.
-
Page 29: The Movemic Charge Case
MP4 Audio Audio files: .mp4, .m4a, .m4p, .m4b 256, 128, 96 ALAC Audio file: Apple Lossless The MoveMic Charge Case MFi Certified Dimensions 2.93 in. x 2.10 in. x 1.31 in. (74.5mm x 53.3mm x 33.2mm) Net Weight 80.3g (2.83 oz) - Page 30 Shure Incorporated Dynamic Range 100 dB, A-weighted Signal-to-Noise Ratio 68 dB SPL, A-weighted Equivalent Input Noise 26 dB SPL, A-weighted Maximum SPL 130 dB SPL Sensitivity (with MV-LAV) -37 dBFS @94 dB SPL (1 Pascal RMS) Bit Depth 24-bit Sampling Rate...
-
Page 31: Open Source Attribution
Note: Please follow your regional recycling scheme for batteries and electronic waste CE Notice Hereby, Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with Euro pean Union requirements. The full text of the EU declaration of conformity is available at the following site: https://www.shure.com/enEU/support/declara... - Page 32 Shure Incorporated UKCA Notice Hereby, Shure Incorporated declares that this product with UKCA Marking has been determined to be in compliance with UK CA requirements. The full text of the UK declaration of conformity is available at the following site: https://www.shure.com/enGB/support/declara...
