Summary of Contents for Intertec Data Systems ExVENT 30 Series

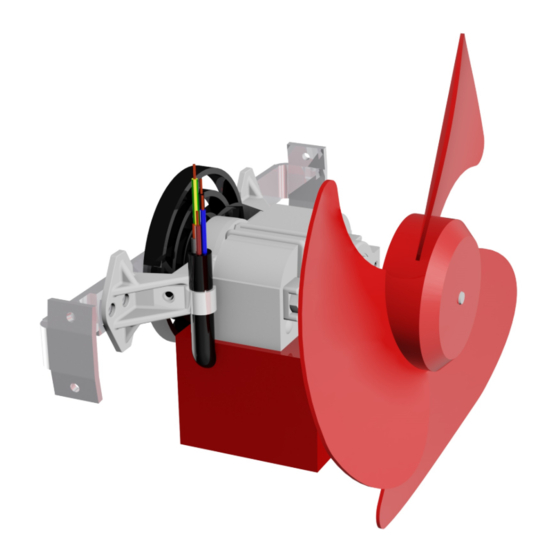

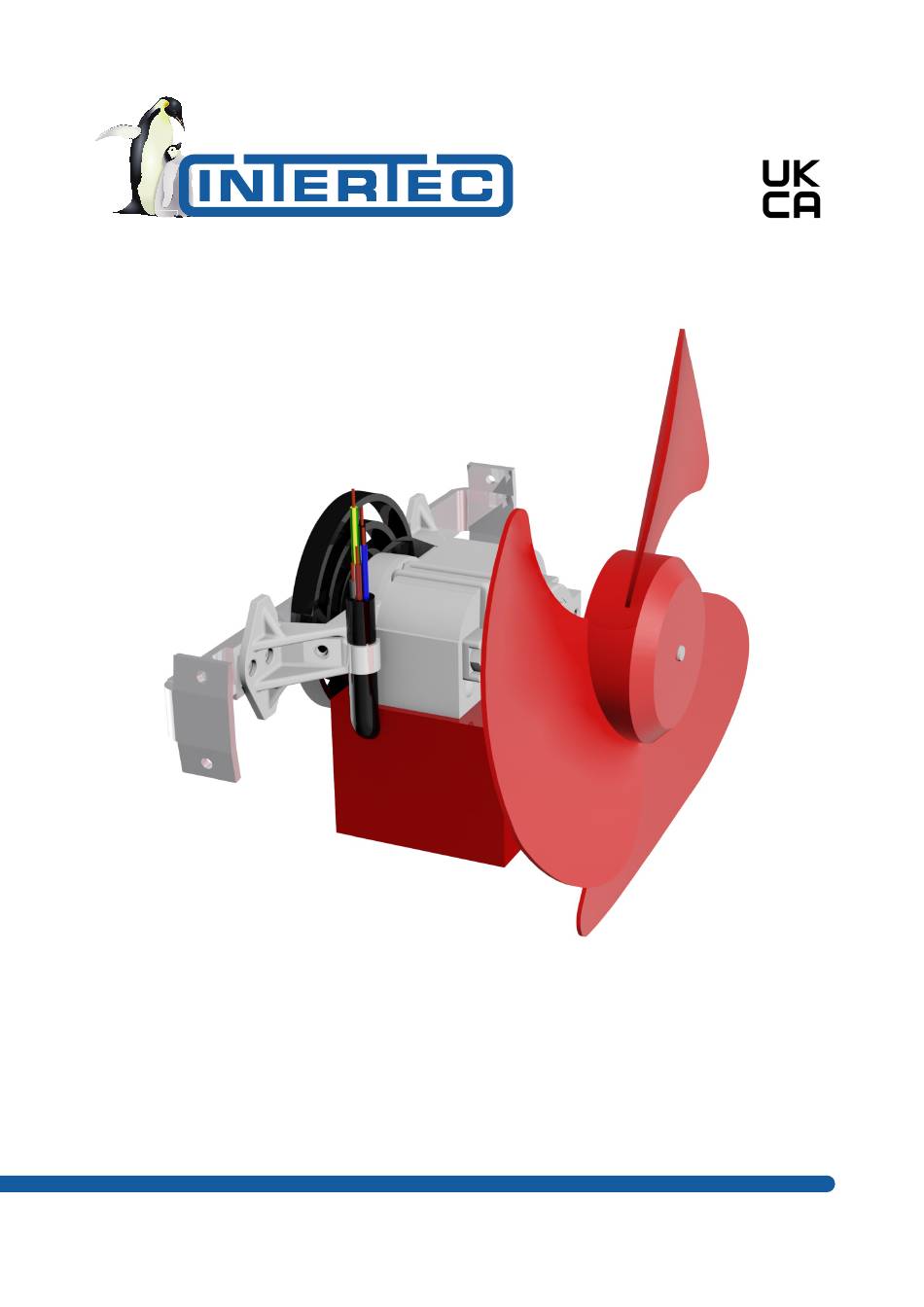

- Page 1 Operating Instructions Motor ExVENT 30xx COM2618265483en-1 • 17/08/2023...
- Page 2 www.intertec.info 1 Use................................... 3 2 Explanation of symbols for warnings and signal words .................. 3 3 Safety information.............................. 3 4 Technical Data ................................ 3 5 Installation ................................ 4 6 Connection................................ 5 7 Commissioning .............................. 5 8 Troubleshooting .............................. 5 9 Directions for use.............................. 6 10 Maintenance................................
- Page 3 www.intertec.info Operating Instructions Motor ExVENT 30xx NOTICE ExVENT 30xx electro motors manufactured according to Directive S.I. 2016 No. 1107 and serve as NOTE drives for fans, pumps, gear units or other devices. It is essential to pay attention to this safety advice as you ExVENT 30xx is approved for Ex zone 1 of equipment may otherwise incur material damage.
-
Page 4: Installation
www.intertec.info Operating Instructions Motor ExVENT 30xx ExVENT 30xx ..without fan blade INFO You will find the precise technical data for your instrument on the label. Type Ø Blade Year of manufacture Bracket Illustration 2: ExVent 30xx 2D front view Rated output Rated voltage/Operating voltage Air direction... - Page 5 www.intertec.info Operating Instructions Motor ExVENT 30xx If the electric motor was installed according to the guidelines specified under section Installation [}Page 4] and section Connection [}Page 5] and it is guaranteed that foreign bodies reach rotating components, then the electric motor can be switched on. A thermal safety fuse is integrated that disconnects the motor from the mains for reasons of explosion protection in the event of external heating or blockage.
-
Page 6: Maintenance
www.intertec.info Operating Instructions Motor ExVENT 30xx Disassembly may only be carried out by a trained Fault: Remedial action: person. Blocked fan blade Device must be replaced overheats the motor – thermal safety fuse is DANGER triggered Auxiliary fan blocked Use spacers to create space Risk of fatal injury from electric current! Temperature If contact is made with live components, there is the risk... - Page 7 www.intertec.info Operating Instructions Motor ExVENT 30xx Product / Type designation: Phone: +49 9445 9532-0 ExVENT3025 e-mail: info@intertec.info is conform with the following relevant legislation of the Website: www.intertec.info United Kingdom Warranty S.I. 2016 No. 1107 The legally defined warranties and warranty periods of UKSI 2016:1091 (EMC) 24 months are applicable to our scope of supply and services.
