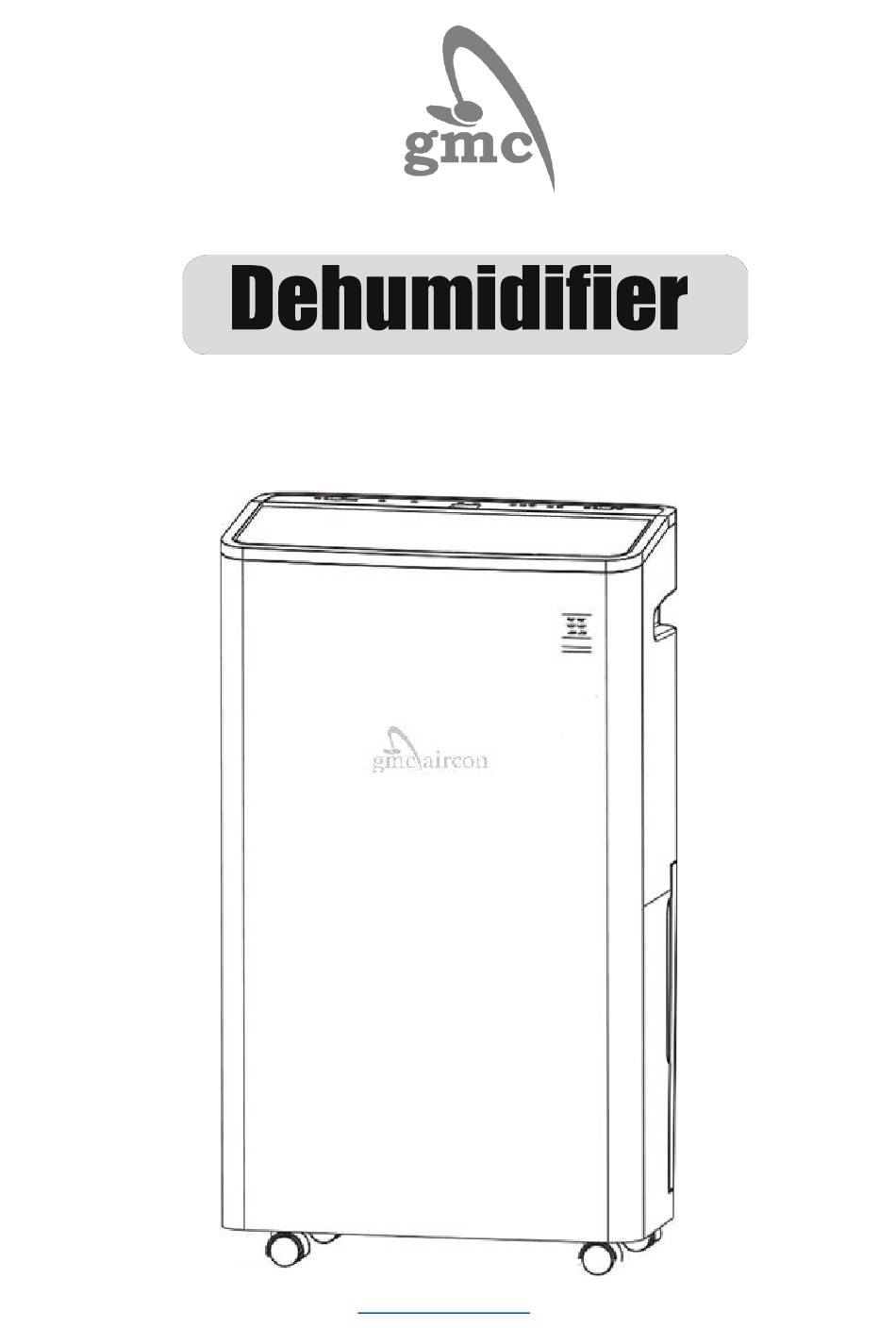

Page 1: Cover Page
GMCDHW26 Instruction Manual Page | 1 For enquiries or support: visit www.gmcaircon.co.za or contact us on 012-661-1173... -
Page 2: Table Of Contents
CONTENTS COVER PAGE ………………………………………………………… 1 CONTENTS ………………………………………………………………2 IMPORTANT NOTES……………………………………………………3 SAFETY INFORMATION ……………………………………………….4,5 PARTS/PRODUCT OVERVIEW ……………………………………….6 OPERATING INSTRUCTIONS/WIFI …………7, 8,9,10,11,12,13,14,15,16 FILTERS …………………………………………………………………...17 WATER TANK…………………………………………………………….18,19 MAINTENANCE………………………………………………………….20, 21 DRAINAGE…………………………………………………………………22 SPECIFICATIONS…………………………………………………………23 FEATURES …………………………………………………………………24 TROUBLESHOOTING…………………………………………………25,26 DECOMISSIONING ……………………………………………………….27 SERVICE AND WARRANTY …………………………………………….28 Page | 2 For enquiries or support: visit www.gmcaircon.co.za or contact us on 012-661-1173... -
Page 3: Important Notes
Thank you again for choosing GMC. If you have any issues at all with your product or any questions then the quickest route for resolution is to please contact us through our website www.gmcaircon.co.za or on 012-661-1173. -
Page 4: Safety Information
SAFETY INFORMATION Please read this manual carefully and fully understand before operating your dehumidifier. OPERATIONAL PRECAUTIONS • The appliance must have 50cm Clearance around all sides. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. - Page 5 • Do not climb or sit on the unit. • Do not insert fingers or other objects into the air outlet. • Do not touch the air inlet or the aluminum fins of the unit. • Do not operate the unit if it is dropped, damaged or showing signs of product malfunction.
-
Page 6: Parts/Product Overview
PRODUCT OVERVIEW/PARTS Page | 6 For enquiries or support: visit www.gmcaircon.co.za or contact us on 012-661-1173... - Page 7 PRODUCT INSTALLATION ⚫ Place the unit on a firm, level surface in an area with at least 50cm of free space around it to allow for proper air circulation. ⚫ Never install the unit where it could be subject to heat sources such as radiators, heat registers, stoves or other products that products that produce heat.
- Page 8 This is not a product fault. If you are unsure or have any questions at all please do not hesitate to get in touch with one of the GMC technical team on 012-661-1173 or www.gmcaircon.co.za The below are normal when operating the dehumidifier.
-
Page 9: Operating Instructions/Wifi
OPERATING INSTRUCTIONS Power Button Press the Power button to turn the dehumidifier on or to put it in standby mode. The dehumidify mode indicator and room humidity will be displayed once the dehumidifier turns Mode Button Press this button repeatedly to select the desired dehumidification operation mode: Normal Dehumidifying, Continuous Dehumidifying, or Strong Dehumidifying. - Page 10 Dry Clothes Mode The appliance constantly operates with the dehumidifying function. The fan runs at high speed and cannot be adjusted. Press the button repeatedly to set the desired humidity level between 30% and 80% in 5% increments. The LED light will flash on the display during adjustment and will return to normal after 5 seconds.
- Page 11 Press the Ventilation button, and the corresponding indicator will light up; however, the compressor won’t work. Press the fan speed button to adjust the fan speed to high or low. Sleep Press the Sleep button to activate the sleep function while the machine is still operational in any mode.
- Page 12 WIFI SETUP INSTRUCTIONS 1. Download and Install the Tuya Smart Life App: • Locate and download the "Tuya Smart Life" app from either the Apple App Store or Google Play Store. • Alternatively, scan the QR code below to access the app. 2.
- Page 13 3. Power On and Enter Standby Mode • Ensure the dehumidifier is powered on and in "Standby Mode." • If it enters the "power on" state, press the 'Standby' button to transition to standby mode. 4. Configure Wi-Fi Settings: • When the device is in standby mode, press and hold the mode button for 5 seconds.
- Page 14 • Follow the WIFI pairing prompts. Successful pairing results in a steady WIFI light; if unsuccessful, repeat the steps. Page | 14 For enquiries or support: visit www.gmcaircon.co.za or contact us on 012-661-1173...
- Page 15 6. Operate the Product through the App • After successful configuration, use the app to operate the dehumidifier. 7. Reconfiguration for Network Changes: • In case of network changes, reconfigure the device (refer to steps three, four, and five). 8. Share the Device with Family •...
- Page 16 FUNCTION SELECTION DIAGRAM Page | 16 For enquiries or support: visit www.gmcaircon.co.za or contact us on 012-661-1173...
-
Page 17: Filters
FILTER REPLACEMENTS 1. Remove the inlet frame from the back cover. 2. Take the HEPA filter out of the polyethylene bag and place it onto the inlet frame. Then, install the filter holder onto the inlet frame (the unit already has the HEPA filter installed before packing;... -
Page 18: Water Tank
WATER TANK INSTRUCTIONS ⚫ When the tank is full the “Water Full” light will turn on. ⚫ Press the POWER button to turn off the unit. ⚫ Pull on the water tank and simply slide it out of the body of the dehumidifier. ⚫... - Page 19 Emptying the Water Tank 1. Remove the water tank from the dehumidifier. 2. Hold the tank by the handle and carry it gently. 3. Tilt the tank in the direction as shown and slowly empty the water out of the tank. 4.
-
Page 20: Maintenance
MAINTENANCE Proper maintenance and care are essential for ensuring optimal performance and longevity of your dehumidifier. Regularly clean the filters, inspect for any debris, and follow the recommended maintenance schedule outlined in this manual. By adhering to these guidelines, you'll enhance the efficiency and lifespan of your equipment, providing you with reliable and effective operation for years to come. - Page 21 Housing Cleaning 1. Housing 1. To avoid malfunction or abnormal sounds, keep the unit upright. 2. Wipe the dehumidifier with a dry and soft cloth. 3. For removing heavy dirt, wipe it with a cloth wrung tightly. (Never use a wet cloth for cleaning the controls.) 4.
-
Page 22: Drainage
CONTINOUS DRAINAGE INSTRUCTIONS Turn off the dehumidifier, take out the water tank; you will see there is a water drain hole. Insert the water pipe into the drain hole and then insert the water tank back into the dehumidifier. Place the other end of the water pipe into a washbasin, bucket, etc. Turn on the dehumidifier again. -
Page 23: Specifications
SPECIFICATIONS Model Number GMCDHW26 Auto-stop function Capacity Approximately 26 Litre per day when optimal room temperature of 30℃ and 80% Relative humidity Cooling element Compressor Color White Coverage Area 25-40m2 Decibel Rating 42dB(A) Material Minimum working environment Temperature: 5℃ Optimum working environment Temperature: 30℃... -
Page 24: Features
FEATURES • Air Purifier • Automatic Humidistat Control • Auto Restart • Automatic Bucket Full Shut-Off • Child Lock Mode • Continuous Drainage • Continuous dehumidifying mode • Defrost Function • Dry Clothes Mode • External Drain Connect • Fan Speed Control •... -
Page 25: Troubleshooting
This is not a product fault. If you are unsure or have any questions at all please do not hesitate to get in touch with one of the GMC technical team on 012-661-1173 or www.gmcaircon.co.za... - Page 26 "Normal dehumidifying" mode. The room size may be too large. The recommended room size for the GMCDHW26 is 25-40m2 The doors or windows of the room may be opened and/or closed frequently. The humidity in a room is...
-
Page 27: Decomissioning
DECOMMISSIONING Long-term storage - If you will not be using the unit for an extended period of time (more than a few weeks) it is best to clean the unit and dry it out completely. Please store the unit per the following steps: Press power button to switch off and unplug the unit. -
Page 28: Service And Warranty
SERVICE AND WARRANTY GMC Airconditioning PTY (Ltd) was established in 1995 and is one of South Africa's leading cooling and heating companies. We pride ourselves on 100% customer satisfaction and have the highest online rating of all heating and cooling companies in South Africa.
