EPOS EXPAND Vision 5 User Manual

All-in-one video bar
Hide thumbs Also See for EXPAND Vision 5:
Table of Contents

Advertisement

Quick Links

Download this manual
EXPAND Vision 5 installation guide 1
Guide
EXPAND Vision 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXPAND Vision 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EPOS EXPAND Vision 5

Summary of Contents for EPOS EXPAND Vision 5

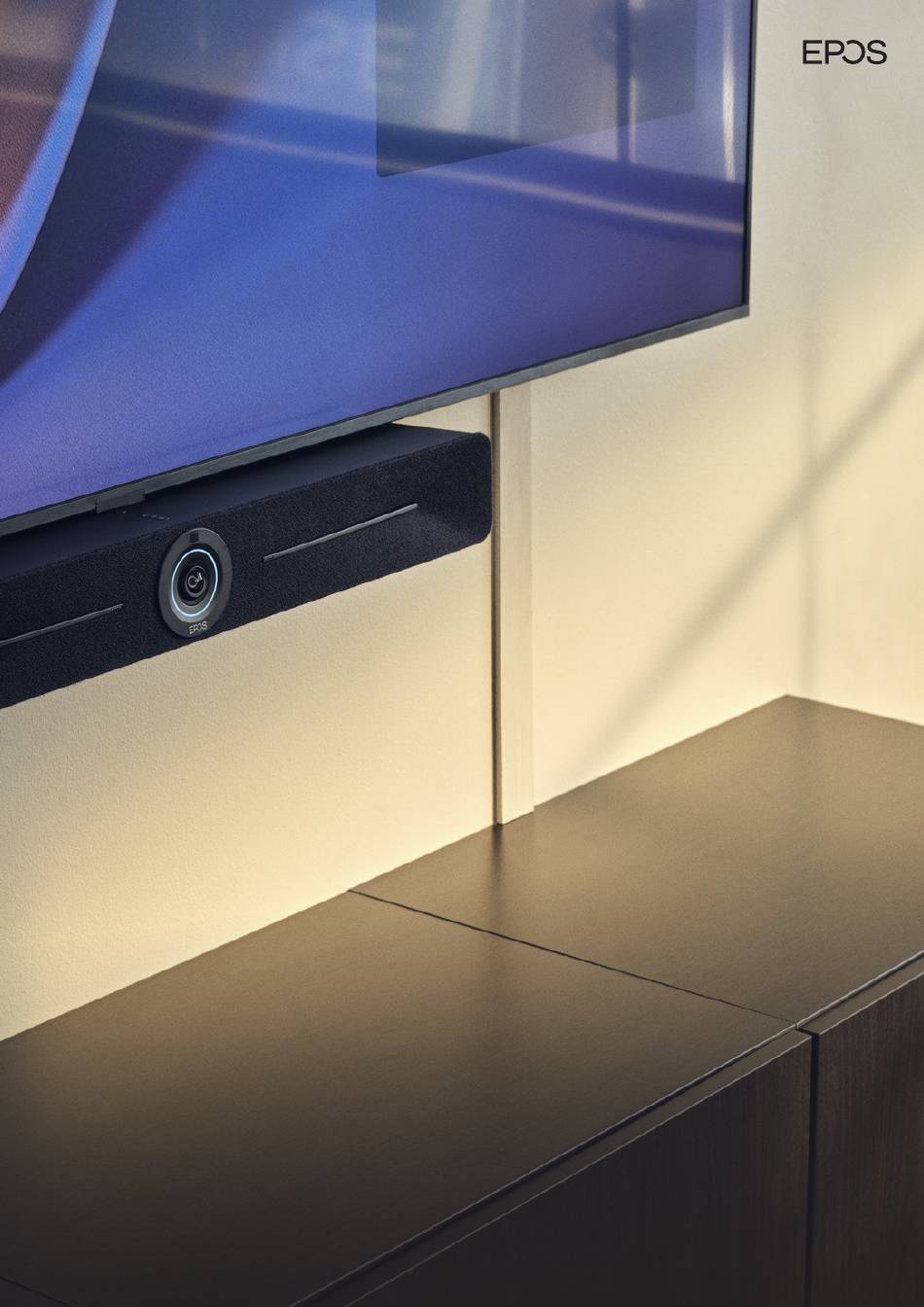

  • Page 1 EXPAND Vision 5 installation guide 1 Guide EXPAND Vision 5...
  • Page 2 Prerequisites Room Size: EXPAND Vision 5 is designed for small and medium-sized meeting rooms for up to 11 participants Network Ports • 2 Network ports in each video meeting room. To pair Expand controller with Expand Vision video devices the network ports must be in the same subnet. At least one of the ports needs to have PoE to power up the Expand Controller connecting with a network cable.

  • Page 3: Setup And Installation

    EPOS Manager. Use the QR code to enroll multiple devices into EPOS Manager with relevant settings. (NB! Do not use this QR code for your deployment, make sure you create your own)
  • Page 4 Choose Continue with this device only Display Use the created QR code to enroll the devices into EPOS Manager. The system will automatically deploy the settings contained in the QR code and upgrade the video device and controller to the Choose Language >...
  • Page 5 EXPAND Vision 5 installation guide 9 I do not use EPOS Manager > choose select Pick your Country/Time zone and hour Search for your Time zone Choose Teams as UC provider for your product...
  • Page 6 EXPAND Vision 5 bundle | Video Guide 11 EXPAND Vision 5 Display Expand Vision 5 MS teams login Login into MS teams using the code displayed on the monitor of your Expand device (use the same MTR account for your Expand Vision video device and controller).
  • Page 7 EXPAND Vision 5 installation guide 13 EXPAND Controller Optional settings for static IP address configuration At first-time setup note the coq wheel in the right-hand corner. Tapping into this entry gives you the ability to set the device account to a static IP address required together with DNS, NTP and Proxy settings.
  • Page 8 EXPAND Vision 5 installation guide 15 When devices are registered to MS Teams Verify the settings of the setup Choose the static option and ok From the Device Settings the settings below can changed. Date/Time zone Date & Time >...

  • Page 9: Device Name

    Device Name To assign a unique name, delete the default and insert device name according to your naming policy. The name will automatically be synced into EPOS Manager, if enrolled. Insert relevant information and choose SAVE Admin password for admin settings Verify device details Best practice is to change the default admin password which is 0000.

  • Page 10: Network Settings

    EXPAND Vision 5 bundle | Video Guide 19 Network Settings Insert your network data Static IP > Choose Ethernet IP mode Proxy Settings Choose static and then OK Choose relevant unit. It is recommended to start with the Expand Vison video device as you will lose paring between Expand Controller and Video device once IP address is changed.

  • Page 11: Usb Mode

    To factory reset the device choose ok or USB mode is on by default cancel to stop the reset. Factory Reset EPOS Factory Reset Factory Reset EPOS EXPAND Video Device EXPAND Controller Device Device Settings => Debug Tools => default password is 0000. Device Settings >...
  • Page 12 EXPAND Vision 5 installation guide 23 EPOS Manager Provisioning If you didn’t enroll the device into EPOS Manager to begin with, you can create your QR code and insert the QR Code in the system. Scan you QR code, choose on-prem and Enterprise Cloud.

  • Page 13: Camera Settings

    EXPAND Vision 5 installation guide 25 Camera Settings Monitor scan QR code Device settings > Camera settings Video feed will be displayed on the monitor. NB! Make sure that the camera is properly adjusted. You also have the choice to activate the intelligent framing, which means that the camera will adjust the video feed based on number of people and where they are situated in the video room.
  • Page 14 THE POWER OF AUDIO EPOS Group A/S Industriparken 27 2750 Ballerup, Denmark eposaudio.com...
