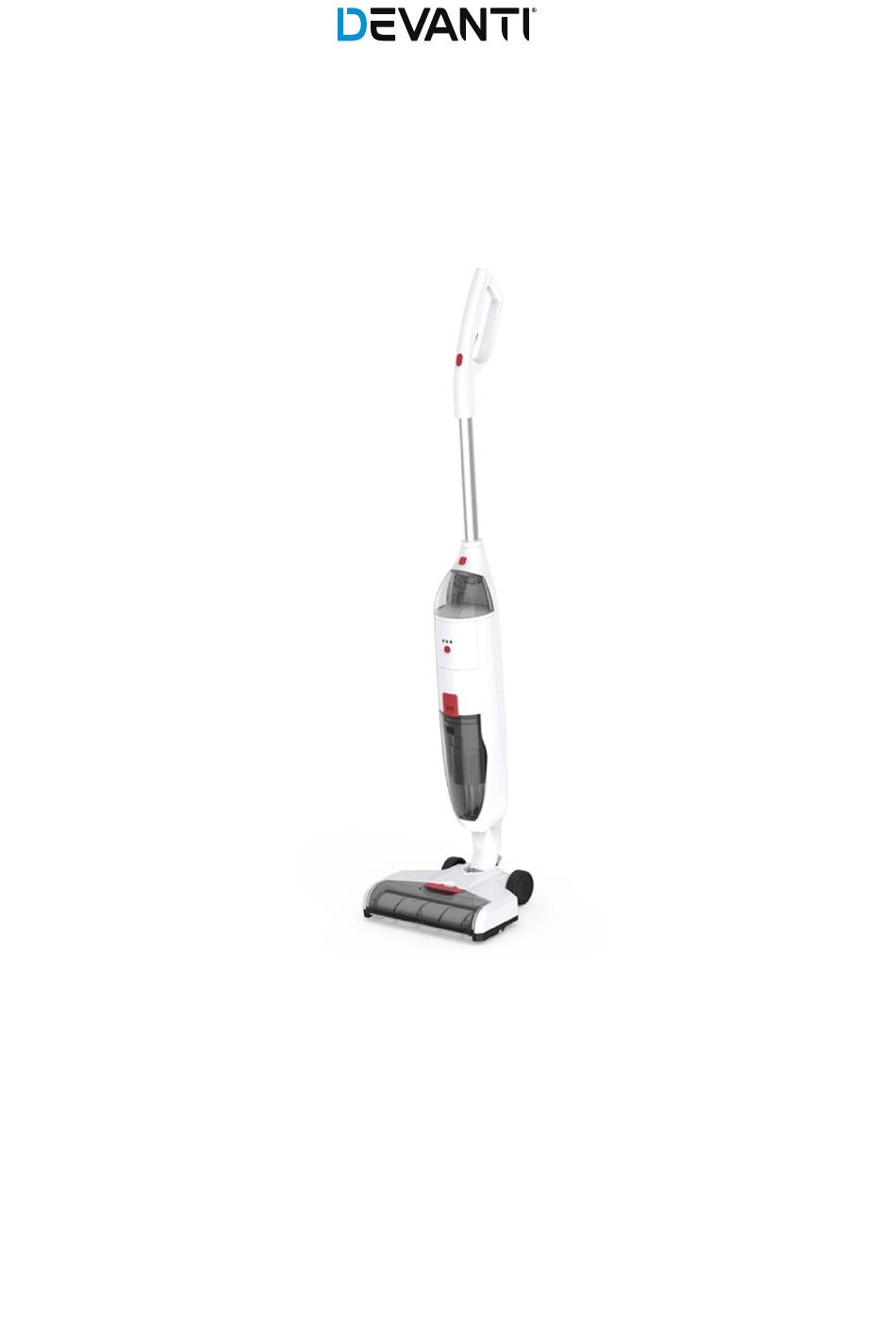

WET DRY VACUUM CLEANER
INSTRUCTION MANUAL
VAC-CL-WD-WH
Please read all instructions carefully before operating your machine. Keep it well for future reference.
Hand over the manual together if the machine is given to others.
It s designed for cleaning hard floors such as wooden floor, tile, marble, linoleum, carpets etc. This model is
for household use only. Commercial or industrial use of this unit voids the manufacturer's warranty.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VAC-CL-WD-WH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DEVANTI VAC-CL-WD-WH

Summary of Contents for DEVANTI VAC-CL-WD-WH

  • Page 1 WET DRY VACUUM CLEANER INSTRUCTION MANUAL VAC-CL-WD-WH Please read all instructions carefully before operating your machine. Keep it well for future reference. Hand over the manual together if the machine is given to others. It s designed for cleaning hard floors such as wooden floor, tile, marble, linoleum, carpets etc. This model is...
  • Page 2 Overview of the appliance with standard accessories...
  • Page 3 Important safety Instructions To avoid potentially fatal electric shocks: • Do not charge or use the appliance outdoors. • Never use the machine if the plug or sheath is damaged. • To avoid risks, arrange for damaged power cables, adaptor and/or plugs to be replaced as soon as possible by a qualified specialist or by our Customer Services.
  • Page 4 result in overheating and damage to the appliance. • This product contains rechargeable batteries. Do not throw the batteries into a fire and do not subject them to high temperatures. There is the risk of an explosion! • Take special care when using the machine on stairs. •...
  • Page 5 Add water before assembling, open the seal then add water, the seal must be closed tightly to ensure no water leaks out, the water cup surface should be dried before putting on the machine, otherwise the water may go into the machine or battery！Push the aluminum tube & water cup button then put the water cup in the right position, pull the water cup to ensure it’s locked.
  • Page 6 2. Push the aluminum tube & water cup button, hold the aluminum tube to pull it out. Using the machine Note: Before turning on, please unplug the adaptor, if the battery is charged separately, then put back the battery and water cup. If the machine is in charging or low battery status, the vacuum cleaner and floor brush will not work.
  • Page 7 Do not fill boiling water into the water cup, do not heat water or water cup in a microwave. During operation, it’s forbidden to push the machine hard on the floor, or tread on the power brush, it will damage the motor inside and trigger the protection. Hold the handle naturally to operate it. The power brush can not touch wall/furniture etc quickly, it will stop the power brush and trigger The protection.
  • Page 8 Function C, Only power brush working, no vacuuming function Push the power switch on the main handle, push the switch on the battery pack, then Only the power brush works, vacuuming motor stops. Push the power switch on the main Handle again to switch off.
  • Page 9 4, Two kinds of filter : HEPA filter to vacuum dry dust, Fabric + sponge to vacuum damp dust or water 5, Storage station and auto cleaning mop You can store all accessories on the storage station, and better put the station and machine front side (battery LED lights side ) facing the wall.

  • Page 10: Maintenance

    MAINTENANCE After each operation, below procedures must be followed, 1, switch off all buttons, better take off the battery pack before maintenance to avoid pressing the switches mistakenly. Press the aluminum tube & water cup button to take off water cup and battery pack.
  • Page 11 3. Push up the dust cup button again, then put back the whole dust cup, make sure no any parts are missing. Loosen the button to fix the dust cup. 4. Put back the battery pack and water cup. Water can be added just before next operation. 5, Put the whole machine into the storage station, plug the charger into the adaptor.
  • Page 12 8, Rolling mop gets blocked, or gets noisy. In case the mop is blocked, such as big dust, hair, plastic paper, cloth etc, the blockage must be removed before using again. Just remove the blockage away between the mop and the bottom lip to see if the machine can work properly, the mop can be rotated to remove the blockage.
  • Page 13 WARNING!

  • Page 14: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE REASON POSSIBLE SOLUTION machine does 1. batteries discharged. 1. charge the machine. not work 2. dead battery(battery won’t hold charge). 2. call customer service or dispose of 3. connector between the unit and the unit. charger are dirty.
  • Page 15 Specifications, Input of the adapter 100-240V 50/60Hz, output 27V 500-1000mAh Unit: 22.2V 2200mAh Li battery, 250W with BLDC motor WARNING: Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the Australia. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
