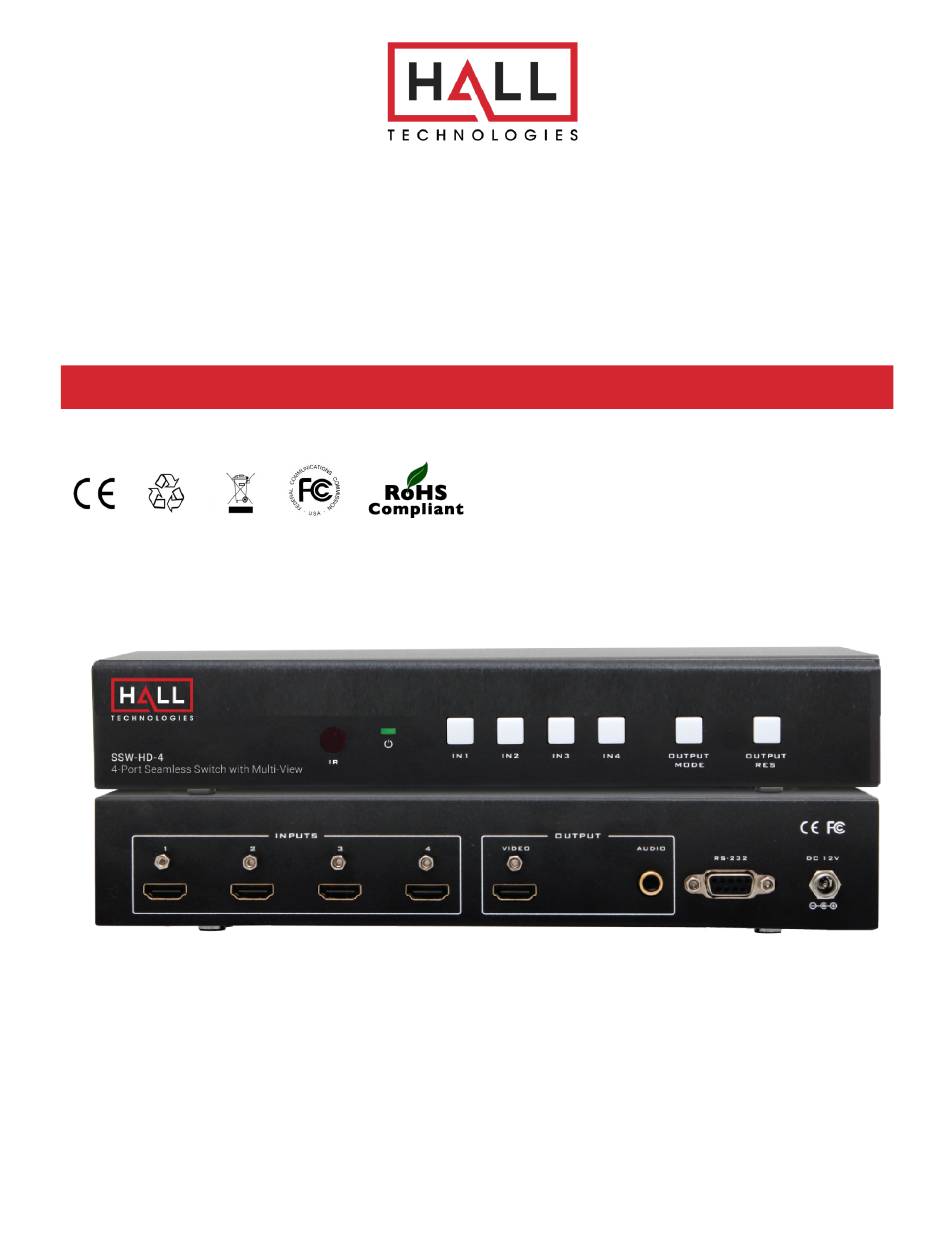

Hall Technologies • 1234 Lakeshore Dr Suite #150 Coppell, TX 75019 • halltechav.com

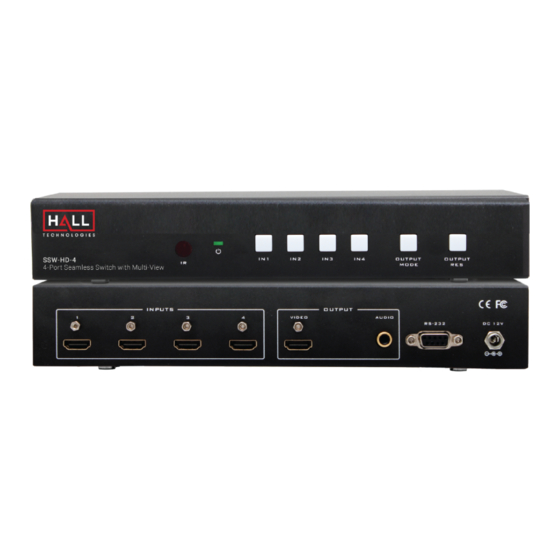

SSW-HD-4A
4 input HDMI Swamess Switcher with Real-time Multi-view Modes
Front Panel, RS-232, and IR Control
SPDIF Audio Output
Free Windows GUI
USER MANUAL
December 13, 2023
Hall Technologies
December 13, 2023
Page 1 of 13
Advertisement
Table of Contents
Related Manuals for Hall Technologies SSW-HD-4A
Summary of Contents for Hall Technologies SSW-HD-4A
- Page 1 Hall Technologies • 1234 Lakeshore Dr Suite #150 Coppell, TX 75019 • halltechav.com SSW-HD-4A 4 input HDMI Swamess Switcher with Real-time Multi-view Modes Front Panel, RS-232, and IR Control SPDIF Audio Output Free Windows GUI USER MANUAL December 13, 2023...
- Page 2 8. Protect the power cord from being walked on or pinched particularly at plugs. 9. Only use attachments / accessories specified by the manufacturer. Refer all servicing to qualified service personnel. Hall Technologies December 13, 2023 Page 2 of 13...
-
Page 3: Table Of Contents
Factory Default ..........................8 PC-GUI ............................8 Installation ..............................8 RS-232 ............................9 Serial Commands ........................... 9 Troubleshooting ............................11 Contacting Hall Technologies ....................... 11 Shipping and Packaging ........................ 11 Optional accessories ........................12 Specifications ............................12 Hall Technologies December 13, 2023... -
Page 4: Introduction
• Includes Universal Power Supply w/ Locking DC Connector Package Contents 1x SSW-HD-4 Seamless Switcher 1x Locking 12V DC Universal Power Supply Qty (1) IR Remote Control 1x DB9 male-to-female RS232 cable 1x Rack mount ears Hall Technologies December 13, 2023 Page 4 of 13... -
Page 5: Product Description
Use RCA connector to connect to audio devices. RS-232 Connect the RS-232 port to the PC using RS-232 cable. Power Supply Plug the 12VDC power supply and connect the adapter to the AC Wall Outlet. Hall Technologies December 13, 2023 Page 5 of 13... -
Page 6: Ir Remote Controller
Output video. Note that the changes will affect all the four Inputs simultaneously. Use this buttons to change the Picture parameters. If the SSW-HD-4 needs to be installed in a standard 19” rack, you can use the included rack ears. Hall Technologies December 13, 2023 Page 6 of 13... -
Page 7: Multi View Layouts
Output Mode or Output Resolution. Note that you can lock the front panel buttons using RS-232 commands. Locking The Locking feature provides two modes to disable the front panel buttons partially or fully. The locking modes can be accessed using RS-232 or PC-GUI. Hall Technologies December 13, 2023 Page 7 of 13... -
Page 8: Factory Default
Optional: Connect compatible audio devices using RCA cable to the SPDIF port. Connect the included 12V DC Locking Power supply. Do not over tighten the locking power connector. Connect the power supply to an available electrical outlet. Hall Technologies December 13, 2023 Page 8 of 13... -
Page 9: Serial Commands
Baud Rate 19200 Data bits Parity None Stop bits Flow control None Serial Commands Note that all the commands should be in upper case and should end with Carriage Return <CR>. Hall Technologies December 13, 2023 Page 9 of 13... - Page 10 2 Set the OSD mode. S OSD n n=0 --OSD OFF (Default) n=1 --Display OSD for 3 Seconds n=2 --Always ON R OSD Read the status of the OSD. OSD n Hall Technologies December 13, 2023 Page 10 of 13...
-
Page 11: Troubleshooting
If you determine that the SSW-HD-4 is malfunctioning, do not attempt to repair the unit instead, contact Hall Technologies Technical Support at 714-641-6607 or support@halltechnologies.com. Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description. -
Page 12: Optional Accessories
Product: 1.8 lbs (0.8 kg) Metal Enclosure Storage: -4 to +140 °F (-20 to +60 °C) Operating Temperature Operating: +32 to +122 °F (0 to +50 °C) 20% to 90% RH non-condensing Hall Technologies December 13, 2023 Page 12 of 13... - Page 13 © Copyright 2023. Hall Technologies All rights reserved. 1234 Lakeshore Drive, Coppell, TX 75019 halltechav.com / support@halltechav.com +1 (800)-959-6439 Hall Technologies December 13, 2023 Page 13 of 13...
