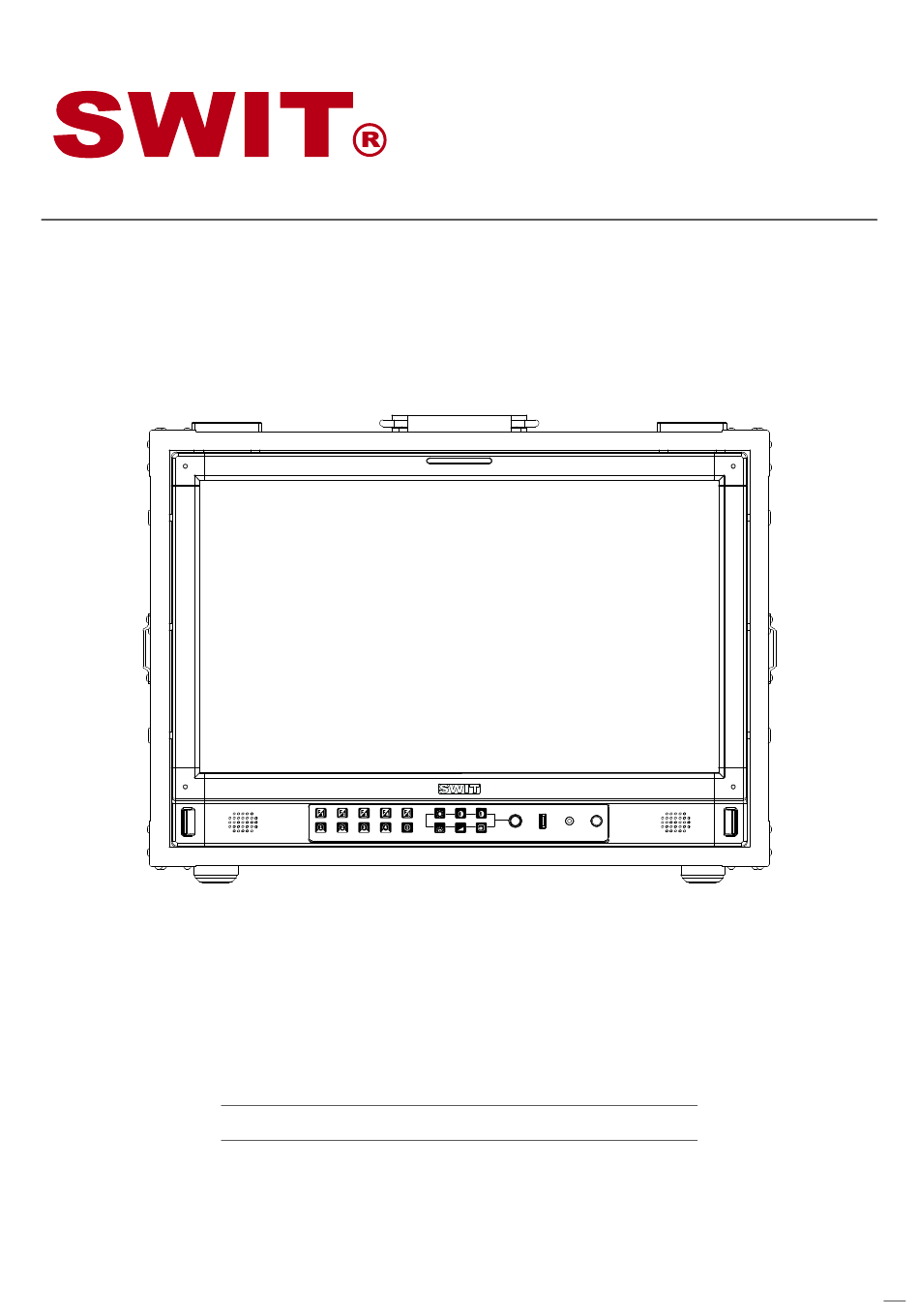

- Page 1 SWIT ELECTRONICS CO., LTD. 4K input FHD Broadcast Monitor Model： FM-215HDR Brightness Contrast Saturation Menu/Enter USB/Firmware Phone Power User1 User2 User3 User4 Info/Quit Backlight Volume Source User Manual Please read this user manual throughout before using Ver： A...
-
Page 2: Declaration
This instruction manual applies to FM field monitors and the schematic is based on the exterior ＊ view of the FM-215HDR as an example. Any differences in specifications and appearance are explained in additional text in this manual. SWIT Electronics Co., Ltd. -
Page 3: Maintaince Percautions
Maintaince percautions Warning 1. To reduce the dangerous of fire or electric shock,do not expose the monitor in raining or wet place. 2. The monitor will create noise when using near high-intensity magnetic field. Precautions for power supply 1. Please use the special power adapter specified by the original factory to avoid damage to the product. 2. -
Page 4: Table Of Contents
Content Declaration Maintaince percautions Content Packing list Introduction Operation Instructions Front panel Back Panel Flight Case Menu Configuration 1. Exit & Status - Exit the main menu and display the current status of the monitor. 2. Input—Set the color of input video 3. -
Page 5: Packing List
Packing list Quantities Standard accessories Monitor Aluminium flying case Battery plate （ V-mount & Gold-mount） Power cable Introduction This series of moni tor adopts TFT-LCD thin film transistor + QLED quantum dot display composition, the resolution is up to 1920x1080, H178°/V178° ultra-wide viewing angle, 1000:1 contrast ratio, support 1 channel 12G/6G/3G/H D/SD-SDI input and output, 1 channel HDMI®... -
Page 6: Operation Instructions
Operation Instructions Front panel (10) Brightness Contrast Saturation Menu/Enter USB/Firmware Phone Power User1 User2 User3 User4 Info/Quit Source Backlight Volume Brightness Contrast Saturation Menu/Enter USB/Firmware Phone Power User1 User2 User3 User4 Info/Quit Backlight Volume Source Speaker: For SDI/ HDMI® embedded audio. (Will not work if earphone is plugged in) F1~F5 function keys: Customize shortcut function keys. - Page 7 Brightness: Adjust the brightness. -100~100 adjustable, default value is 0. Contrast: Adjust contrast. -100~100 adjustable, default value is 0. Brightness Contrast Saturation Saturation: Adjust saturation. -100~100 adjustable, default value is 0. Backlight: Adjust the backlight. 0~100 adjustable, default value is 16. Backlight Volume Source...
-
Page 8: Back Panel
Back Panel （12） ETHERNET HDMI IN RS485OUT RS485IN (11) GPI IN (10) SDI1 OUT： 12G/6G/3G/HD/SD-SDI SDI2 OUT： 3G/HD/SD-SDI SDI1 IN： 12G/6G/3G/HD/SD-SDI SDI2~4 IN: 3G/HD/SD-SDI ETHERNET(Network interface)： 1000M high-speed RJ45 Ethernet port， for web external control HDMI® 2.0 4K@60 in： Will not display HDCP protected content RS485：... -
Page 9: Flight Case
Flight Case （1） Flight case adapter plate: can be used to secure other equipment (e.g., PTZ, wireless transmission equipment, etc.) （2） Flight case handle （3） Rubber cushion for luggage base TC 00:15:13:07 CAMERA 1 (13) Before Calibration After Calibration 400mV (12) 200mV Mg75... - Page 10 (1) TALLY Light TALLY Light Controlled by GPI (2) Time Code(SDI) Under SDI input, the monitor can display Time code information (LTC, VITC1&2). If no Time code info is detected, it will display “TC UNLOCKED” . User can set function keys F1～F5 or GPI pins as “Time Code”...
- Page 11 (9) Lissajous Used to monitor the audio frequency analysis and phase amplitude difference determination, the user can set the front panel shortcut keys (F1~F5) to "Li Sha Yu" function, open/close this function. (10) Audio Meter Used for monitoring audio information, users can set the front panel shortcut keys (F1~F5) or GPI pins as the function of "Audio Meter"...
-
Page 12: Menu Configuration
Menu Configuration Menu configuration introduces the main menu and the sub-menu, marked * menu items will be given in the list after a more detailed description of the menu or the operation of the explanation 1. Exit & Status - Exit the main menu and display the current status of the monitor. Status Format Exit&Status... -
Page 13: Input-Set The Color Of Input Video
2. Input—Set the color of input video Menu Item Menu description Value Full 0-1023、 SDI Full 4-1019、 Input Range* Set the input range of input video Limited 64-940 -100 ~ +100 Red Gain Adjust Red Gain Green Gain -100 ~ +100 Adjust Green Gain Blue Gain -100 ~ +100... -
Page 14: Color Management-Setting About Video Colors
4. Color management—Setting about video colors Menu item Menu Description Value Color gamut Set gamut values LCD Native,DCI-P3,Rec.709,Rec.2020 Set gamma values 1.0,1.8,2.2,2.4,2.6,PQ1000,HLG1000,S-Log3 Gamma HLG System Set HLG System Gamma 1.0,1.1,1.2 （ default） ,1.3,1.4,1.5 Gamma OFF,J-Log1,Log-C,S-Log2,C-Log,V-Log,RedLogFilm, Gamut and D-Log to 709 Set gamut to Rec.709 camera table gamma S-Log3,User-Log... -
Page 15: Scanning-Setting For Picture Scan, Zoom, Etc
5. Scanning—Setting for picture scan, zoom, etc. Menu Item Menu Description Value Set up a scanning mode that matches the audio to Scanning Pixel To Pixel, Panel Fit the screen OFF, Top Left, Top, Top Right, Left, Center, Zoom -in Set a zoom mode Right, Bottom Left, Bottom ,Bottom Right Freeze Frame... -
Page 16: Control-Setting For Tally, Umd, Ip Control To The Monitor
6.Control—Setting for TALLY, UMD, IP control to the monitor Value Menu Description Menu Item OFF,ON GPI Control Open or close GPI Control GPI 1Pin SDI1, SDI2, SDI3, SDI4, 4×SDI 2SI、 GPI 2Pin 4×SDI SQD, HDMI®, Red Tally, Green Tally, Yellow Tally ,Time Code, Freeze Frame, GPI 3Pin Set the function of each WFM Type, WFM Single Line, UMD,... - Page 17 On Screen Tally Tally Lamp On Screen Tally Red/Green/Blue Red/Green/Blue Red/Green/Blue Brightness Contrast Saturation Menu/Enter USB/Firmware Phone Power User1 User2 User3 User4 Info/Quit Backlight Volume Source *2 UMD Select the display type as “ “TSL3.1or 4.0” , which can be controlled with TSL UMD. Pin No RS 485 IN RS 485 OUT...
-
Page 18: Assist-Setting For Vector Scope And Histogram Patterns
7. Assist-Setting for Vector scope and Histogram patterns. Menu Item Menu Description Value OFF, ON False Color Turn false color display on or off OFF, ON Blue Only Turn blue only on or off Turn on or off focus assist and adjust the Focus Assist OFF, Blue, Red color of the focus assist... - Page 19 *1 WFM Single Line Open waveform single-line mode, the monitor shows only one line of audio waveform. Rotate the Menu/Enter knob to select the number of lines of audio signal to display the waveform. (The selection range of the number of lines in a waveform depends on the current signal standard) Line:1 WFM Single Line:OFF...
-
Page 20: Embed-Setting For Video/Audio Analysis Functions
8. De-embed— Setting for video/audio analysis functions Menu Item Menu Description Value Turning audio meters on or off Audio Meter ON,OFF Adjusting the position of the audio Top Left, Top Right, Bottom Left, Audio meter Position meter on the screen Bottom Right Audio Meter Set the transparency of the audio... -
Page 21: Auto Calibration
Calibration time: X-rite I1: 15 minutes, JETI Specobos1211: 45 minutes. Calibration result Delta E <1.0. *2.Probe Select This monitor supports the following probes models: BRAND MODEI X-rite I1 Pro OEM （SWIT OEM） JETI Specbos 1211 X-rite I1 JETI Specbos 1211 （SWIT Exclusive Edition only） *3.Start Calibration Steps: 1. - Page 22 Please make sure the monitor is in dark room,and the sensor probe is Please make sure the monitor is in dark room,and the sensor probe is put in the center marker and close put in the center marker and close to the screen.
-
Page 23: System-User Profile Saving,Firmware Update
10. System-User profile saving,firmware update. Menu Item Menu Description Value OFF, Full Lock Key Lock Set lock key Recall Profile Select make user mode current Factory,USER1,USER2,USER3,USER4 Save Profile USER1,USER2,USER3,USER4 Save the current state as a user setting When turned on, Payload ID information conforming to Payload ID OFF, ON SMPTE ST 352 standard is automatically adapted... - Page 24 *2 Recall Profile/ Save Profile User Settings provide 4 menu Settings, that is, users can save the current monitor menu Settings as one user Settings (USER1~USER4) according to usage habits. Then, when switching menu Settings, just select the corresponding "USER1~USER4" through the “Recall Profile” item to display the corresponding menu Settings.
- Page 25 Used crossed wired cable for computer-monitor directly connection. ● Use straight-through wired cable for Router connections. ● Please seek help from your webmaster for any network connections. ● Webserver page control interface After setting up, click this brush New View the latest Settings...
-
Page 26: Multiview Setting
*4.Update System software can update by USB interface, and steps are as follows: 1.Download the latest software package into the U-disk root direction. 2.Open the monitor and plug U-disk into USB into port. “ , ” l l i . y l fi... -
Page 27: Appearance And Size
Appearance and Size Flight Case Monitor Appearance FM-215HDR HDMI IN ETHERNET RS485OUT RS485IN GPI IN Brightness Contrast Saturation Menu/Enter USB/Firmware Phone Power User1 User2 User3 User4 Info/Quit Backlight Volume Source Aluminium flight case (unit: mm) -
Page 28: Specification
Specification Model No. FM-215HDR Screen Size 21.5 inch Display Area 476.064×267.786mm Resolution 1920×1080 Display Colour 16.7M Display Ratio 16:9 Maximum Brightness 1000 cd/m Contrast Ratio 1000:1 Colour depth 8bit Signal Processing 18-bit Viewing angle H/V 178°/178° Input/Output Interface BNC×4 12G/6G/3G/HD/SD-SDI×1, 3G/HD/SD-SDI×3 HDMI®×1... -
Page 29: Supported Standards: Signals Of The Following Standards Can Be Displayed On The Monitor
Supported standards: Signals of the following standards can be displayed on the monitor Input terminal Signal format shown in the Status Display as Format Quadlink SDI1 SDI 2/3/4 HDMI® SDI1 out SDI2 out HDMI® 1280*720P50 1280*720P50 1280*720P50 1280×720/50P √ √ —... - Page 30 Input terminal Signal format shown in the Status Display as Format Quadlink SDI1 SDI2/3/4 HDMI® SDI1 out SDI2 out HDMI® 3840×2160/50P √ 3840*2160P50 — 3840*2160P50 √ √ — 3840×2160/59.94P √ 3840*2160P59.94 — 3840*2160P60 √ √ — 3840×2160/60P √ 3840*2160P60 — 3840*2160P60 √...
-
Page 31: Common Problems And Solutions
Common Problems and Solutions symptom Possible causes Solution Please check if the power is connected, and then press The power is not turned on “POWER” button to turn on the monitor Reconnect to power supply Unstable power voltage BNC or HDMI® cable loose contact or not correctly Check and correctly connect the BNC or HDMI®... - Page 32 SWIT Electronics Co., Ltd. Add: 10 Hengtong Road, Xin'gang, Nanjing Economic and Technological Development Zone, Nanjing 210038, P.R.China Tel: +86-25-85805753 Email: contact@swit.cc...
