Swissdoor ETS 64-R Mounting And Operating Instructions

Swing door drive mechanism with fire protection rating
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Swing door drive mechanism
Com. no.
.............................................
Operator
..............................................................................................................................................
Operating place ........................................................................................................................................
with fire protection rating
ETS 64-R
Mounting and operating instructions
Pos. ..............................
0548-990/62d
Original
2017.06
Construction year ...............

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETS 64-R and is the answer not in the manual?

Questions and answers

Related Manuals for Swissdoor ETS 64-R

Summary of Contents for Swissdoor ETS 64-R

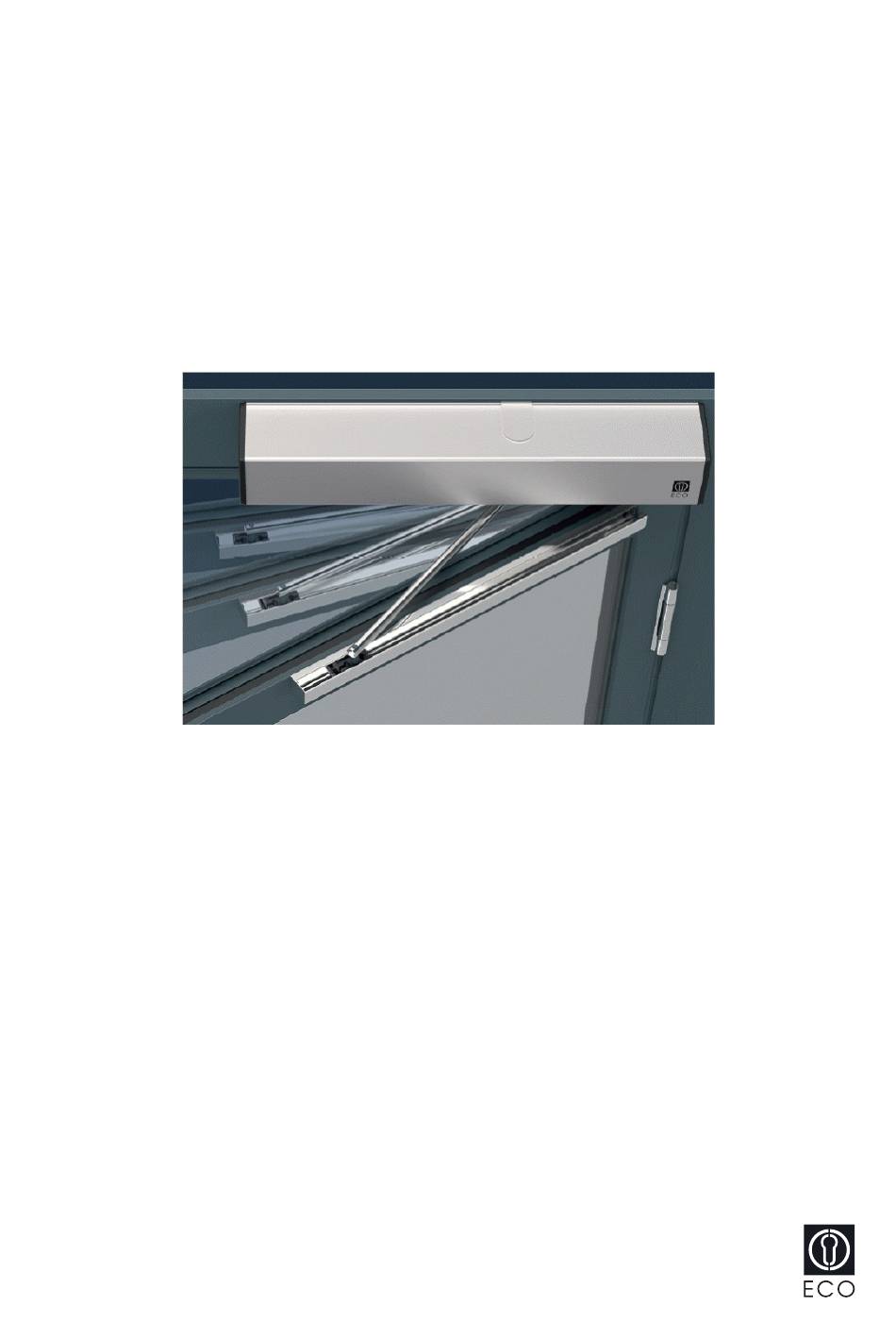

  • Page 1 Swing door drive mechanism with fire protection rating ETS 64-R Mounting and operating instructions Original Com. no..........Pos....... Construction year ....Operator .............................. Operating place ............................0548-990/62d 2017.06...

  • Page 2: Table Of Contents

    ETS 64-R Mounting and operating instructions TABLE OF CONTENTS GENERAL REMARKS ....................5 Target group .......................5 Where to keep these instructions ..............5 Adresses ......................5 Auxiliary tools and service performances ............6 SAFETY ........................7 Appropriate use ....................7 Safety notices ....................7 Safety regulations ....................7 2.3.1...
  • Page 3 ETS 64-R Mounting and operating instructions COMMISSIONING .....................44 Inverse application ...................46 Closing sequence control ................47 Interlock operation ...................50 Adhesive labels ....................51 6.4.1 Service sticker ..................51 6.4.2 Diagram sticker...................51 6.4.3 Fire protection sticker .................51 Mount the drive unit covering ................52 CONTROL........................53 Main switch ......................53...
  • Page 4 ETS 64-R Mounting and operating instructions 10 SHUT-DOWN ......................72 11 DISPOSAL OF THE INSTALLATION .................73 12 SPARE PARTS ......................74 13 OPTIONS ........................75 13.1 D-BEDIX ......................75 13.1.1 Keys....................75 13.1.2 Symbols ....................75 13.1.3 Operating modes ................76 13.1.4 Display of the door position ..............76 13.1.5 Menu level ..................77...

  • Page 5: General Remarks

    ETS 64-R Mounting and operating instructions GENERAL REMARKS The present instructions contains all instructions for mounting, commissioning, operation, service (maintenance/checking) as well as troubleshooting. It is the basis guaranteeing a faultless and safe operation of the installation and must be completely read and under- stood before starting the work.

  • Page 6: Auxiliary Tools And Service Performances

    ETS 64-R Mounting and operating instructions Auxiliary tools and service performances The auxiliary tools and service performances listed hereafter are available, depending on the respective situation and authorization (please ask your distribution agent): • Company portrait • Homepage • News •...

  • Page 7: Safety

    ETS 64-R Mounting and operating instructions SAFETY Appropriate use The swing door drive mechanism with fire protection rating ETS 64-R has been exclusi- vely designed for operating swing doors with fire protection rating. Any other use beyond these application limits is deemed inappropriate and inadmissible! In the event of an inap- propriate use of this system, the safety of the user may be jeopar dized and/or the installa- tion be damaged.
  • Page 8 ETS 64-R Mounting and operating instructions • In order not to create any dangerous squeezing and shearing points, no structural mo- dification must be made within the door surroundings, without prior authorization from ECO Schulte GmbH & Co. KG. Furthermore, it is important that no objects (such as furniture, pallets, etc.) be placed in the vicinity of the door.

  • Page 9: Service

    ETS 64-R Mounting and operating instructions 2.3.2 Service In order to guarantee the safety of the users at all times, the installation must be checked with regard to its safe condition before the first commissioning and during normal operati- on, at least once a year, by a expert. The correct maintenance/checking must be confir- med by entering the date and signature into the control booklet.

  • Page 10: Product Description

    ETS 64-R Mounting and operating instructions PRODUCT DESCRIPTION General remarks The swing door drive mechanism with fire protection rating ETS 64-R resp. ETS 64-R GSd (special gear for sliding rods pushing function) opens and closes the door leaf via a rod assembly (is not shown in the illustration). The fire protection drive unit is implemented by means of a fire-protection PCB. Drive mechanism Drive mechanism covering B LED fire alarm (in side cover) C Side cover D Spring unit...

  • Page 11: Standard Application

    Normal rods Sliding rods Sliding rods pulling function pushing function Drive mech. ETS 64-R –   ETS 64-R GSd – –  * * special gear Normal rods Sliding rods A Clamping piece B Rotating arm C Joint D Rod arms...

  • Page 12: Inverse Application

    ETS 64-R Mounting and operating instructions Inverse application The swing door drive unit with fire protection rating ETS 64-R is also appropriate for inversed operation. This particular function can be separately programmed for each drive unit. The inverse application is suitable for smoke extraction from buildings (RWA = smoke and heat exhaust vent solution) as well as for escape and rescue ways. In the event of a power failure or a RWA, this functionality ensures that the door leaf is reliably opened.

  • Page 13: Rating Plate

    ETS 64-R Mounting and operating instructions Rating plate The rating plate (including EC identification) can be found on the direct current motor (be- low the drive unit covering). Rating plate Technical data Drive mechanism Standard GSd (special gear for sliding rods pushing function) Power transmission...

  • Page 14: Application Limits Without Safety Elements According To En 16005

    ETS 64-R Mounting and operating instructions Application limits without safety elements according to EN 16005 Warning: In the event of swing doors installed in a non publicly accessible areas, without installation of safety elements that monitor the door leaf movement, the setting values specified hereafter for the opening speed Vo and the closing speed Vc must not be exceeded.

  • Page 15: Maximum Wind-Load Capacity

    ETS 64-R Mounting and operating instructions Maximum wind-load capacity Normal rods pushing function (lintel mounting) 3000 2900 2800 2700 2600 2500 2400 2300 2200 2100 2000 1000 1100 1200 1300 1400 Clearance width in mm Sliding rods pushing function (lintel mounting) Drive mechanism GSd...

  • Page 16: Mounting

    ETS 64-R Mounting and operating instructions MOUNTING Preparation Attention: Standard + inverse application It is imperative for the customer to install a door leaf stop piece! The latter limits the opening motion of the door leaf and prevents it's being da- maged in the manual operating mode.

  • Page 17: Mounting Versions

    ETS 64-R Mounting and operating instructions Mounting versions DIN left DIN right Normal rods 0548-104 pushing function Normal rods 0548-104 pushing function 0548-104/01 KTL push. funct. 0548-104/01 KTL push. funct. Lintel mounting see chapter 4.4 Lintel mounting see chapter 4.4 Lintel depth 0...240 mm...

  • Page 18: General

    0548-360 Mod The mounting plate 0548-360 can be used in cases where an existing FDC-B drive unit needs to be replaced by an ETS 64-R drive unit and where the existing fastening holes of the FDC-B-mounting plate have to be reused.
  • Page 19 ETS 64-R Mounting and operating instructions Warning: The drive unit must be fastened without torsion and perpendicularly, using all the six fixing holes! Tighten all the six M6 fixing screws (A) with a torque of 10 Nm! 0548-358 0548-360 MOD Note: Depending on the assembly situation of the drive unit, it may be advisable to in- stall the program selector on the opposite side (in order to guarantee an optimal operating facility).

  • Page 20: Normal Rods Pushing Function / Lintel Mounting

    ETS 64-R Mounting and operating instructions Normal rods pushing function / Lintel mounting Material: Drive mechanism 0548-032 Covering aluminium Drive mechanism 0548-033 Covering inox incl. fixing set 0548-107 Mounting plate 0548-358 resp. 0548-360 MOD Normal rods 0548-104 Normal rods KTL 0548-104/01 Procedure: Mark out and drill the fastening holes on the lintel and the door leaf.
  • Page 21 ETS 64-R Mounting and operating instructions Fixing holes DIN right = as shown DIN left = mirror-inverted Fixing drive Fixing mechanism mounting plate Ø20 Lower edge door frame Lintel depth Axis of rotation 0...240 ~408 Clamping piece standard Options 0548-114 Clamping piece standard 10...22...
  • Page 22 ETS 64-R Mounting and operating instructions Drive mechanism standard Inverse application 5. Close the door leaf. 5. Separate the rotating arm (D) from the rod arm (B) by dismounting the ball and socket 6. Separate the rotating arm (D) from the rod arm joint (E).
  • Page 23 ETS 64-R Mounting and operating instructions Inverse application 1. Let the door leaf be opened by spring power 2. Using a screwdriver, carefully prize the service cover (C) out of the gearbox housing. 3. By means of a socket wrench 1,5 mm, slightly loosen the locking screw (B) and leave the socket wrench inserted in the locking screw (B).

  • Page 24: Sliding Rods Pulling Function / Lintel Mounting

    ETS 64-R Mounting and operating instructions Sliding rods pulling function / Lintel mounting Material: Drive mechanism 0548-032 Covering aluminium Drive mechanism 0548-033 Covering inox incl. fixing set 0548-107 Mounting plate 0548-358 resp. 0548-360 MOD Sliding rods 0548-134 incl. sliding bolts 14 mm + 38 mm Procedure: Mark out and drill the fastening holes on the lintel and the door leaf.
  • Page 25 ETS 64-R Mounting and operating instructions Fixing holes DIN left = as shown DIN right = mirror-inverted Lintel depth Min. width door Max. door (mm) leaf (mm) opening angle assemblies (mm) (mm) (mm) without / with (°) (art. no.) without / with...
  • Page 26 ETS 64-R Mounting and operating instructions Drive mechanism standard Inverse application 4. Close the door leaf. 4. Mount the drive mechanism. 5. Install the mounting profile (E) on the door leaf. 5. Install the mounting profile (E) on the door leaf. 6. Prior to the installation of the drive unit: screw down the lever arm (B) on the drive unit (with a 6. Hook the guide profile (G) into the mounting pro-...

  • Page 27: Sliding Rods Pushing Function / Lintel Mounting

    ETS 64-R Mounting and operating instructions Sliding rods pushing function / Lintel mounting Material: Drive mechanism GSd 0548-034 Covering aluminium Drive mechanism GSd 0548-035 Covering inox incl. fixing set 0548-107 Mounting plate 0548-358 resp. 0548-360 MOD Sliding rods 0548-134 incl. sliding bolts 14 mm + 38 mm Procedure: Mark out and drill the fastening holes on the lintel and the door leaf.
  • Page 28 ETS 64-R Mounting and operating instructions Fixing holes DIN right = as shown DIN left = mirror-inverted Lintel depth Min. width Max. door Rod assem- door leaf opening angle blies (mm) (mm) (mm) (mm) (mm) (°) (art. no.) -40...+10 0548-105 11...20...
  • Page 29 ETS 64-R Mounting and operating instructions Drive mechanism standard Inverse application 5. Close the door leaf. 5. Install the mounting profile (E) on the door leaf. 6. Install the mounting profile (E) on the door leaf. 6. Hook the guide profile (G) into the mounting pro- file (E), on both sides insert and screw down (with 7. Screw down the lever arm (B) parallel to the drive 1,5 Nm) the expansion element (F).

  • Page 30: Adjusting The Pre-Stressing Of The Closing Spring

    ETS 64-R Mounting and operating instructions Adjusting the pre-stressing of the closing spring Upon delivery, the closing spring is pre-stressed for a measure X* = 26 mm. To ensure a safe and optimal operation of the swing door drive unit, the correct pre-stressing must be adjusted for the closing spring (by means of the setting screw).
  • Page 31 ETS 64-R Mounting and operating instructions Inverse application EN class EN 3 EN 4 EN 5 EN 6 Width of door leaf 950 mm 1'100 mm 1'250 mm 1'400 mm Normal rods Measure X * 40 mm 36 mm 31 mm...

  • Page 32: Setting The Accelerating Function (Forceful Closing)

    ETS 64-R Mounting and operating instructions Setting the accelerating function (forceful closing) Note: The accelerating function (forceful closing) is only activated for the standard drive unit. 4.8.1 Accelerating force While an installation is in the state “without mains power” or in the operating mode MAN- UAL, the motor acts as an attenuator, thus guaranteeing a constant closing speed until the Closed position is reached.

  • Page 33: Forceful Closing Range

    ETS 64-R Mounting and operating instructions 4.8.2 Forceful closing range Upon delivery from the factory, the activation of the accelerating function (forceful closing) is pre-set (i.e. it intervenes approx. 5° before reaching the closed position). Under normal conditions, it will not be necessary to change the default setting! However, in cases where...

  • Page 34: Mechanical Closing Sequence Regulator

    ETS 64-R Mounting and operating instructions Mechanical closing sequence regulator Attention: For any bi-parting door, it is compulsory to mount a mechanical closing se- quence regulator (class 8) homologated by the "Deutsche Institut für Bautech- nik" (DIBt) in Berlin (see application sheet P 11.06.20 resp. P 11.06.21). Power supply 24 VDC ±10 %;...

  • Page 35: Electrical Connections

    ETS 64-R Mounting and operating instructions ELECTRICAL CONNECTIONS Power supply Warning: Before working on the drive unit, make sure that the mains cable is voltage-free! The mains supply line including mains plug (with respective protection) has to be provided by customers.
  • Page 36 ETS 64-R Mounting and operating instructions Cable layout PE L' N' Mains cable Chassis profile 3 x 1,5 mm Program selector further away from the door hinges. 0548-990/62d 0548-990-61---70d_2017.06.indd Page 36 of 87...

  • Page 37: Cable Layout

    ETS 64-R Mounting and operating instructions Cable layout 5.2.1 Lintel mounting   (614) 5.2.2 Strain relief Attention: For flexibly conducted cables, the drive-internal strain relief feature 0548-128 and a bushing socket must be installed in the side cover cutout! 0548-128 M4 x 6 0548-399 Cable clamp 0548-990/62d 0548-990-61---70d_2017.06.indd...

  • Page 38: Fire Protection Pcb

    X108 Plug for LED fire alarm central (in the side cover) The connection between the triggering elements and the ETS 64-R is monitored (wire rupture and short-circuit). To this effect, a terminating impe- dance of 8,2 kOhm must be inserted at the extre- mity of each connection line (already existing).
  • Page 39 ETS 64-R Mounting and operating instructions Diagnostics: Fire alarm central Manual triggering The identified fire protection PCB is dis- Smoke detector/Thermal switch played as follows in the diagnostic menu: no response Short-circuit R0 Relay PCB with DIP switch on position Wire rupture Addr0 R1 Relay PCB with DIP switch on position...

  • Page 40: External Elements

    ETS 64-R Mounting and operating instructions External elements Mount all the required control and safety elements at their respective place. Lead the cables of the elements up to the drive unit (by customers). Connect the cables according to the diagram E4-0141-713_ECO (in the appendix).

  • Page 41: Motorized Lock

    ETS 64-R Mounting and operating instructions Motorized lock The swing door drive mechanism and its control unit are always configured as Master. All the commands are transmitted to this control unit. The latter then unlocks/locks the motor- ized lock. Attention: The motorized lock must be homologated together with the fire safety profile system! Functional performance: Opening command Impulse and permanent command transmitted to motor- ...

  • Page 42: Motorized Lock With Own Evaluation Control

    ETS 64-R Mounting and operating instructions 5.5.2 Motorized lock with own evaluation control The motorized lock is equipped with an own evaluation control (either integrated or ex- ternal). The swing door drive mechanism is configured as the Master unit and transmits a voltage free impulse for control unit of the motorized lock for relasing the latter. The electric power is supplied directly via the swing door drive mechanism (i.e.

  • Page 43: Motorized Lock With Separate Evaluation Control/Power Pack

    ETS 64-R Mounting and operating instructions 5.5.3 Motorized lock with separate evaluation control/power pack The motorized lock is equipped with a separate evaluation control and a separate power pack ensuring the power supply. The swing door drive mechanism is configured as the Master and transmits a voltage free impulse to the control unit of the motorized lock for releasing the latter.

  • Page 44: Commissioning

    ETS 64-R Mounting and operating instructions COMMISSIONING Warning: During the setting-up procedure (which must only be carried out by experts), the safety devices (radar, sensors, ...) are switched off! Before initiating the setting-up procedure, it is important to make sure that neit-...
  • Page 45 ETS 64-R Mounting and operating instructions Adjust the opening speed Vo and validate by means of OK. Adjust the closing speed Vc and validate by means of OK. If desired: Invers Program the inverse application (spring-powered opening) and validate it by pressing OK.

  • Page 46: Inverse Application

    ETS 64-R Mounting and operating instructions Inverse application Attention: The starting delay TDelay must be > 0 s and the relieving force during unlocking FDelay must be adjusted in accordance. Software configuration: • Activate the parameter Inverse. Attention: the motor connector must not be plugged in the same manner as for the stan- dard drive unit.

  • Page 47: Closing Sequence Control

    ETS 64-R Mounting and operating instructions Closing sequence control For bi-parting installations, the closing sequence control determines the order in which the door leaves are opened and closed. For the opening procedure, the earlier door leaf (Master leaf) is the first one to be opened, whereas for the closing procedure the delayed door leaf (Slave leaf) is the first one to be closed. This sequence ensures a correct over- lapping of the door leaves.
  • Page 48 ETS 64-R Mounting and operating instructions Function: The first door leaf to be put in motion for the opening procedure is the Master; by means of DubleD, this leaf is configured as MastrA. Its partner is the Slave, which is configured as SlaveA by means of DubleD. In the event of an existing CAN connection, the Master is identified by a small black (m) and the Slave by a small black (s). If however there is no connection, this is indicated by a small white (m) respectively a small white (s).
  • Page 49 ETS 64-R Mounting and operating instructions Procedure: Connect both control units by means of the CAN cable 0383-194/07 (by plugging it into the socket X117). Note: The respective control and safety elements are connected to the corresponding drive unit. Take the Master drive unit into operation (see chapter 6).

  • Page 50: Interlock Operation

    ETS 64-R Mounting and operating instructions Interlock operation Procedure: Note: Both installations must be plugged Exterior side into resp. out of the same power supply. Side A Connect both control units by means of the CAN cable (by plugging it into the socket X117).

  • Page 51: Adhesive Labels

    ETS 64-R Mounting and operating instructions Adhesive labels 6.4.1 Service sticker Service sticker Attach the service sticker (outside) onto 0460-816 the degreased surface of the drive unit covering, at a place that is easily visible for the customer..Stick the monthly sticker onto the ser-...

  • Page 52: Mount The Drive Unit Covering

    ETS 64-R Mounting and operating instructions Mount the drive unit covering Material: Covering 0548-356 Aluminium Covering accessories 0548-112 Aluminium Covering 0548-303 Stainless steel Covering accessories 0548-115 Stainless steel Procedure: Mount the covering and the accessories as shown in the illustration.

  • Page 53: Control

    ETS 64-R Mounting and operating instructions CONTROL Main switch The drive mechanism is supplied with a built-in main switch (A). This main installati- on switch enables you to disconnect the po- wer supply from the drive unit. The door leaf...

  • Page 54: Operating Modes

    ETS 64-R Mounting and operating instructions Operating modes The following operating modes can be enabled by means of the program selector: AUTOMATIC Automatic opening via the opening elements inside/outside + Key. Automatic closing upon expiration of the adjustable hold-open time.

  • Page 55: Adjustings

    ETS 64-R Mounting and operating instructions Adjustings The parameters can be changed on the control unit by means of the display and Joystick the joystick. Display  The movements of the joystick have the scroll following effects:  • Vertical joystick movement (upward/ change downward) ...

  • Page 56: Motional Parameters (Parameter)

    ETS 64-R Mounting and operating instructions 7.4.1 Motional parameters (PARAMETER) Parameter Description Setting range Default Opening speed (velocity open) 0..14 (5…50°/s) Closing speed (velocity close) 0..14 (5…50°/s) TOEx Hold-open time opening element inside/outside (time hold opening element inside/outside) 0...60 s...

  • Page 57: Configuration (Config)

    ETS 64-R Mounting and operating instructions 7.4.2 Configuration (CONFIG) Parameter Description Setting range Default APuGo Triggering angle Push&Go (angle push&go) OFF, 2...10° ASES 1) Suppression point Safety Element stop (angle safety element stop). 45°...Ao 95° If Ao is changed, ASES is auomatically set to Ao.

  • Page 58: Installations With Multiple Door Leaves (Double Door)

    ETS 64-R Mounting and operating instructions open open ASES closed closed 7.4.3 Installations with multiple door leaves (DOUBLE DOOR) Parameter Description Setting range Default DubleD Closing sequence role (Master/Slave) and interlock side (A/B) MastrA SlaveA MastrB SlaveB Current delay angle for opening sequence control (Slave) 20°...

  • Page 59: Menu Navigation

    ETS 64-R Mounting and operating instructions 7.4.4 Menu navigation 0548-990/62d 0548-990-61---70d_2017.06.indd Page 59 of 87...
  • Page 60 ETS 64-R Mounting and operating instructions On the 1st level, the following information is shown on the display: 1st display line: The door position is represented by means of the arrows (><). Alternatively, the motion- relevant opening and safety signals are displayed. The double hash signs (##) indicate that the door is locked.
  • Page 61 ETS 64-R Mounting and operating instructions DIAGNOSTICS Diagnostic tools • K-I-O-R-S-E shows the inputs KEY (K), OEI (I), OEO (O), SER (R), SES (S), EMY (E). (+) stands for active, (-) for inactive. • 5.1A 95° shows the motor current and the door opening angle.
  • Page 62 ETS 64-R Mounting and operating instructions BLOCK/UNBLOC Lock/unlock the joystick • BLOCK Lock the joystick. For a temporary unlocking, press OK for more than 1 second. 60 seconds after the last joystick actuation, the joystick is automatically relocked. • UNBLOC Permanent unlocking of the joystick.

  • Page 63: Service

    ETS 64-R Mounting and operating instructions SERVICE A regular service (maintenance/checking) is absolutely indispensable in order to gua- rantee a safe operation and long lifetime of the installation. The service must be carried out at least once a year: • by a qualified person (according to the following checklist) •...

  • Page 64: Service For Pedestrian Doors

    ETS 64-R Mounting and operating instructions Service for pedestrian doors Warning: Electrocution hazard! Before working on any live elements, pull out the mains plug as well as any existing plug of the emergency battery respectively switch off the main installation switch!

  • Page 65: Fundamental Checking

    ETS 64-R Mounting and operating instructions Fundamental checking Warning: Switch the main installation switch off on the drive unit! Dismount the covering of the drive me- chanism.  Check all the cable connections.  Normal rods: Separate the rod arm (B) from the rota- ting arm (A): Pull the spherical joint (C) apart.

  • Page 66: Troubleshooting

    ETS 64-R Mounting and operating instructions TROUBLESHOOTING Warning: Electrocution hazard! Before working on any live elements, pull out the mains plug respectively switch off the main installation switch! If a malfunction occurs which might be detrimental to the safety of the users, and which cannot be eliminated without delay, the operator must be informed and if required the installation shall be taken out of operation.

  • Page 67: Operating

    ETS 64-R Mounting and operating instructions 9.1.2 Operating Description Cause Elimination Checking time Reaction E10 01 Fullteach Parameter Ao, Rod, Invers or Carry out a teach. Upon changing the drive required dAxis changed. unit configuration. Minimum opening angle has Check the locking/electric lock During Teach.

  • Page 68: System

    ETS 64-R Mounting and operating instructions 9.1.5 System Description Cause Elimination Checking time Reaction E50 01...99 System error Unexpected hardware or Switch the drive unit off/on. Permanent. W or H or F software event. Carry out a Factory Reset, carry out a E51 01...99...

  • Page 69: Malfunction Without Error-No

    ETS 64-R Mounting and operating instructions Malfunction without error-no. In some cases, it will be technically impossible to display an "irregular functioning" of the installation by a definite error number. An alleged error may by all means also be due to "correct" causes. For this reason the list shown hereafter has been established, which contains the probable or already encountered irregular functioning, their possible causes as well as the corrective action (error elimination) to be taken.

  • Page 70: Software Update Via Usb

    Software update via USB A software update of the ETS 64-R control unit can be easily and rapidly achieved by means of an USB memory stick. Note: Not all the USB memory sticks can be used. We thus recommend a previous testing of their function together with the ETS 64-R.

  • Page 71: Procedure

    ETS 64-R Mounting and operating instructions 9.3.2 Procedure Switch off the main installation switch on the ETS 64-R. Plug the USB stick into the con- trol unit  socket X118. X118  Switch on the main installations switch on the ETS 64-R.

  • Page 72: Shut-Down

    ETS 64-R Mounting and operating instructions SHUT-DOWN No particular measures need to be taken for de-commissioning the installation. If the swing door drive mechanism will not be used during at least 1 month, it is recom- mended to pull out the mains plug.

  • Page 73: Disposal Of The Installation

    ETS 64-R Mounting and operating instructions DISPOSAL OF THE INSTALLATION An ecologically acceptable disposal of the installation is ensured if the different materials are separated and recycled. No particular measures are required for the protection of the environment. However, the relevant...

  • Page 74: Spare Parts

    ETS 64-R Mounting and operating instructions SPARE PARTS Article No. Designation Remark 0548-116 Drive module 0548-117 Drive module GSd 0548-204 Switch support complete 0548-107 Fixing set 0548-358 Mounting plate Option 0548-360 Mounting plate Mod. Option 0548-106 Open stop piece integrated into the drive unit...

  • Page 75: Options

    The D-BEDIX is connected to the control unit ETS 64-R via a screened two-core connection cable (e.g. U72M or EIB-Y(St)Y, max. length 50 m). Only one D-BEDIX can be connected per door installation.

  • Page 76: Operating Modes

    ETS 64-R Mounting and operating instructions 13.1.3 Operating modes With the D-BEDIX, the following operating modes can be selected by means of the corre- sponding symbols: AUTOMATIC Automatic operation. The installation can be locked. NIGHT The installation is locked . As opening commands, only the key-operated impul- se switch is accepted.

  • Page 77: Menu Level

    ETS 64-R Mounting and operating instructions 13.1.5 Menu level Short and simultaneous actuation of both arrow keys (=access to the menu level). Select the desired menu item bymeans of the arrow key. Confirm by means of the OK key. Display Description PARAMETER Setting the motional parameters *...

  • Page 78: Setting Examples

    ETS 64-R Mounting and operating instructions 13.1.6 Setting examples Changing the operating mode Select the desired symbol by means of the arrow key (symbol starts flashing). Confirm with the OK key (frame/bar switch over). Preselecting the operating mode An overriding switch is active and determines the operating mode (only the selection fra- me is visible, the bar underlines the preselected operating mode). Now you can select the operating mode you want to be active upon cancellation of the overriding switch: Select the desired symbol by means of the arrow key (symbol starts flashing).

  • Page 79: Error Display

    ETS 64-R Mounting and operating instructions Parameters (hold-open timeday) Short simultaneous actuation of the arrow keys (= access to the menu level). By means of the arrow key, select TOEx. Confirm with the OK key. By means of the arrow key, change the value.

  • Page 80: Kombi-D-Bedix

    ETS 64-R Mounting and operating instructions 13.2 KOMBI-D-BEDIX In addition to the functions of the D-BEDIX, the KOMBI-D-BEDIX contains a key-opera- ted switch (round or profile cylinder) with the following function: Lockout of the KOMBI-D-BEDIX against unauthorized use. Free Locked Round cylinder Profile cylinder Cylinder: to be supplied by customers If this lockout is enabled, all the keys are shortly lit (as a confirmation of the lockout).

  • Page 81: Open Position Stop Piece Integrated In The Drive Unit

    ETS 64-R Mounting and operating instructions 13.3 Open position stop piece integrated in the drive unit Attention: The swing door drive mechanism ETS 64-R with fire protection rating must im- peratively be complemented by an open position stop piece (to be installed by customers). The purpose of this stop piece is to limit the opening motion of the door leaf, thus ensuring its reliable closing in the event of a fire. As an option, an...

  • Page 82: Continuous Covering

    ETS 64-R Mounting and operating instructions 13.5 Continuous covering For bi-parting installations, the two drive units can be optically connected by inserting an intermediate covering piece. Note: A fire alarm is displayed by the red LED in the side cover. This LED must be visible on one of the two drive units!

  • Page 83: Led-Print In Continuous Covering

    ETS 64-R Mounting and operating instructions 13.6 LED-Print in continuous covering Note: A fire alarm is displayed by the red LED in the side cover. This LED must be visible on one of the two drive units! If this is not possible due to the particular situation, the LEC PCB must be mounted in the continuous covering! Mounting according to enclosed installa- tion drawing 0548-159.

  • Page 84: Optional Pcbs

    ETS 64-R Mounting and operating instructions 13.7 Optional PCBs All the optional PCBs are plugged into the control unit via a universal connector. A maxi- mum number of two optional PCBs can be combined. Attention: All the four optional PCBs must only be plugged into/removed from the control unit after the dive unit has been disconnected from the power supply source! 13.7.1...

  • Page 85: Radio Pcb

    ETS 64-R Mounting and operating instructions 13.7.2 Radio PCB A radio control PCB can be plugged into the control of the drive unit. Using a hand-held radio transmitter, this PCB can be programmed with a code, upon which the drive unit can be controlled via the hand-held radio transmitter.

  • Page 86: Lzr-Flatscan

    ETS 64-R Mounting and operating instructions 13.8 LZR-FLATSCAN In the event of swing doors, the FLATSCAN is mounted on the moving leaf, on the upper leaf corners (as close as possible to the secondary closing edge). The FLATSCAN can only be used in pairs! Master and Slave are connected among each other.

  • Page 87: Appendix

    ETS 64-R Mounting and operating instructions APPENDIX The following document is added as an appendix to this instructions: Wiring diagram ..................E4-0141-713_ECO Wiring diagram Fire protection PCB............E4-0141-714_ECO Wiring diagram Relay PCB ..............E4-0141-715_ECO Wiring diagram motorised locks ............. E4-0142-180_ECO 0548-990/62d 0548-990-61---70d_2017.06.indd...
