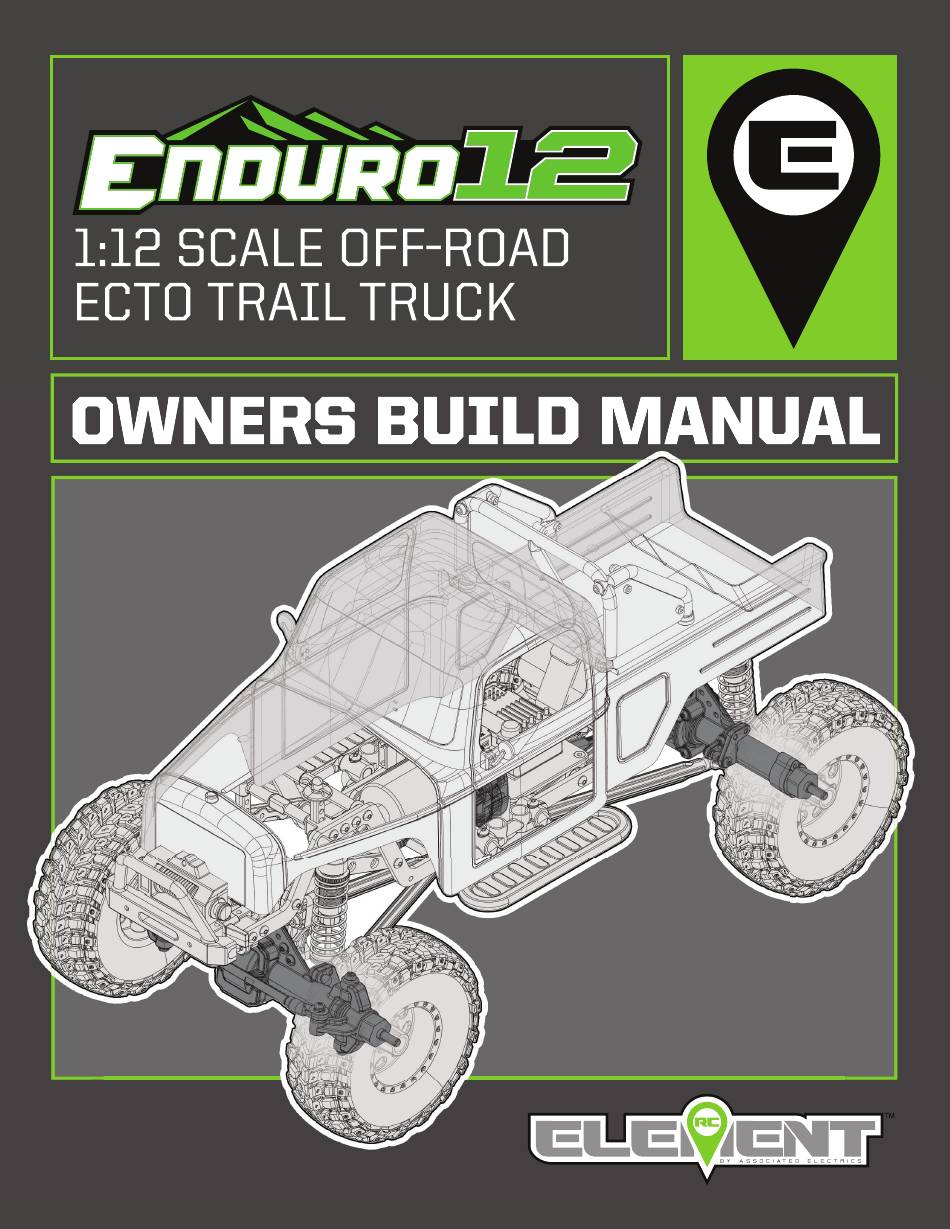

Element RC Enduro12 Owner's Manual

1:12 scale off-road ecto trail truck
Hide thumbs Also See for Enduro12:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Enduro12 and is the answer not in the manual?

Questions and answers

Related Manuals for Element RC Enduro12

Summary of Contents for Element RC Enduro12

  • Page 2 A performance rig built to endure. When hitting the trail, you want to do it with confi dence and the answer is the Enduro12 Rock Crawler Trail Truck! Don’t let the small size fool you, the Enduro12 chassis is jam-packed with tons of features you’ll be glad to have out...
  • Page 3 35.68579 - 83.53677 HARDWARE 1:1 SCALE VIEW HARDWARE USED WITH OPTIONAL REPLACEMENT PART NUMBERS FLAT HEAD SCREWS (FHCS) BUTTON HEAD SCREWS (BHCS) SET SCREWS 2.5x5mm (41119) 2x10mm (41072) 2.5x8mm (31472) 3x3mm (25225) 2.5x6mm (31520) 2.5x10mm (31350) NUTS 2.5x8mm (31521) 2.5x12mm (41076) M3 Nuts (91477) M3 Locknuts (25215) Aluminum (31550)
  • Page 4 35.68579 - 83.53677 TABLE OF CONTENTS 11/7/2023 COVER GEARBOX BUILD INTRODUCTION DRIVELINE BUILD 1:1 HARDWARE “FOLD OUT” ELECTRONICS INSTALL TABLE OF CONTENTS WHEEL / TIRE / BODY BUILD QUICK START GUIDE NOTES SHOCKS BUILD BACK COVER CHASSIS BUILD FRONT AXLE BUILD REAR AXLE BUILD USING THIS MANUAL This symbol indicates a special note or...
  • Page 5 35.68579 - 83.53677 GATE 01 QUICK START GUIDE Battery Charging Steps and Safety: Remove the battery from the vehicle before charging. Place battery on a fi re resistant surface. Avoid any contact with water or other liquids. Be sure to select the correct charging mode for the type of battery you are charging (if aplicable).
  • Page 6 YOUR BUILD BEGINS HERE. GATE 04 QUICK START GUIDE Battery Notes and Tip: Connect the battery as shown. Disconnect the battery when not in use! LiPo/LiLo: LiPo/LiLo batteries (lithium polymer / Lithium Ion) are high current rechargeable bat- teries. LiPo/LiLo batteries offer extended run time and peak performance over NiMH batteries.
  • Page 7 35.68579 - 83.53677 GATE 06 QUICK START GUIDE Adjust steering Radio System Tuning and Controls: trim so front DO NOT hold the trigger when turning on the radio. wheels point If using optional battery for transmitter, be sure to plug it in correctly. Plugging straight.
  • Page 8 YOUR BUILD BEGINS HERE. GATE 01 SHOCK BUILD 41019 Shock Body 41021 E-Clip 41024 Spacer 41023 41024 Shock 41024 Shock Piston Bump Stop O-Ring 41022 41024 Shock Rod 41021 Insert Shock Shaft 41033 41019 Pivot Ball Bottom GATE 02 SHOCK BUILD 41019 Front Shock: 20wt NOTE: Build 4...
  • Page 9 35.68579 - 83.53677 GATE 01 CHASSIS BUILD 41128 41124 41125 Enduro 12 Enduro 12 Enduro 12 Bumper Mount Battery Tray Mount Rear Rail Brace Rear 41127 41127 Enduro 12 Enduro 12 Body Post Mount, Rear Link Mount Rear 41127 41131 Enduro 12 Enduro 12 Frame Spacers...
  • Page 10 YOUR BUILD BEGINS HERE. GATE 02 FRONT AXLE BUILD 41127 Enduro 12 Link Mount 31521 M2.5x8mm BHCS 91560 41014 FT 5x10x4mm Front CVA Bearing 41132 Front CVA 41133 Drive Cup Enduro 12 Front CVD 41127 Driveshaft Enduro 12 Steering Block 41014 Front CVA 41018...
  • Page 11 35.68579 - 83.53677 GATE 04 FRONT AXLE BUILD 41073 M2.5x14mm BHCS 41027 Shock Cap Bushing 41001 Side Mounts 41088 M2.5x10mm BHCS 81259 41126 M2.5x18mm Ball Stud, BHCS Lower GATE 01 REAR AXLE BUILD 91560 41130 FT 5x10x4mm Bearing Enduro 12 12T Gear 41123 41123...
  • Page 12 YOUR BUILD BEGINS HERE. GATE 02 REAR AXLE BUILD 41126 Enduro 12 Links, Long 41134 41127 Enduro 12 Enduro 12 Rear Axle 41126 Axle Cover Enduro 12 Ball Studs, Metal 31521 41127 25215 M2.5x8mm Enduro 12 M3 Locknut BHCS Rear Link Mount 91560 FT 5x10x4mm Bearing...
  • Page 13 35.68579 - 83.53677 GATE 01 GEARBOX BUILD 91560 41035 FT 5x10x4mm Main Drive Bearing Gear 41135 Enduro 12 41124 Main Drive Enduro 12 Gear Shaft 41041 Gearbox Step Gear 41124 92137 Enduro 12 31392 Gearbox Drive Gear Step Gear Spacer WaSher 41042 41042...
  • Page 14 YOUR BUILD BEGINS HERE. GATE 01 ELECTRONICS INSTALL Motor 41124 31521 25225 Enduro 12 M2.5x8mm Gearbox Cap M3x3mm BHCS Set Screw 31387 7.8x3.5x0.5mm, Blue Aluminum Washer 41043 Pinion 11 tooth GATE 02 ELECTRONICS INSTALL 31448 31448 M2.5x8mm M2.5x8mm FHCS FHCS 41125 Enduro 12 41125...
  • Page 15 35.68579 - 83.53677 GATE 03 ELECTRONICS INSTALL 41126 41136 Enduro 12 Enduro 12 Ball Studs, Steering Turnbuckle, Metal Servo Link 41126 Enduro 12 Links, Straight 41136 Enduro 12 Steering Turnbuckle, Steering Link 41074 M2.5x20mm 41126 BHCS Enduro 12 Links, Curved 41088 M2.5x10mm BHCS...
  • Page 16 YOUR BUILD BEGINS HERE. GATE 01 WHEEL / TIRE / BODY BUILD Battery 6727 Servo Tape 41088 M2.5x10mm BHCS 41142 Enduro 12 Wheel and Tire Combo, Black GATE 02 WHEEL / TIRE / BODY BUILD 41115 Wheel Hex Pins 41115 Wheel Hex Adapter 91738...
  • Page 17 35.68579 - 83.53677 GATE 03 WHEEL / TIRE / BODY BUILD Bodies #41138 - Ecto Body Set, Painted #41138 - Ecto Body Set, Painted #41138 - Ecto Body Set, Painted 21173 #41139 - Ecto Body Set, Clear #41139 - Ecto Body Set, Clear #41139 - Ecto Body Set, Clear Body Clips #41140- Sendero Decal Sheet...
