MAINTENANCE
Disconnect power source and ensure pressure is removed from pump head prior to
performing any maintenance. Hazardous pressures can result in serious injury or
property damage.

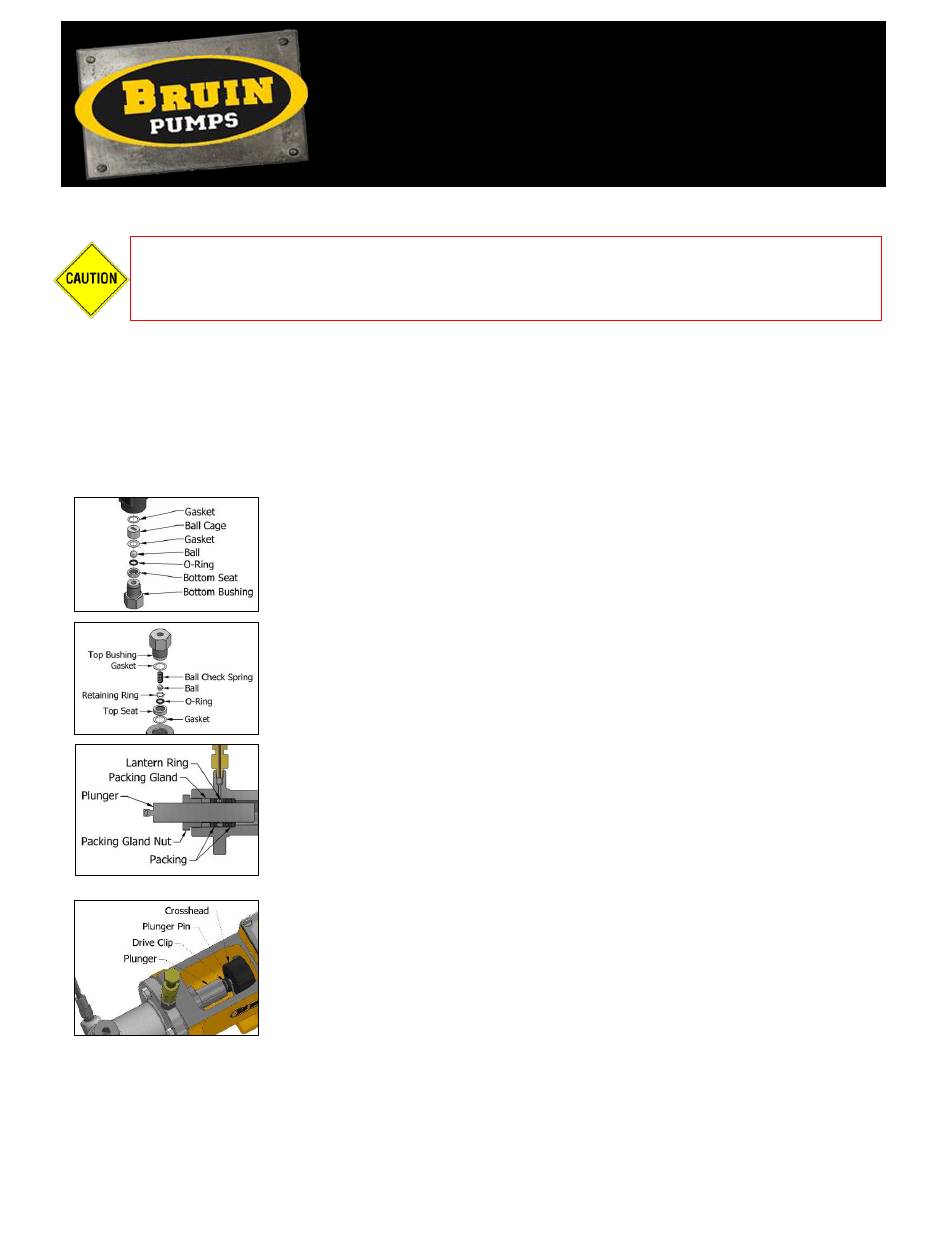

Pump Head Maintenance
Pump Head Assembly
Step 1: Ensure all parts are clean and free from damage (see Inspection section). Lubricate all O-rings
with a light assembly lubricant; lubricate packing and plunger with a suitable packing lubricant grease
(with or without additives - Teflon, Graphite, or Molybdenum Disulfide are all acceptable additives).
Pump Head Disassembly
Step 1: Disconnect power source, ensure all pressure is removed from pump head assembly and isolate
fluid discharge and suction lines. Open and remove priming valve. Disconnect fluid discharge
and suction lines.
BR2400
Electric Drive Chemical Injection Pump
Step 2: Install O-ring into bottom seat. Place the 1/2" ball into bottom seat
and the gasket (the widest of the four gaskets) onto the seat and cover ball
with ball cage. Place gasket onto ball cage and insert into suction end of body.
Thread bottom bushing into suction end of body utilizing a thread sealant.
Tighten bottom bushing.
Step 3: Install O-ring and retaining ring into the top seat. Install top seat into
body with a gasket on both sides of seat. Place 3/8" ball and ball check spring
into top bushing. Thread top bushing into body utilizing a thread sealant.
Tighten top bushing.
Step 4: Install packing with lantern ring in body, ensuring it is installed in the
correct order and orientation. Note: The "V-Ring" point should be pointing
outward and the lantern ring in line with the grease jack. Place plunger
packing gland on packing. Loosely thread packing gland nut into the body.
Carefully insert plunger into packing. Install grease jack lubricating assembly
onto pump head.
Step 5: Install head assembly into housing, ensuring plunger fits into the
crosshead assembly and install drive clip and plunger pin. Install and tighten
hex bolts.
Step 6: Install gasket and cover with wing screws. Install and tighten priming
valve into body utilizing a thread sealant.
Maintenance
and Inspection
11-23
Advertisement
Table of Contents
Related Manuals for Bruin Pumps BR2400
Summary of Contents for Bruin Pumps BR2400
- Page 1 Maintenance and Inspection BR2400 Electric Drive Chemical Injection Pump MAINTENANCE Disconnect power source and ensure pressure is removed from pump head prior to performing any maintenance. Hazardous pressures can result in serious injury or property damage. Pump Head Maintenance Pump Head Assembly Step 1: Ensure all parts are clean and free from damage (see Inspection section).
- Page 2 Step 2: Remove the cover, to get access to and remove drive clip and plunger pin from the crosshead assembly. Step 3: Remove the hex bolts and the pump head assembly from the housing. Step 4: Loosen and remove top bushing, ball check spring, ball, gaskets, and top check valve seat. Remove the retaining ring and O-ring from the top check valve seat.
- Page 3 Step 10: Bolt down the housing onto the base plate. Install second housing assembly in the same manner for a duplex unit. Tighten gearbox reducer bolting. Step 11: Bolt the head assembly into the housing with the plunger lining up to the crosshead assembly and insert the drive clip and plunger pin.
- Page 4 Housing Disassembly The following Steps 3 through 9 are for a single housing assembly. Step 1: Disconnect power source, ensure all pressure is removed from pump head assembly and isolate fluid discharge and suction lines. Open and remove priming valve. Disconnect fluid discharge and suction lines.
- Page 5 Cleveland Gear Worldwide Electric Sight Gauge Type Flat Button Domed Below the output shaft horizontal Below the output shaft horizontal plane on the back of the gearbox plane on the side of the gearbox Sight Gauge Location 400ml (13.5 fl oz) 800ml (27.0 fl oz) Oil Capacity Bruin ISO 460 Refill Part No.:...
