Safety 1st SecureTech GA106 Quick Start Manual

min 29" - max 47"
(73.6 cm) (119.4 cm)
Easy Install
Extra Tall & Wide
Walk-Thru, GA106
SecureTech Tall &
TM
Wide Gate, GA146
Tall & Wide Gate with
SecureTech , GA172
TM
©2022 Dorel Juvenile Group, Inc. Safety 1st™ and the Safety 1st logo and design are trademarks of Dorel Juvenile Group,
Inc. (800) 544- 1108 www.safety1st.com/ca-en Styles and colors may vary. Les styles et les couleurs peuvent varier.
Made in CHINA. Fabriqué en CHINE. Distributed by (distribué par) Dorel Juvenile Group, Inc., 2525 State St.,
Columbus, IN 47201-7494. Dorel Juvenile Canada, 2233 Argentia Road, Suite 110, Mississauga, ON L5N 2X7.
Importado y Distribuido en Chile por: Comercial e Industrial Silfa S.A. - San Ignacio 0201 / Parque Industrial
Portezuelo Quilicura, Santiago Chile. Fono (562) 2339 9000. En Perú por: Comexa S.A. - Los Libertadores
455 – San Isidro, Lima – Perú. Fono (511) 4469014. En Centro América, Caribe y Ecuador por: Best
Age: 6 to 24 months.
Brands Group S.A. – Av. Balboa, Bay Mall Plaza, Planta Baja, local 9, Panamá. - Fono: (507) 300
2884. En Colombia por: Baby Universe S.A.S. - Vía 40 No. 77-29, Barranquilla, Colombia - Fono:
(575) 353 1110 Importador: DJGM, S.A. DE C.V. Gabriel Mancera No. 1041 Col. Del Valle,
Benito Juárez C.P. 03100 México, Ciudad de México R.F.C. DJG140305GN9 Tel. (55) 67199202 08/17/22 4358-8325
2
Measure opening
32"
If Opening is
up to (81.3 cm) go to step
If Opening is... If Opening is...
1
Up to 35" Up to 36"
Use SMALL Use
(88.9 cm) (96.5 cm)
extension, extension,
Go to steps Go to steps
2a – 2c 2b –
2a 2b 2c
Assemble Remove
SMALL extension
extension caps
TIP: Use the bolt side of the
bumper to gently extract the
TOP extension caps from the gate.
A
Remove extension caps from
gate. Keep them near by;
you will need them for final
assembly.
B
BOTTOM
Keep this instruction sheet for future reference, as it contains important information.
WARNING:
Children have died or been seriously injured when gates are not securely installed.
• TO PREVENT FALLS, NEVER use pressure mount gate at top of stairs.
• ALWAYS install and use gates as directed using all required parts.
• STOP using when a child can climb over or dislodge the gate.
• Use only with the locking/latching mechanism securely engaged.
• NEVER use to keep child away from pool.
• Discontinue use of the gate if it becomes damaged, broken, or disassembled.
• Intended for use with children from 6 months through 24 months.
• Install according to manufacturer's instructions.
• ALWAYS install as close to the floor as possible.
• This product will not necessarily prevent all accidents. NEVER leave child
unattended.
• Gate is not meant to replace proper adult supervision.
• Install with locking mechanism on side away from child.
You MUST install wall cups to keep the gate in
WARNING:
place. Without wall cups, child can push out and
escape.
CAUTION:
Adult assembly
• ALWAYS check regularly to ensure gate and locking systems are secure. Tighten locking
required.
hardware as necessary. DO NOT over-tighten.
• DO NOT use gate if any parts are missing or broken. Contact Dorel Juvenile Group for
replacement parts and instructional literature if needed.
• DO NOT use any replacement parts not provided by Dorel Juvenile Group.
• DO NOT substitute parts or try to modify the product in any way. Parts not provided and
approved by Dorel Juvenile Group may result in an unsafe product.
Care and Maintenance:
DO NOT immerse in water. Wipe with a damp
cloth and dry.
3 . No extensions are required.
If Opening is... If Opening is...
1
Up to 41" 1 Up to 44"
MEDIUM
Use SMALL
(104.1 cm) (111.7 cm)
1
and MEDIUM
extension,
2c
Go to steps
2a – 2d
2d
Add extension
IF you are using the SMALL extension, always add it to the gate
FIRST. Insert extension into gate. Insert extension caps ONLY IF For openings
you are not adding another extension to this side.
over only
S SMALL SMALL MEDIUM MEDIUM U
38" - 44"
(96.5 cm - 111.7 cm)
Repeat steps
TOP USA
B with 1 MEDIUM extension
on the other side of the
gate. Insert extension
caps ONLY IF you are not
adding another extension
to this side.
2e
For openings
over 44" - 47"
only
Repeat step
final MEDIUM extension
on either side of the gate.
Insert extension caps in all
4 corners.
USA
BOTTOM
B
B
caps:
check!
OK NO
1
Lay out all parts
Parts List:

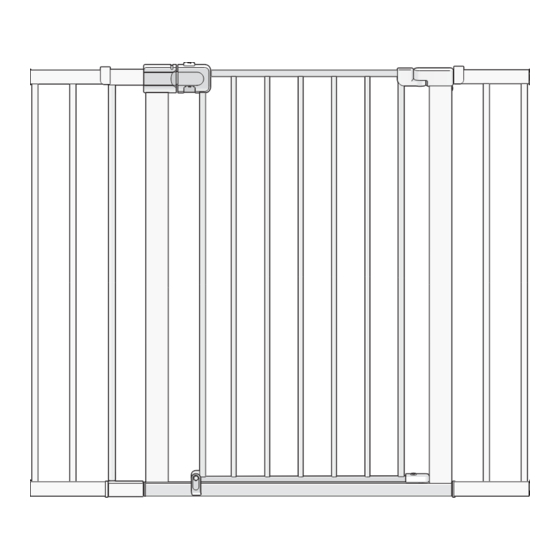

Basic Gate (1)
Small Extension (1)
Medium Extensions (2)
A
Top Extension Caps (2)
B
Bottom Extension Caps (2)
Pressure Bumpers (4)
Wall Cups (4)
Adhesive Pads (4)
Tools Needed
(not included):
• Measuring Tape
• Pencil
• Remove all contents from packaging and discard box, and/
or poly bags.
• Lay out all parts.
• Do not return this product to the place of purchase. To
address any issues or for helpful information on assembly/
installation or use, please visit us at www.safety1st.ca-en
to chat with us there. You can also text us at (812) 652-
2525 or call Consumer Care at (800) 544-1108. Have ready
the model number (GA106, GA146, GA172) and date code
(manufacture date) located on inside of gate panel.
If Opening is...
2 Up to 47" 1
Use MEDIUM Use SMALL
(119.4 cm)
2
extensions, and MEDIUM
Go to steps extensions,
2b – 2d Go to steps
2a – 2e
Position gate flush
to the floor where
you will install it.
3
4f
Insert pressure
bumpers into 4
corners
x4
2b – 2c
TIP: Think about
which side you'll want
the handle on during
daily use when you
position the gate.
Position gate in wall
cups. Hand tighten top
and bottom pressure
bumpers until gate is
firmly in place.
(111.7 cm - 119.4 cm)
2c
with
Be sure to re-check the indicator regularly
and re-tighten the bolts if you see any
red when gate is closed. Any red showing
indicates the gate is unlatched.
A
B
TOP
BOTTOM
B
Install wall cups
4
• Wall cups MUST be installed for maximum safety.
4f
• DO NOT remove adhesive until step .
• Install gate centered and flush to floor.
4a
4b
Place a wall cup on Insert a bumper into
bumper. gate.
4d 4e
4c
USA
Use pencil to mark Remove gate.
around the wall cup. Repeat to trace
other 3 wall cups.
Remove paper
4g 4h
from adhesive.
Adhere to outside
Align 4 wall cups For best results,
of wall cup.
to pencil marks allow to cure for
Remove paper
and press for 30 24 hours.
from other side.
seconds.
5
Install in doorway
USA USA
4
USA USA
6
Check and re-check the indicator
Red
USA
A
B
DO NOT REMOVE THE ZIP D
TIE UNTIL INSTALLATION
IS COMPLETE
B
To Use
7 Remove zip tie, remove 'STOP' sign,
raise swing stops and open gate
1
2
Optional: Using the swing stops
Gate will swing both ways
unless one of the swing stops is
down. Gate will not swing at all
if both swing stops are down.
