Denfit StreetWorkout Installation

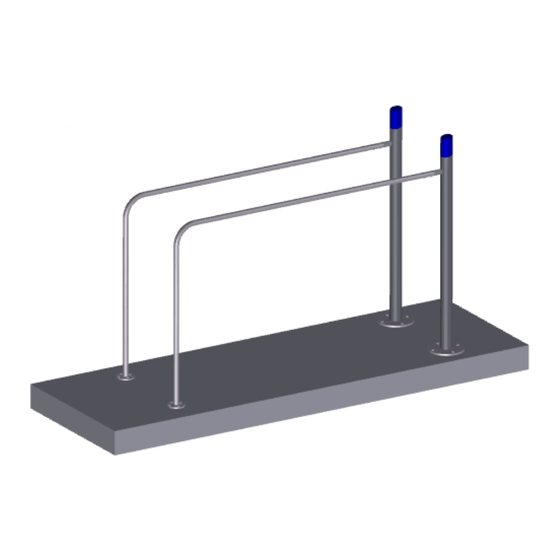

Installation of Denfit StreetWorkout

on concrete with CHEMICAL

Before starting with the installation, check if all the parts on the drawing are

delivered.

On concrete (installation on tarmac is not possible)

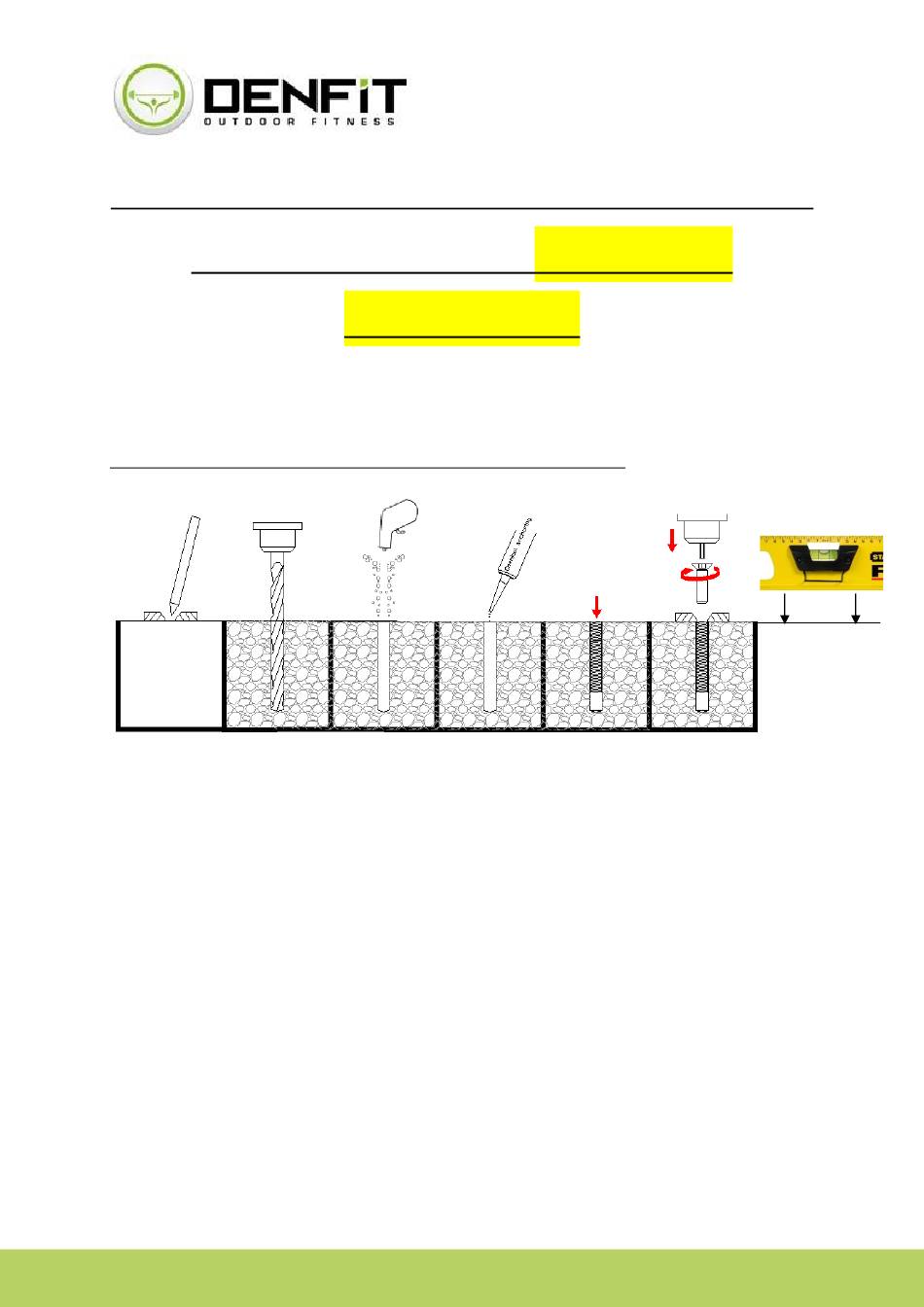

1 — Put the unit on a flat concrete floor and mark the holes.

2 — Drill the marked holes. See note.

3 — Clean the holes with air

4 — Apply the chemical anchoring in the holes. See note.

5 — Put the provided wedge anchors with internal thread M16 in the holes.

6 — Put the footplate with the holes above the rods and fasten the bolts halfway

7 – After the bars are installed (see next page) and the posts are level, fasten the bolts

into the concrete

Note: you can also use your own anchors, but ALWAYS use chemical anchoring!

ANCHORING

Table of Contents

Need help?

Do you have a question about the StreetWorkout and is the answer not in the manual?

Page 1 Installation of Denfit StreetWorkout on concrete with CHEMICAL ANCHORING Before starting with the installation, check if all the parts on the drawing are delivered. On concrete (installation on tarmac is not possible) 1 — Put the unit on a flat concrete floor and mark the holes.
Page 2 Remarks: 1 - Make sure that the concrete floor is strong enough to install the StreetWorkout unit. It has to be reinforced concrete of at least 140 mm thickness and it has to be one compact concrete floor (and not small concrete plates).
Page 3 2 - Connect all the bars and the ridges:...
Page 4 3 - When the bar is installed between the posts screw in the security bolt halfway by hand. Do not use a drill. Then do the adjustments and make sure that the posts are completely level. Should a bar not go over a ridge smoothly, you can use WD40 to help it. 4 - Tighten the security bolts of the bars completely ONLY when the posts are level.
Page 5 BEFORE APPLYING WET POUR OR ARTIFICIAL GRASS MAKE SURE THAT THE COMPLETE UNIT IS LEVEL, STABLE AND CORRECTLY INSTALLED! AND CHECK IF THE PRODUCT FUNCTIONS AS IT SHOULD.
