Models:
50348 — 6,000 RPM
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools (ANSI B186.1 and B7.1) and any other applicable
WARNING
!
safety codes and regulations. Please refer to Dynabrade's Warning/Safety Operating Instructions for more complete safety information.
52164 Exhaust Cover
52166 Seal
52167
Felt Silencer
52165 Gasket
50497
Bearing Washer
02649 Bearing
52131Spindle
* 52184
Bevel Gear/
Pinion Set
52148 Shim Pack
(3) (as req.)
50505
Bearing
52171 Governor Cage
52147
Spacer
01266 Bearing
50412
Felt Ring
52140 Bearing Plate
52089
01673 Pin (2)
Washer
52118
Spindle Nut
52149
Guard
95897 Screw (5)

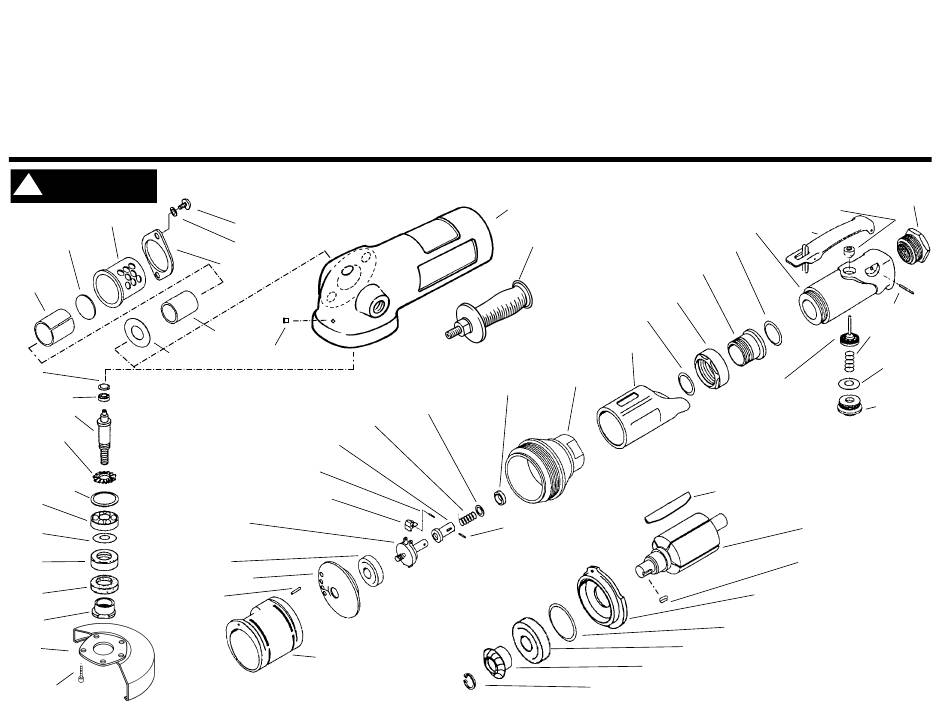

2.0 HP 7" Right Angle Disc Grinder
50511 Screw (2)
01791 Washer (2)
52180 Clamp
52168 Silencer
01041 Grease Fitting
52172 Governor Spring
50541 Governor Valve
96059 Governor Pin (2)
50530 Governor Weight (2)
52139 Cylinder
*Sold as a set only
Air Motor and Machine Parts; with 5/8" male spindle
52146 Housing (Incl. 01041 Fitting)
52169 Handle Assembly
52123 Adapter
50548 Spring Holder
52173 Shim (as req.)
50468 Pin
Parts Page Reorder No. PD96•22
07141 Valve Body
(Incl. 07142 Bushing)
01089 Lever
01746 "O"- Ring
02626 Adj. Bushing
02631 Nut
02658 Packing
07136 Grip
07168
Valve Stem Assy.
07109 Vane (5) (5/pkg.)
52136 Bearing Plate
52141 Shim (3/pkg.) (as req.)
52130 Bearing
*52184 Bevel Gear/Pinion Set
95998 Ring
Effective April, 1996
Supersedes PD 93•23
07142
01697 Inlet Bushing
Bushing
01017 Pin
07145 Spring
07146 Packing
07147 Plug
07108 Rotor
50509 Key
See inside for Important
Operating, Maintenance and
Safety Instructions.
