12/87

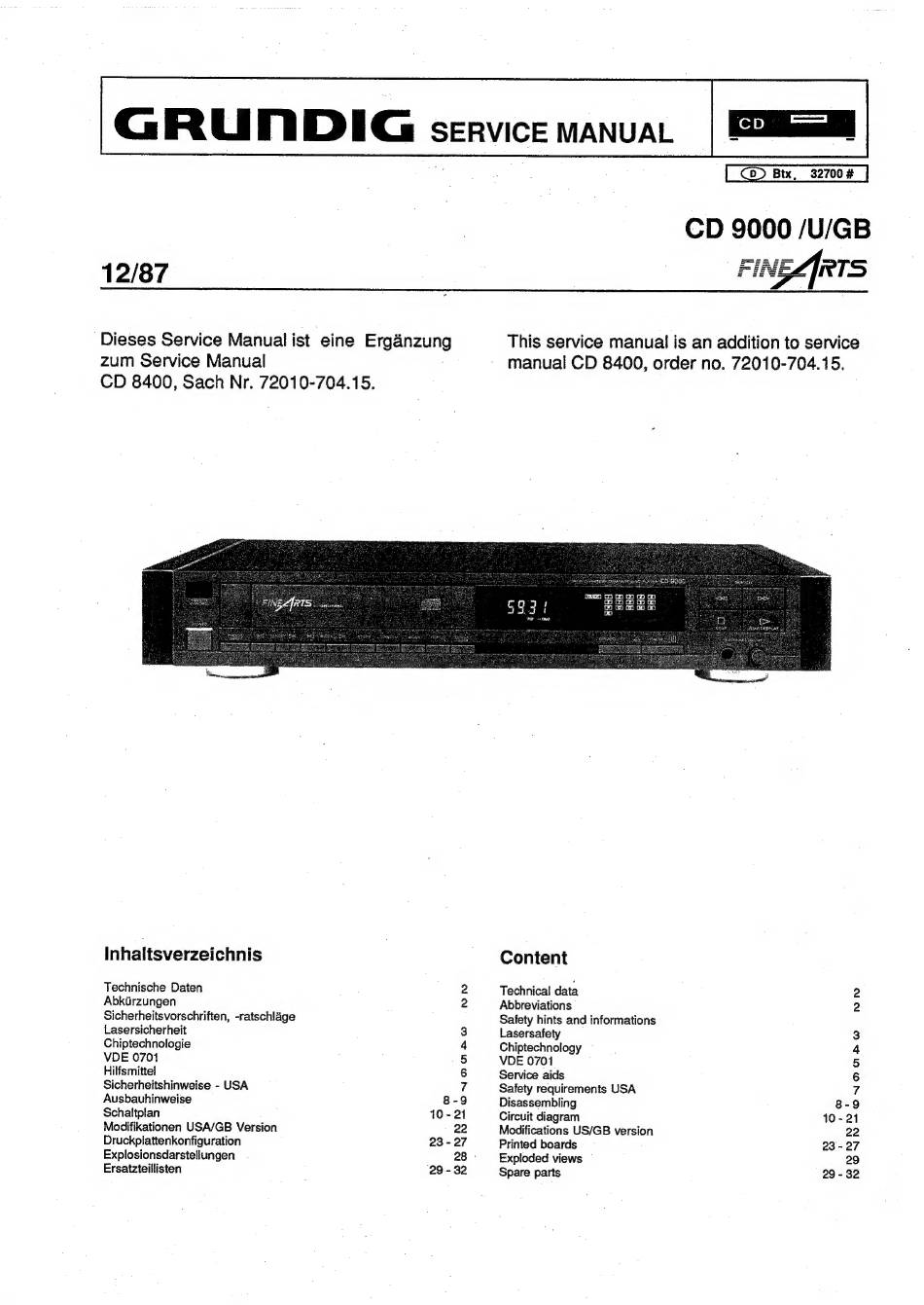

CD) Btx,
32700#
CD 9000 /U/GB
IELIRTS
Dieses Service Manual ist eine Erganzung
zum Service Manual
CD 8400, Sach Nr. 72010-704.15.
This service manual is an addition to service
manual CD 8400, order no. 72010-704.15.
Inhaltsverzeichnis
Technische Daten
Abkurzungen
Sicherheitsvorschriften, -ratschlage
Lasersicherheit
Chiptechnologie
VDE 0701
Hilfsmittel
Sicherheitshinweise - USA
Ausbauhinweise
Schaltplan
Modifikationen USA/GB Version
Druckplattenkonfiguration
Explosionsdarstellungen
Ersatzteillisten
w
NOOO
8-9
10-21
23 - 27
28 -
29 - 32
Content
Technical data
Abbreviations
Safety hints and informations
Lasersafety
Chiptechnology
VDE 0701
Service aids
Safety requirements USA
Disassembling
Circuit diagram
Modifications US/GB version
Printed boards
Exploded views
Spare parts
NM
ONDA
Ww
10-21
22
23'- 27
29 - 32
