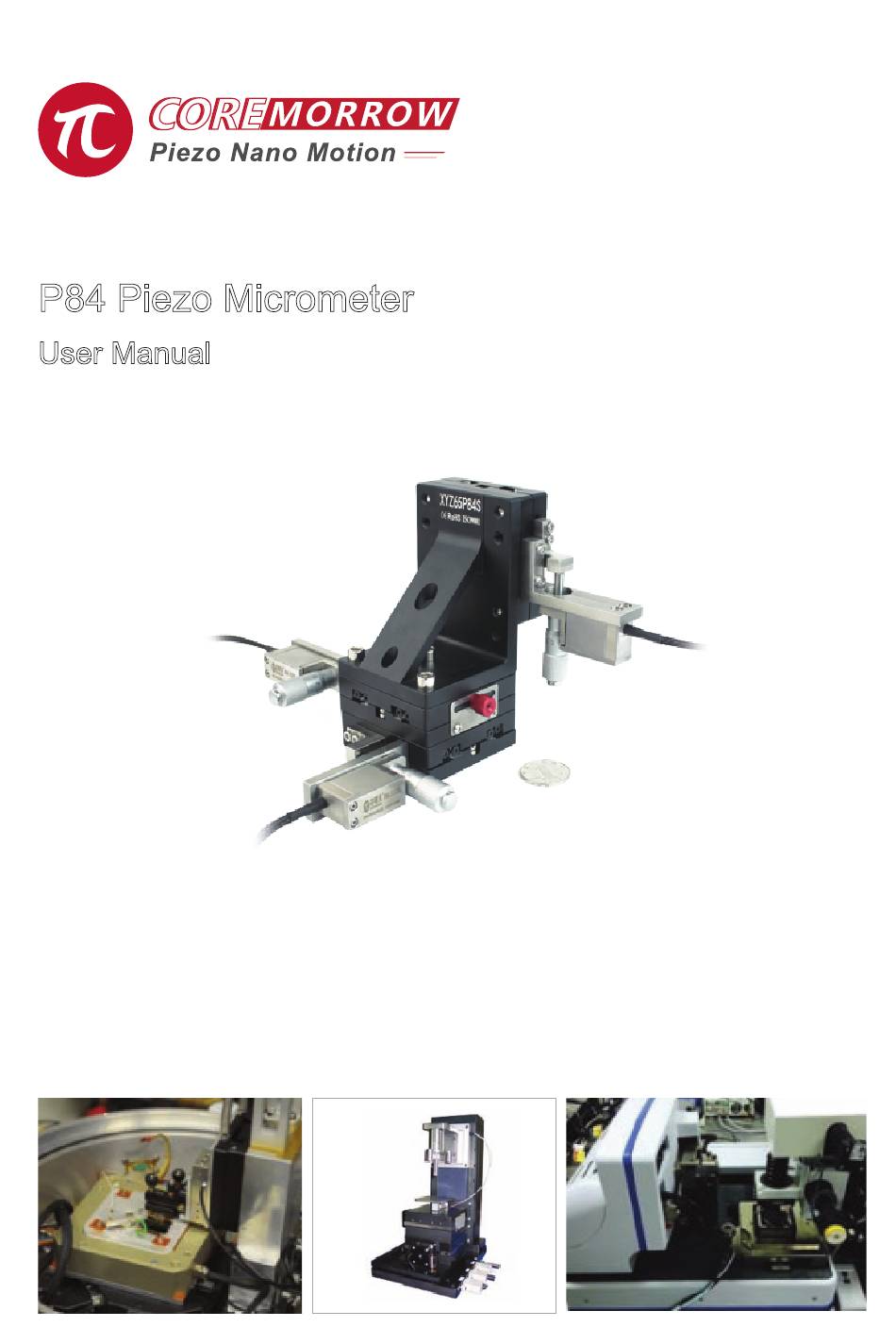

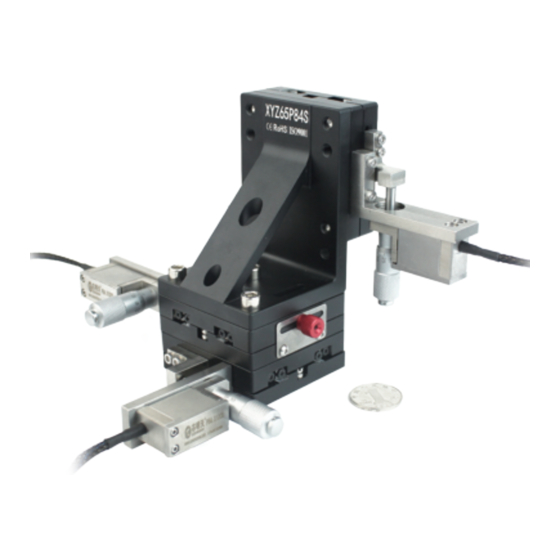

- Page 1 P84 Piezo Micrometer User Manual Version: V1.0 This document describes the following products: ■ ■ P84.X100S/K X65P84S/K ■ ■ XY65P84S/K XZ65P84S/K ■ XYZ65P84S/K...
- Page 2 DECLARATION Thank you for choosing CoreMorrow's products! This user manual is applicable to P84 piezo micrometer, for your smooth and correct use of this product, Please read this manual carefully before use, and follow the relevant instructions in the manual for installation and use.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Expected reader ..........................2 1.4 Manual lost replacement ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
1. Introduction 1.1 Purpose and content The manual is mainly for your smooth and correct use of piezo micrometer. The manual contains all necessary information for P84. The manual describes the precautions during installation and use. 1.2 Symbol and meaning DANGER: Improper handling may could cause injury to the operator. -
Page 5: Safety Guide
2. Safety Guide P84 piezo micrometer is designed with the most advanced technology and safety standards for your own safety and the correct use of the product, please observe the following points when in use. A change in temperature and pressure will charge the piezo micrometer, and it will... -
Page 6: Product Overview
P84 piezo micrometer has the following advantages: High performance piezo stack: P84 piezo micrometer is driven by a highly reliable ceramic actuator with a fully insulated structure, so its performance and service life are far better than the traditional actuator. -
Page 7: Product Features
13mm displacement. P84 features 100μm displacement. The accuracy of micrometer is within the adjustment range of piezo stage, thus ensuring the accuracy and convenience of the adjustment. 3.2 Product Features 1~3 axes are available Manual micrometer displacement to 13mm, resolution to 10μm Selectable sensor 3.3 Motion direction... - Page 8 P84 Piezo Micrometer User Manual XYZ65P84S/K The identification of the labels on the wires of P84 as follows: Model Motion direction Function Label PZT Drive P84.X100S/K X65P84S/K Senser output PZT Drive Senser output XY65P84S/K PZT Drive Senser output PZT Drive...
-
Page 9: Operating Environment
Safety check should be carried out before installation, such as whether the connection wire is damaged or broken, whether the drive power supply is grounded, etc. 5.1 Installation and Precautions P84 mounting diagram is shown below: Load connection(M6) Load connection(M3) -
Page 10: Load
When mounting the load, ensure that the load quality is less than the maximum load capacity of P84, and try to mount the load in the center of the moving surface. The correct position to mount the load is shown below: The load is applied to the center of the moving surface For the protection of the product, we do not recommend that the load is too high. - Page 11 It is forbidden to mount the load on one side of the moving platform, which will cause serious damage to the product, as shown in the figure below. Do not mount long loads on one side of the platform Too long screws selected in the fastening and connection process will lead to failure of mounting or part of bolts will be exposed, which will scratch the product and affect the motion accuracy of the product.
-
Page 12: Operating
Avoid stretching and bending cables. Use the dedicated cable provided by CoreMorrow to connect P84 and the controller. Do not connect via an extension cable casually, if you need a longer cable, please contact CoreMorrow. -
Page 13: Transportation And Inspection
4.Operating normally within the rated voltage range of piezoelectric ceramics (0~120V, maximum 150V). 5.After use, please carry out voltage reset operation. 6. Transportation and inspection 6.1 Transportation This product is packed in cartons. Transportation is carried out under the packaging conditions. -
Page 14: Maintenance And Treatment
P84 Piezo Micrometer User Manual Please do not discard all the packaging materials which are needed for repair and return. 7. Maintenance and Treatment 7.1 Problem Handling FAQ are shown in the table below. Problem description Possible reason Solution The connection wire is... -
Page 15: Daily Maintenance
If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 16: Customer Service
The controller model Software driver version Computer operating system that installs supporting software 9.Contact us CoreMorrow Ltd. Tel: +86-451-86268790 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
