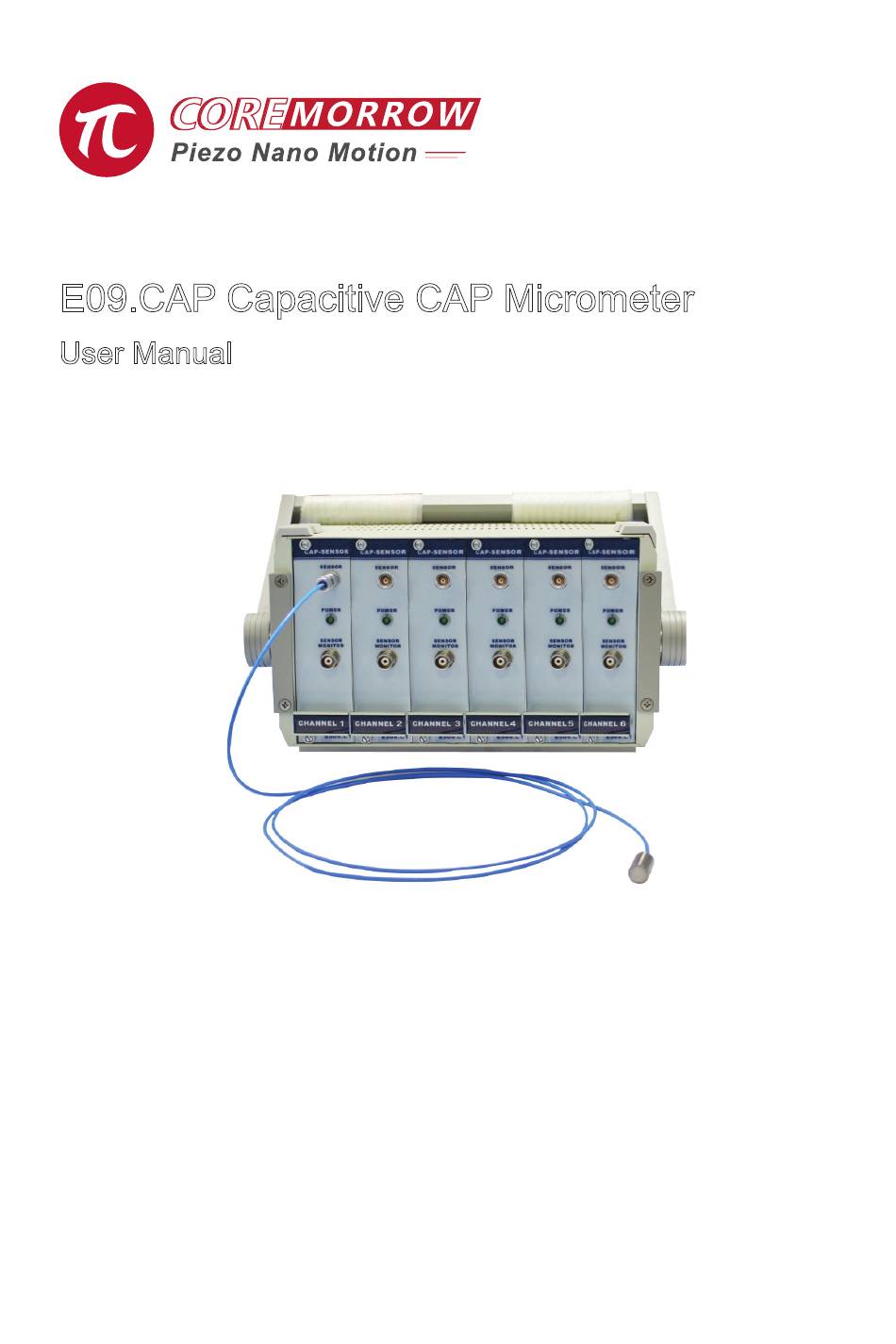

- Page 1 E09.CAP Capacitive CAP Micrometer User Manual Version: V1.0 This document describes the following products: ■ E09.CAP Capacitive CAP Micrometer Non-contact measurement...
- Page 2 Declaration Declaration! This user manual is a integrated user manual of the E09.CAP series capacitive CAP micrometer. Please read this user manual carefully befor operating. Follow the instructions in the manual during use. If there is any problem, please contact us for technical support.
- Page 3 Contents 1.Instruction …………………………………………………………………………………………………………………… 2 2.Characteristic ………………………………………………………………………………………………………………… 2 3.Application …………………………………………………………………………………………………………………… 2 5.Module Combination …………………………………………………………………………………………………… 3 4.Principle ……………………………………………………………………………………………………………………… 3 6.Capacitance Probe ………………………………………………………………………………………………………… 4 7.Pin Definition………………………………………………………………………………………………………………… 4 8.Fixed Mode …………………………………………………………………………………………………………………… 5 9. Service and Maintenance …………………………………………………………………………………………… 6 9.1 Disposal ………………………………………………………………………………………………………………… 6 9.2 After-sales Service ………………………………………………………………………………………………… 6 10.Contact us……………………………………………………………………………………………………………………...

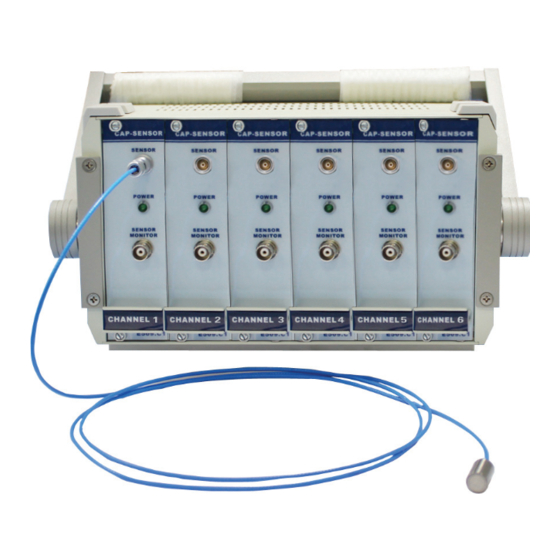

- Page 4 Capacitive CAP Micrometer User Manual 1.Instruction E09.Cap capacitance non-contact micrometer can measure the small displacement in the range of 0~500μm through the capacitance probe, the measurement accuracy is nanometer level. The micrometer is composed of a chassis and a sensing module, which can form a multi-channel measurement.
- Page 5 4.Principle It is based on the principle of an ideal parallel plate capacitor. The sensor and the measured target on the opposite side form two electrodes. The principle of guard ring capacitor is used to ensure that the sensor is still linear when measuring any metal. 5.Module Combination Sensing input interface Voltage output interface...
- Page 6 Capacitive CAP Micrometer User Manual 6.Capacitance Probe Probe Probe size 6-channel micrometer 7.Pin Definition Definition +15VDC -15VDC Uout:0~10V Uout:0~10V Note：unlabeled pins are null signals.
- Page 7 8.Fixed Mode The sensor probe is a cylindrical structure with integrated wire connectors. The capacitive sensor probe is shown in the following figure: The cylindrical probe applied to the capacitive sensor module can generally be fixed by means of a fixture, and the probe can be flush with the fixed surface or partially poked out.
- Page 8 Any part of E09.CAP is dismantled, there will be no warranty service. E09.CAP is a precision instrument which should be handled with care. In case of any problem, please record the problem and contact CoreMorrow to be repaired by professional technicians.
