BougeRV CR 35/45/55 - Portable Freezer Refrigerator Manual

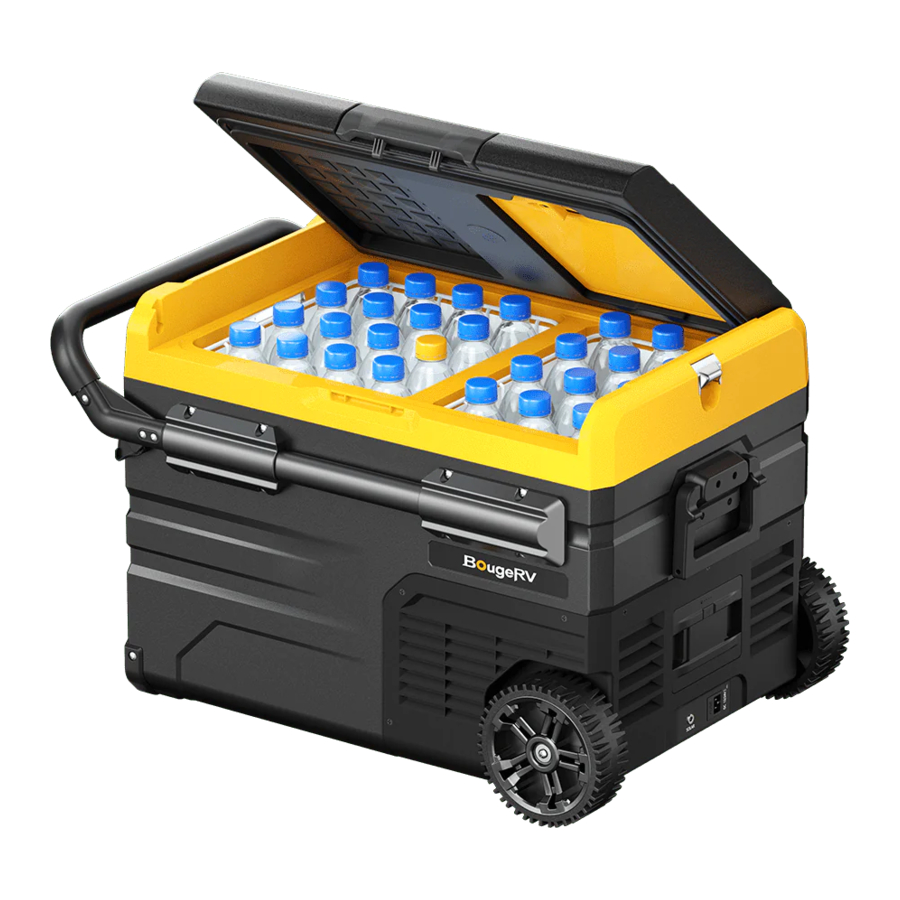

Product Features

• High-efficiency DC compressor and conversion module.
• CFC free and great heat insulation.
• Lithium battery recharged by solar (12-50V), DC12/24V or AC 100-240V (using the adapter).
• Fast cooling to-20°C/-4F (based on 25°C/77F room temperature).
• LCD digital display for temperature setting.
• Dual compartments with individual temperature control.
• Three stage battery protection system prevents vehicle run out of battery.
• Specific parts: wire storage baskets, interior drain plug, oversize wheels and telescoping handle, wire storage baskets, detachable battery, cup holder door, interior LED light.

Product Structure

Note: the package does not include the battery. If you are interesting, please buy it on BougeRV.com.

• There are buttons on both sides of the telescoping hand, press them at the same time to pull the rod,
• Removable battery: press left and right to remove/insert the battery, the battery has a certain weight, it is recommended to hold it with your hand and take it out gently.
• The cutting board can be moved by turning the knob on the top cover, it is suggested to clean and dry it after every use.

Function and Operation

• Power supply: connect to 12V/24V DC power, 100~240V AC power(using the adapter), or use back-up lithium battery which can be recharged by solar (12~50V).
• Display Screen Initialization: connect to the power supply, the buzzer will make a long beep, and the display will be on for 2 seconds then enter the normal operating mode.
• Power On/Off: long press for three seconds to switch ON/OFF.
• Function unlock: the panel will be locked automatically when stop pressing any button after 20s. Long press at the same time for 2 seconds to unlock (when the circle in the screen changes from clockwise to counterclockwise, it is unlocked).
• Temp adjustment of the left compartment: When both left and right compartments are set in running state, press or to enter left compartment temperature setting, press to increase temperature, press to decrease temperature.
• Temp adjustment of the right compartment: Press or , when the temp on the left flash, press X to switch left/right compartment. When the temp of right flash, you can press the or to adjust the temp. The setting will be saved after stop operating for four seconds (Note: the temperature displayed is the current temperature of the compartments, it'll take a while to reach the set temperature.)
  Temperature setting range: -20~20C(-4~68F)
• Temperature Setting: under the running state, long press and at the same time for three seconds to switch ON/OFF the left compartment, long press and at the same time for three seconds to switch ON/OFF the right compartment, two compartments cannot be switched off at the same time.
• Cooling Mode: under the running state, press to switch MAX (fast cooling) and ECO (Energy saving Mode). (*Factory setting is MAX.)
• Battery Protection Mode: under the running state, long press for three seconds until screen flashes, then press again to select protection mode H(High), M(Middle) and L(Low) (*Factory setting is H.)

Due to the different output voltages between vehicles, H should be set when the product is connected to car power, and M or L should be set when it is connected to a portable battery or other back-up battery.
The battery gear should be set from H to M or from M to L if there is a voltage protection code FI shown on the panel. The battery gear should be set to H if the product keeps working after turning off the car engine, or the product may drain the battery.

Voltage Reference:

* The voltage is theoretical value, there may be a deviation in different sceneries.
* USB output: +5V DC/1A, suitable for small devices like mobile phones, tablets, etc.

• Temperature Unit Setting: switch off the fridge, long press for three seconds until E1 displays, then switch to E5 by pressing again. Under E5 mode, press or to select Celsius or Fahrenheit. (*Factory setting is °C.)
• Reset: switch off the fridge, long press for three seconds until E1 displays, under E1 mode, long press at the same time for three seconds to reset it.

Recommended temperature for common food

Battery Operation

Note: the package does not include the battery. If you are interesting, please buy it on BougeRV.com.

• Battery ON/OFF: long press the power switch button of the battery to turn on/off, short press to display current battery.
• Battery charging:
  Charge the battery in the refrigerator: the battery will also be charged when the refrigerator is connected to power supply. But the power supply will mainly power the compressor when the refrigerator is running, which will cause the battery to charge slowly. If you want to charge the battery quickly, please turn off the refrigerator.
  Charge the battery separately: use dedicated adapter to connect to DC charging port of the battery(the dedicated adapter is not included in the package).

Model NO.: E0404-17301
Battery Capacity: 15600mAH
Rated Voltage: 11.1V
Charging Limited Voltage(DC): 12.6V
Charging Limited Current(DC): 3A

Do not disassemble the battery!
*Note: When the battery is charging, the power indicator will turn green, and the battery indicator will flash to show the charging status.

• Battery Saving: It is recommended to fully charge the refrigerator before your departure, and you can put your food & beverages in the refrigerator in advance so that the battery can last longer. Unplug the battery or turn it off to prevent self-discharge when not in use.
  *If the refrigerator won' t be in use for a long time, fully charge the battery and turn it off.

  Discharge time (ECO and L mode)
  Refrigeration	About 10 hrs
  Freezing	About 5 hrs

• Instruction for solar charging
  Insert the solar charge cable into the refrigerator' s "SOLAR" terminal.
  MAX Solar Input Voltage: 50V; MAX Solar Input Current: 10A.
  When connecting to a solar panels please place the refrigerator in a cool place to dissipate heat. The battery icon on the refrigerator display will show the charging status when the battery is charging,
  The charging input power should be higher than the working power of the refrigerator (about 40-45W), or turn off the refrigerator to enter the standby state, otherwise the battery will not be able to charge. It is recommended to use 100W solar panel.

Cleaning and Storage

Cleaning

• Unplug the device first to avoid electric shock.
• Use wet cloth to clean the device and dry it.
• Remove the cover and drain from the hole at the bottom of the device.
• Do not soak the device in water and do not wash it directly.
• Do not use abrasive cleaning agents as these can damage the device.

Storage

If the device will not be in use for a long time, please follow the steps:

• Turn off the power and remove the plug.
• Remove all the items stored in the device.
• Remove the cover and drain from the hole, wipe off excess water with a soft rag.
• Leave the lid slightly open to prevent odors from forming.
• Put the device in a cool and dry place.

Defrosting

Humidity can form frost in the interior of the cooling device or on the evaporator, which will affect the cooling performance. Defrost the device regularly to avoid this.

• Switch off the device.
• Take out the contents of the device.
• Keep the lid open.
• Remove the cover and drain from the hole.
• Wipe off the defrosted water.

Never use hard or sharp tools to remove ice or to loosen objects which have frozen in place.

Troubleshooting

*For models with FSAK-002 detachable battery, if code F1 displayed, unplug or turn Off the battery, or connect to DC12/24V/AC100-240V (using the adapter) power supply to power the compressor and battery in time to avoid long-term micro-current draining the battery.

Technical Information

*Due to product improvement, the technical information might be different from actual information, please refer to the rating label on the product.

Safety Instructions

Failure to obey these warnings could result in malfunction of your device and possible injury for yourself and other users.

• Do not operate the device if it is visibly damaged.
• DO not block the gaps Of the device with things like pin, wire, etc.
• Do not expose the device to rain or soak it in water.
• DO not place the device near naked flames or Other heat sources (heaters, direct sunlight, gas ovens etc.)
• DO not store explosive substances like spray cans with flammable propellants in the device.
• Before starting the device, ensure that the power supply line and the plug are dry.
• Check if the voltage specification on the type plate matches that of the energy supply.
• Once unpacked and before turning on, the device must be placed on a level surface for more than 6 hours.
• Make sure that the device stays horizontally when it is running. The tilt angle must be less than 5° for long time running and be less than 45° for short time running.
• The refrigerator must be well ventilated for heat dissipation and make sure to keep some space around it (Back Space≥200mm, Side Space≥100mm).
• The device may only be repaired by qualified personnel. Improper repairs can lead to safety hazards. If the power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.

NOTICE!

• The device can be used by children aged 8 or over, as well as by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks.
• Children must be supervised to ensure that they do not play with the device.
• The installation of DC power in the boat must be handled by qualified electricians.
• Disconnect the device or switch it off when you turn off the engine. Otherwise you may discharge the battery.

• Food is suggested to be stored in its original packaging or in suitable containers.
• Set suitable temperature for food or medicine stored in the device. Refer to recommended temperature for common food.
