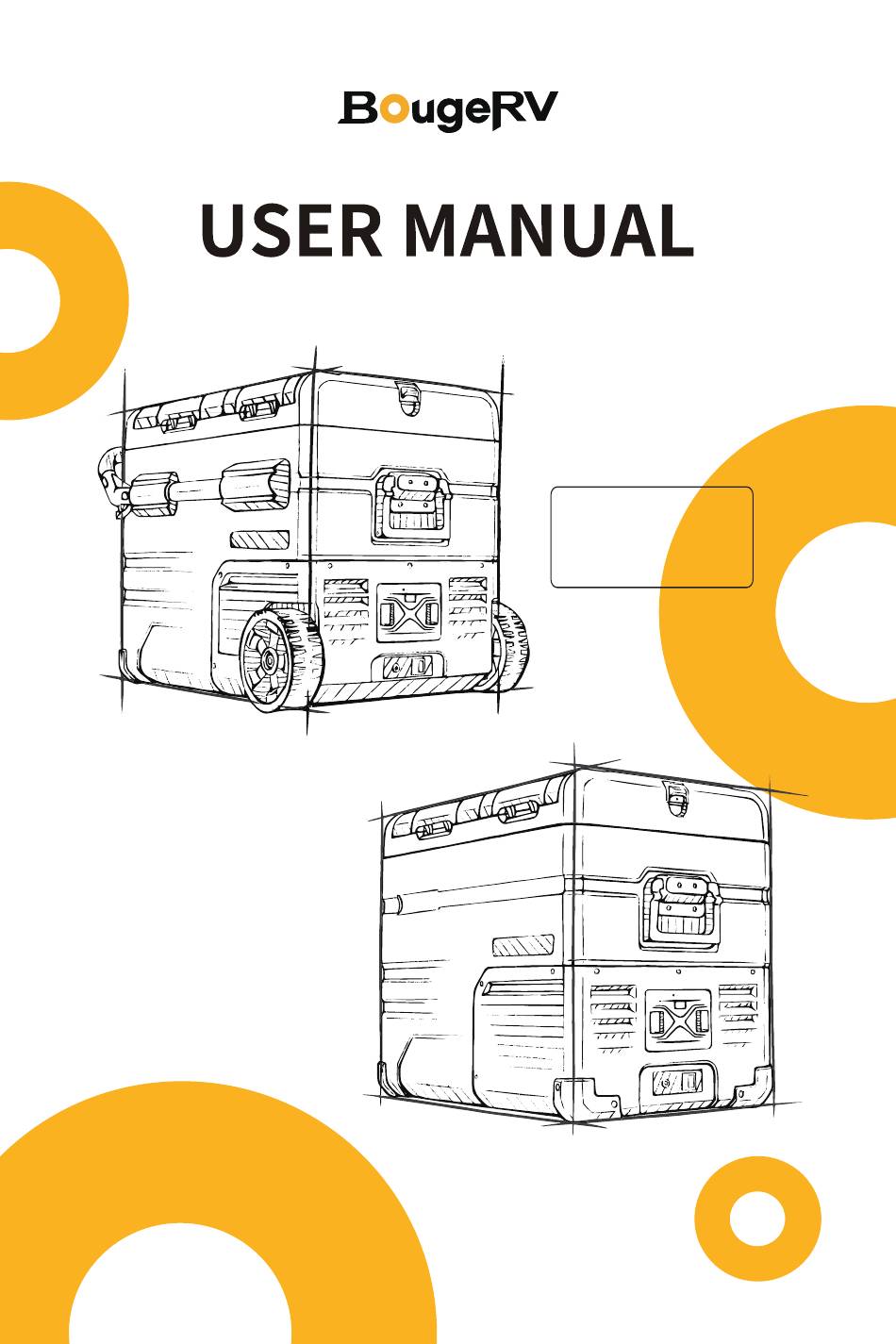

- Page 1 Dual Door Series Capacity 35/45/55L Please read this manual carefully before use and keep it properly for further reference.
-
Page 3: Table Of Contents
Contents 1 Package Contents ---------------------------------------------------------------------Page1 2 Safety Instructions --------------------------------------------------------------------Page2 3 Preparing Before Use -----------------------------------------------------------------Page3 4 Product Introduction ------------------------------------------------------------------Page3 4.1 Product Features ------------------------------------------------------------------------------------------------------------Page3 4.2 Product Size -------------------------------------------------------------------------------------------------------------------Page3 4.3 Product Structure -----------------------------------------------------------------------------------------------------------Page6 4.4 Reverse Door Opening Direction -------------------------------------------------------------------------------------Page8 5 Operation Instruction ----------------------------------------------------------------Page9 5.1 Power Supply ------------------------------------------------------------------------------------------------------------------Page9 5.2 Display Screen Initialization... -
Page 4: Package Contents
1 Package Contents Car Refrigerator 12/24V DC 110/220V AC User Manual Power Cord Power Adapter Dual Door Series Capacity 35/45/55L Please read this manual carefully before use and keep it properly for further reference. -
Page 5: Safety Instructions
2 Safety Instructions WARNING! Failure to obey these warnings could result in the malfunc- tion of your device and possible injury to yourself and other users. · Do not operate the device if it is visibly damaged. · Do not block the gaps of the device with small items like pins, wires, etc. ·... -
Page 6: Preparing Before Use
3 Preparing Before Use 1. Unpackage and take out the accessories, and let the device stand for 12 hours. 2. Before using it for the first time, clean the inside and outside of the car refrigerator with a damp cloth and wait until it gets dry. 3. - Page 7 Capacity: 48Quart / 45L Dimensions: With handle: 28*18.1*19.9 in 23.6 15.7 (71.1*46*50.6cm) 10.6 Without handle: 23.6*15.7*19.9 in 12.2 (60*40*50.6cm) Big zone: 12.2*10.6*16.1 in (30.9*26.9*40.8cm) Small zone: 12.2*7.9*9.1 in 18.1 (30.9*20*23.2cm) N.W.: 42.3lb(19.19kg) Capacity: 59Quart / 55L Dimensions: 23.6 With handle: 28*18.1*22.5 in 15.7 (71.1*46*57.1cm) 10.6...
- Page 8 Capacity: 48Quart / 45L Dimensions: 25.5 With handle: 25.5*15.7*19.9 in 23.6 15.7 (64.7*40*44.1cm) Without handle: 23.6*15.7*19.9 in 10.6 12.2 (60*40*50.6cm) Big zone: 12.2*10.6*16.1 in (30.9*26.9*40.8cm) Small zone: 12.2*7.9*9.1 in (30.9*20*23.2cm) 15.7 N.W.: 36.4lb(16.5kg) Capacity: 59Quart / 55L Dimensions: 25.5 23.6 With handle: 25.5*15.7*22.5 in (64.7*40*44.1cm) 15.7...
-
Page 9: Product Structure
*Model:CR03512/ CR04512/ CR05512 Detachable battery (NOT INCLUDE) If you need the BougeRV battery, please search for it on Amazon or bougerv.com *there are buttons on both sides of the telescoping hand, which can be pressed at the same time to pull the rod. - Page 10 (NOT INCLUDE) Note: the package does not include the battery. If you are interested, please search "BougeRV battery" on Amazon or bougerv.com *Removable battery: press the left and right to remove/insert the battery, it will be heavy in your hand, which is recommended to be hold with carefully and take it out gently.
-
Page 11: Reverse Door Opening Direction
4.4 Reverse Door Opening Direction The door opening direction can be changed according to actual needs, please follow the instructions below: Door Disassembly: Door Installation:... -
Page 12: Operation Instruction
5 Operation Instruction 5.1 Power Supply: Connect to 12V/24V DC power, 100-240V AC power(using the adapter), or use a backup lithium battery which can be recharged by solar(12~50V). 5.2 Display Screen Initialization: Connect to the power supply, the buzzer will make a long beep, and the display will be on for 2 seconds then enter the normal operating mode. -
Page 13: Max/Eco Mode Switching
5.5 MAX/ECO Mode Switching: Under the running state, press to switch MAX(fast cooling) and ECO (Energy saving Mode). (*Factory setting is MAX.) 5.6 Temperature Unit Setting: Switch off the fridge, long press for three seconds until E1 displays, then switch to E5 by pressing again. -
Page 14: Car Battery Protection Setting H/M/L
5.7 Car Battery Protection Setting H/M/L: Under the running state, long press for three seconds until the screen flashes, then press again to select protection mode H(High), M(Middle), and L(Low). (*Factory setting is H.) 6 Car Battery Protection(H/M/L) Voltage Reference Due to the different output voltages between vehicles, H should be set when the product is connected to car power, and M or L should be set when it is connected to a portable power station or other backup battery. - Page 15 Note: the package does not include the battery. If you are interested, please search "BougeRV battery" on Amazon or bougerv.com. · Battery ON/OFF: Long press the power button of the battery to turn it on/off, and short press to display the current battery.
- Page 16 · Battery Saving: It is recommended to fully charge the refrigerator before your depar- ture, and you can put your food & beverages in the refrigerator in advance so that the battery can last longer. Unplug the battery or turn it off to prevent self-discharge when not in use.
-
Page 17: Error Code Problems And Troubleshooting
7 Error Code Problems and Troubleshooting Issues Suggestions Check if the switch is on. Check if the plug and socket are connected well. Refrigerator does not Check if the fuse has been burnt. work Check if the power supply has malfunctioned. Switching on/off the fridge frequently may cause a start delay of the compressor. -
Page 18: Cleaning And Storage
8 Cleaning and Storage ■Cleaning ・Unplug the device first to avoid electric shock. ・Use a wet cloth to clean the device and dry it. ・Remove the cover and drain from the hole at the bottom of the device. ・Do not soak the device in water and do not wash it directly. ・Do not use abrasive cleaning agents as these can damage the device. -
Page 19: Faq
9 FAQ Q1: Is there a cover for this refrigerator? A1: Yes, there is. You could search for "BougeRV 37/48/59 quart fridge cover" on Amazon. Q2: Does it come with a battery installed? A2: No, this refrigerator does not come with a battery. Our batteries are sold separately. - Page 20 Q13: Can I get a new replacement if the parts of my refrigerator malfunction? A13: Sure, we provide a 2-year warranty. Q14: How can I register for the warranty on my refrigerator? A14: You can contact our email "service@bougerv.com / bougerv@gmail.com, and we will give you the corresponding solution according to your problem."...
-
Page 21: Warranty And Maintenance
10 Warranty and Maintenance Warranty BougeRV PORTABLE CAR REFRIGERATOR comes with a 2-year warranty that commenc- es from the date of purchase on BougeRV Amazon Store or BougeRV Official Website, except the following situations: ・Contrived damage. ・Damage caused by force majeure such as earthquake, conflagration, etc. -
Page 22: Specification
11 Specification CR03512 CR04512 CR05512 Type CR03513 CR04513 CR05513 Type *Due to product improvement, the technical information might be different from the actual information, please refer to the rating label on the product. ■Disposal: Place the packaging material in the appropriate recycling waste bins wherever possible. -
Page 23: App Control
12 APP Control...
