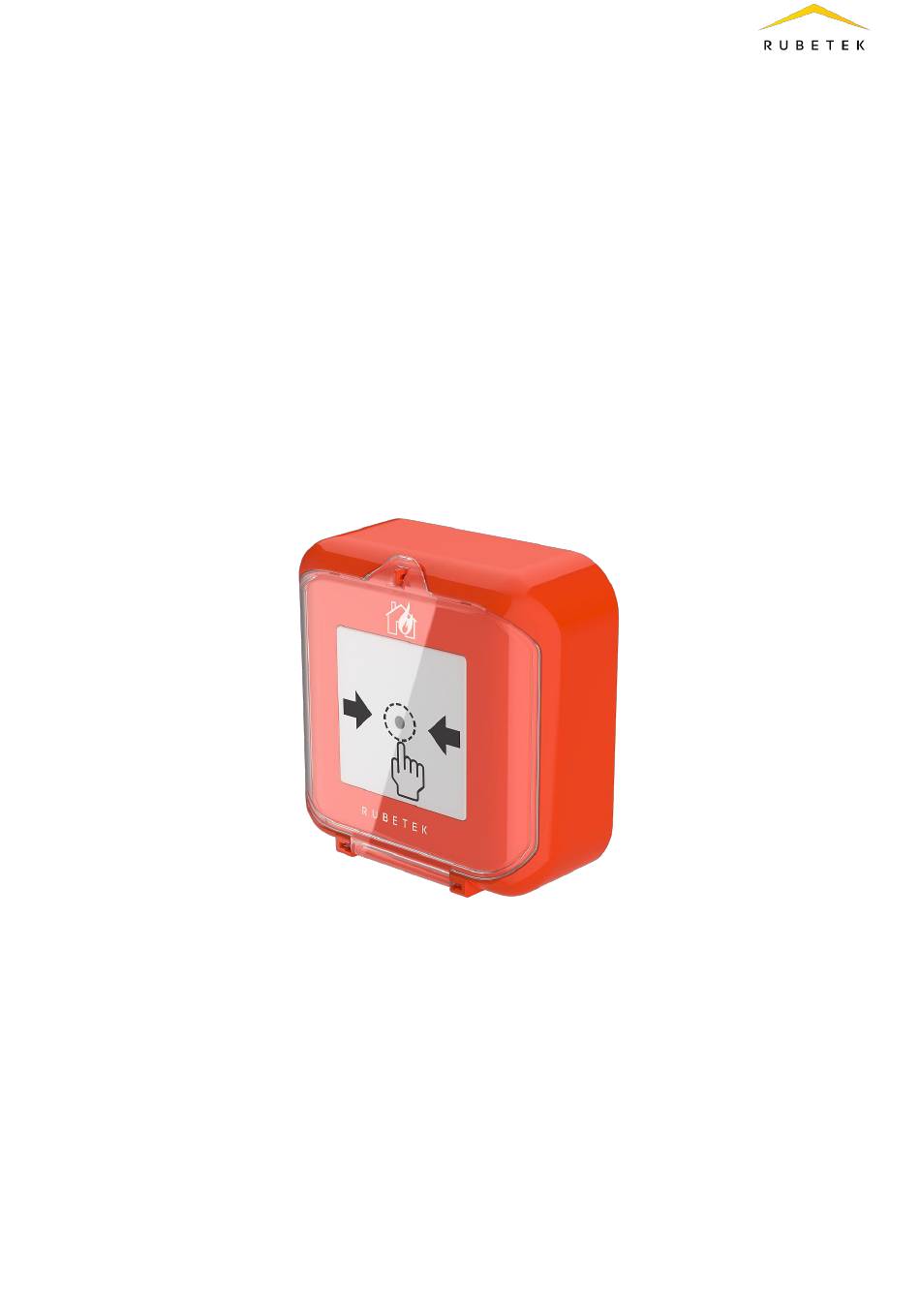

RUBETEK MCP-1 Manual

Addressable manual call point
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MANUAL
ADDRESSABLE MANUAL CALL POINT
MCP-1 «RUBETEK»
Complies with
EN 54-11
EN 54-17
Hardware version: IP513-102.2
Software version: 2022-2-1
Document version: 2022-2-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCP-1 and is the answer not in the manual?

Questions and answers

Related Manuals for RUBETEK MCP-1

Summary of Contents for RUBETEK MCP-1

  • Page 1 MANUAL ADDRESSABLE MANUAL CALL POINT MCP-1 «RUBETEK» Complies with EN 54-11 EN 54-17 Hardware version: IP513-102.2 Software version: 2022-2-1 Document version: 2022-2-1...

  • Page 2: Table Of Contents

    Table of contents Introduction ............................... 3 Description and operation ........................ 4 Function ............................4 Technical data ..........................4 Appearance of the MCP ........................5 Internal design of the MCP ......................5 Complete set ............................ 5 Intended use ............................. 6 2.1. Preparation for use ........................... 6 2.2.

  • Page 3: Introduction

    Introduction This Manual is intended to describe the operating principle, configuration, installation and operation of the Addressable manual call point MCP-1 «RUBETEK» (hereinafter MCP). You must read the instructions in the Manual before linking, configuring, operating or maintaining the MCP.

  • Page 4: Description And Operation

    MCP is designed to manually activate an alarm in fire alarm systems. MCP operates under the control of a control panel (hereinafter referred to as CP) as part of «RUBETEK» wired fire alarm system. Functionality of the MCP: ● protection against accidental activation;...

  • Page 5: Appearance Of The Mcp

    1 - PLC connection terminals 2 - «Tamper» sensor Figure 2 - Internal design of the MCP Complete set Table 3 - Complete set of the MCP Item Quantity, pcs. Remarks Addressable manual call point MCP-1 «RUBETEK» Key (extractor) Mounting kit Individual packing...

  • Page 6: Intended Use

    Datasheet Group packaging * Per shipping lot. Intended use 2.1. Preparation for use ATTENTION! If MCP was in conditions of negative temperature, keep it at least 4 hours at room temperature (25 ± 10 ºС) to prevent moisture condensation. Open the package, make sure that the completeness of the MCP corresponds to table 3. Conduct an external visual inspection, make sure that there are no visible mechanical damages (chips, cracks, dents) and traces of moisture.

  • Page 7: Mcp Connection

    Connect power, link to the appropriate terminals. Connect the MCP to the PLC following the sequence of the inputs on the terminals as shown in the figure. 1 - Terminal block 2 - MCP PCB 3 - Terminal block pinout 4 - «Tamper»...
  • Page 8 ATTENTION! Before pairing devices, install all PLC lines and device bases. Open the Fire Alarm Network menu on the CP screen by pressing the «» button on the keyboard. Select item 1.Browse network and press the OK button. Select the required CP. Press the OK button.
  • Page 9 ● Bypass mode - bypass mode on/off; ● Link* - time since last link; ● PLC line* - PLC line voltage; ● Serial number* - device serial number; ● Firmware version* - device firmware version; ● Device menu - device additional submenu; ○...

  • Page 10: Device Led Indication

    2.5. Device LED indication To control the connection and operation process, use the MCP LED indication shown in Table 4. After completing the connection of the MCP, make sure that no signals are issued for 255s: «Fire», «Link fault», «Signals fault on the line». MCP LED indication must correspond to the standby mode.

  • Page 11: Cp Sensor Bypass Mode

    To view the list of deactivated DEVS on a CP, you need to: - select 1.Information in the main menu. Press Ок. - select 5.Bypassed DEV list. Press Ок. The following displays a list of DEVS that are deactivated in the system with slot number #X. 2.7.

  • Page 12: Maintenance

    To turn off the «Fire 2» signal started from the MCP, you must insert the key (extractor) into the key hole and press until it clicks, as shown in the figure, then press the Faults key on the CP. MCP and CP must go into standby mode.

  • Page 13: Storage

    ● PLC supply voltage test: Open the main menu on the CP. Select 3.DEVs. Press Ок. Select 1.Devices list submenu. Press Ок. Select 2.By number submenu. Press Ок. Select MCP from the list and press Ок. In the opened menu DEVS #Х, select PLC line.

  • Page 14: Disposal

    A copy of the payment document for the MCP must be attached to the certificate. Certification 9.1. Addressable manual call point MCP-1 «RUBETEK» complies with the European standard EN 54-11 «Fire detection and fire alarm systems. Part 11: Manual call points» and EN 54-17 «Fire detection and fire alarm systems. Part 17: Short-circuit isolators».
