Summary of Contents for Medisa NANO - CARE COT

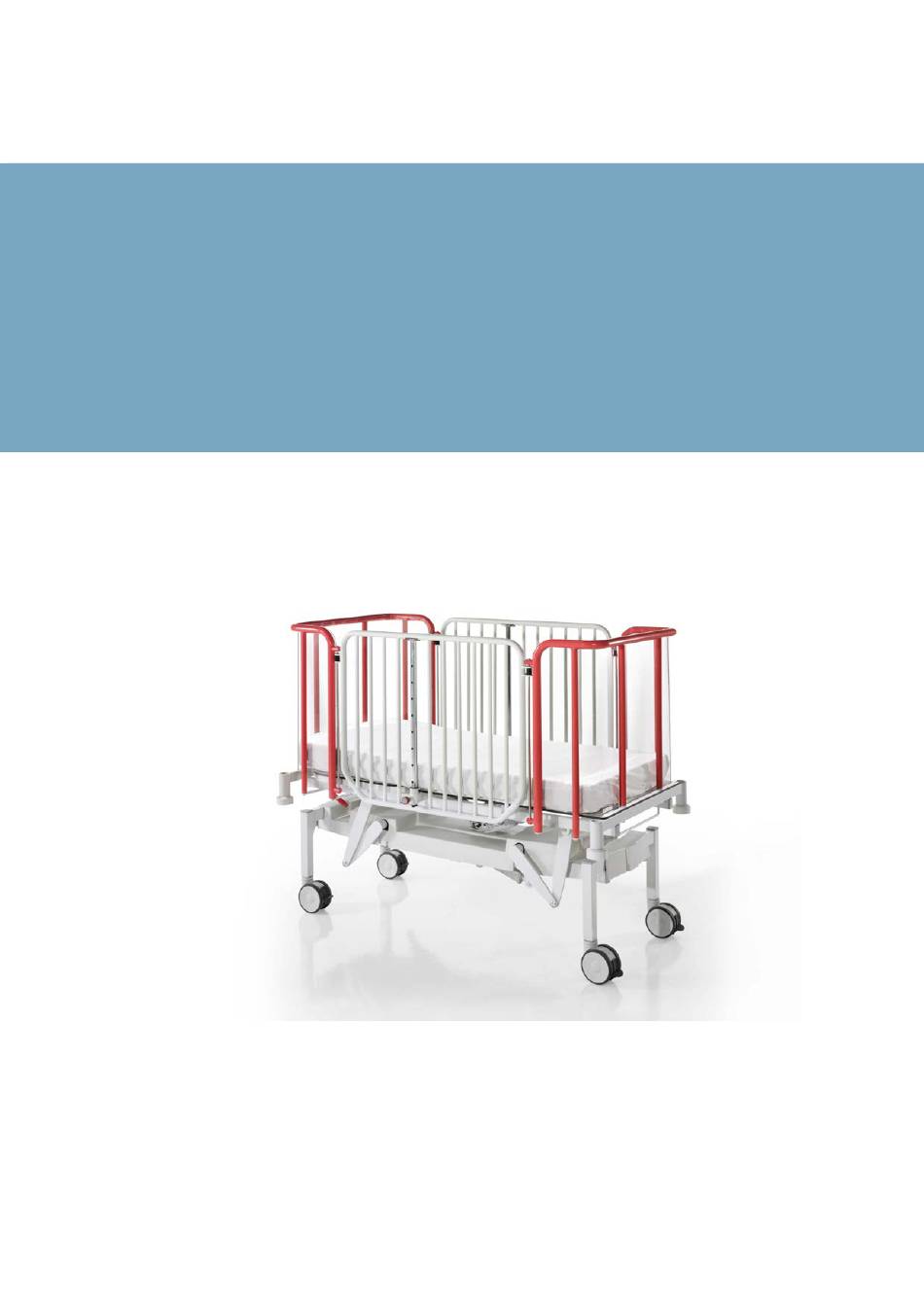

- Page 1 USER’S MANUAL AND TECHNICAL DESCRIPTION NANO – CARE COT REV. 05-2017...
-
Page 2: Dear Customer
Dear Customer: We would like to thank you for your trust in our products. We believe that you will be satisfied with your decision during the whole life of this product. Our hospital cots stand out for their high quality and reliability, as well as for their useful value, thanks to the use of carefully selected materials, state-of-the-art manufacturing techniques and the expertise of our skilled staff. - Page 3 Therefore, it is very important that the manual was accessible to the user throughout the life time of the cot. WARNINGS Medisa shall not be liable for any damage, injury or accident caused by a misuse, carelessness or negligence.
-
Page 4: Safety Instructions
▪ For cot maintenance, use only original and suitable materials and components; otherwise Medisa will not be responsible for any damage or accidents that may arise. ▪ Only mattresses and accessories manufactured by Medisa should be used; in case of use of incompatible mattresses, the protective barriers could malfunction, placing the patient's safety at risk. -
Page 5: Environment Conditions
User’s manual NANO CARE Cot ENVIRONMENT CONDITIONS. The cot must be used in an inner environment in which: Room temperature ranges between 10⁰⁰ C and 50⁰⁰ C. Relative humidity varies between 40% and 80%. Atmospheric pressure varies between 700 hPa and 1060 hPa. Under other conditions, consult us. -
Page 6: Connection To The Power Supply

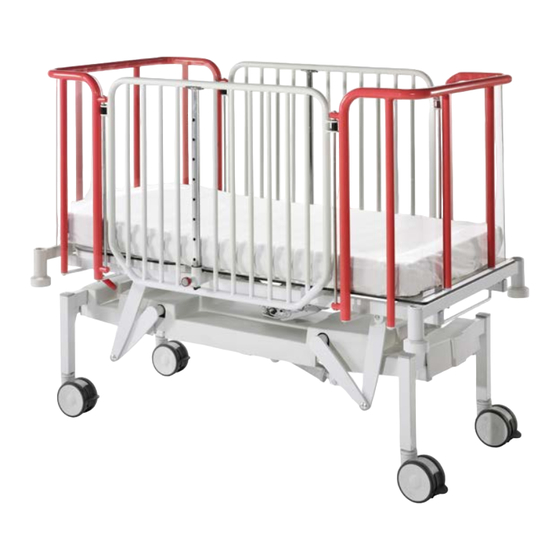

The different Equipment features and choices are described as follows: Side rails: Steel vertical bars side rails (optional) Transparent plastic sheet side rails Electric height adjustment 1. Backrest adjustment 2. Height adjustment 3. Four integrated wheels of 120 mm of diameter .Central brake and steer 4. -
Page 7: Patient Handset
User’s manual NANO CARE Cot As it is possible to place instruments that are intravascular or intracardiacally connected to patient, the cot includes a connection called “potential” that allows adjusting the potentials between the cot and those instruments. The mass connection designed for that purpose is placed under the headboard / footboard of the cot. - Page 8 HANDSET LOCKING All functions of the handset can be blocked to avoid the adjustment of the cot by unauthorized persons. For that, the handset is provided with a magnetic black key. By sliding this key over the padlock drawing, the handset can be locked or unlocked. The green led light shows that the handset is operative.
-
Page 9: Backrest Adjustment
User’s manual NANO CARE Cot BACKREST ADJUSTMENT Backrest adjustment system The different backrest positions are accomplished by the lineal actuator through handset. To adjust it just press the button previously described until reaching the desired position CPR QUICK RELEASE OF BACKREST The bed includes a manual mechanism to release the backrest in case of emergency (power failure, etc.). -
Page 10: Central Braking System
Fig. 3 Side rail height adjustment CENTRAL BRAKING SYSTEM. Before moving the cot, check previously the position of the levers on the castors: two symmetrical levers, one at each end of the lower frame, under footboard. A – Steering mechanism: put your foot on the left or inner side of the lever (green colour) and push it down until it remains fixed in its new position (titled to the left). -
Page 11: Cleaning And Disinfection
Place the end on any socket of each corner of the cot. Make sure that it is completely inserted and fixed. CLEANING AND DISINFECTION Medisa products reduce cleaning time up to a 30%. Smooth surfaces and detachable panels allow an easy and quick cleaning. Basic instructions: Use disinfectants designed for sanitary devices cleaning. -
Page 12: Cleaning Recommendations
Medisa recommends the use of Ministry of Health authorized disinfectants. Cleaning procedures • Adjust the cot to its highest position, and place the mattress into sitting position to have easier access to the back for cleaning. • Block the adjustment buttons, including pedals. -
Page 13: Maintenance
User’s manual NANO CARE Cot The bed vibrates Call Technical service Blocking system does not work Call Technical service Change wheels (call Technical Wheels do not brake Brake system is worn service) Wheels don’t turn correctly Dirty wheels Clean wheels Do not try to repair the electric motors during malfunction! Do not open the motor protection case or the protecting cover of the power supply! -
Page 14: Environmental Protection
ENVIRONMENTAL PROTECTION Nano Care cot is manufactured with materials that do not damage the environment, since it does not contain any dangerous substance, like cadmium, mercury, asbestos, PCB or CFC. Moreover, the bed produces a notice according to Public Health standards. The product contains recyclable steel, plastic and electronic components. -
Page 15: Signs And Symbols Used
User’s manual NANO CARE Cot GUARANTEE AND SERVICE The manufacturer or the authorized service grants a guarantee which covers all their products for a period of two (2) years from the date of purchase. During said guarantee period, any defect affecting the operation of the equipment due to faulty manufacture will be replaced free of charge. - Page 16 IDENTIFICATION LABEL All the beds are identified by means of a label placed on the lower frame, under the ABS housing. When you contact the manufacturer or distributor (claims, technical service, orders), provide them with the data included in the identification label: Contact.
