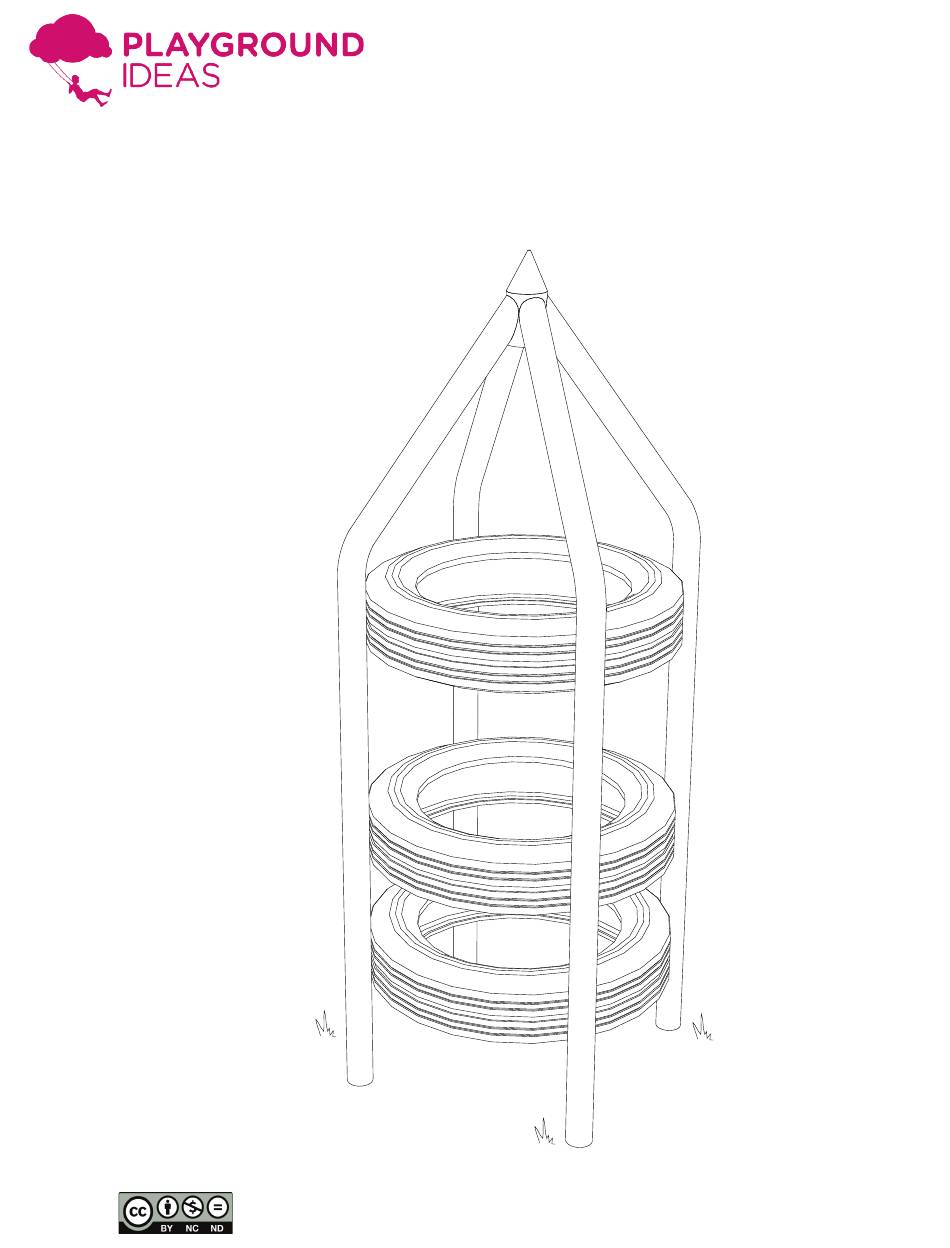

- Page 1 4 POLE ROCKET SHIP Instructions Author: Socheata Kong www.playgroundideas.org...
- Page 2 You may not alter, To the maximum extent permitted by law, in no event will Playground Ideas be liable for any transform, or build upon this work but you may create and add new work to the Playground- loss or damage including without limitation, direct, indirect or consequential loss or damage, IDEAS design library to share.
- Page 3 Bend the long metal pole at about 150 degrees. The bend will be influenced by the truck tires that you have. Or, alternatively, the length of the point on the rocket ship will need to be longer for a larger tire size. ~150°...
- Page 4 Cut a zig zag pattern with four triangles on one end of the short steel tube. Next, round off the sharp ends. Then, use a hammer to bring the triangles together. Finally, weld the four pieces together. Cut out the inner rim bead of the top sidewall and the entire bottom sidewall so that water does not collect.
- Page 5 Place the four metal poles with the cut out groove around the metal piece from step 3, and place the metal poles around three car tires. Then, weld the metal piece and the metal poles together. Where the car tires touches the metal pole, drill two holes through the tire tread and the metal pole.
- Page 6 Dig four holes to bury the metal poles. Next, pour concrete into the hole for the base. Then, place the poles into the holes and fill the holes with concrete. 40cm / 16” SAND GRAVEL CEMENT www.playgroundideas.org...
- Page 7 250cm / 8’ < 300cm / 9.8’ 2 3 c m / 9” This element requires soft fall material and cannot overlap with other elements. Please refer to the Playground Ideas Safety Handbook. www.playgroundideas.org...
- Page 8 If you like this 4 Pole Rocket Ship, please check out these elements below as well: Rocket Wiggler Pentagon The 4 Pole Rocket Ship can also be combined with other elements to create a more dynamic play space. Cubby House Bridge Tready www.playgroundideas.org...
