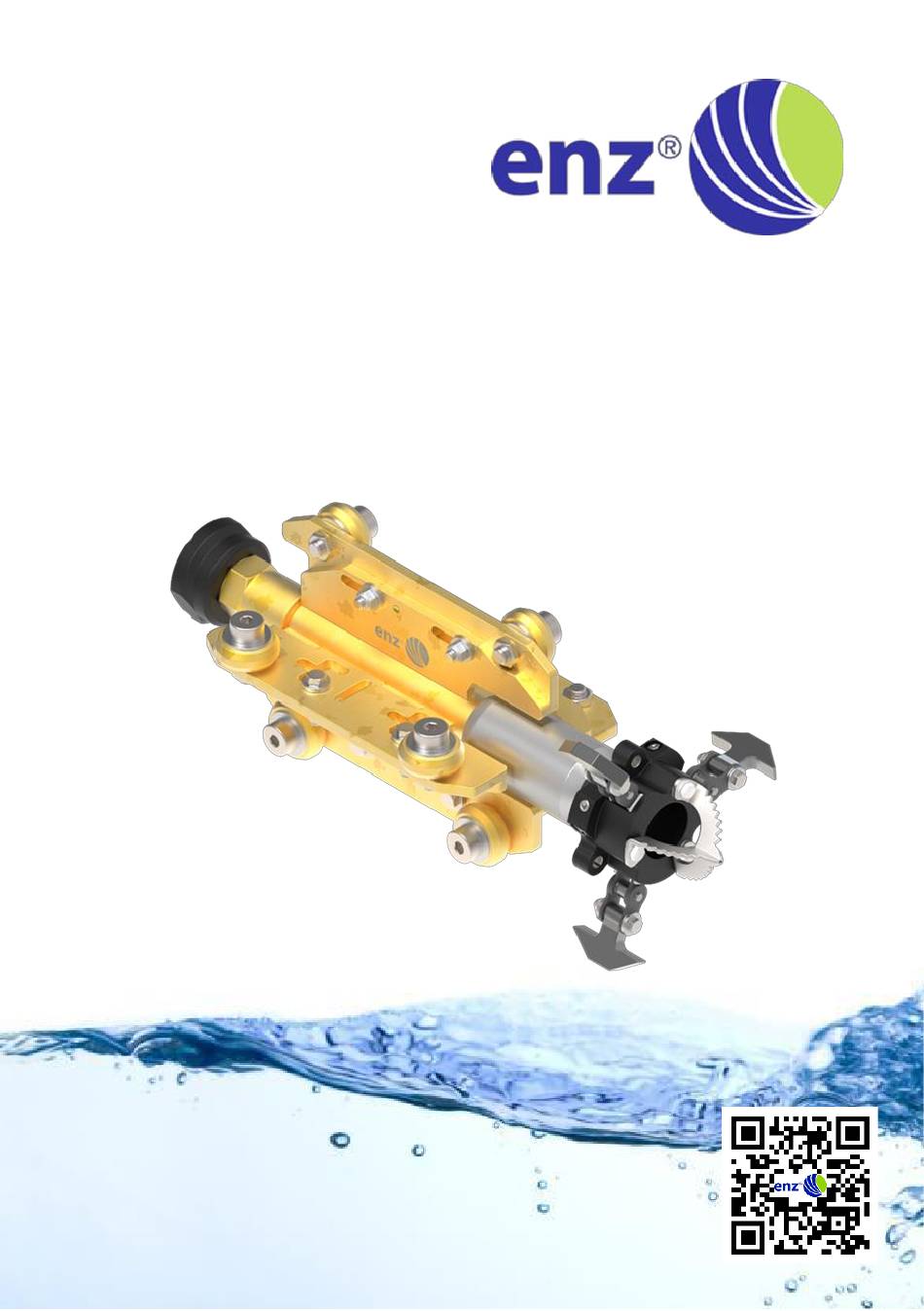

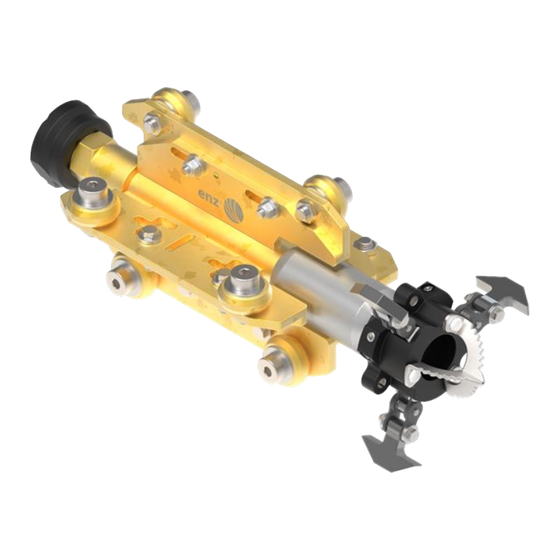

- Page 1 Wire Rope and Chain Scrapers 10.150RL Operating Manual English August 23| Version 1.0...
- Page 2 Completing the work process ..............16 Troubleshooting ..................16 Maintenance ....................18 Maintenance after each use ...............18 Nozzle inserts .....................18 Replacing parts ...................19 Disposal, environmental protection ............19 Technical Data....................20 Adjusting the chains ...................22 Page 1 von 27 ©2023 enz® technik ag State 24.08.23...
- Page 3 Replacing the chains: ..................22 Skids ......................23 Diamond crown drill bit ................24 Scope of delivery / Supplies ................25 Index ......................26 Drawings .....................26 Figures ......................26 Version Revision Date Initials Created August 2023 State 24.08.23 ©2023 enz® technik ag Page 2 from 27...
- Page 4 The operating manual must be available to all operating personnel at all times. It must be kept in an easily accessible place. If the manual is misplaced or destroyed, a new copy can be requested from your nearest dealer or from the manufacturer directly. Page 3 von 27 ©2023 enz® technik ag State 24.08.23...
- Page 5 Any additional maintenance and service work may be performed only by qualified specialist personnel from the manufacturer. Please refer to the section on "Maintenance". State 24.08.23 ©2023 enz® technik ag Page 4 from 27...
- Page 6 The tool may be used on the following types of pipes: PE pipes Steel pipes Concrete pipes For use in pipes made of other material, please consult the manufacturer. Page 5 von 27 ©2023 enz® technik ag State 24.08.23...
- Page 7 Secure the hose lines in such a way that they cannot become damaged during operation. Only the accessories provided and approved by enz® technik ag may be used. No other changes or modifications to the pipe cleaning tool may be performed. Only parts authorized by the manufacturer may be used.
- Page 8 Appropriate gloves will protect you from hand injuries and contact with materials that could impair your health and from untreated water. Hardhat The hardhat will protect your head from falling objects and from bumping into fixed components and objects. Page 7 von 27 ©2023 enz® technik ag State 24.08.23...
- Page 9 Put on appropriate protective clothing. Use the protective equipment prescribed. Otherwise, you could suffer from chemical burns to your skin and eyes or become infected with pathogens. State 24.08.23 ©2023 enz® technik ag Page 8 from 27...
- Page 10 Lines and other objects are to be expected on the ground in the area around where the product is being used. Pay attention to where you are walking. Keep the area of use tidy. Tripping and falling could cause serious injuries. Page 9 von 27 ©2023 enz® technik ag State 24.08.23...
- Page 11 The product is used under conditions that are not permitted by us. • Replacement and accessory parts that are not original replacement and accessory parts from enz® technik ag are used. • If there is damage due to: Improper use...
- Page 12 Tools with Art No. 10.XXXR can be operated with recycled water. In addition, enz® chain scrapers can be modified in various ways. Simple handling and maintenance are also traits that go hand-in-hand with enz® chain scrapers.
- Page 13 You must ensure that the appropriate nozzle sizes for cleaning the pipes are available. The application range of each nozzle is listed in the "Technical data" section on Page 20. State 24.08.23 ©2023 enz® technik ag Page 12 from 27...
- Page 14 When adjusting the skid and cage settings, always use the largest possible setting for the inner sewer line diameter being worked on. Page 13 von 27 ©2023 enz® technik ag State 24.08.23...
- Page 15 Always use the correct chain or rope length. The chains or ropes must drag along the pipe wall, and they must not strike the wall! Otherwise, the pipe wall or the product could become damaged. State 24.08.23 ©2023 enz® technik ag Page 14 from 27...
- Page 16 Continue to run the water at low pressure when retracting the tool. This prevents wastewater from entering the interior of the tool, which can lead to failure. Page 15 von 27 ©2023 enz® technik ag State 24.08.23...
- Page 17 When working inside a slightly damaged pipe, extreme caution must be used. Use of the tool is always at your own risk! enz® technik ag waives all liability! DANGER! When cracks are washed out, pipe fragments can break off and the material surrounding the pipe may be flushed out.
- Page 18 If the gap is more than 20 mm (0.75 inch), then the chain scraper is not suitable. Drawing 2 Maximum offset Page 17 von 27 ©2023 enz® technik ag State 24.08.23...
- Page 19 4. Immediately screw the nozzle inserts into the tool body as far as they will go, then use a socket wrench to slightly tighten each insert. 5. Wait at least 24 hours until the adhesive has hardened. State 24.08.23 ©2023 enz® technik ag Page 18 from 27...
- Page 20 Defective pipes or leaking substances must be reported to the supervisory body or appropriate authority. Do not use excessive amounts of water. This will help conserve our natural resources. Page 19 von 27 ©2023 enz® technik ag State 24.08.23...
- Page 21 Operating Manual Technical Data Figure 3 10.150RL Item name 10.150RL Connecting Thread BSPP 1" Rotating jet 3 x M8 Thrust jet 3 x M10 For recycling water 13.1 kg Weight 28.88 lbs 150 – 250 mm Application range 6 – 10 inch...
- Page 22 Technical Data Operating Manual Page 21 von 27 ©2023 enz® technik ag State 24.08.23...
- Page 23 Operating Manual Technical Data Drawing 4 All chains for 10.150RL Chains are sold by the meter or tailored to the size you need and are available from your dealer or from enz® technik ag. One meter of pin bolt chain Art.
- Page 24 Technical Data Operating Manual Drawing 5 Adjusting the skids The cage of the 10.150RL has multiple adjustment positions. Drawing 5 shows the diameter at each position. The number in parentheses indicates the nominal diameter each position is suitable for. 7.3.1 Removing the skids (150 mm / 6″)
- Page 25 Operating Manual Technical Data The 10.150RL/RS chain scraper can be equipped with a diamond crown drill bit. This is used to remove pipe inlets, steel anchor bolts, and pipelines in sewers. Figure 4 Diamond crown 7.4.1 Attaching the diamond crown drill bit drill bit 1.
- Page 26 Diamond crown drill bit Ø 200 mm / 8" 10.200D – KS150 Ø 250 mm / 10" 10.250D – KS150 Loctite 243, 50 ml C192 Oil Spray Bio, 500 ml C191 Page 25 von 27 ©2023 enz® technik ag State 24.08.23...
- Page 27 Index Drawing 1 Chain length greater than pipe Ø ..............14 Drawing 2 Maximum offset..................17 Drawing 3 Exploded drawing of 10.150RL ..............21 Drawing 4 All chains for 10.150RL ................22 Drawing 5 Adjusting the skids ..................23 Figure 1 Blocked off & signed work area ..............13 Figure 2 Oil Spray Bio, 500 ml ..................18...
- Page 28 Schwerzbachstrasse 10 CH-6074 Giswil / Switzerland Tel. +41 41 676 77 66 info@enz.com Page 27 von 27 ©2023 enz® technik ag State 24.08.23 www.enz.com...
