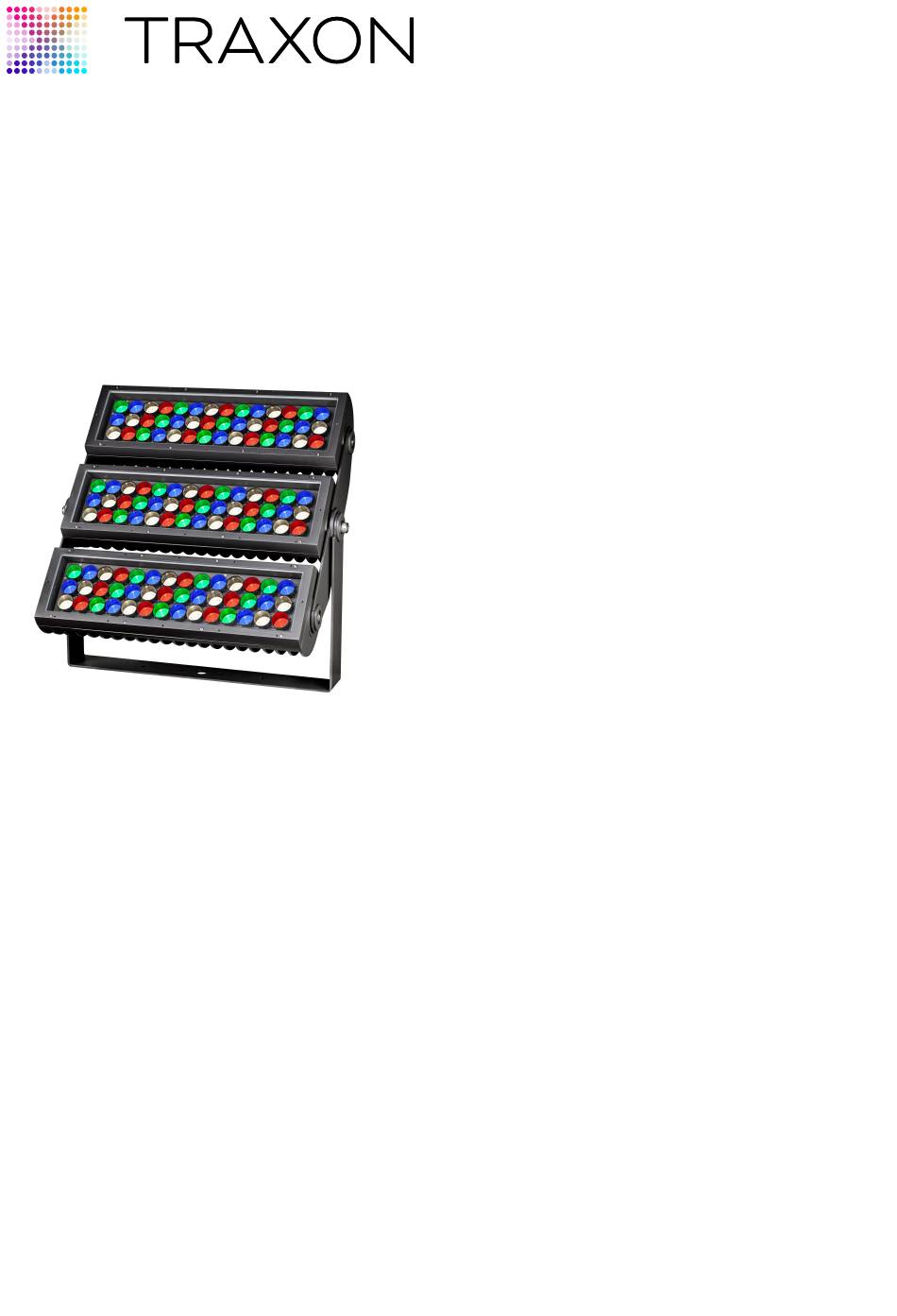

- Page 1 Vista Plus 100W INSTALLATION GUIDE V1.1 Cover: Vista Plus 1x100W RGBW Vista Plus 2x100W RGBW Vista Plus 3x100W RGBW Vista Plus 1x100W White Vista Plus 2x100W White Vista Plus 3x100W White...
-
Page 2: Table Of Contents
CONTENT INTRODUCTION INSTALLATION POWER AND DATA WIRING CONFIGURATION TROUBLESHOOTING WARRANTY INFORMATION APPENDIX www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 2 of 30... - Page 3 The Traxon luminaire and associated accessories must be installed by a qualified person in conjunction with all applicable electrical codes and standards. • The Traxon luminaire does not contain any user-serviceable parts. Opening of the luminaire will void the warranty. •...
-
Page 4: Introduction
This manual is intended for use with DMX/RDM versions of the Vista Plus 100W. Getting Assistance Additional product information is available on the Traxon web site: •... - Page 5 Vista Plus 1x100W 649mm 261mm (25.6") (10.3") 200mm (7.9") 261mm (10.3") Vista Plus 100W open wire cable lengths Power input cable Data in/out cable (combined) 1830mm (72") Cable Length (open wire) 1830mm (72") 636mm (25.0") Cable Outer Diameter 7.8mm (0.31") 8.1mm (0.32")
- Page 6 -30° 662mm (26.1") 300mm (11.8") +30° 100mm +90° +90° (3.9") 4-Ø13mm Ø27mm 4-(Ø0.5") (Ø1.1") 686mm (27") 215mm (8.5") 430mm 483mm (16.9") (18.9") 30mm (1.2") 662mm (26.1") www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 6 of 30...
- Page 7 The kit can be installed onto the luminaires directly. Additional accessories include a Rock Guard to protect the lens, and an Angled Glare shield and Open Glare shield to help hide the light source. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 7 of 30...
- Page 8 FIG.4: Vista Plus 100W Accessories-Full/Half Glare Shield Full Glare Shield 148mm/5.83” 626mm/24.65” 5.2mm/0.2” 130mm/5.11” 130mm/5.11” 130mm/5.11” 130mm/5.11” Half Glare Shield 172mm/6.77” 626mm/24.65” 5.2mm/0.2” 130mm/5.11” 130mm/5.11” 130mm/5.11” 130mm/5.11” 35° www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 8 of 30...
- Page 9 FIG.5: Vista Plus 100W Accessories-Pole Mounting Supporter/Rock Guard Pole Mounting Supporter 800mm/31.5” 500mm/19.69” 300mm/11.81” 25mm/0.98” 150mm/5.91” Ø116mm/4.57” 4-M8 Rock Guard 620mm/24.41” 30mm/1.18” www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 9 of 30...
- Page 10 28.3 kg / 63 lbs. 200W 50/60 Hz (-22°F to +131°F) 3x100W 44 kg / 97 lbs. 300W The Vista Plus 100W luminaire is available with the following optical engines: Model Color Option Lens Options DMX Control Color Temperature Channels...
- Page 11 The in-rush current data of Vista Plus 100W is shown in the following tables: In-rush current @ 120V Description 1 Fixture 2 Fixtures 3 Fixtures … n Fixtures Present time Vista Plus 100W n*30A 0.38ms … Vista Plus 2x100W (200W)
-
Page 12: Installation
Vista Plus 100W Surface Mount Installation Preparation • Remove the Vista Plus 100W luminaire from the packaging and place the unit on a level surface. Bracket Preparation and Mounting CAUTION It is the installer’s responsibility to ensure that the mounting surface can handle the static weight of the fixture as well as dynamic loading from environmental factors such as wind and snow/ice buildup. - Page 13 It is the responsibility of the installer to ensure that the mechanical fixings are appropriate for the task and if necessary, approved by a structural engineer as the installation scenario is unique for each luminaire FIG.10: Bracket Mounting www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 13 of 30...
- Page 14 11mm hex key can adjust the mounting bracket screw, can be used to adjust the angle of the whole luminaire. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 14 of 30...
- Page 15 Vista Plus 100W pole Mount Installation Preparation • Remove the Traxon luminaire from the packaging and place the unit on a level surface. Pole Mounting Steps • Mark the positions of the 4 mounting holes and then drill 4 x M12 holes with an electric drill. Mount the luminaire bracket to the post mount plate using suitable M12 fixings (e.g.
- Page 16 Pull the power and data cabling through the pole fitting (by others). Install the luminaire onto the pole fitting and secure mounting screws and lock nuts. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 16 of 30...
- Page 17 Recording the UID (DMX/RDM Model Only) Each Vista Plus 100W luminaire is marked with a Unique Identifier (UID) on the product label. This UID is used to address the luminaire for correct operation.
- Page 18 UID: *0834 Power Wiring The Vista Plus 100W luminaire is supplied with a 1.8 meter (6 foot) long power feed cable. This cable may be field-cut to the required length by the installer. WARNING Risk of electrical shock. Make sure that the branch circuit is disconnected prior to installation or inspection..
- Page 19 6mm and 4mm Hex Keys 3x100W Model Preparation • Remove the Traxon luminaire from the packaging and place the unit on a level surface. FIG.19: Accessories Structure Accessories Installation • Fix the screws as the following picture shows to install the additional accessories as your requirements.
- Page 20 Do not rotate the luminaire more than 180 degrees. Rotating more than 180 degrees may cause the power and/or data cables to bind inside the unit resulting in damage. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1...
-
Page 21: Power And Data Wiring
POWER AND DATA WIRING Data Wiring The Vista Plus 100W luminaire is supplied with a 1.8 meter (6 foot) long data cable. This cable may be field-cut to the required length by the installer. The Vista Plus 100W luminaire utilizes a “daisy chain” wiring topology for DMX data communication. Data connections are made via the DMX input and output wiring pairs in the data cable. - Page 22 (between Grey and Purple conductors). Failure to terminate at the last luminaire will void the warranty and may result in control issues. FIG.22: DMX Termination Detail www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 22 of 30...
- Page 23 FIG.23: 100W Wiring Details www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 23 of 30...
- Page 24 FIG.24: 2x100W Wiring Details www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 24 of 30...
- Page 25 FIG.25: 3x100W Wiring Details www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 25 of 30...
-
Page 26: Configuration
The Vista Plus 100W 2x100W luminaire utilizes 4 DMX channels for the RGBW unit, and 1 DMX channel for the White units and for the Vista Plus 100W 3x100W, utilizes 8 DMX channels for the RGBW unit, and 2 DMX channel for the White units. - Page 27 Read Only Parameter Supported RDM Sensors Sensor Number Sensor Description Unit of Measure Safe Operating Range Driver Temperature Celsius Drive Voltage DC Volts Driver Current On-Line Time www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 27 of 30...
-
Page 28: Troubleshooting
Readdress fixtures WARRANTY INFORMATION Traxon Technologies warrants this product against material and workmanship defects for a period of five (5) years from date of purchase, provided that the purchased items are used under the conditions stated in this user manual. -
Page 29: Appendix
Unit 31 Unit 32 NOTE Do not exceed 32 luminaires on a single DMX data line. Termination resistor must be installed at the last luminaire only. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 29 of 30... - Page 30 Please check for the latest updates and changes on the Traxon website. © 2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. www.traxon-ecue.com...
