Vista Plus
INSTALLATION GUIDE
V1.1
Cover:
Vista Plus 1x200W RGBW
Vista Plus 1x200W White
Vista Plus 2x200W RGBW
Vista Plus 2x200W White

Advertisement

loading
Need help?

Need help?

Do you have a question about the ecue Vista Plus 1x200W RGBW and is the answer not in the manual?

Questions and answers

Related Manuals for Traxon ecue Vista Plus 1x200W RGBW

Summary of Contents for Traxon ecue Vista Plus 1x200W RGBW

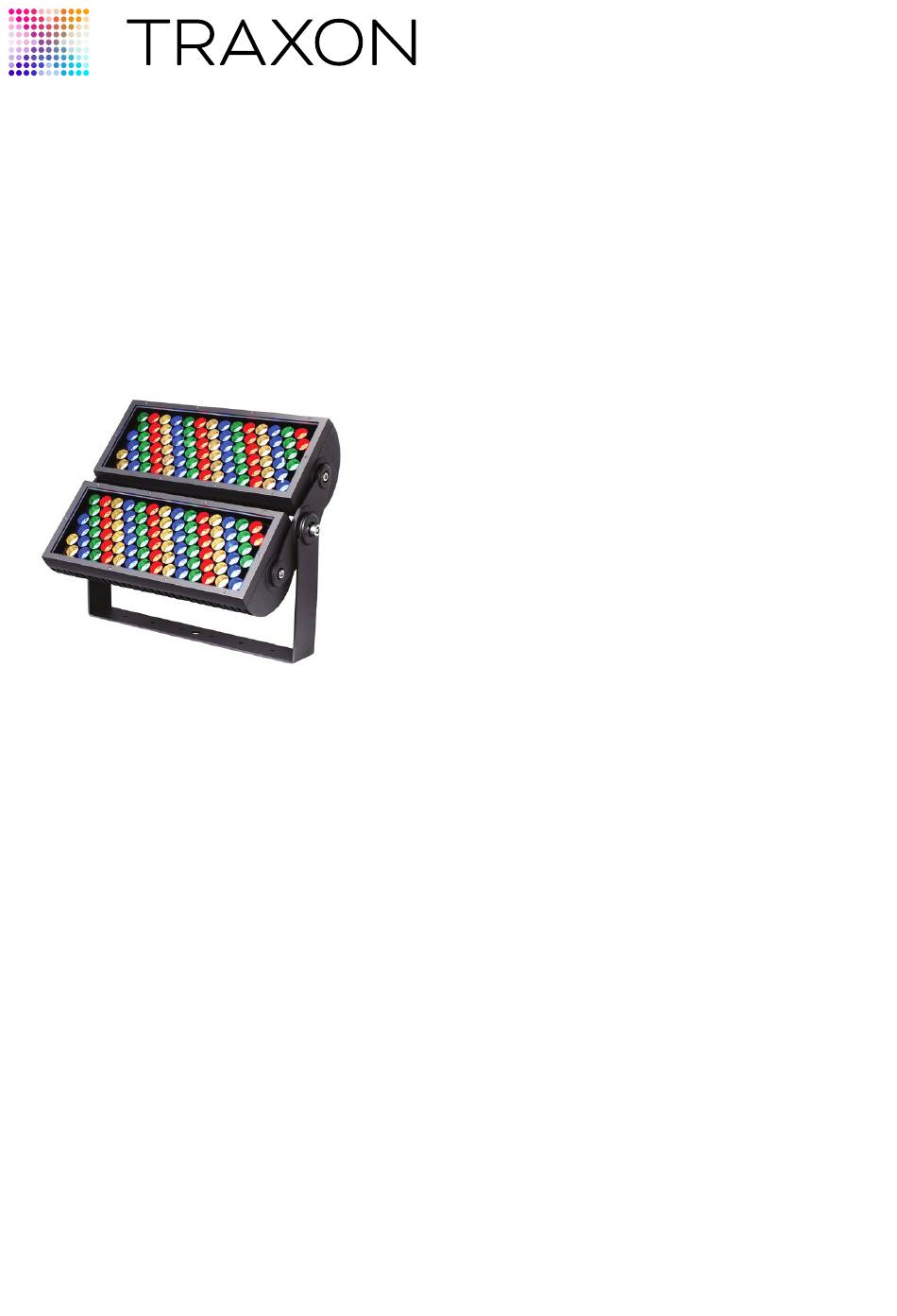

  • Page 1 Vista Plus INSTALLATION GUIDE V1.1 Cover: Vista Plus 1x200W RGBW Vista Plus 1x200W White Vista Plus 2x200W RGBW Vista Plus 2x200W White...

  • Page 2: Table Of Contents

    CONTENT INTRODUCTION INSTALLATION POWER AND DATA WIRING CONFIGURATION TROUBLESHOOTING WARRANTY INFORMATION APPENDIX www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 2 of 29...
  • Page 3 The Traxon luminaire and associated accessories must be installed by a qualified person in conjunction with all applicable electrical codes and standards. • The Traxon luminaire does not contain any user-serviceable parts. Opening of the luminaire will void the warranty. •...

  • Page 4: Introduction

    This manual is intended for use with DMX/RDM versions of the Vista Plus. Getting Assistance Additional product information is available on the Traxon web site: • www.traxon-ecue.com For additional support, please contact Traxon Technical Support: •...
  • Page 5 357.2mm Data Cable, diameter: (14.1") Ø 8.1mm (Ø 0.3") Power Cable, diameter: Ø 7.8mm (Ø 0.3") 674.7mm (26.6") 674.7mm (26.6") 101.6mm ( 4") 81mm (3.2 ") www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 5 of 29...
  • Page 6 The kit can be installed onto the luminaires directly. Additional accessories include a Rock Guard to protect the lens, and an Angled Glare shield and Open Glare shield to help hide the light source. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1...
  • Page 7 FIG.3: Vista Plus Accessories-Full/Half Glare Shield Full Glare Shield Half Glare Shield www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 7 of 29...
  • Page 8 FIG.4: Vista Plus Accessories-Pole Mounting Supporter/Rock Guard Pole-Mounting Supporter Rock Guard www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 8 of 29...
  • Page 9 FIG.5: Vista Plus Accessories-Additional Frame Spread Lens Frame www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 9 of 29...
  • Page 10 RGBW (White CCT: 4000K standard) (Standard) (RGBW) Other White CCT and RGBA available White + Color 3000K / 4000K 2700K, 3500K, 5000K, 6500K, Red, Green, Blue, Amber available www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 10 of 29...
  • Page 11 Wire nuts are not permissible for use with data connections and will void warranty. - 120 Ohm resistor for use in terminating the DMX512 data line at the last luminaire. FIG.7: ProPoint Termination Kit www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 11 of 29...

  • Page 12: Installation

    Install the luminaire to the mounting surface and secure using appropriate hardware (by others). NOTICE The Traxon Luminaire should be installed with the power and data cables exiting the housing directly down when the luminaire is mounted on a vertical surface. For applications that require horizontal orientation of the power and data cables, the installer shall apply RTV silicone to the cable gland entry points.
  • Page 13 It is the responsibility of the installer to ensure that the mechanical fixings are appropriate for the task and if necessary, approved by a structural engineer as the installation scenario is unique for each luminaire FIG.10: Bracket Mounting www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 13 of 29...
  • Page 14 A 14mm hex key can be used on the outer adjustment bolts to enable you to change the angle of the individual heads. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 14 of 29...
  • Page 15 Vista Plus pole Mount Installation Preparation • Remove the Traxon luminaire from the packaging and place the unit on a level surface. Pole Mounting Steps • Mark the positions of the 4 mounting holes and then drill 4 x M12 holes with an electric drill. Mount the luminaire bracket to the post mount plate using suitable M12 fixings (e.g.
  • Page 16 Fix the inner hexagon screw to fasten the pole mounting supporter onto the pole. FIG.15: Pole Mounting Step 2 4 mm hex wrench to fasten 4-M8*10 screws hex socket screw (Screws and pole are not included) www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 16 of 29...
  • Page 17 Pole Mounting Step 4 14 mm hex key to adjust the angle of single module 17 mm hex key to adjust the angle of whole luminaire www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 17 of 29...
  • Page 18 (2in) near the cable gland MUST be adhered to. In addition to the Minimum Bending Radius, ensure that 5cm (2in) of cable at the connector junction is kept straight. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1...
  • Page 19 2x200W Model 6mm and 4mm Hex Keys Preparation • Remove the Traxon luminaire from the packaging and place the unit on a level surface. FIG.19: Accessories Structure Accessories Installation • Fix the screws as the following picture shows to install the additional accessories as your requirements.
  • Page 20 Do not rotate the luminaire more than 180 degrees. Rotating more than 180 degrees may cause the power and/or data cables to bind inside the unit resulting in damage. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1...

  • Page 21: Power And Data Wiring

    Accessories. All cabling shall utilize stranded conductors. Solid core conductors shall not be used and can result in denial of warranty. A maximum of 32 Traxon luminaires may be connected to a DMX data line. The maximum overall data line length (from DMX controller to the last unit in the daisy chain) is 300m (984ft).
  • Page 22 (between Grey and Purple conductors). Failure to terminate at the last luminaire will void the warranty and may result in control issues. FIG.22: DMX Termination Detail www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 22 of 29...
  • Page 23 FIG.23: 1x200W Wiring Details www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 23 of 29...
  • Page 24 FIG.24: 2x200W Wiring Details www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 24 of 29...

  • Page 25: Configuration

    • Enable RDM discovery per the instructions of the controller manufacturer. • The controller will discover available Traxon luminaires. These luminaires can be identified by the prefix 16DC in each unit’s UID. • Using the RDM identify function, locate a single unit in the installation. The associated luminaire will flash.
  • Page 26 Read Only Parameter 0x0201 Supported RDM Sensors Sensor Number Sensor Description Unit of Measure Safe Operating Range Driver Temperature Celsius Drive Voltage DC Volts Driver Current On-Line Time www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 26 of 29...

  • Page 27: Troubleshooting

    Readdress fixtures WARRANTY INFORMATION Traxon Technologies warrants this product against material and workmanship defects for a period of five (5) years from date of purchase, provided that the purchased items are used under the conditions stated in this user manual.

  • Page 28: Appendix

    Unit 31 Unit 32 NOTE Do not exceed 32 luminaires on a single DMX data line. Termination resistor must be installed at the last luminaire only. www.traxon-ecue.com ©2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. Installation Guide 08/23 V1.1 28 of 29...
  • Page 29 Please check for the latest updates and changes on the Traxon website. © 2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. www.traxon-ecue.com...
