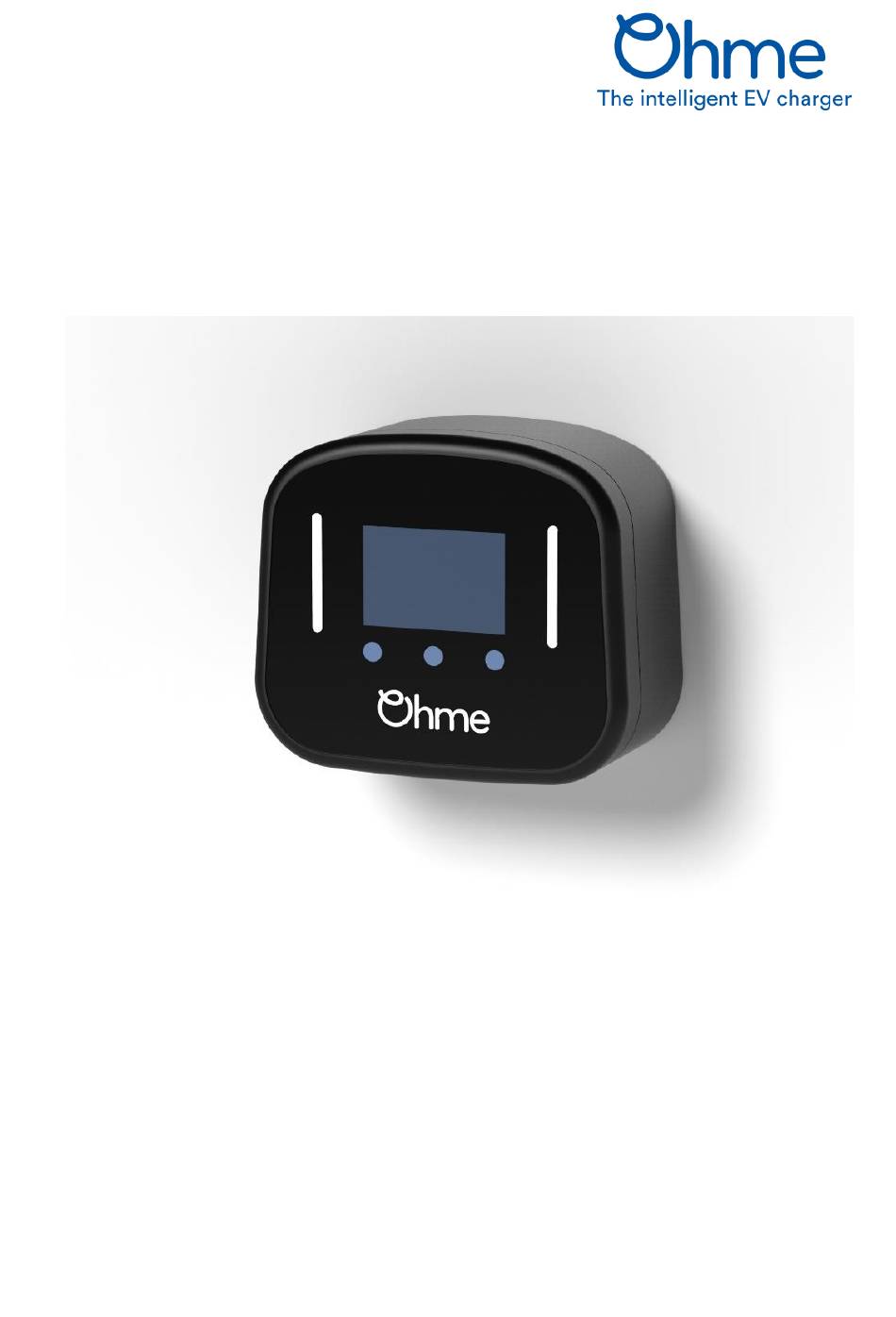

- Page 1 Ohme Home Pro Product Manual Product code: OHME0002GB002, OHME0002GB002-8M Ohme Home Pro – Type 2 Issued November 2022 Updated for the Electric Vehicles (Smart Charge Points) Regulations 2021 – including Schedule 1: Security...
-
Page 2: Table Of Contents
Welcome to Ohme............................4 Download the app ............................4 Your charger information ..........................4 Product Specification........................... 5 Product Description ............................. 5 Vehicle Integrations – An Ohme Labs feature ................... 6 Compliance with Regulations ........................6 Installation..............................7 Troubleshooting ............................10 Cleaning ..............................11 Maintenance .............................. -
Page 3: Safety Precautions
Regulations and the IET Code of Practice for Electric Vehicle Charging Equipment Handle the Ohme Home Pro with care. Do not expose any part of the unit or cable to severe forces, impact or sharp objects The Ohme Home Pro is only intended for vehicles that do not require... -
Page 4: Welcome To Ohme
Use the section below to make a note of your charger’s serial number, this is important if you ever need to contact the Ohme Helpdesk. If you’ve had a Wall Charger installed take a moment to write down the installer’s name, contact number and installation date. -
Page 5: Product Specification
RCD functions to disconnect the power supply if AC or DC current leakage occurs • Neutral (PEN) fault detection, avoiding the need for an earth rod to be installed All Ohme Home Pro units are tethered, which means the cable cannot be removed. -
Page 6: Vehicle Integrations - An Ohme Labs Feature
Some car manufacturers provide an API (Application Programming Interface) which allows access to information about your car via your manufacturer’s smartphone app. Providing your login details in the Ohme app allows Ohme to see your car's current state of charge, which is then used to work out how much charge you need. -
Page 7: Installation
Mounting the unit The Ohme Home Pro is designed to be wall mounted to a flat surface. Fixings are included which are suitable for most wall surfaces (e.g. brick/render) but the installer should select their own fixings if these are not appropriate. - Page 8 Installer Mode On first powering the unit, the Ohme Home Pro will be in installer mode. In this mode: • The RCD is automatically reset after 2 seconds to speed up the RCD tests...
- Page 9 Installer mode must be disabled before leaving site! The Ohme Home Pro has a Type A 30mA and DC 6mA RCD built in. To avoid blinding of RCDs, we recommend that any upstream RCD is at least Type A. Type AC RCDs may saturate and fail to operate in the presence of smooth DC currents below 6mA.
-
Page 10: Troubleshooting
Note: where the dynamic available capacity for the charger drops to below 6A, the Ohme Home Pro will pause the charging for at least five minutes to prevent rapid switching of the vehicle where the current is hovering above and below the threshold. -
Page 11: Cleaning
Cleaning The Ohme Home Pro can be cleaned with a soft damp cloth. Avoid the use of cleaning agents and solvents. Maintenance The Ohme Home Pro is maintenance free. If the charger is defective or damaged, please discontinue use and contact the Ohme Helpdesk for advice. -
Page 12: Manufacturer's Warranty
The warranty covers any defects in materials or workmanship under normal use. During the warranty period, Ohme will refund, repair or replace, at its discretion, at no charge, products or parts of the product which prove defective because of improper materials or workmanship under... -
Page 13: Limitation Of Liability
This will include labour costs to repair or replace the unit at the installation site. Ohme will either repair the product using new or refurbished replacement parts or replace the product with new. A replacement product assumes the remaining warranty period of the original product or for 180 days from the date of the replacement or repair, whichever is longer. -
Page 14: The Electric Vehicles (Smart Charge Points) Regulations 2021
Seller address: 125-130 Wellington House, The Strand, London WC2R 0AP Ohme Operations UK Ltd declares under sole responsibility that the following charge point models comply with the requirements set out under the Electric Vehicles (Smart Charge Point) Regulations 2021, as detailed in the Technical File (available on request). - Page 15 Statement of Compliance (from Installer or Distributor) Seller name Seller address declares under sole responsibility that the relevant charge point, Charge point model Date of sale complies with the device-level requirements set out under the Electric Vehicles (Smart Charge Point) Regulations 2021, as detailed in the Technical File (available on request). Signature Authorised to sign on behalf of seller...
