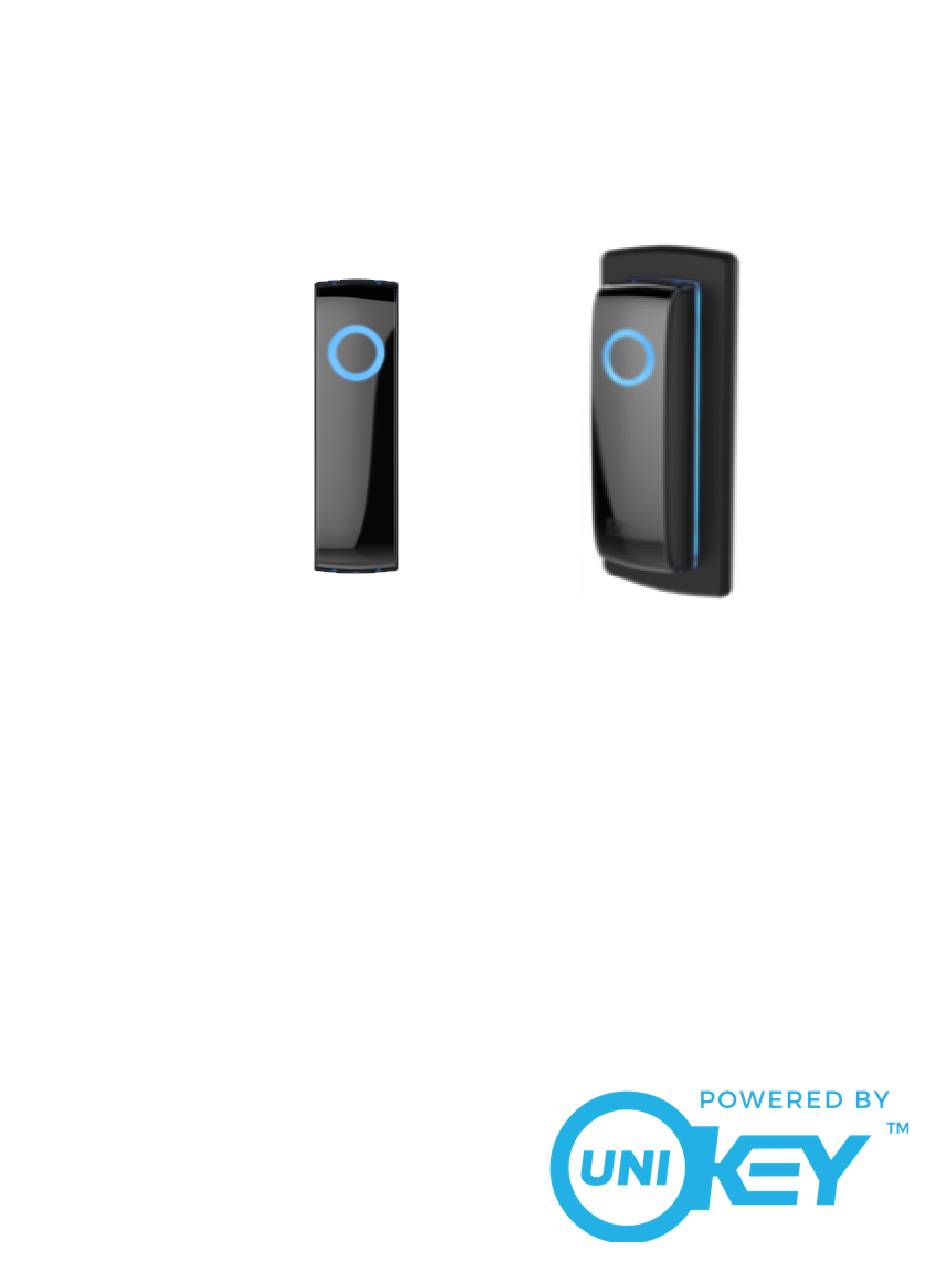

- Page 1 SR3 INSTALLATION GUIDE & USER MANUAL UniKey’s Bluetooth Smart Reader...
-
Page 2: Table Of Contents
Mobile Device and Software ......................11 Definitions ............................11 Typical Lifecycle ..........................12 UniKey Admin Portal ......................13 UniKey Mobile App ........................ 15 Certifications ......................... 18 FCC ..............................18 ISED ..............................19 UL ..............................19 V2.2 Copyright ©2019 UniKey Technologies. All rights reserved. UNIKEY PUBLIC. -
Page 3: Sr3 Overview
The SR3 is intended to be used in conjunction with an access controller as part of the access control system to provide secure access to buildings or areas. The reader is installed and communicates an access request to the controller using the standard Weigand protocol. -
Page 4: Sr3 Installation Guide
This guide will walk a professional installer through the steps needed to attach a UniKey Smart Reader 3 (or SR3) to an access control panel. The SR3 supports 125 KHz proxy cards as well as UniKey mobile credentials. Please review the information below to ensure the reader is installed quickly and properly. -
Page 5: Mounting The Reader
Reader Wiring - Wiegand Be advised that the colors for the SR3 readers and the colors for the connections to the controller may not be the same. Please be sure to obtain the proper information regarding the connections from the building’s controller. -
Page 6: Current Draw: 100Ma (Typical @ 12Vdc)
UL 294 Performance Levels ACCESS CONTROL DESTRUCTIVE ENDURANCE STANDBY MODEL # LINE SECURITY CONDITION ATTACK LEVEL LEVEL POWER LEVEL LEVEL UniKey SR3 Level I Level I Level III Level I V2.2 Copyright ©2019 UniKey Technologies. All rights reserved. UNIKEY PUBLIC. -
Page 7: Additional Troubleshooting
>5V but <6V Power is present, but no response • Recommended voltage for the SR3 is 12V, but 6-16V is supported. occurs when a card is presented Verify that the voltage between the red and black wires is greater than 6V under all conditions. - Page 8 The reader is not getting any power at • The wires may have not been connected properly. The installer needs to verify that each wire is coming from the SR3 reader and coming from the controller. • The power from the controller is not sufficient. Please use a voltage meter to verify a minimum voltage of +6 VDC coming from the controller.
-
Page 9: Sr3 Animations
& User Manual SR3 Animations Each animation corresponds with a specific response from the SR3 and can be customized individually for the user’s commercial organization. Other animation colors as well as various presentation styles are just some of the alternatives available for the UniKey SR3. -
Page 10: Sr3 Reset
The reader’s enrollment has now been cleared and is ready to be enrolled at a specified organization. Buzzer eset B utton Cable Figure 1: Reset button is located on the back of the reader between the buzzer and cable. V2.2 Copyright ©2019 UniKey Technologies. All rights reserved. UNIKEY PUBLIC. -
Page 11: Sr3 Factory Reset
The reader’s enrollment has now been cleared, along with any firmware updates that have been initiated since manufactured. It is important to be sure the reader is re-connected to power while simultaneously holding the reset button; not before or after. V2.2 Copyright ©2019 UniKey Technologies. All rights reserved. UNIKEY PUBLIC. -
Page 12: Unikey Mobile Credentials
The purpose of this section is to provide an overview of commercial mobile credentials within the UniKey platform. The various actors in a typical deployment will be defined as well as a review of the typical lifecycle of the mobile credential. Once the partner has codes that they distribute them by any means of their choosing. -
Page 13: Typical Lifecycle
End users use their mobile credential day to day to enter a door. When a customer submits a purchase order to UniKey to procure redemption codes, information such as that in the example table below must be included. It is important to note that the number of credentials per code is arbitrary and is defined entirely by the partner. -
Page 14: Unikey Admin Portal
Note: For partners using the Limited Credentials model, be sure to decide here the number of credentials you plan to allocate for this specific organization. For partners using the Unlimited Credentials Model, please reflect that here. V2.2 Copyright ©2019 UniKey Technologies. All rights reserved. UNIKEY PUBLIC. - Page 15 Input all required user information and designate Installer Permission if applicable to the user. Note: Select the Bulk Credential Upload tab to upload a CSV file with a high volume of users at once. Formatting requirements are specified within. V2.2 Copyright ©2019 UniKey Technologies. All rights reserved. UNIKEY PUBLIC.
-
Page 16: Unikey Mobile App
2 to enroll the device to the organization. The installed reader will then be eligible as well for enrollment to the organization. V2.2 Copyright ©2019 UniKey Technologies. All rights reserved. UNIKEY PUBLIC. - Page 17 SR3 Installation Guide & User Manual Step 2: Enroll the reader through the installer’s mobile device. V2.2 Copyright ©2019 UniKey Technologies. All rights reserved. UNIKEY PUBLIC.
- Page 18 Note: If a firmware update is available, a red icon will appear next to the reader name. Follow the steps illustrated below. Once the update is complete, the red icon will disappear and the reader details screen will confirm that the reader’s software version is up to date. V2.2 Copyright ©2019 UniKey Technologies. All rights reserved. UNIKEY PUBLIC.
-
Page 19: Certifications
3. RF Exposure Guidance: In order to comply with FCC RF Exposure requirements, this device must be § installed to provide at least 20 cm separation from the human body at all times. V2.2 Copyright ©2019 UniKey Technologies. All rights reserved. UNIKEY PUBLIC. -
Page 20: Ised
2. Afin de se conformer aux exigences d'exposition RF FCC / ISED, cet appareil doit être installé pour fournir au moins 20 cm de séparation du corps humain en tout temps. V2.2 Copyright ©2019 UniKey Technologies. All rights reserved. UNIKEY PUBLIC.
