Engler Tri-Mate Manual

Scaler, polisher, & electrosurgery
Hide thumbs Also See for Tri-Mate:
Table of Contents

Advertisement

Quick Links

Download this manual
Engler Engineering Corporation

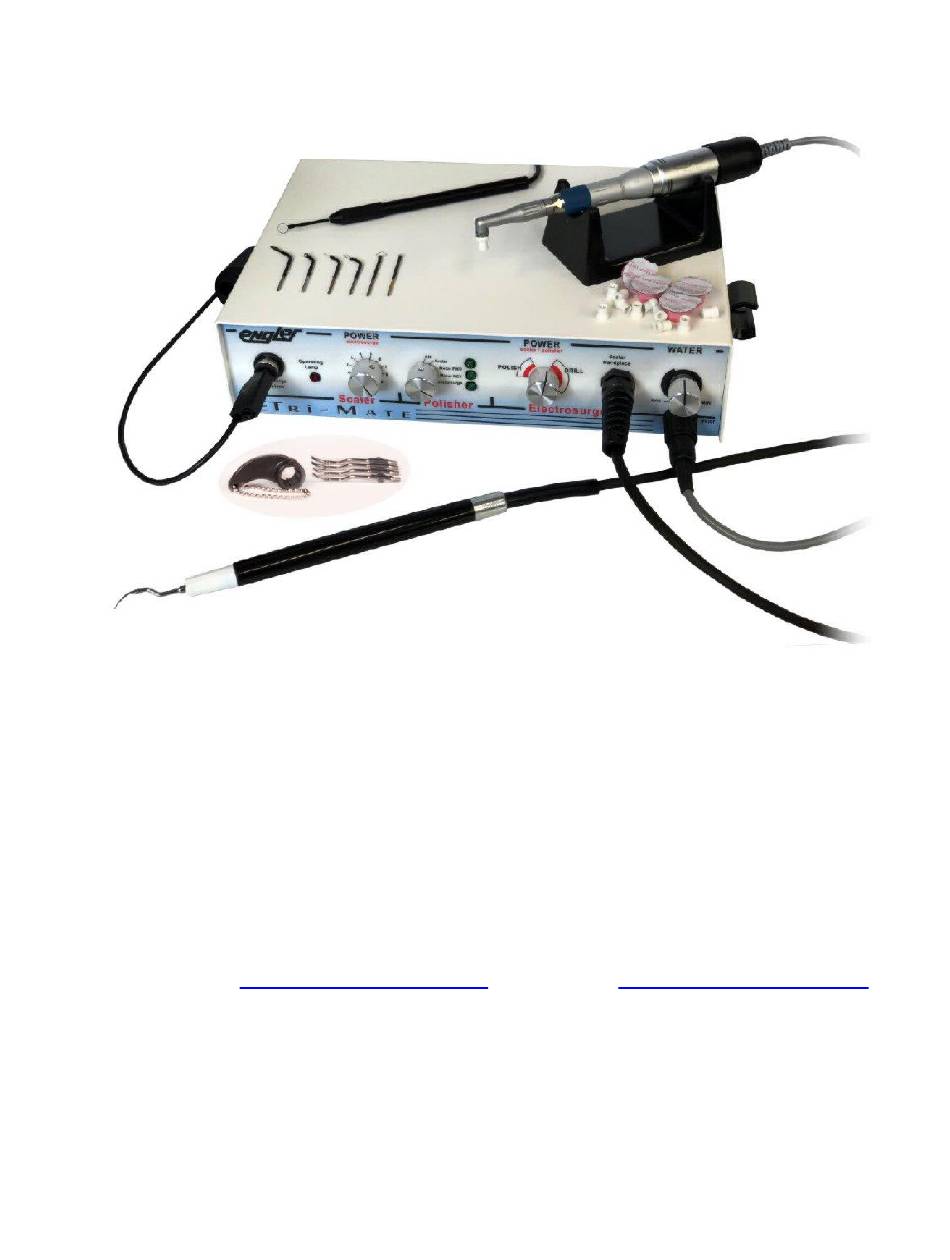

Tri-Mate Scaler, Polisher, & Electrosurgery
Engler Engineering Corporation
1099 East 47th Street, Hialeah, Florida 33013
800-445-8581 – 305-688-8581 – FAX 305-685-7671
Web site:
www.englerusa.com
Help site:
www.engler411.com
VER. D 06 / 07 / 2018
Page 1 of 38

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tri-Mate and is the answer not in the manual?

Questions and answers

Related Manuals for Engler Tri-Mate

Summary of Contents for Engler Tri-Mate

  • Page 1 Engler Engineering Corporation Tri-Mate Scaler, Polisher, & Electrosurgery Engler Engineering Corporation 1099 East 47th Street, Hialeah, Florida 33013 800-445-8581 – 305-688-8581 – FAX 305-685-7671 Web site: www.englerusa.com Help site: www.engler411.com VER. D 06 / 07 / 2018 Page 1 of 38...

  • Page 2: Table Of Contents

    Table of Contents READ BEFORE YOU START......................3 COMPANY PROFILE...........................4 INTRODUCTION..........................5 QUICK START GUIDE.........................7 TRI - MATE ELECTROSURGERY......................9 INSTALLATION INSTRUCTIONS.....................11 SCALER OPERATING INSTRUCTIONS..................14 SCALER MAINTENANCE........................16 STACK (TRANSDUCER) INSTALLATION / REMOVAL ..............18 POLISHER INSTALLATION......................20 POLISHER OPERATION........................22 POLISHER MAINTENANCE: PROPHY ANGLE ................22 STRAIGHT HANDPIECE MAINTENANCE..................22 MICROMOTOR MAINTENANCE......................24 ELECTROSURGERY TROUBLESHOOTING...................24 SCALER TROUBLESHOOTING.......................25...

  • Page 3: Read Before You Start

    Tip. This is normal for all Ultrasonic Scalers. Never let the scaling Tip touch soft tissue or skin, Engler Engineering Corporation is not responsible for any damage caused by improper use of this device and / or it's accessories.

  • Page 4: Company Profile

    A.D.S. 2000, Microprocessor Controlled Anesthesia Delivery System / Ventilator, Sentinel V.R.M., Veterinary Respiratory Monitor. We manufacture all of the inserts and Tips used in the Engler products as well as many others on the market today in the 18K and 25K frequency range.

  • Page 5: Introduction

    0.001 to 0.004 in. (250 to 1000 um). In designing our unique Engler Tips, water flows internally through the Tip as it vibrates. As the bubbles in the lavage are bacteriocidal, the energy released collapses and destroys the bacterial cell walls.
  • Page 6 Electrosurgery Electro surge Tool selector Scaler / Polisher ON indicator Power level switch power level Handpiece Water QD-Connect level knob Polisher connector Electrosurgery handpiece Water filter Electrosurgery indifferent ground jack Electrosurgery indifferent ground plug Water quick disconnect (QD) Power Footswitch Electrosurgery indifferent plug ground pad...

  • Page 7: Quick Start Guide

    QUICK START GUIDE Electrosurgery 1. The Indifferent Ground Plug must be connected to the Indifferent Ground Jack, located at the back of the unit. 2. Indifferent Ground Plug must make proper contact with the patient. 3. Turn Tool Selector Switch to Electrosurgery. 4.
  • Page 8 Every Engler Tri – Mate comes equipped with one autoclavable handpiece, one disposable handpiece and Electrosurge tips. Autoclavable Handpiece, cord, and connector; Disposable Handpiece (Not autoclavable); An assortment of Electrosurge tips; (Representative sample, actual tips and handpieces may vary) See Electrosurge handpiece / tip autoclave instructions on page 34 Contact Engler Engineering for replacement handpieces and tips.

  • Page 9: Tri - Mate Electrosurgery

    TRI - MATE ELECTROSURGERY Electrosurgery uses solid-state technology. The Electrosurge is ready to operate as soon as the power is applied. The unit accepts electrical power from a standard outlet and converts 60 Hz cycle low frequency, to a high frequency radio wave, useful for surgery. The frequency used in this device is above the range of neuromuscular stimulation and there is no danger of electrical shock to the patient or operator.
  • Page 10 Tissue types Different tissue types have different electrical characteristics. The electrode drags when moving through high impedance (fibrous) tissue, requiring more power. When low impedance (muscle) tissue is encountered a lower power setting should be used. PLEASE NOTE: Excessive tissue damage can occur if the power setting is in excess of what is required to accomplish the task.

  • Page 11: Installation Instructions

    The Unit should be disconnected from the water supply when it is not in operation. Failure to disconnect the device from the water supply when it is not in use, will void your warranty. Engler Engineering Corporation will assume no liability for damage due to not following recommendations in the Engler manuals.
  • Page 12 Note: Some water pumps may not be equipped with a relief valve. IMPORTANT: Engler Engineering Corp. recommends the services of a professional plumber. Engler Engineering Corporation will not be held liable for any damage including, but not limited to leakage...
  • Page 13 CONNECTING WATER SUPPLY (cont.) PLEASE NOTE: Minerals and foreign particles in the water may cause a buildup or blockage of hoses and parts. The water filter supplied with this device must be opened and inspected quarterly. We suggest that the filter disc and O-ring be changed out at least once a year.

  • Page 14: Scaler Operating Instructions

    Do not use this device if the water temperature is too hot. Engler Engineering Corporation will not be liable for damage due to improper use of this device.
  • Page 15 4. A saliva ejector or HVE is recommended. IMPORTANT: Do not leave the vibrating Tip in one place as it can cause serious damage to the tooth or surrounding tissues. Engler Engineering Corporation will not be liable for damage due to improper use of this device.

  • Page 16: Scaler Maintenance

    SCALER MAINTENANCE FINAL PROCEDURES AT THE END OF EACH DAY 1. Turn the he Unit off. 2. Remove the Tip and Nosecone and sterilize. 3. Disconnect the Unit from its water source or turn off the water supply. 4. Clean and disinfect all surfaces. The Scaling Tips: IMPORTANT: The scaling Tips should be thoroughly cleaned and free of blood, tissue, or any other debris before sterilization.
  • Page 17 Transducer / Stack The Stack may be sterilized using the same methods as listed above. Do not sterilize the entire Stack, Tip and Nosecone assembly as one piece. Separate the Tip from the Stack before sterilization. To re-install Stack into Handpiece, follow correct procedures on the next page. Note: To achieve optimum performance of your equipment, we recommend that the Stack, Tip and Nosecone be replaced every 6 months to one year or as necessary.

  • Page 18: Stack (Transducer) Installation / Removal

    STACK (TRANSDUCER) INSTALLATION / REMOVAL You have purchased a precision instrument. Please handle gently - It is easily damaged TO REMOVE THE Stack 1. Unscrew the Scaling Tip by turning the Nosecone counterclockwise using the Tip wrench. 2. Remove Tip. 3.
  • Page 19 Tip styles may change without notice.

  • Page 20: Polisher Installation

    POLISHER INSTALLATION 1. Plug the Micromotor into the front of the control box. Insert the male connector at the end of the Micromotor cable, into the female receptacle on the front panel of the Unit and rotate the lock collar clockwise. 2.
  • Page 21 5. Do not rotate the selector switch on the front of the control box between forward and reverse rapidly. always allow the Micromotor to stop before switching. 6. As this is a precision instrument, always return it to Engler Engineering Corporation for maintenance and repair.

  • Page 22: Polisher Operation

    POLISHER OPERATION 1. Dampen the rubber cup and place a small amount of polishing paste on it. 2. Rotate the POWER control knob to the MINIMUM setting in the Prophy Range. 3. Depress the Footswitch and the rubber cup will begin to rotate. The speed may be adjusted to your desired level by readjusting the POWER control.
  • Page 23 2. Never clean the Handpiece with boiling water, chemical solutions, ultrasonic cleaner, or with wire brushes. STERILIZATION 1. Autoclaving is recommended for the Engler Straight Handpiece. 2. Clean the Handpiece as described above. 3. Lubricate the Handpiece as described above .

  • Page 24: Micromotor Maintenance

    3. The Unit is not plugged in to a power outlet: verify that the Unit is plugged in. 4. Power outlet not active: try another outlet. 5. The power cord is not connected to the device. 6. Call Engler for troubleshooting help, 800-445-8581...

  • Page 25: Scaler Troubleshooting

    Foot switch damaged: Contact Engler Engineering Corporation. Handpiece / Cable damaged: Contact Engler Engineering Corporation. II Tip action ceases abruptly during operating procedure. 1. Tip not tightened: tighten Tip. 2. Transducer broken: replace. 3. Handpiece / Footswitch / Cable damaged: Contact Engler Engineering Corporation.

  • Page 26: Polisher Troubleshooting

    HOT STRAIGHT HANDPIECE 1. Straight Handpiece not lubricated properly: Lubricate as shown on page 17. 2. Bearings in Straight Handpiece are becoming worn, causing drag. Contact Engler. HOT MICROMOTOR 1. Straight Handpiece causing drag, lubricate Straight Handpiece correctly or replace Straight Handpiece.

  • Page 27: Prophy Angle Cleaning And Maintenance Instructions

    PROPHY ANGLE CLEANING AND MAINTENANCE INSTRUCTIONS The Prophy angle is a precision engineered dental device. all gear and shaft assemblies are made of high grade stainless steel which must be kept free of debris. If cleaned and lubricated correctly will provide long, trouble-free service. The manufacturer recommends replacing Prophy Angles at least every 3 to 4 months depending on use.

  • Page 28: Water Filter Cleaning Instructions

    WATER FILTER CLEANING INSTRUCTIONS SHOULD BE PERFORMED AT LEAST QUARTERLY 1. Turn off water supply to Unit or disconnect the male from the female water connector 2. Unscrew filter by firmly holding Point “A” in your left hand and Point “B” in your right hand. (Refer to Figure) Next, unscrew by simultaneously rotating your left hand away from you and rotating your right hand toward you.

  • Page 29: Saddle Valve Assembly

    SADDLE VALVE ASSEMBLY Installation Instructions 1. To connect the saddle valve to an existing water source, attach the saddle valve to your existing 3/8" to 1-3/8" copper tubing. Tighten the securing screws evenly. DO NOT OVERTIGHTEN, THIS MAY CAUSE THE COPPER TUBING TO CRIMP AND REDUCE FLOW. Page 29 of 38...
  • Page 30 2. To mount the Female Quick Disconnect, there are two options. Option “A” (Unmounted Assy.) Page 30 of 38...
  • Page 31 It is very important that you mount the saddle valve after a shut off valve. ATTENTION: Engler Engineering Corporation will not be held liable for any damage including, but not limited to leakage caused by improper installation of our products. It is strongly suggested that a professional plumber make any necessary installations or connections.

  • Page 32: Water Tank Instructions

    WATER TANK INSTRUCTIONS PT-1 Water Tank DIRECTIONS: 1. Release Air Pressure by PULLING and TURNING pressure relief valve, located on the side of the bottle. 2. Remove pump and cap assembly. 3. Fill tank with distilled water or medicated solution up to the “FILL LINE” mark. Do NOT fill beyond this line.

  • Page 33: Water Tank Care & Maintenance

    This process should be repeated as often as necessary or when pumping becomes difficult. 4. Black particles found in Water Bottle indicates that the pump assembly is deteriorating. Order new pump assembly from Engler Engineering. Pump assembly has been pre-lubricated. WARNING: READ AND FOLLOW ALL INSTRUCTIONS.

  • Page 34: Electro-Son Electrode / Handpiece Autoclave Instructions

    ELECTRO-SON ELECTRODE / HANDPIECE AUTOCLAVE INSTRUCTIONS The Electro – son is available with disposable and / or autoclavable handpieces. Disposable handpieces should be discarded after one use. Disposable handpieces cannot be sterilized using steam as outlined below. The following are general infection control guidelines; Standard personal protection is always recommended when performing medical or dental procedures.

  • Page 35: Optional Tri - Mate Accessories

    2. DO NOT SUBMERGE IN LIQUIDS, including Ultrasonic solutions. 3. Do not heat over 275 ºF (135 ºC). 4. Use only Engler Care Free Prophy Rubber Cups. Other brands will not properly seal the angle, causing premature wear and voiding the warranty.
  • Page 36 Optional Oiling Accessory Spray lubricant with E-type nozzle for all Engler Polisher Straight Handpieces NET WT. 8.8OZ (249.48 GRAMS) If you have any questions or concerns, please contact us. ENGLER ENGINEERING CORP 800-445-8581 To contact us via E-Mail please use: info@englerusa.com...

  • Page 37: Technical Data

    TECHNICAL DATA SCALER: Input power: 120VAC @ 1.2A or 240 VAC@ 0.6 A (set when purchased) Input Frequency: 60 or 50Hz. Transducer Style: Magnetostrictive Operating frequency: 17,800 -18,300 Hz Ultrasonic Generator: Auto-Tuned Variable Amplitude Power Control WATER: Input Pressure: 30 PSI (min.) 60 PSI (max) POLISHER: Variable Voltage Style Power Control:...

  • Page 38: Dimensions

    DIMENSIONS NET WEIGHT: 10 Lbs. (4.5 Kg.) CHASSIS DIMMESION: Length: 12.5 in. (32 cm) Width: 8.25 in. (21 cm) Height: 3.10 in. ( 8 cm) CABLE LENGTH: Handpiece: 96 in. (244 cm) Foot switch: 96 in. (244 cm) Power Cord: 72 in.
