Summary of Contents for Engler Tri-Mate

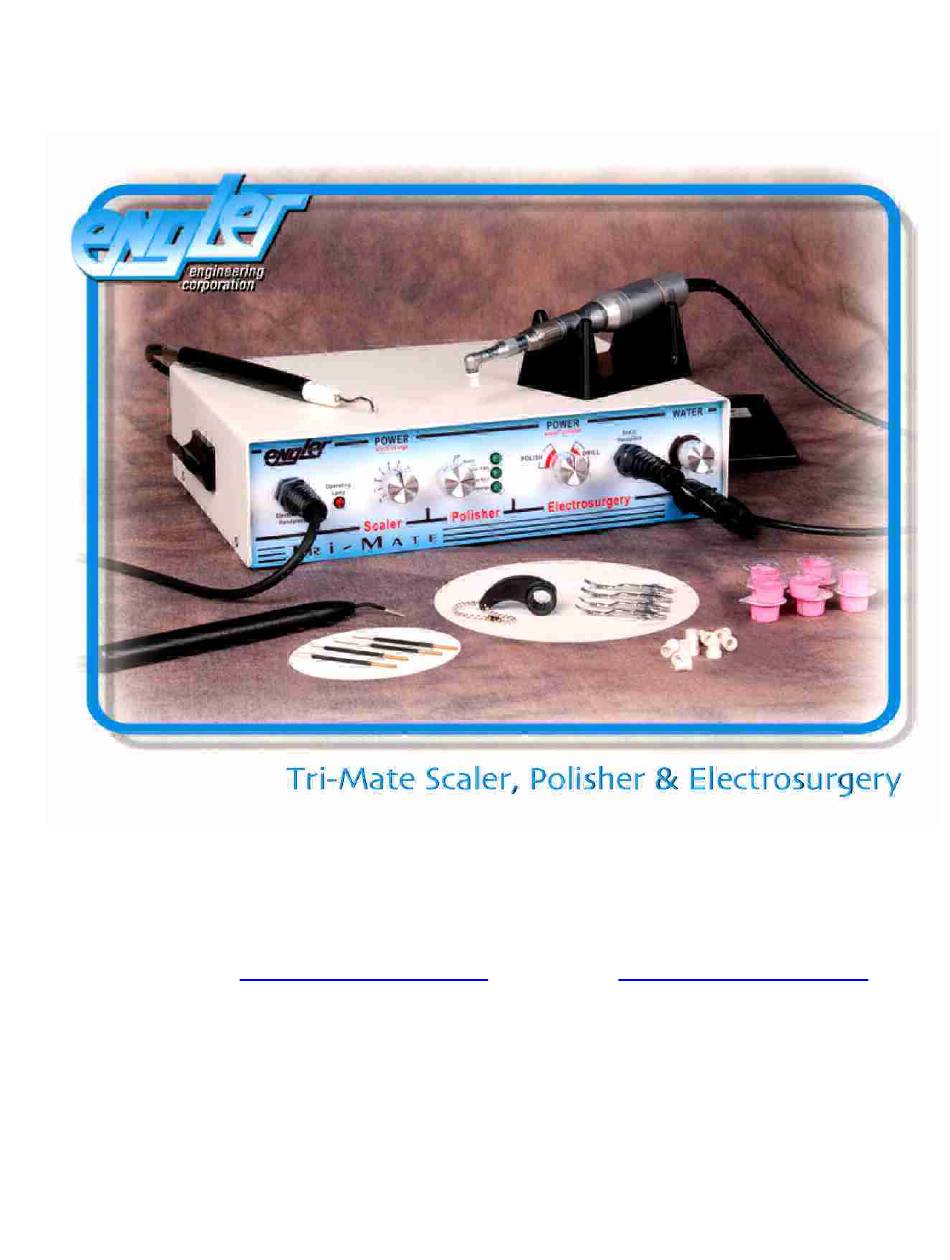

- Page 1 Engler Engineering Corporation 1099 East 47th Street, Hialeah, Florida 33013 800-445-8581 – 305-688-8581 – FAX 305-685-7671 Web site: www.englerusa.com Help site: www.engler411.com VER. B 9 / 12 / 2012 Page 1 of 38...
-
Page 2: Table Of Contents
SADDLE VALVE ASSEMBLY ......................29 WATER TANK INSTRUCTIONS.......................32 WATER TANK CARE & MAINTENANCE..................33 CARE AND MAINTENANCE OF YOUR PORTABLE WATER TANK..........33 OPTIONAL TRI-MATE ACCESSORIES...................34 TECHNICAL DATA..........................36 DIMENSIONS.............................37 WARRANTY INFORMATION......................38 RETURN FOR EVALUATION / REPAIR FORM................39 TRI-MATE LOANER REQUEST FORM ..................40 Page 2 of 38... -
Page 3: Read Before You Start
This is normal for all ultrasonic scalers. Never let the scaling tip touch soft tissue or skin, Engler Engineering Corporation is not responsible for any damage caused by improper use of this device and / or its accessories. -
Page 4: Company Profile
/ high speed / air / water syringe, Excelsior high speed veterinary dental air unit with vacuum / electrosurgery / ultrasonic scaler / low speed / high speed / air / water syringe, Tri-Mate scaler / polisher / electro surge (for veterinary use only), and the A.D.S. 2000 Anesthesia Delivery System / Ventilator (for veterinary use only). -
Page 5: Introduction
0.001 to 0.004 in. (250 to 1000 um). In designing our unique Engler tips, water flows internally through the tip as it vibrates. As the bubbles in the lavage are bacteriocidal, the energy released collapses and destroys the bacterial cell walls. - Page 6 Electrosurgery Electrosurge Tool selector Scaler and polisher ON indicator Power level switch power level Water level knob Polisher connector Electrosurgery Scaling handpiece handpiece Water filter Electrosurgery indifferent ground jack Electrosurgery indifferent ground plug Water quick disconnect (QD) Power Footswitch Electrosurgery indifferent cord ground pad Page 6 of 38...
-
Page 7: Quick Start Guide
QUICK START GUIDE ELECTROSURGERY: 1. Make sure indifferent ground pad is connected. The indifferent ground plug must be connected to the indifferent ground Jack. 2. Indifferent ground plug must be making proper contact with the patient. 3. Turn tool selector switch to electrosurgery. 4. -
Page 8: Tri-Mate Electrosurgery
TRI-MATE ELECTROSURGERY Electrosurgery electronics uses solid-state technology. The unit is ready to operate as soon as the power is applied. The unit accepts electrical power from a standard outlet and converts low frequency 60 Hz cycle to a high frequency radio wave. This rapid reversal of current means ion positions across cellular membranes do not change. - Page 9 Principles of Electrosurgery: The Tri-Mate uses a constant waveform, which produces heat very rapidly to enable the operator to vaporize or cut tissue. As tissue conducts heat, always allow 10 to 15 seconds for the tissue to cool before operating on the same area. The only variable that determines whether the Tri-Mate vaporizes tissue or produces a coagulum is the rate at which heat is produced.
- Page 10 IMPORTANT ITEMS TO REMEMBER WHEN SELECTING ELECTROSURGERY A word about duty cycle: Duty cycle Is a term that refers to the length of time an electro surgery unit should be allowed to run. Generally speaking an electro surgery device uses high energy, which generates a lot of heat at the operative site AND inside the electro surgery device.
-
Page 11: Installation Instructions
INSTALLATION INSTRUCTIONS Before installing or operating your new Tri-Mate, carefully read and follow all of the instructions. IMPORTANT: This device must be connected to a clean, filtered, water supply, capable of delivering 30 to 60 psi (2.0 to 4.2 kg/cm2) of water input pressure. This unit comes with an In-Line water filter (P/N: A52030). - Page 12 IMPORTANT: If you do not feel comfortable doing the water installation yourself, we recommend the services of a professional plumber. Engler Engineering Corporation will not be held liable for any damage including, but not limited to leakage caused by improper installation of our products.
- Page 13 CONNECTING WATER SUPPLY (cont.) PLEASE NOTE: Minerals and foreign particles in the water may cause a buildup or blockage of internal hoses and parts. The water filter supplied with this device must be opened and inspected quarterly and we suggest that the filter disc and O ring be changed out at least once a year.
-
Page 14: Scaler Operating Instructions
Engler Engineering Corporation will not be liable for damage due to improper use of this device. Do not use this device if the water temperature is too hot. Call Engler Engineering Corporation technical support for further help. - Page 15 5. A saliva ejector or HVE is recommended. IMPORTANT: Do not leave the vibrating tip in one place as it can cause serious damage to the tooth or surrounding tissues. Engler Engineering Corporation will not be liable for damage due to improper use of this device.
-
Page 16: Scaler Maintenance
SCALER MAINTENANCE FINAL PROCEDURES AT THE END OF EACH DAY: 1. Make sure the unit is turned off. 2. Detach the tip and nose cone and sterilize. 3. Disconnect the unit from its water source or turn off the water supply. 4. - Page 17 STACK (TRANSDUCER) INSTALLATION / REMOVAL INSTRUCTIONS You have purchased a precision instrument. Please handle gently - It is easily damaged TO REMOVE THE STACK: 1. Unscrew the scaling tip by turning the plastic nosecone counterclockwise using the tip wrench. 2. Remove tip. 3.
- Page 18 Page 18 of 38...
-
Page 19: Polisher Installation
6. Do not rotate the selector switch on the front of the control box between forward and reverse rapidly. always allow a second between the two selections. 7. As this is a precision instrument, always return it to Engler Engineering Corporation for maintenance and repair. -
Page 20: Polisher Operation
POLISHER OPERATION 1. Dampen the rubber cup and place a small amount of polishing paste on it. 2. Rotate the POWER control to the minimum setting in the Prophy Range. 3. Depress the footswitch and the rubber cup will begin to rotate. The speed of rotation may be adjusted to your desired level by readjusting the POWER control. - Page 21 2. Never clean the handpiece with boiling water, chemical solutions, ultrasonic cleaner, or with wire brushes. STERILIZATION: 1. Autoclaving is recommended for the Engler straight handpiece. 2. Clean the handpiece as described above. 3. Lubricate the handpiece as described above .
-
Page 22: Micromotor Maintenance
MICROMOTOR MAINTENANCE The Micromotor is capable of rotational speeds up to 35,000 RPM for use in cutting, sectioning and drilling. It contains sealed bearings and does not require any lubrication. The Micromotor has cooling vents at the back of the unit, Do not allow water, oil, or any other substance to enter these vents. Failure to keep debris out of the Micromotor will shorten the life of the unit and cause permanent damage. -
Page 23: Scaler Troubleshooting
3. Check and / or replace O ring and disc in the inline filter. 4. Water restriction in unit: contact Engler Engineering Corporation repair department. 5. If using a Portable Water Bottle, check water level then pump to pressurize the bottle. -
Page 24: Polisher Troubleshooting
2. Damaged footswitch: contact Engler Engineering Corporation. MISCELLANEOUS: 1. Micromotor speed not adjustable (runs at one speed): Return the complete Tri-Mate with micromotor to Engler Engineering Corporation. 2. If the prophy cup unscrews, (“flies off”) the prophy angle: Micromotor is rotating in the wrong direction, change direction by rotating the selector on the front of the unit to the opposite direction. -
Page 25: Prophy Angle Cleaning And Maintenance Instructions
Angle. Oil is available from Engler it is part number P-01. 8.) Lubricate by placing one drop of oil on each gear 8.) Being careful not to cross-thread, reassemble the... -
Page 26: Water Filter Cleaning Instructions
WATER FILTER CLEANING INSTRUCTIONS SHOULD BE PERFORMED AT LEAST QUARTERLY 1. Turn off water supply to unit or disconnect the male from the female water connector 2. Unscrew filter by firmly holding Point “A” in your left hand and Point “B” in your right hand. (Refer to Figure) Next, unscrew by simultaneously rotating your left hand away from you and rotating your right hand toward you. -
Page 27: Saddle Valve Assembly
SADDLE VALVE ASSEMBLY Installation Instructions: 1. To connect the saddle valve to an existing water source, attach the saddle valve to your existing 3/8" to 1-3/8" copper tubing. Tighten the securing screws evenly. DO NOT OVERTIGHTEN, THIS MAY CAUSE THE COPPER TUBING TO CRIMP AND REDUCE FLOW. Page 27 of 38... - Page 28 Page 28 of 38...
- Page 29 It is very important that you mount the saddle valve after a shut off valve. Engler Engineering Corporation will not be held liable for any damage including, but not limited to leakage caused by improper installation of our products. It is suggested that a professional plumber make any necessary installations or connections.
-
Page 30: Water Tank Instructions
WATER TANK INSTRUCTIONS PT-1 Water Tank DIRECTIONS: 1. Release Air Pressure by PULLING and TURNING pressure relief valve, located on the side of the bottle. 2. Remove pump and cap assembly. 3. Fill tank with distilled water or medicated solution up to the “FILL LINE” mark. Do NOT fill beyond this line. -
Page 31: Water Tank Care & Maintenance
4. Black particles found in water bottle indicates that the pump assembly is deteriorating. Order new pump assembly from Engler Engineering. Pump assembly has been pre-lubricated. -
Page 32: Optional Tri-Mate Accessories
2. DO NOT SUBMERGE IN LIQUIDS, INCLUDING ULTRASONIC SOLUTIONS. 3. Do not heat over 275 ºF (135 ºC). 4. Use only Engler Care Free Prophy Rubber Cups. Other brands will not properly seal the angle, causing premature wear and voiding the warranty. - Page 33 Optional Oiling Accessory Spray lubricant with E-type nozzle for all Engler polisher straight handpieces NET WT. 8.8OZ (249.48 GRAMS) If you have any questions or concerns, please contact us. ENGLER ENGINEERING CORP 800-445-8581 To contact us by INTERNET please use: info@englerusa.com...
-
Page 34: Technical Data
TECHNICAL DATA SCALER: Input power: 120VAC @ 1.2A or 240 VAC@ 0.6 A (set when purchased) Input Frequency: 60 or 50Hz. Transducer Style: Magnetostrictive Operating frequency: 17,800 -18,300 Hz Ultrasonic Generator Data: Auto-Tuned Variable Amplitude Power Control WATER: Input Pressure: 30 PSI (min.) 60 PSI (max) POLISHER: Variable Voltage Style Power Control:... -
Page 35: Dimensions
DIMENSIONS NET WEIGHT: 10 Lbs. (4.5 Kg.) CHASSIS DIMMESION: Length: 12.5 in. (32 cm) Width: 8.25 in. (21 cm) Height: 3.10 in. ( 8 cm) CABLE LENGTH: Handpiece: 96 in. (244 cm) Foot switch: 96 in. (244 cm) Power Cord: 72 in. -
Page 36: Warranty Information
WARRANTY INFORMATION It is imperative that when calling Engler Engineering regarding the operation of your unit, that you have the serial number available for quick reference. The Tri-Mate , scaler polisher combination, with attachments, is warranted to be free from material and manufacturing defects to the original consumer / purchaser for a period as specified below. -
Page 37: Return For Evaluation / Repair Form
Address all returns as follows: ENGLER ENGINEERING CORP. REPAIR DEPARTMENT 1099 EAST 47 STREET HIALEAH, FL 33013 (305) 688-8581 If you have any questions or concerns, please call us. ENGLER ENGINEERING CORP 800-445-8581. 19-01-04 Rev. A Page 37 of 38... -
Page 38: Tri-Mate Loaner Request Form
2. A Credit Card is required – the information must be shown on the form below. 3. It is understood that if Engler Engineering does not receive your unit for repair within five (5) business days of you receiving the loaner, your credit card will automatically be charged $50.00 per week for rental of the loaner.
