HiSpec HSEMLED/ESU-ST Quick Start Manual

MODEL: HSEMLED/ESU-ST
ZAMBEZI 3W EMERGENCY SIGN LIGHT
WITH SELF TEST

MAIN FEATURES:

• Maintained
• Hinged bracket for wall or ceiling mounting
• Legends included
• Suspension kit available: HSSKIT/S-LIGHT
This instruction leaflet contains important information on the correct
installation and operation of your fitting. Read this leaflet fully before
attempting installation and retain for future reference.

SPECIFICATION

Rated voltage: 220-240VAC 50/60Hz
Input Ratings: 3W
Power Factor: 0.45
Input current: 30 mA MAX
Battery (LiFePo4): 3.2V 1500mAh
Battery Life: Up to 4 years
Battery protection: Overcharging and over discharge
protection
Charging time 24 Hours
Minimum emergency duration: 3 Hours
Degree of protection: IP20
Operation temperature range: ta: 0°C - 40°C
Class Class II
Produced in accordance with IEC 60598-2-22
Warranty 3 years
Maintained
L: live
E: earth
N: neutral
Wire range: 3x2.5mm
2
Strip length: 6-7mm
HISPEC ELECTRICAL PRODUCTS LTD UNIT 21 CHORLEY NORTH BUSINESS PARK, CHORLEY, LANCASHIRE PR6 7BX | WWW.HISPEC.CO.UK | VERSION 271022

INSTALLATION

When the Luminaire is connected to AC Power, The Battery is charging.
In case of AC Power Failure. The luminaire will turn into Emergency Mode
Automatically. When the main power supply is restored. It will return to
normal operation & start charging.
1. All servicing should be performed by qualified personel only
2. The device must be connected to the mains power supply through a
fuse dependent by the total amount of the line's power load.

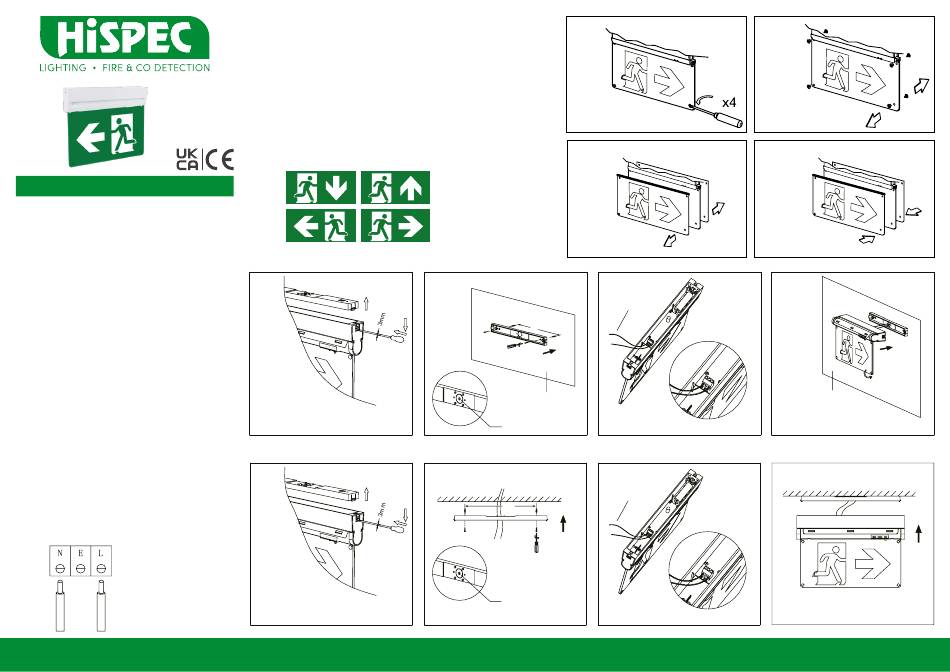

CHANGING OR REPLACING LEDGEND

1. Remove the button (Fig1, Fig2)
2. Change to desired pictogram (Fig3)
3. Reinstall buttons and snap them together together (Fig4)

WALL MOUNT

FIG 1
Insert the flat screw driver
into the buckle groove and
remove the top cover
The flat screw driver should
be no more than 3mm in size

CEILING MOUNT

FIG 1
Insert the flat screw driver
into the buckle groove and
remove the top cover.
The flat screw driver should
be no more than 3mm in size
Fig 1
Fig 3
FIG 2
246mm
Wall
Knock off the hole: Ø22mm
FIG 2
246mm
Knock off the hole: Ø22mm
Fig 2
Fig 4
FIG 3 FIG 4
Connection
Push the lamp body up, hear the "click" sound,
and the installation is completed.
FIG 3 FIG 4
Connection
Push the lamp body up, hear the "click" sound,
and the installation is completed.
o
Rotate 90
Wall
